Jst 1.0 Double Row Shd Series Terminal Connect Custom Electrical Wiring Harness
Pieces
Negotiable
Product information
High-quality Jst 1.0 Double Row Shd Series Terminal Connect Custom Electrical Wiring Harness supplied by Dongguan Xuya Elec. Co., Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Package Size:
50*30*20cm Carton
Production Capacity:
500000000PCS/Year
Transport Package:
5000PCS/Paper Carton
HS Code:
8544422900
Origin:
China
Industry Type:
Communications Wiring Harness
General Wiring Harness:
Crimping Assembling Classes
Process:
Cutting,Strip,Tin,Crimp,Solder,Assembly
Specifications
Package Size:
50*30*20cm Carton
Production Capacity:
500000000PCS/Year
Transport Package:
5000PCS/Paper Carton
HS Code:
8544422900
Origin:
China
Industry Type:
Communications Wiring Harness
General Wiring Harness:
Crimping Assembling Classes
Process:
Cutting,Strip,Tin,Crimp,Solder,Assembly
Trade Term:
FOB, CIF, CFR, EXW
Brand:
JST
Signal:
Low Voltage Wiring Harness
Bandaging Materials:
Plastic Rope
Shape:
Rectangular
Port Of Loading:
Shenzhen Port, Hong Kong Port
Interface Type:
Sur 0.8mm
Payment Term:
T/T, LC, D/P, PayPal, Western Union, Small-amount payment
Wire Size:
UL1061 AWG26
Certification:
VDE, RoHS, ISO9001, CCC, UL
Model NO.:
Wire Harness-1.0-001
Color & Length:
as Per Customer Request
Specification:
custom per customer request
Trademark:
no
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2015-11-06
Annual Revenue Amount:
Not specified
Numbers Of Employees:
21
Preferred Payment Term:
T/T, LC, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port, Hong Kong Port
Certificates:
UL
Product descriptions from the supplier

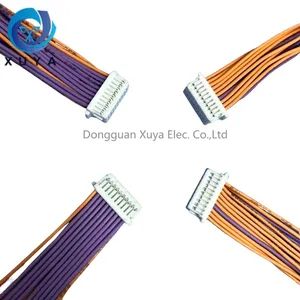

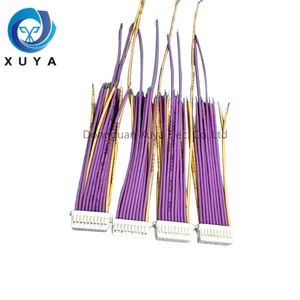

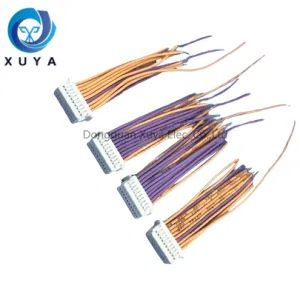

JST 1.0 Double Row SHD Series Terminal Connect Custom Electrical Wiring Harness
Advantages:
All products must 100% tested before packing, and QA will inspect according to AQL MIL-STD-105E .
All materials we use are RoHS compliant.
We also provide Reach , California proposition 65, waterproof IP65/IP67/IP68, Halogen free, ISO10993, CE compliant products.
2.Q: Do you provide samples ?
A:Yes, we could offer samples, but customers will pay cost for delivery.
| Specfication | |
| Product Name: | JST 1.0 Double Row SHD Series Terminal Connect Custom Electrical Wiring Harness |
| Cable: | UL1061 AWG28 Black Red |
| Conductor: | Tin plated copper |
| Copper structure: | AWG28 7/0.127TS |
| Insulation: | PVC |
| Thickness of wire cover: | 0.25mm |
| Overall Diameter: | 0.9mm |

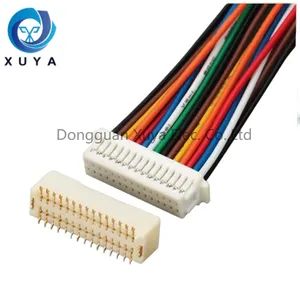

| Connector: | JST SHD (Molex 214092) 1.0mm Pitch A1002 wire to board connector |
| Housing material: | Nylon66 |
| Contact: | Phosphor bronze |
| Pitch: | 1.0mm |
| Poles: | 2p~22pins |
| Operating temperature: | -20ºC~+80ºC |
| Rated Voltage: | 50V |
| Contact resistance: | ≤239Ω/KM (20ºC) |
| Insulation resistance: | ≥10MΩ/KM (20ºC) |
| Comply with: | RoHS,REACH,UL,CSA,VDE,CE,CP65,NP,ISO9001,ISO13485, IPC-620 international operation standard |
| Length: | 20~10000mm , As per customer's request |
| Compatible Wire Range: | AWG32~28,OD0.9mm Max |
| Service: | OEM/ODM orders are accepted, 100% tested before shipment, 1 year warranty |
| Application: | Industrial, Medical, Automobile, Lighting, Audio, Video, Car, Agricultural Vehicle and so on. |
| Packaging: | PE Bag + Paper Carton |
Advantages:
1.Complete Product Certificates(TUV, CE).
2.Advanced and omplete Product Experimental Equipments(All the test and experimental equipments' value is more than 150 million CNY).
3.Less lead time(We have more than 300 employees and staffs in our company).
4.Experience(We have been in wire & cable produce for 30+ years).
5.Customize(Color, length, logo, carry bag, and packing).
1.Q: What's your quality control system?
A: We execute ISO9001 ISO13485 & UL quality management.
All products must 100% tested before packing, and QA will inspect according to AQL MIL-STD-105E .
All materials we use are RoHS compliant.
We also provide Reach , California proposition 65, waterproof IP65/IP67/IP68, Halogen free, ISO10993, CE compliant products.
2.Q: Do you provide samples ?
A:Yes, we could offer samples, but customers will pay cost for delivery.
3. Q: How could I custom packaging?
A: You provide your logo or brand name. Our in-house graphic designer can handle all your graphic requirements on both products and packagings.
4.Q: Can you arrange the transportation for us?
A: Yes, We can arrange transportation by Express(DHL/TNT/UPS/Fedex), by sea or by air.
A: You provide your logo or brand name. Our in-house graphic designer can handle all your graphic requirements on both products and packagings.
4.Q: Can you arrange the transportation for us?
A: Yes, We can arrange transportation by Express(DHL/TNT/UPS/Fedex), by sea or by air.
5.Q: If you can accept OEM and ODM service??
A: Yes, OEM & ODM are available.
A: Yes, OEM & ODM are available.
Tell us your operate environment ( temperature/rated current/rated voltage /length) and purpose, we could generate drawing and sample for you.
