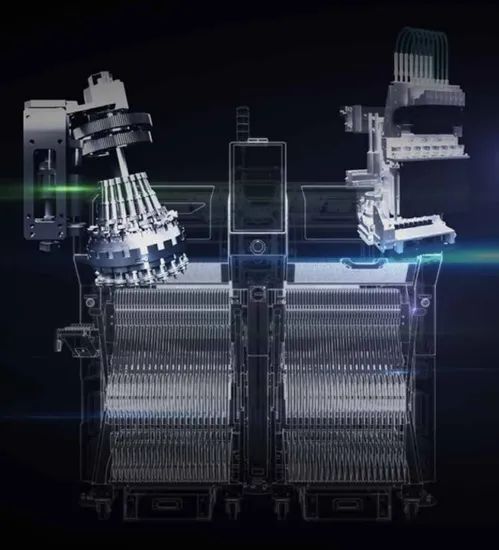

Juki Lx-8 High Satisfaction Low-Power Advanced Chip Mounter for SMT Pick & Place Machine
Piece
Negotiable
Product information
High-quality Juki Lx-8 High Satisfaction Low-Power Advanced Chip Mounter for SMT Pick & Place Machine supplied by Shenzhen Chengyuan Industrial Automation Equipment Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Board Thickness:
0.3~4.mm (Actual Size)
Placement Speed (Optimum):
105,000cph
Warranty:
12 Months
Specification:
1600mm× 1924mm× 1440mm
Machine Dimensions:
1600mm×1924mm×1440mm
Mass (Approximately):
2,400kg or Less
Production Capacity:
20
Automatic Grade:
Automatic
Specifications
Board Thickness:
0.3~4.mm (Actual Size)
Placement Speed (Optimum):
105,000cph
Warranty:
12 Months
Specification:
1600mm× 1924mm× 1440mm
Machine Dimensions:
1600mm×1924mm×1440mm
Mass (Approximately):
2,400kg or Less
Production Capacity:
20
Automatic Grade:
Automatic
Certification:
CCC, PSE, ISO, CE
Trade Term:
FOB, CIF, EXW
Precision:
High Precision
Type:
High-speed Chip Mounter
Trademark:
JUKI
Model NO.:
JUKI LX-8
Origin:
Japan
Port Of Loading:
Shenzhen Yantian Port
Speed:
Super High Speed
Payment Term:
T/T
Transport Package:
Vacuum Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-05-15
Annual Revenue Amount:
Not specified
Numbers Of Employees:
33
Preferred Payment Term:
T/T
Preferred Trade Term:
FOB, CIF, EXW
Port Of Loading:
Shenzhen Yantian Port
Certificates:
CE
Product descriptions from the supplier
| Advanced Flexible Mounter LX-8 | ||||
| model | P20S × P20S | P20S × Takumi | Takumi × Takumi | |
| Board size | Minimum | 50 × 50 mm | ||
| Single clamping | 410 × 400 mm | |||
| Double clamping*¹ | 810 × 400 mm *² | |||
| Board thickness | 0.3 ~ 4.0 mm (actual size) | |||
| Component height | 3 mm | 22 mm | ||
| Component size | Maximum | 5 mm | 65 mm/10 mm× 90 mm/50 mm× 75 mm | |
| Minimum | 0201*¹ | 03015 | ||
| Placement speed (optimum) | 105,000CPH | 9,500CPH | 94,000CPH | |
| Placement accuracy | ±40μm Cpk>=1 | ±35μm Cpk>=1*³ | ||
| Feeder capacity | Tape | Max. 136 | Max. 148 | Max. 160 |
| Tray*4 | Max. 30 | Max. 60 | ||
| Power | 3-phase AC200V (standard) AC200V ~ AC415V (when optional transformer is selected) | |||
| Apparent power | 2.49 kVA | |||
| Operating air pressure | 0.5±0.05MPa | |||
| Air consumption (standard) | 54L /min (ANR) | |||
| Machine dimensions (W×D×H)*5 | 1,600 mm× 1,924 mm× 1,440 mm | |||
| Mass (approximately) | 2,400kg or less | |||
* 1 Please contact for details.
* 2 Factory default
* 3 For laser recognition
* 4 For TR8SR
* 5 D dimension does not include the front operation monitor. H dimension does not include signal towe
| Options | |
| Advanced Flexible Mounter LX-8 | |
| Recognitions system | 54 mm view camera |
| Inspection function | Coplanarity sensor* / Component verification system(CVS)* |
| Conveyor | Support pin automatic placement unit / Support pin / Support sponge |
| Electrical protection | CE compatible specification / Ground-fault interrupter |
| Software | JaNets* / IFS-NX* |
| Component handling and feeders | lectric tape feeder (RF) / Electric stick feeder(Type-N)* / Matrix tray server TR8SR / Matrix tray changer TR6DNV */ Dual tray server TR1RB* / Tray holder / Tape reel mounting base(for RF) / Splicing jig / Electric trolley power station (PW02)* |
| Others | TAKUMI SUB-ATC unit / Nozzles(with RFID tags) / RFID reader ( Nozzle individual control ) / FCS calibration jig / Rear monitor |
Note: * Please contact for detail
