Key Materials (NN nylon, rubber, fabric)
20-98 Meter
$699-998 Meter
$5.5999-4999 Meter
$4.55000 Meter
$3Product information
High-quality Key Materials (NN nylon, rubber, fabric) supplied by Hengshui Xinrisheng Intelligent Conveying System Co.,Ltd. Bulk wholesale pricing ranges from $3 to $6 per Meter with a minimum order of 20 Meter. Inquiry for latest prices.
Cover Thickness Lower:
0mm-4.5mm
Cover Thickness Upper:
1.5mm-12mm
MOQ:
100 M
Tensile Strength(N/Mm):
100-4500
Package Gross Weight:
100.000kg
Package Size:
100.00cm * 100.00cm * 80.00cm
HS Code:
4010120000
Specification:
500-2500m
Specifications
Cover Thickness Lower:
0mm-4.5mm
Cover Thickness Upper:
1.5mm-12mm
MOQ:
100 M
Tensile Strength(N/Mm):
100-4500
Package Gross Weight:
100.000kg
Package Size:
100.00cm * 100.00cm * 80.00cm
HS Code:
4010120000
Specification:
500-2500m
Belt Width:
500-2500mm
Production Capacity:
50000m Per Month
Belt Thickness:
6-16mm
Strength:
6-25MPa
Color:
Black
Fabric:
Cc/Nn/Ep Textile
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Inside Material:
Cotton
Standards:
DIN, BS, ISO, Rma
Model NO.:
DTII
Trade Term:
FOB, CFR, CIF, EXW
Service:
Full-Process Service
Origin:
Hengshui China
Certificate:
ISO9001, ISO14001, SGS, BV
Advantage:
Long Working Life
Feature:
Oil-Resistant, Acid And Alkali Resistant, Tear-Resistant, Heat-Resistant, Cold-Resistant, Wear-Resistant
Transport Package:
Pallet or Steel Frame
Tensile Strength:
Strong
Payment Methods:
Support payments in USD
Payment Term:
To be discussed
OEM:
Welcome
Trademark:
xinrisheng
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2019-07-19
Annual Revenue Amount:
Not specified
Numbers Of Employees:
189
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
Not specified
Certificates:
Business License, CE, Health and Safety managent certificate, Quality Management certificate
Product descriptions from the supplier
The company's rubber conveyor belt series products include Cotton belt, Nylon (NN) belt,Polyester (EP) belt ,Large inclination (wavy sidewall) conveyor belt, Skirt baffle belt, Annular belt, Pattern belt ( herringbone, figure-eight, fishbone,U-shaped,cylindrical, pockmarked pattern conveyor belt, etc., or designed according to user requirements); and can provide various special properties (flame retardant, heat-resistant, acid-resistant, alkali-resistant, cold-resistant,high-temperature) conveyor belt.
General Multi Ply Fabric Covnveyor Belts:
Application in all areas of material handling: Feeding conveyors, overland belt conveyors, loading and unloading conveyors, take-off conveyors, silo conveyors.The carcass construction is for long life in all industrial applications.In the majority of cases are the best solution as far the cost efficiency is concerned.
Manufacturing standards:GB/T 7984,DIN 22102,JISK 6322,AS 1332-2000,SANS 1173:2005,BS 490
Application:General,Abrasion Resistance,Heat Resistance,Oil Resistance,Fire Resistance,Chemical Resistance,Anti-Static

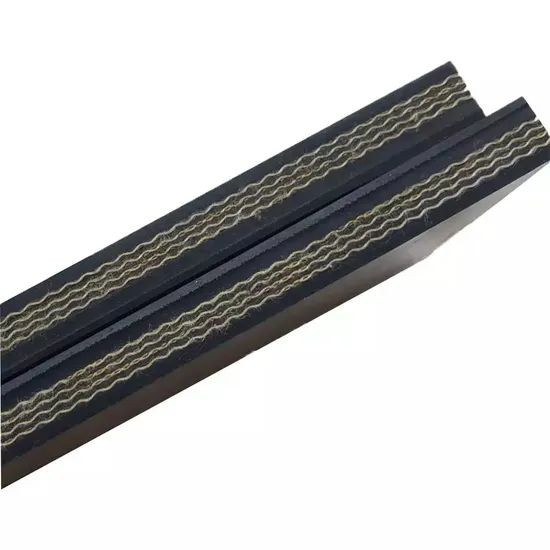

NN(Nylon/Nylon) Conveyor Belt
NN belt is the combination of Nylon in warp and weft and it is widely used in multi-ply conveyor belts for transporting bulk or lumpy materials.Highly flexible.Highly resistant against impact.Highly bendable.
Features:
(1)High tensile strength
(2)Excellent troughability
(3)High resistance against impact
(4)Strong adhesion and less ply separation
(5)Good accommodation to carrier roller and being well kept straight on
Features:
(1)High tensile strength
(2)Excellent troughability
(3)High resistance against impact
(4)Strong adhesion and less ply separation
(5)Good accommodation to carrier roller and being well kept straight on
| Ply Thickness (mm/p) |
Strength Series | Cover Thickness | Width (mm) |
|||||
| 2ply | 3ply | 4ply | 5ply | 6ply | Upper | Lower | ||
| 0.75 | 200 | 300 | 400 | 500 | 600 | 1.5-8 | 0-4.5 | 400-4000 |
| 0.8 | 300 | 450 | 600 | 750 | 900 | |||
| 0.9 | 400 | 600 | 800 | 1000 | 1200 | 500-4000 | ||
| 1.15 | 500 | 750 | 1000 | 1250 | 1500 | |||
| 1.25 | 900 | 1200 | 1500 | 1800 | ||||
| 1.45 | 1600 | 2000 | 2400 | 800-4000 | ||||
| 1.55 | 2000 | 2500 | 3000 | |||||
| Cover Properties of the belts: | Adhesion and elongation of the belt: | ||||||||||
| Cover Grade | Tensile Strength ≥ | Elongation ≥ | Abrasion ≥ | Change Rate of tensile strength and elongation after aging % | Belt Carcass | Adhesive Strength | Elongation | ||||
| Mpa | kgf/cm2 | Between plies N/MM | Between rubber and carcass | Longitudinal elongation at break% ≥ | Longitudinal elongation at load% ≤ | ||||||
| Heavy(H) | 18 | 180 | 400 | 0.7 | Rubber thickness≤1.5mm | Rubber thickness≤1.5mm | Rubber Thickness>1.5mm | ||||
| Medium(M) | 14 | 140 | 350 | 0.8 | Cotton Canvas | NN | ≥4.05 | ≥3.15 | ≥3.50 | 10 | 2 |
| Light(L) | 10 | 100 | 300 | 1 | -30 to 30 | ||||||
Flame Retardant Conveyor Belt:
Which are primarily needed for internal transportation within buildings and in tunnel and mines where safety is of paramount importance, in environments where coal dust, gas, fertilizer or other combustible materials are involved, it is essential that the conveyor belt being used cannot created static electricity that can ignite gases and dust in the atmosphere.
Application:Mining industry, coal cleaning plants, power plants, electric utilities.
Which are primarily needed for internal transportation within buildings and in tunnel and mines where safety is of paramount importance, in environments where coal dust, gas, fertilizer or other combustible materials are involved, it is essential that the conveyor belt being used cannot created static electricity that can ignite gases and dust in the atmosphere.
Application:Mining industry, coal cleaning plants, power plants, electric utilities.
Heat Resistant Conveyor Belts:
Heat resistant conveyor belt with the fabric of high modulus, low shrink and high breaking tensile strength. Heat resistant belt is premium quality SBR rubber compound with very good abrasion resistance and heat resistance to handle hot materials up to 200ºC.
This type belt has high adhesion, less elongation as well as good wearability under normal conditions and against hot materials
Application:Steel mills ( saad metal, sintered ore, coke, pellets, slag, etc.),Cement plants(clinker, cement products, compound raw materials, dry clay, etc.), other (foundry sand, etc.)
Cold Resistant Conveyor Belt:
This type belt cover rubber selected by blend of NR and BR, which has the properties of high elasticity, shock.resistance, cold resistance etc, it suitable for conveying materials in low temperature area of -40°C.
Application: suitable for conveying materials outdoors in freezing area, cold storage, etc.
This type belt cover rubber selected by blend of NR and BR, which has the properties of high elasticity, shock.resistance, cold resistance etc, it suitable for conveying materials in low temperature area of -40°C.
Application: suitable for conveying materials outdoors in freezing area, cold storage, etc.
Oil resistant conveyor belt:
Compounded of synthetic rubber. Oil have a very detrimental effect on the performance and life expectancy of a conveyor belt because it penetrates into the rubber causing it to swell and distort, often resulting in serious operational problems
Application:Wood industry, Cattle feed, fertilizers plant, port installations, iron and steel industry, car industry, cereal silos, sugar factories, urban waste treatment.
Compounded of synthetic rubber. Oil have a very detrimental effect on the performance and life expectancy of a conveyor belt because it penetrates into the rubber causing it to swell and distort, often resulting in serious operational problems
Application:Wood industry, Cattle feed, fertilizers plant, port installations, iron and steel industry, car industry, cereal silos, sugar factories, urban waste treatment.
Chemical Resistant Conveyor Belt:
This type belt is designed to conveying corrosive or acid and alkali materials in order to prevent the ingredient of rubber from being extracted and pollute the conveying material.
Application:chemical plant, paper mill, fertilizer plant, mine, port and other environment with acid and alkali material.
This type belt is designed to conveying corrosive or acid and alkali materials in order to prevent the ingredient of rubber from being extracted and pollute the conveying material.
Application:chemical plant, paper mill, fertilizer plant, mine, port and other environment with acid and alkali material.
Step 1: Prodcution Line.
1.Calender process:4 rollers celender machine is able to stick rubber on both side of the fabric in one time.This can reduce the strength loss of the rubber during the process.
2.Forming process:The forming tension is even between different plies,which can avoid wrinkled fabric and guarantee an even thickness of belt core.
Step 2:Laboratory
1.Abrasion resistance [mm³]:The method used to measure abrasion resistance (ISO 4649 / DIN 53516) involves moving a test piece of the rubber across the surface of an abrasive sheet mounted on a revolving drum and is expressed as volume loss in cubic millimeters, for instance, 150 mm³.
2.Thickness:The actual thickness of the carcass largely determines the suitable usage range for the belt.3.Thickness:The actual thickness of the carcass largely determines the suitable usage range for the belt.
3.Rubber compound test:Moving die rheometer analyzes the characteristics of Rubber Compound.
4.Adhesion between the plies:The strength of adhesion (bond) between the various layers of plies and between the plies and the covers is also a standard part of the assessment criteria.
5.Elongation On multi-ply belts:insufficient elongation can lead to shear stresses, which in turn can cause delamination (separation) issues.
6.Tensile strength at break (N/mm):Virtually all industrial conveyor belts are defined by their tensile strength. The carcass absorbs the force when tension is applied to the belt.
We have an inspection team to inspect the surface and dimension of each conveyor belt. If any problem on belt surface, we will repair at once in our factory.(Length and surface&Thickness &Width inspection)
| MACHINE:We have advanced laser cutting machines, a complete set of intelligent sheet metal forming equipment, robot welding and other processing and testing equipment. |
| PAINTING: We use electrostatic spraying to ensure variety, model and quality of coatings, thinners and curing agents should meet the design requirements and the current relevant national standards. The steel surface should be free of welding slag, welding scars, dust, oil, water and burrs before painting. No mispainting or omission, and the coating should be free of peeling and rust. Inspection method: observation and inspection. Uniform brushing, consistent color, no wrinkles,sagging and bubbles, good adhesion, and the color separation line should be clear and neat. |
| DELIVERY:The goods and product factory certificate, installation and use instructions and drawings, a full set of connectors. After the equipment arrives at the site, the company immediately arranges professional and technical personnel to guide the installation on site to provide customers with satisfactory services. |
| PACKAGE:Packed with steel frame or wooden box, according to the standardfor trade export or according to the special requirements of customers. |
