Kolida Kts442r10LC 2" Accuracy Geodetic Surveying Instruments Laser Total Station
1-9 set
$1,58010 set
$1,480Product information
High-quality Kolida Kts442r10LC 2" Accuracy Geodetic Surveying Instruments Laser Total Station supplied by Shanghai Hexin Survey Instrument Co., Ltd.. Bulk wholesale pricing ranges from $1,480 to $1,580 per set with a minimum order of 1 set. Inquiry for latest prices.
Working Temperature:
-20~+50
Transport Package:
1 Piece Packed in 1 Inner Carton
Warranty:
1 Year Warranty
Production Capacity:
10000 Pieces/ Year
Working Time:
16 Hours
Accuracy:
2"
Weight:
5.8kg
Single Prism:
5000m
Specifications
Working Temperature:
-20~+50
Transport Package:
1 Piece Packed in 1 Inner Carton
Warranty:
1 Year Warranty
Production Capacity:
10000 Pieces/ Year
Working Time:
16 Hours
Accuracy:
2"
Weight:
5.8kg
Single Prism:
5000m
None Prism:
600m
HS Code:
9015800090
Trade Term:
CIF, FOB, CFR
Compensator:
Dual-Axis Liquid Electric
Trademark:
Kolida
Model NO.:
Kts442r10LC
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Horizontal Line:
None
Vertical Lines:
None
Origin:
Shanghai China
Port Of Loading:
Shanghai Port
Specification:
Size: 35cm*45cm*56cm Weight: 12kg
After Sales Service:
Yes
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-08-26
Annual Revenue Amount:
Not specified
Numbers Of Employees:
12
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
CIF, FOB, CFR
Port Of Loading:
Shanghai Port
Certificates:
Star suppliers
Product descriptions from the supplier
PRODUCT DESCRIPTION
KEY FEATURES
Ultra-Powerful, Advanced EDM
800m Non-prism range
5000m prism range
0.1-0.3 second measurement time. Coaxial red laser pointer
Improved performance under foggycondition
Various Communication Interface

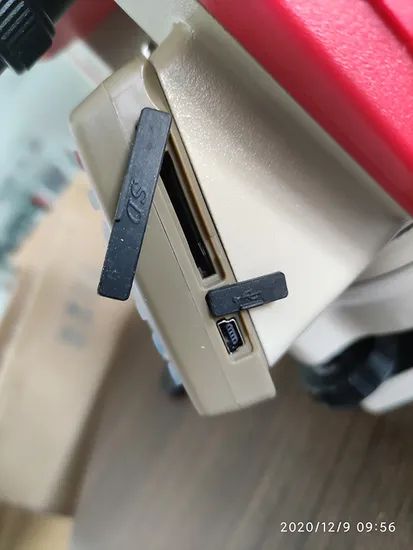

Up to 2GB SD card storageMiniUsB port
RS-232 Serial port
Environmentaly protected
Advanced Angle Encoder System
2 angle accuracy availableImproved 4-ccd sensor designSelf-calibration
Proven high accuracy technologyit
Rugged, Waterproof Design
Waterproof/ dust proof P56 protectionlevel
Atmosphere Temperature sensor· Stable angle accuracy
Alphanumeric keyboard with backlight

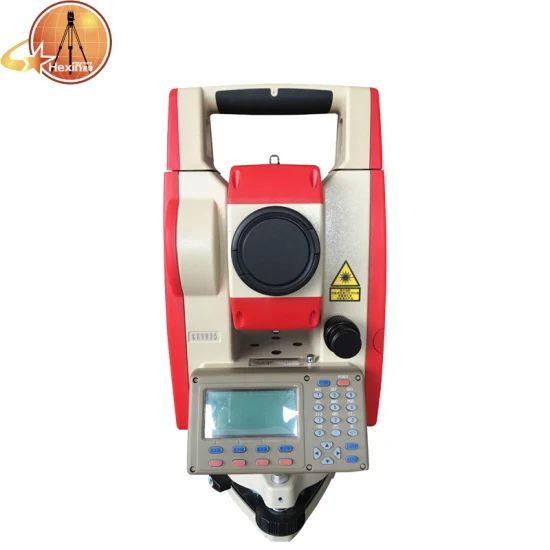

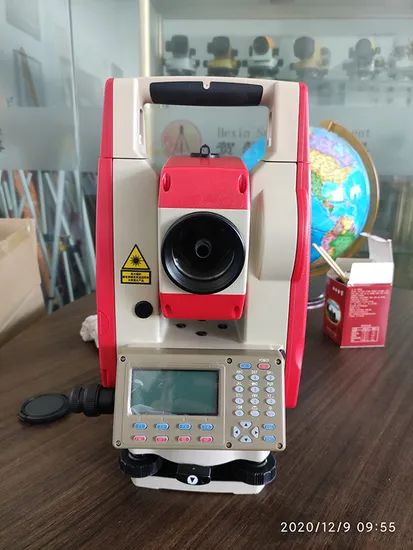

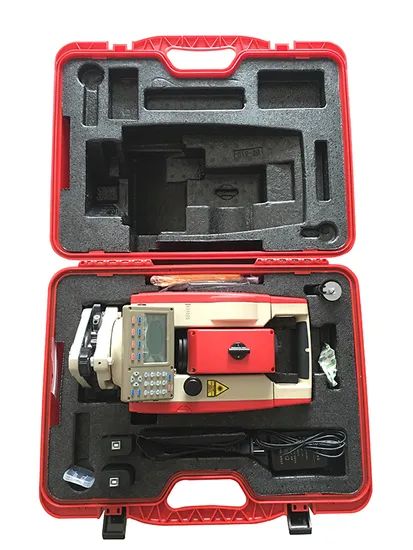

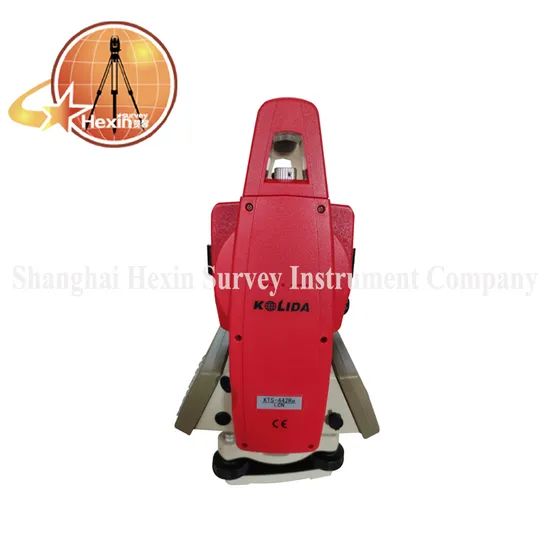

PRODUCT SHOW
PRODUCT SPECIFICATION
| DISTANCE MEASUREMENT | |
| 1P | 5000m |
| 3P | 8-10km |
| Mini prism | 800m |
| Non-Prism | 800m |
| Accuracy Prism mode | ±(2mm+2ppm ×D) |
| Accuracy Non-prism mode | ±(3mm+2ppm ×D) |
| Measuring Time | Fine: 0.3s,(optimal); tracking: 0.1s |
| Meteorologic Correction | Automatic correction by inputing parameter |
| Prism Constant | Automatic correction by inputing parameter |
| ANGLE MEASUREMENT | |
| Method | Absolute Encoding |
| Diameter of the Raster Disk | 79mm |
| Min, Reading | 1"/5" optional |
| Accuracy | 2" |
| Detection Method | Horizontal: dual Vertical: Dual |
| TELESCOPE | |
| Length | 154mm |
| Image | Erect |
| Magnification | 30× |
| Lense diameter of objective | Telescope: 45mm(1.77 in) distance meter: 50mm |
| Field of View | 1°30' |
| Resolving power | 3" |
| Minimum focusing | 1.0m |

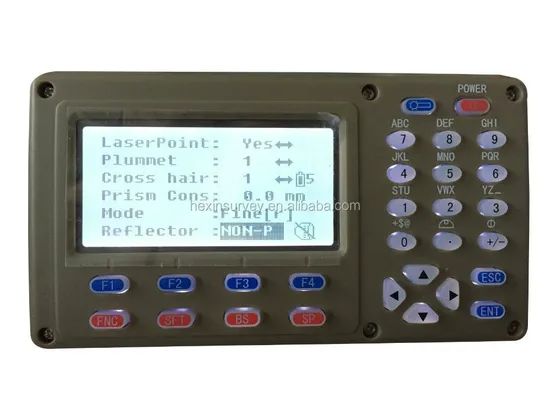

| DISPLAY | |
| No.of unit | 2 sides, 6 lines |
| LEVEL SENSITIVITY | |
| Plate Level | 30"/2mm |
| Circular Level | 8'/2mm |
| TILT CORRECTION | |
| Method | Dual axis Liquid-electric |
| Working range | 3" |
| Resolving power | 1" |
| OPTICAL PLUMMET (OPTIONAL: INTERNAL LASER PLUMMET) | |
| Image | Erect |
| Magnification | 3× |
| Focusing Range | 0.3m~∝ |
| Field of View | 5° |
| DATA STORAGE & INTERFACE | |
| Internal Memory | 2M/ 24000 points |
| External Memory | SD card (up to 32G) |
| Communication Port | mini USB, RS232 |
| GENERAL SPECIFICATIONS | |
| Weight | 5.8kg |
| Working Temperature | -20ºC~+50ºC |
| Working Time | 16h distance mode / 24 hours Angle mode |
| Dimmensions | 160mm*150mm*330mm |
| Water & Dust Proof | IP56 |
| Battery Type | Rechargeable Ni-H Battery 7.4V, 2700mAh, 6V DC |
PAYMENT
COMPANY INFORMETION
Shanghai Hexin Survey Instrument Co., LTDhas 8 years' experience in geodetic surveying and cadastration surveying, we are a professional and leading enterprise in the surveying industry in MainlandChina. We specialize in the R&D and manufacturing and sales of all kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying accessory, GPS receiver, mapping software, etc.The marketing model advocated by us is not a simple sense of "selling products", instead, pre-sales service, services during operation and after-sales service are integrated in entire operating activities. It makes the customers feel that they purchased not only a commodity, but also a professional service.We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
FAQ
Q:How to turn off voice broadcast of receiver?
A: a. Enter the WEBUI, find the voice switch in the settings page and turn it off.
b. Controller Software→Device→Device Setting, turn off the "enable voice", and click"ok"
Q: Can the base station and rover station be interchangeable?
A: The difference between the rover station and the base station is that the accessories are different, the function and hardware configuration are the same.You can use the controller to choose the working mode of the device and set it as the base station or rover station.
Q: What is CORS?
A: CORS is called a continuous operating reference station system. It can be understood as a bas e station that is erected at a fixed known point and works continuously for 24 hours and sends its own data to a specificserverthrough the network. The use of CORS operation eliminates the need for a base station, and CORS is equivalent to a base station in a normal network operation.
