Kraft Paper Bag Making Machine Simple Paper Bag Making Machine
1-19 Set
$78,00020 Set
$50,000Product information
High-quality Kraft Paper Bag Making Machine Simple Paper Bag Making Machine supplied by Wenzhou Rokin Machinery Co., Ltd. Bulk wholesale pricing ranges from $50,000 to $78,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Width:
130-330mm
Paper Bag Width (W):
130-330mm
Production Capacity:
200 Sets
Long:
260-530mm
Paper Bag Cutting Length (C):
260-530mm
Paper Roll Width:
430-1050mm
Paper Thickness:
60-160G/M2
Paper Bag Bottom Width (H):
70-180mm
Specifications
Width:
130-330mm
Paper Bag Width (W):
130-330mm
Production Capacity:
200 Sets
Long:
260-530mm
Paper Bag Cutting Length (C):
260-530mm
Paper Roll Width:
430-1050mm
Paper Thickness:
60-160G/M2
Paper Bag Bottom Width (H):
70-180mm
Max. Paper Bag Speed:
80-200PCS/Min
HS Code:
8441200000
Weight:
8500 Kgs
Characteristic:
Automatic Glue
Machine Type:
Bag Forming Machine
Origin:
China
Computerized:
Computerized
Trade Term:
FOB, CIF, CFR, EXW
Bag Type:
Food Paper Bag
Speed:
High
Size And Shape:
L9200*W2100*H2000mm
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Port Of Loading:
Ningbo Port, Shanghai Port
Material:
Paper
Model NO.:
RKFD-330
Trademark:
ROKIN
Usage:
Shopping Bag, Garment Bag, Leisure Food Bag, Bread Bags, Airsickness Bag, Fruit Bag
Transport Package:
Wooden Case or Film Packing
Specification:
customized
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2018-06-07
Annual Revenue Amount:
Not specified
Numbers Of Employees:
70
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port, Shanghai Port
Certificates:
CE
Product descriptions from the supplier
Product Description

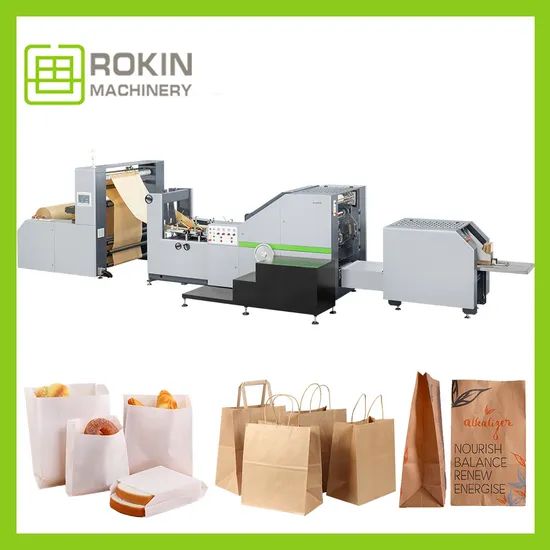

This paper bag production line is designed to manufacture various round-handle paper bags, including food packaging and retail shopping bags. It excels at rapidly producing medium and large-sized paper bags. The system integrates side sealing, roll folding, paper roll cutting, bottom folding, bottom sealing, bottom shaping, and bag ejection in a single continuous process. The unit features intuitive operation, high productivity, consistent performance, and significant labor cost reduction. A built-in photoelectric sensor adjusts cutting length automatically, ensuring accurate cuts. Powered by a Yaskawa PLC control system, the machine delivers reliable and swift operation. A dedicated bag collection platform with automatic counting enhances the efficiency of bag handling during packaging. Capable of handling a wide range of bag dimensions at high speed, it is particularly well-suited for use in food and apparel sectors.
| Model | RKFD-190 | RKFD-330 | RKFD-450 | RKFD-450B | RKFD-550 |
| Paper bag cutting length (C) | 190-370mm | 260-530mm | 260-530mm | 360-800mm | 360-800mm |
| Paper bag width (W) | 80-190mm | 130-330mm | 150-450mm | 220-450mm | 220-550mm |
| Paper bag bottom width (H) | 50-100mm | 70-180mm | 90-200mm | 100-250mm | 100-250mm |
| Paper thickness | 45-120g/m2 | 60-160g/m2 | 60-160g/m2 | 80-160g/m2 | 80-160g/m2 |
| Production speed | 30-200pcs/min | 60-200pcs/min | 60-180pcs/min | 30-120pcs/min | 30-100pcs/min |
| Paper roll width | 290-610mm | 430-1050mm | 570-1290mm | 670-1430mm | 670-1630mm |
| Air supply | 0.6-1.2Mpa | 0.6-1.2Mpa | 0.6-1.2Mpa | 0.6-1.2Mpa | 0.6-1.2Mpa |
| Air consumption | 0.12m3/min | 0.12m3/min | 0.12m3/min | 0.12m3/min | 0.12m3/min |
| Power | 11 KW | 8 KW | 8 KW | 15 KW | 15 KW |
| Weight | 5000 KGS | 8500 KGS | 10000 KGS | 12000 KGS | 14000 KGS |
| Dimension(L*W*H) | 8000*3000*2000mm | 9200*2100*2000mm | 9200*2450*2000mm | 11000*3400*2000mm | 11000*3400*2000mm |
1. The human-machine touch screen interface, the work condition can be shown in real- time.
2. Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3. Material loading and unloading adopts pneumatic or hydraulic lifting structure.
4. Automatic constant tension control system. The tension will be just right from beginning to end.
5. Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving,long life.
3. Material loading and unloading adopts pneumatic or hydraulic lifting structure.
4. Automatic constant tension control system. The tension will be just right from beginning to end.
5. Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving,long life.
6.Thumb buttons, appressed bottom cutting device, bag type have many choices.
7. Don't stop machine adjust double bottom structure, the adjustment will become more intuitive, more simple, more time saving.
8. Glue roller air defense coating control,avoid gluing on besmear brushs hub surface directly, reduce unnecessary trouble.
9. Accurate color tracking system, automatic alarm prompt when color is wrong.
10. Adjustable forming mould structure (side sealing is above the forming mould).
11. Handle production unit, paper handle cutting and gluing are all controlled by servo motor.
7. Don't stop machine adjust double bottom structure, the adjustment will become more intuitive, more simple, more time saving.
8. Glue roller air defense coating control,avoid gluing on besmear brushs hub surface directly, reduce unnecessary trouble.
9. Accurate color tracking system, automatic alarm prompt when color is wrong.
10. Adjustable forming mould structure (side sealing is above the forming mould).
11. Handle production unit, paper handle cutting and gluing are all controlled by servo motor.
Wenzhou Rokin Machinery Co., Ltd. produces fully automated paper bag machines, square-bottom paper bag machines, V-bottom paper bag machines, case production machines, cardboard slitting machines, and other associated machinery and tools.
Q: Are you manufacturer or trading company?
A: We are the manufacturer and have over 200 workers.
Q: Where is your factory located? May I have a visit?
A: Warmly welcome! Our factory is located in Wenzhou city.
Q: How is the quality of your machine?
A: With more than two decades in the machinery industry, we treat quality as the foundation of our business. We source from globally recognized brands and maintain an internal quality control team. Every machine component is individually verified against technical specifications. Our strong focus on reliability and outstanding post-purchase support has built a solid presence in global markets. Comprised of seven dedicated engineers, we also collaborate with leading research organizations. Our mission is to deliver top-tier packaging solutions to our clients.
Q: What information should I let you know if I want to get a quotation?
A: First, Paper raw material: Reel paper or Sheet Paper. Second, sizes of the paper bag, thickness of paper.Send sample bag picture if available.
Then we will recommend the right machine to you!
