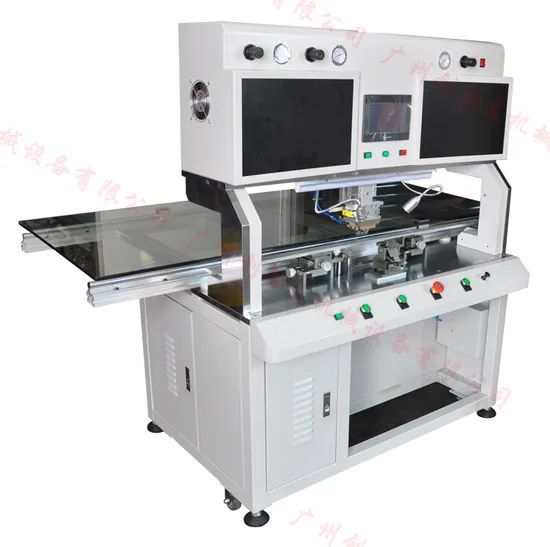

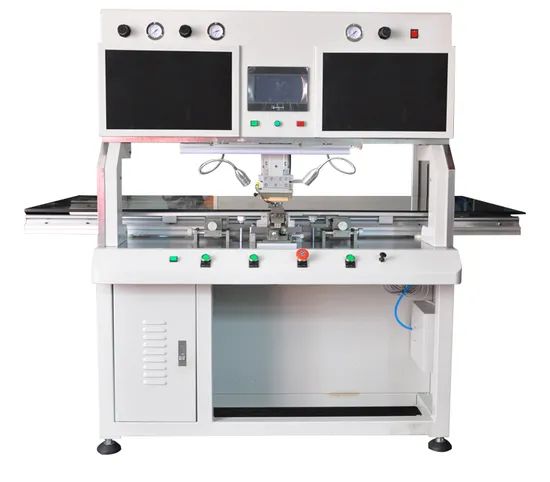

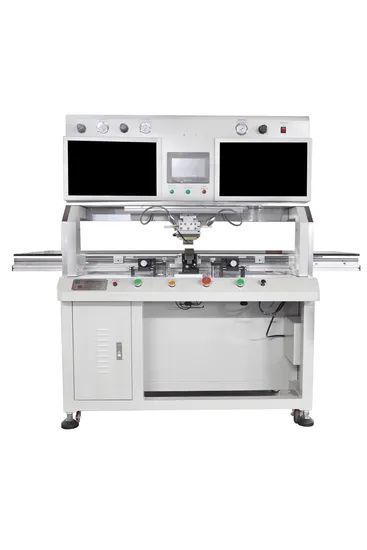

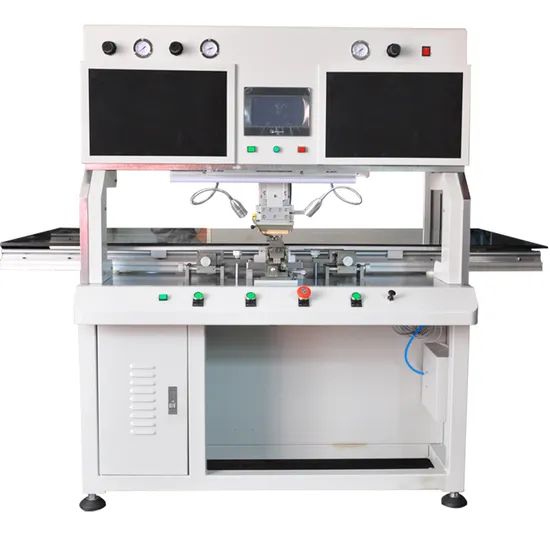

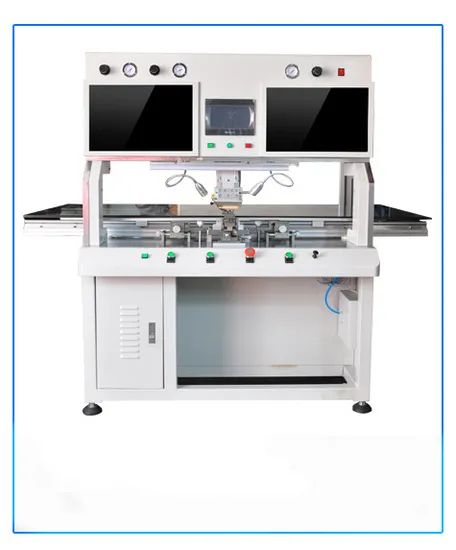

LCD Screen Repairing Machine with Tab Bonding
1-4 Piece
$3,1005 Piece
$3,000Product information
High-quality LCD Screen Repairing Machine with Tab Bonding supplied by Guangzhou Chuang Li You Machinery Co., Ltd.. Bulk wholesale pricing ranges from $3,000 to $3,100 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
1000
Package Size:
123.00cm * 92.00cm * 175.00cm
Package Gross Weight:
450.000kg
Specification:
450KG
Model NO.:
616DH
Trademark:
CLY
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Specifications
Production Capacity:
1000
Package Size:
123.00cm * 92.00cm * 175.00cm
Package Gross Weight:
450.000kg
Specification:
450KG
Model NO.:
616DH
Trademark:
CLY
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF
Origin:
Guangzhou
Port Of Loading:
Guangzhou Huangpu Port
Payment Term:
LC, T/T
Payment Methods:
Support payments in USD
Training:
Teach Online or Learning for Training Videos
Transport Package:
Wooden Box
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-09-27
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF
Port Of Loading:
Guangzhou Huangpu Port
Certificates:
CE
Product descriptions from the supplier
| Model NO. | 618SH | Use LCD Screen Repair | Tab Bonding |
| Other Name | LCD Repair Bonding Machine | Peak Power | 1500W |
| Voltage | AC220V | Hot Pressing Time | Can Be Set (S) |
| Work Pressure | 0.3~0.4 (MPa) |
Machine Shape Size | 1800(L)X1200(W)X1520(H)mm |
| Peak Temperature | + / - 0.3 Degrees Celsius | Weight | 450kg |
Product Description:
Company Name:Guangzhou Chuang Li You Machinery Co., Ltd.
Features:
- Capable of repairing any screen size below 100 inches.
- Refurbishes various screen elements such as black belt, color line, ribbons, and more caused by FPC/TAB/COF.
- Pulse heating precision of +/-0.3ºC.
- Quick response time from room temperature to 180 degrees in just 2 seconds.
- High plane precision on the hot-pressing side of 0.005 mm.
- Low repair rate and user-friendly operation.
| Model number | 618SH |
| Heating Mode | Pulse |
| PID Temperature Control System Brand | Siemens temperature control module |
| Temperature curve:Factory Reset | |
| Peak temperature + / - 0.3 degrees Celsius | |
| From room temperature to 180 degrees response time for 2 seconds | |
| Brand:the United State OMEAG | |
| Heat Press Head | Materials: titanium alloy |
| Place of origin: the United States | |
| Plane precision (hot-pressing side) : 0.005 mm | |
| Industrial Control Unit | PLCS:DELTA |
| HDMI:Weinview | |
| Imaging Unit | COF counterpoint: under counterpoint (optical path: lens>quartz>ITO electrode COF package) |
| PCB counterpoint: no | |
| Microscope magnification: 20 ~ 100 consecutive times | |
| Number of lens: 2 | |
| COF counterpoint display: 19 inch | |
| PCB counterpoint display:no | |
| Light above:yes | |
| Light down:no | |
| COF Trimming Unit | Place of origin: Taiwan |
| Type of guide rail:V guide rail | |
| Accuracy: 0.01 | |
| Adjustable direction: X/Y/R | |
| X-y range: + / - 6.5mm | |
| R range:coarse adjustment 360 degrees, fine adjustment + / - 5 degrees | |
| COF Fixture | Mechanical clamping fixture way,Z to tilt radius can be adjusted/ Adjustable horizontal angel/COF can be extended |
| Lens Fine-Tuning Unit | Type of guide rail: precise cross rail . Control mode: X - Y - Z micrometer control |
| Position Detection | NO |
| Silicone Skin/Tefloon | Change position manually |
| LCD Drive (Platform) | Sliding or fixed optional manually |
| Alarm | Abnormal:temperature/thermocouple anomaly/actions |
| Heat Seal Head Counterpoint | Independent pneumatic,Pressure reducing valve be adjusted manually |
| Control Way | Touch screen + button operation |
| Parameter Setting | According to the need to set to storage more groups of hot-pressing parameters |
| Voltage | AC220 v |
| Peak Power | 1500W |
| Weight | 450kg |
| Size Of Machine (mm) | 1800(L)X1200(W)X1520(H)mm |
Welcome to Guangzhou Chuang Li You Machinery Co., Ltd.
Product: LCD TV Repair Bonding Machine
Payment and Delivery:Payment terms include EXW/FOB/CIF, with options for 100% deposit in advance or 50% deposit and 50% before delivery. Delivery time is approximately one week.
Warranty:Standard 1-year warranty with lifelong technical support.
Training:Choose between factory training or video training. More details availablehere.
Packaging:The machine is carefully packaged for shipping.
Installation:Refer to the video of the 618SH disassembly procedure for installation guidance.

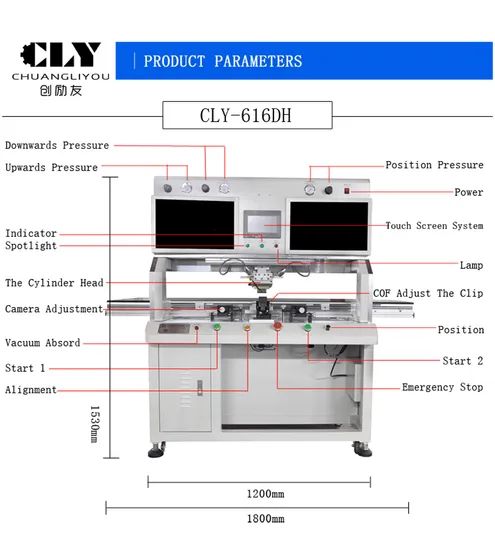

616DH Specification
Double Head Manual platform Automatic Pressure Machine
- Equipment Model Number:618SH (Double Head)
- Device Description:Repair screen machine / Bonding machine
- Device Uses:FPC, COF, TAB, LCD Panel, and PCB combination bonding
- Applicable LCD panel specifications:7″-100″
- Applicable LCD panel thickness:0.3MM-1.1MM (Single glass)
- Bonding IC number:Multiple / Panel Can be set
- Bind direction:X or Y Unidirection
- Bonding IC size:Replaceable blade according to IC specifications
- Device processing time:TFT, 3.8S/chip
- Production Beats:TAB, 100 pcs/H
- Bonding Accuracy:Within ± 1.5μm (support 4K screen)
- Highest positioning accuracy setting:±0.5μm
- Equipment requirements for the work environment:Clean, No dust, Clean room
- Supply Pressure:0.3~0.5Mpa (Dry air source)
- Power Supply:AC 220V±10%, 50HZ, 1500W
- Heating Type:Pulse (rapid heating / cooling and auxiliary cooling function)
- PID Temperature Control System:Brand: DELTA
- Hot pressing head:Materials: Japan Titanium
- Thermocouple Type:K type Original US OMEGA wire
- Industrial control units / Programmer:DELTA PLC FX-C14T
- Image unit:Panasonic image processing system
- COF trimming unit:Origin: Taiwan
- COF Fixture:COF mechanical clamping type
- Lens spinner unit:Control mode: X / Y / Z micrometer control
- Alarm device:Pressure abnormal/ temperature anomalies / thermocouple abnormal / action abnormal
- Hot press head counterpoint:Cylinder stop can be set at any position
- Control mode:Touch screen + button operation
- Parameter setting:Store multiple sets of hot pressing parameters
- Rated voltage:180-220 (customizable 110V)
- Peak power:400-1500W
- Maximum power:1500W
- Actual power:580W
- Body size:1800X1200x1520mm(L*W*H)
- Machine weight:450KG
With 616DH, Guangzhou Chuang Li You Machinery Co., Ltd. provides the necessary accessories for ACF/COF/TAB repairing, eliminating the need to purchase additional accessories.
| No. | Name | Model No. | Quantity | Unit | Specification | Remark |
| 1 | Double Head Bonding Machine | 618SH | 1 | Set | Single Head | |
| 2 | ACF Anisotropic Conductive Film | AC-7206U-18 | 1 | Piece | 1.2X50M | Glass special |
| 3 | ACF Anisotropic Conductive Film | AC-2056R-35 | 1 | Piece | 2.0X50M | PCB special |
| 4 | Acetone Liquid | BT-H1 | 1 | Bottle | 500ML | |
| 5 | Absolute Alcohol | CH3CH2OH | 2 | Bottle | 500ML | |
| 6 | ACF Removing Liquid | G-450 | 1 | Bottle | 500ML | |
| 7 | Hitachi Blue Glue | 1 | Bottle | 100ML | ||
| 8 | Fuji Silicone | 1 | Piece | 50M | ||
| 9 | Tefloon | 1 | Piece | 50M | ||
| 10 | Heating Solder Iron | 1 | Piece | 30W | ||
| 11 | Alcohol Bottle | 2 | Bottle | |||
| 12 | TAB Cutter | 1 | Piece | |||
| 13 | Optical Microscope | 1 | Piece | |||
| 14 | LCD Test Board | HXV59 | 1 | Piece | ||
| 15 | Air Compressor | OTS550 | 1 | Piece | Mute Oil-free | |
| 16 | Cleanroom Wipers | 1 | Piece | |||
| 17 | Cotton Swab | 1 | Piece | |||
| 18 | Handheld Magnifier | 1 | Piece | |||
| 19 | Precision Tweezers | Elbow, Straight | 2 | Piece | High Hardness Hyperfine |
