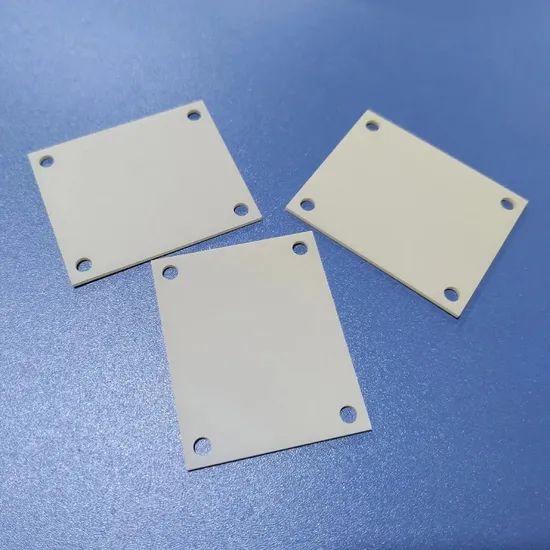

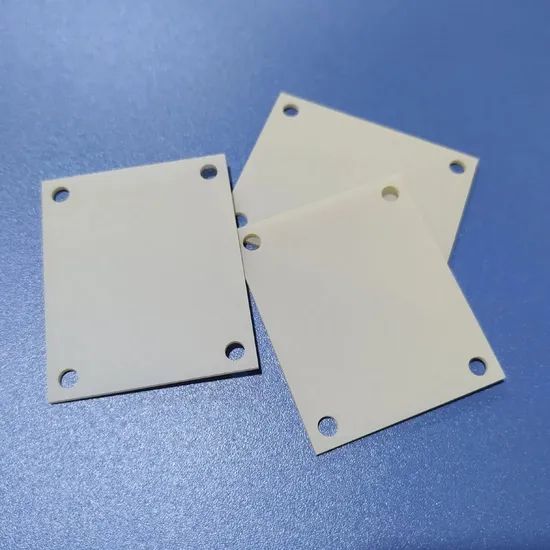

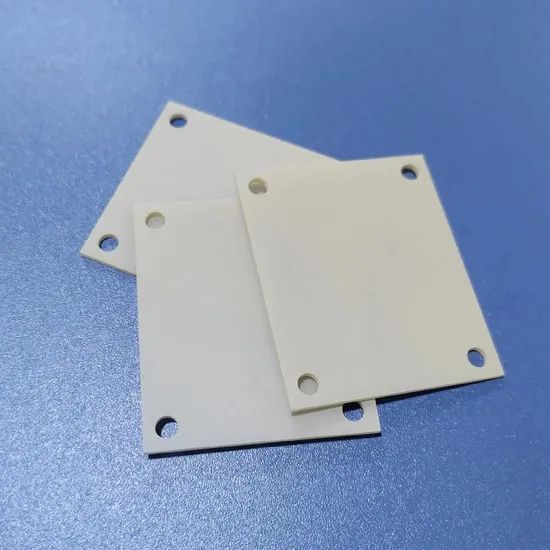

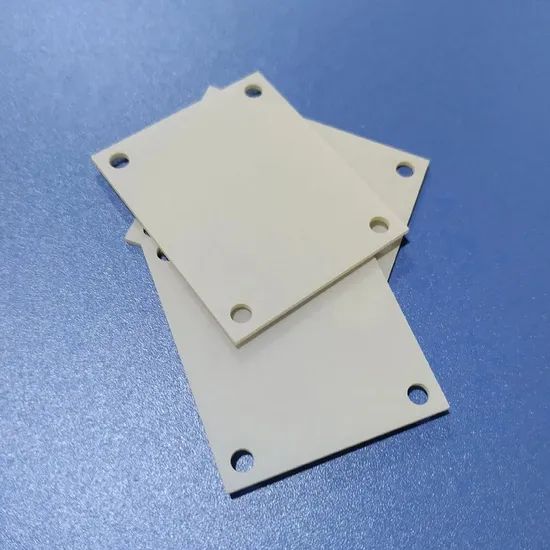

Name: LED Heat Dissipation Aluminum Nitride Ceramic Substrate Customizable Size and Thickness High Temperature Resistant and High Insulation Resistance
Brand: Shenyang Vhandy Technology Co., Ltd
SKU: FD-PRODUCT-LED-Heat-Dissipation-Aluminum-Nitride-Ceramic-Substrate-Customizable-Size-and-Thickness-High-Temperature-Resistant-and-High-Insula
Price: 15 USD
Availability: InStock

Question 1

How can I buy & import Aluminum Oxide from China?

Accepted Answer

You can contact verified China supplier Shenyang Vhandy Technology Co., Ltd through platforms like Freshdi.com to purchase LED Heat Dissipation Aluminum Nitride Ceramic Substrate Customizable Size and Thickness High Temperature Resistant and High Insulation Resistance. For direct inquiries, please contact Mr. Jack Zhang, the company’s representative. The supplier has a 3.4-star rating on Freshdi and has verified. You’ll receive product details, pricing, and shipping terms directly from supplier.

Question 2

What is the current price of LED Heat Dissipation Aluminum Nitride Ceramic Substrate Customizable Size and Thickness High Temperature Resistant and High Insulation Resistance?

Accepted Answer

The supplier Shenyang Vhandy Technology Co., Ltd offers LED Heat Dissipation Aluminum Nitride Ceramic Substrate Customizable Size and Thickness High Temperature Resistant and High Insulation Resistance at negotiation.

Question 3

What are the payments and trade terms for LED Heat Dissipation Aluminum Nitride Ceramic Substrate Customizable Size and Thickness High Temperature Resistant and High Insulation Resistance?

Accepted Answer

For LED Heat Dissipation Aluminum Nitride Ceramic Substrate Customizable Size and Thickness High Temperature Resistant and High Insulation Resistance, Shenyang Vhandy Technology Co., Ltd accepts LC, T/T, PayPal, Western Union, Money Gram as the preferred payment method, the trade term is FOB, EXW, CFR, CIF, DDP, DAP, FCA, and shipments are typically arranged from port Qingdao, Dalian, ensuring secure and timely international delivery.

Question 4

What are the specifications of LED Heat Dissipation Aluminum Nitride Ceramic Substrate Customizable Size and Thickness High Temperature Resistant and High Insulation Resistance from China?

Accepted Answer

LED Heat Dissipation Aluminum Nitride Ceramic Substrate Customizable Size and Thickness High Temperature Resistant and High Insulation Resistance is sourced from China and meets international export standards.
                        Key specifications include: Process: Customizable, Density: ≥3.33G/Cm³, Model NO.: alummina nitride ceramic, Specification: Customizable, Production Capacity: 70000000/Month, Colour: Gray, Trade Term: FOB, EXW, CFR, CIF, DDP, DAP, FCA, Payment Term: LC, T/T, PayPal, Western Union, Money Gram

Item	Unit	Value	Test Standard

1)Colour	-	Gray	3.2

2)Density	g/cm³	≥3.33	GB/T 2413

3)Thermal Conductivity	20℃,W/(m·K)	≥170	GB/T 5598

4)Dielectric Constant	1MHz	8~10	GB/T 5594.4

5)Dielectric Strength	KV/mm	≥17	GB/T 5593

6)Flexural Strength	MPa	≥450	GB/T5593

7)Camber	Length%.	≤2%.	-

8)Surface roughness Ra	μm	0.3~0.6	GB/T 6062

9)Water absorption	%	0	GB/T 3299-1996

Thickness Specification	0.127~0.15	0.15~0.2	0.2~0.254	0.38	0.5

Aluminum nitride ceramic substrate specifications	50.8*50.8	50.8*50.8	50.8*50.8	50.8*50.8	50.8*50.8

			76*76	76*76	76*76

			101.6*101.6	101.6*101.6	101.6*101.6

			114.3*114.3	110*110	110*110

				114.3*114.3	114.3*114.3

				120*120	120*120

				127*127	127*127

					140*190

Note: 1. Products with larger or smaller sizes, thinner or thicker thickness, and other products with special specifications can be laser processed or customized according to customer requirements. 2. Please confirm with us the length and width tolerances of product specifications with shading before placing an order.

Thickness Specification	0.635	1.0	1.5	2.0	Others
Thickness Specification	0.635	1.0	1.5	2.0	Others
Aluminum nitride ceramic substrate specifications	50.8*50.8	50.8*50.8	50.8*50.8	101.6*101.6

	76*76	76*76	76*76	114.3*114.3
	101.6*101.6	101.6*101.6	101.6*101.6	127*127
	110*110	110*110	110*110
	114.3*114.3	114.3*114.3	114.3*114.3
	120*120	120*120	120*120
	127*127	127*127	127*127
	140*190	132*132	132*132
		140*190
Note:1. Products with larger or smaller sizes, thinner or thicker thickness, and other products with special specifications can be laser processed or customized according to customer requirements. 2. Please confirm with us the length and width tolerances of product specifications with shading before placing an order.
