LJ57 Broaching Machine Internal Lathe 1600mm Travel and Speed Features
Set
Negotiable
Product information
High-quality LJ57 Broaching Machine Internal Lathe 1600mm Travel and Speed Features supplied by Yuhuan Cnc Machine Tool Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Processing Precision:
/
Control Method:
/
Pulling Speed(Servo Speed Regulation):
1-7m/min
Rated Pull:
100kN
Rated Travel:
1250/1600mm
Maximum Length Of The Puller:
1450/1800mm
Package Size:
3200.00cm * 2800.00cm * 3585.00cm
Specification:
3600×3200×4000mm
Specifications
Processing Precision:
/
Control Method:
/
Pulling Speed(Servo Speed Regulation):
1-7m/min
Rated Pull:
100kN
Rated Travel:
1250/1600mm
Maximum Length Of The Puller:
1450/1800mm
Package Size:
3200.00cm * 2800.00cm * 3585.00cm
Specification:
3600×3200×4000mm
Package Gross Weight:
5000.000kg
Total Electrical Capacity:
About 27kW
Numerical Control:
CNC/MNC
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF, CFR, EXW
Performance Classification:
High-End CNC Machine Tools
Origin:
Hunan, China
Certification:
ISO 9001
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Model NO.:
LJ5710
Movement Method:
Linear Control
Application:
Metal
Process Usage:
Metal-Forming CNC Machine Tools
Condition:
New
Transport Package:
Provided
Port Of Loading:
Shanghai Port
Payment Methods:
Support payments in USD
Trademark:
YUHUAN
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2004-08-04
Annual Revenue Amount:
Not specified
Numbers Of Employees:
241
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
01, 02, 03, 04, 05
Product descriptions from the supplier

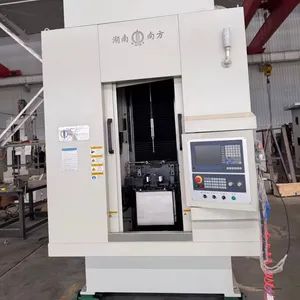

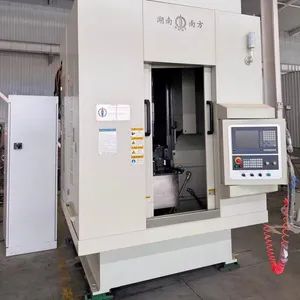

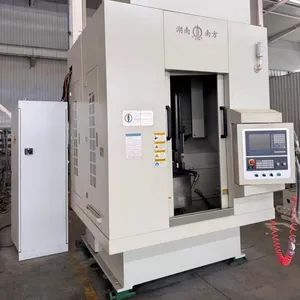

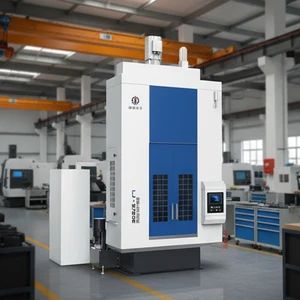

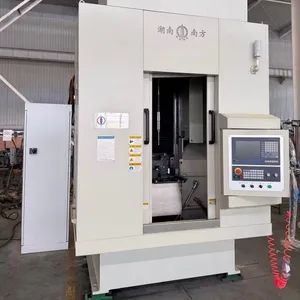

Introducing the LJ5710 Servo-Pull-Up Broaching Machine, meticulously crafted for precision internal teeth work.
Explore the LJ57 Series: Innovative Servo-Pull-Up Internal Broaching Machine
This sophisticated mechanical CNC internal threading lathe showcases precision manufacturing, adeptly handling through-hole machining for internal gear profiles and diverse forms. Its broad applicability is well-established in industries including renewable energy, humanoid robots, planetary gear systems, aerospace, and heavy construction equipment.
Exceptional Features:
1. Minimal Overturning Torque
Our E-type design introduces a groundbreaking four-wire rail support system. This 'robust trapezoidal framework' combines a single drive point and a single tension point, precisely positioned alongside two straight rails. The configuration delivers superior balance in the force axis, significantly reducing the 'pull-induced tipping effect' commonly found in conventional lathes. Invention Patent No.: ZL 2020 10920618.5
2. Prolonged Longevity and Enhanced Stability
Incorporating large steel balls, robust diameters, and imported heavy-duty ball screw pairs, complemented by a high-precision, high-rigidity brand heavy-duty roller linear guide.
3. Unmatched Precision Control
Featuring servo drive and screw drive technology, this equipment is engineered with a sound force structure that guarantees exceptional cutting precision.
4. Adaptable Spatial Design
This machine offers customizable layout configurations to cater to clients' specific needs, showcasing flexibility and versatility in meeting diverse automation demands.
5. Effortless Intelligent Control
Features an intelligent CNC core, built-in code functions, and robust customization options, enabling users to set parameters and run operations effortlessly, even without prior coding knowledge, thereby enhancing both safety and performance.
6. User-Friendly and Intuitive Operation
Operators can swiftly change tools and enjoy automatic positioning for straightforward, hassle-free operation, even with no prior experience.
| SERIAL NUMBER |
TECHNICAL PARAMETER NAME |
UNIT | LJ5705 | LJ5710 | LJ5715 | LJ5720 | LJ5730 | LJ5740 |
| NUMERICAL VALUE | ||||||||
| 1 | Rated Pull | kN | 50 | 100 | 150 | 200 | 300 | 400 |
| 2 | rated travel | mm | 800 | 1250/1600 | 1250/1600 | 1600/1800 | 1600/1800 | 1800 |
| 3 | Pulling speed (servo speed regulation) |
m/ min |
1~7 | 1~7 | 1~7 | 1~7 | 1~7 | 1~5 |
| 4 | Maximum length of the puller |
mm | 1000 | 1450/1800 | 1450/1800 | 1800/2000 | 1800/2000 | 2000 |
| 5 | Total electrical capacity |
kW | About 22 | About 27 | About38 | About 45 | About 53 | About 60 |
| 6 | Net weight of machine tool |
kg | About 5000 | About 8000 (Stroke 1250) |
About 8500 (Stroke 1250) |
About 12000 (Stroke1600) |
Approximately 12500 (Stroke1600) |
Approximately 19500 (itinerary 1800) |
| 7 | Machine tool workspace (lengthx width x height) |
mm | 3200×2800 ×3585 |
3600×3200 ×4000 (Stroke1250) |
3600×3200 ×4100 (Stroke1250) |
3850×3800 ×4800 (Stroke1600) |
3850×3800 ×4900 (Stroke1600) |
4000×3800 ×5500 (Stroke1800) |
Q: What types of machine tools does YUHUAN CNC offer?
A: YUHUAN specializes in CNC double-end grinding machines, vertical/horizontal polishing machines, CNC broaching machines, and fully automated grinding-polishing lines.
Q: Can l request customized solutions based on my part drawings?
A: Absolutely, we offer fully integrated custom services. Simply send over your part designs, specified materials, and tolerance specs, and our R&D specialists will craft an optimized approach.
Q:What industries are your machines widely used in?
A: Our machines are widely used in the automotive, aerospace, hydraulic, bearings, semiconductors, and precision machinery industries.
Q: What is the lead time for standard and customized machines?
A: Standard machines: approx.30-45 working days.
Customized machines: 60-90 working days depending on complexity.
Q: What are your payment terms?
A: We usually accept T/T, L/C, or negotiable international payment methods.
Q: How does YUHUAN guarantee product quality before shipment?
A: We conduct full machine testing, geometric accuracy inspection, trial operation, and issue inspection reportsbefore every shipment.
Q: What after-sales service do you provide to overseas clients?
A: We provide remote video technical support, online troubleshooting, overseas engineer dispatch, spare partssupply,and training services.
Q: Can you help with international logistics and customs clearance?
A: Yes, We work with reliable freight forwarders and can handle FOB, ClF, DAP terms. Export documentation andcustoms support are available.
Q: How can l get a quotation or start cooperation?
A: Please contact us via email, send your inquiry or part drawing, and our sales team will respond within 24 hours.
LJ5710 Servo-Pull-Up Broaching Machine for internal teeth
