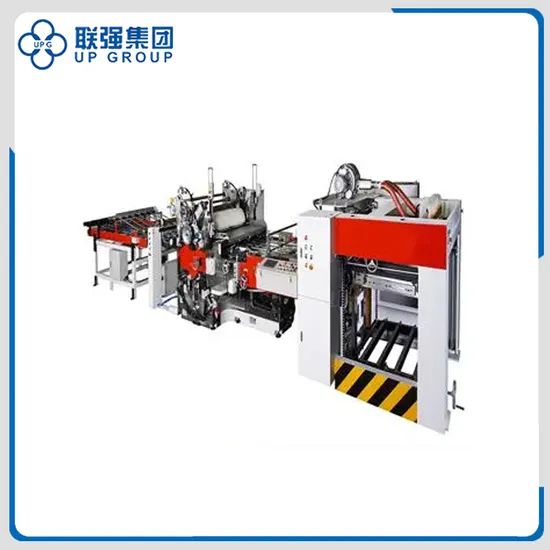

LQ-C45 Metal Sheet Coating Machine
Set
Negotiable
Product information
High-quality LQ-C45 Metal Sheet Coating Machine supplied by Shanghai UPG International Industry and Trade Group Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Sheet Metal Thickness:
0.16mm-0.6mm
Maximum Sheet Metal Specification:
1145*965(mm)
Specification:
6.06MX2.34MX1.95M
Machine Speed:
6000(p/h)
Minimum Sheet Metal Specification:
680*480(mm)
HS Code:
8420100090
Automatic Grade:
Automatic
Type:
Blade Coater
Specifications
Sheet Metal Thickness:
0.16mm-0.6mm
Maximum Sheet Metal Specification:
1145*965(mm)
Specification:
6.06MX2.34MX1.95M
Machine Speed:
6000(p/h)
Minimum Sheet Metal Specification:
680*480(mm)
HS Code:
8420100090
Automatic Grade:
Automatic
Type:
Blade Coater
Origin:
China
Driven Type:
Electric
Trade Term:
FOB, CIF, CFR
Payment Term:
LC, T/T, D/P
Model NO.:
LQ-C45
Port Of Loading:
Shanghai Port
Application:
Tin Sheet
Trademark:
UPG
Packaging Material:
Wood
Packaging Type:
Wooden Case
Transport Package:
Wooden Case
Upload Oil Roller Diameter:
Φ200mm
Lower Oil Roller Diameter:
Φ220mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2003-03-19
Annual Revenue Amount:
Not specified
Numbers Of Employees:
45
Preferred Payment Term:
LC, T/T, D/P
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Shanghai Port
Certificates:
CE for automatic die cutting machine, CE for laminating machine
Product descriptions from the supplier
SONA2024 2.2.1
Product Description
LQ-C45 Metal Sheet Coating Machine
1. The machine is used for food slabs, beverage cans, aerosol cans, metal toys, daily chemical cans, lids, boxes of metal sheets, and the surface of the metal sheets is covered with paint and blank paint. Essential equipment.
2. In order to ensure the safe operation of the machine, the bevel gear is used, and the push rod return mechanism adopts the line drive mode to avoid the corrected iron sheet from being loaded.
3. The rubber roller is made of oil-resistant rubber or polyurethane, which has good wear resistance and long service life.
4. The roller is made of nickel-chromium-molybdenum chilled cast iron or sprayed with WC, which has long service life and high surface precision.
5. Set the main blade cleaning device, auxiliary scraper and scraper tension device.
6. The scraper pressure pneumatic control device ensures that the pressure at both ends of the scraper is consistent and the pressure is moderate to avoid damaging the surface of the roller.
7. It has a biting wheel and a feeding magnetic wheel, which is positioned for front positioning. The machine is provided with horizontal and vertical clearance, and adopts a running correction mechanism. The phase of the rubber roller can be adjusted without stopping by the handwheel.
8. The rubber roller shaft end is connected by end face teeth, and it is very convenient to replace the rubber roller.
9. The oil transfer roller is driven by a separate variable frequency motor that eliminates splashing of the coating and achieves the desired thickness by changing the line speed of the two rolls.
2. In order to ensure the safe operation of the machine, the bevel gear is used, and the push rod return mechanism adopts the line drive mode to avoid the corrected iron sheet from being loaded.
3. The rubber roller is made of oil-resistant rubber or polyurethane, which has good wear resistance and long service life.
4. The roller is made of nickel-chromium-molybdenum chilled cast iron or sprayed with WC, which has long service life and high surface precision.
5. Set the main blade cleaning device, auxiliary scraper and scraper tension device.
6. The scraper pressure pneumatic control device ensures that the pressure at both ends of the scraper is consistent and the pressure is moderate to avoid damaging the surface of the roller.
7. It has a biting wheel and a feeding magnetic wheel, which is positioned for front positioning. The machine is provided with horizontal and vertical clearance, and adopts a running correction mechanism. The phase of the rubber roller can be adjusted without stopping by the handwheel.
8. The rubber roller shaft end is connected by end face teeth, and it is very convenient to replace the rubber roller.
9. The oil transfer roller is driven by a separate variable frequency motor that eliminates splashing of the coating and achieves the desired thickness by changing the line speed of the two rolls.
Specification
Maximum sheet metal specification | 1145*965(mm) |
Minimum sheet metal specification | 680*480(mm) |
Sheet metal thickness | 0.16mm-0.6mm |
Rubber roller size | (Φ324-Φ339)mm(Full coating) Φ329mm(Leave coating) |
Upload oil roller diameter | Φ200mm |
Lower oil roller diameter | Φ220mm |
Machine speed | 6000(p/h) |
