Lab/Pilot/ Experiment Spray Drying Machine Supplier

Lab/Pilot/ Experiment Spray Drying Machine Supplier - Image 1
Lab/Pilot/ Experiment Spray Drying Machine Supplier - Image 2
Lab/Pilot/ Experiment Spray Drying Machine Supplier - Image 3
Lab/Pilot/ Experiment Spray Drying Machine Supplier - Image 4
Lab/Pilot/ Experiment Spray Drying Machine Supplier - Image 5
Lab/Pilot/ Experiment Spray Drying Machine Supplier - Image 6
Lab/Pilot/ Experiment Spray Drying Machine Supplier - Image 1
Lab/Pilot/ Experiment Spray Drying Machine Supplier - Image 2
Lab/Pilot/ Experiment Spray Drying Machine Supplier - Image 3
Lab/Pilot/ Experiment Spray Drying Machine Supplier - Image 4
Lab/Pilot/ Experiment Spray Drying Machine Supplier - Image 5
Lab/Pilot/ Experiment Spray Drying Machine Supplier - Image 6

1 Piece

$5,000

Product information

High-quality Lab/Pilot/ Experiment Spray Drying Machine Supplier supplied by Changzhou Chuangke Drying Granulating Equipment Co., Ltd.. Bulk wholesale pricing is $5,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.

Package Gross Weight:

130.000kg

Production Capacity:

2000sets/Year

Package Size:

70.00cm * 70.00cm * 130.00cm

HS Code:

8419399090

Spray Dryer Control Method:

Automatic Digital Control Panel

Specification:

CE, SGS, ISO, GMP

Refund Policy:

Claim a refund if your order doesn't ship, is missing, or arrives with product issues.

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Specifications

Package Gross Weight:

130.000kg

Production Capacity:

2000sets/Year

Package Size:

70.00cm * 70.00cm * 130.00cm

HS Code:

8419399090

Spray Dryer Control Method:

Automatic Digital Control Panel

Specification:

CE, SGS, ISO, GMP

Refund Policy:

Claim a refund if your order doesn't ship, is missing, or arrives with product issues.

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Operational Method:

Continuous

Flow:

Contra-Flow

Heating Method:

Electric Heating

Heat Source:

Electricity

Trade Term:

FOB, CIF, CFR, EXW

Atomization:

Gas Atomization

Payment Term:

LC, T/T, D/P, PayPal

Use:

Laboratory

Name:

Mini Spray Dryer

Trademark:

OM

Liquid Feed Method:

Peristaltic Pump

Type:

Pressure Spray

Origin:

Shanghai

Port Of Loading:

Shanghai Port

Material Status:

Solution, Cream

Drying Method:

Spray Drying

Structure:

Spraying Drier

Spray Dryer Material Construction:

Stainless Steel and Glass

Payment Methods:

Support payments in USD

Heating Mode:

Transmission

Transport Package:

Wooden Case, Foam

Movable:

Yes

Model NO.:

om

Business Details

Country:

China

Business Types:

Not specified

Main Markets:

Not specified

Main Products:

Year Established:

2007-12-19

Annual Revenue Amount:

Not specified

Numbers Of Employees:

22

Preferred Payment Term:

LC, T/T, D/P, PayPal

Preferred Trade Term:

FOB, CIF, CFR, EXW

Port Of Loading:

Shanghai Port

Certificates:

CE

Product descriptions from the supplier


Product Description

Lab/Pilot/ Experiment Spray Drying Machine Supplier
Name:Small lab spray dryer, mini spray dryer, movable pilot spray dryer

Description:  laboratory spray dryer (device) is a Division I introduce and absorb advanced technology, manufacturing in the country; major components and electrical imports. Machine design compact, portable, self-contained body of the machine, power can be used without auxiliary facilities. PLC control, touch screen display, Chinese and English operation interface.

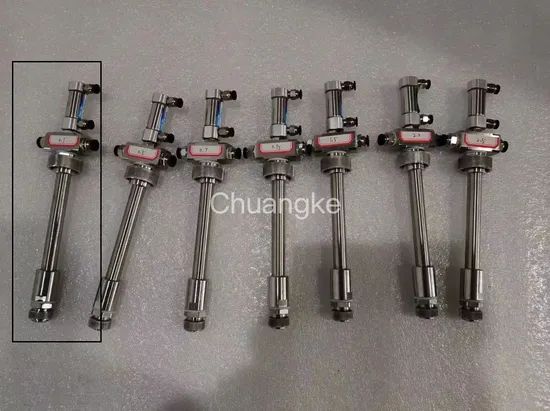

Two fluid Spray dryer atomizer
stainless steel 304 or 316L
Adopting a concentric coaxial airflow atomization system.
Lab/Pilot/ Experiment Spray Drying Machine Supplier

Details description:
Experimental Spray Dryer Application: mainly used in universities, research institutes and food, biology, beverage, chemical, materials, pharmaceutical and other micro-enterprise development and production laboratories particles, such as the solution to all emulsions, suspensions with a wide spectrum applicability, suitable for drying heat-sensitive materials such as biological products, bio-pesticides, enzymes, etc., because the ejected material only when atomized particle size subjected to high temperatures, it is just an instant heat, can keep these active materials which remain after the drying of the active ingredient from damage.

Experimental Spray Dryer Application: beverages, perfumes and dyes, milk and egg products, plant and vegetable extracts, pharmaceutical synthesis, thermal plastic materials, polymers and resins, aromatics, blood products, ceramics and superconductors, Biochemistry products, dyes, soaps and detergents, food and adhesives, oxides, bone and tooth powder, and so on.

Lab/Pilot/ Experiment Spray Drying Machine Supplier

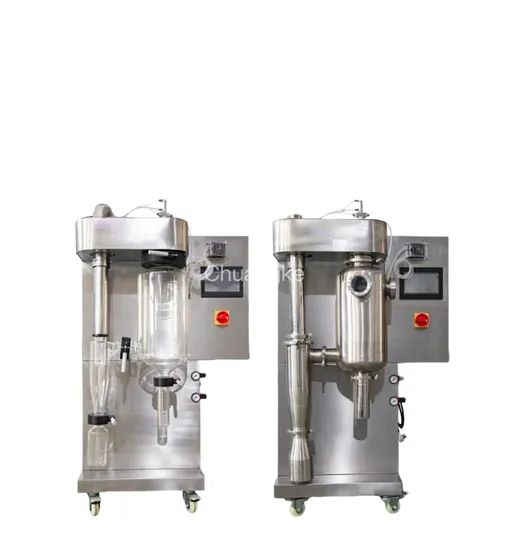

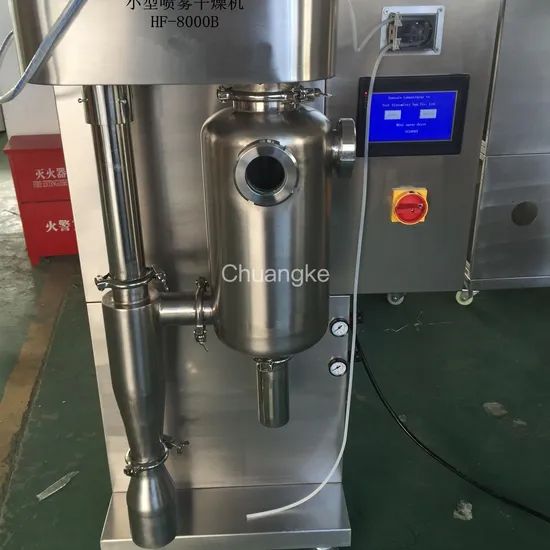

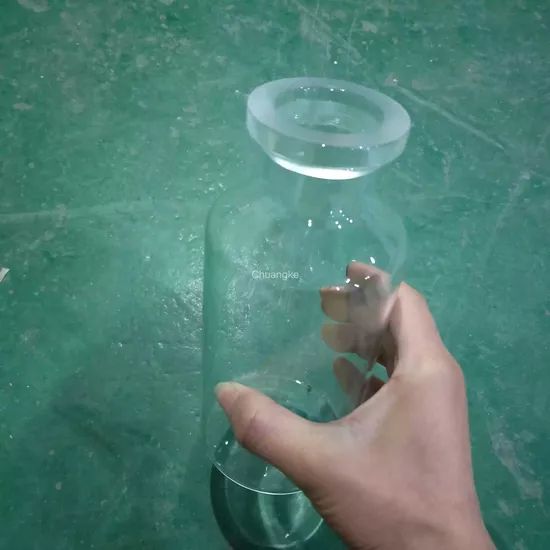

The drying tower is made of high-boron silica glass, which has good light transmittance, corrosion resistance, and is convenient for observation. It can also be made of 316L stainless steel, which is more durable and corrosion-resistant.
Lab/Pilot/ Experiment Spray Drying Machine Supplier

The laboratory spray dryer adopts a PLC liquid crystal touch screen control system with a user-friendly human-machine interaction interface. It supports operation with Chinese-English switching, temperature control, and displays the temperature change curve.
Lab/Pilot/ Experiment Spray Drying Machine Supplier

The fine peristaltic pump infusion system can adjust the flow rate through the peristaltic pump, and the minimum sample processing volume is 50 milliliters.
Lab/Pilot/ Experiment Spray Drying Machine Supplier

Lab/Pilot/ Experiment Spray Drying Machine Supplier
Lab/Pilot/ Experiment Spray Drying Machine Supplier

Technical parameters:
The maximum evaporation rate: 2000ML / H
Inlet temperature range: 30 ºC -280 ºC
Air temperature range: 30 ºC -140 ºC
Heating temperature accuracy: ± 1 ºC
Drying time :1.0-1 .5 S
Peristaltic pump feed range :50-2000ML / H
Dry air flow :0-5 .5M3/Min, maximum pressure 686Pa
Spraying gas flow :0-4 .2 M3 / H, spray pressure 2-8Bar
Spray System: with (0.5 - 2.5MM) of two-fluid nozzle
Ejector (Acupuncture) can be automatically adjusted between :0-20S
Spray / hot air flow: in the same direction, down
Heater power: 3KW 220V
Total power: 3.8KW 220V
Size: 1450MM × 650MM × 650MM (H × L × W)
Weight: 130KG


Model CK-015
Evaporation capacity 1500-2000ml/h
Heating source electricity
Overall size 700*650*1500mm
Power 3KW
Material 316L


Export Packing

FAQ

1. How to choose the right equipment?--- you can contact us via online contact method or via email to tell us your purpose, we will suggest suitable machine for you.
2. Is your price competitive?---Yes, we offer competitive price and 7-24hours after-sale service.
3. How to pay?---- we accept many payment term, such as T/T, Western Union, L/C, Paypal also acceptable
4. When deliver the machine after payment?-----  within 3 days
5. How to deliver the small machine?--- by Courier, air and sea shipping are all available
6. Is will be broken during transport?---It's standard export package filled with foam and we buy insurance.
7. How to use the machine when get is?---manual user will be sent with the machine, and we can adjust the control panel language as you require.
8. What if glass parts broken?-- insurance will pay and we will send the parts immediately again via courier
