Large Acquisition Rates CMOS OES Spectrometer for Determining Mass Fraction of Metals
1 Set
$26,5001 Set
$53,000Product information
High-quality Large Acquisition Rates CMOS OES Spectrometer for Determining Mass Fraction of Metals supplied by WUXI JINYIBO INSTRUMENT TECHNOLOGY CO., LTD.. Bulk wholesale pricing ranges from $26,500 to $53,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Excitation Frequency:
100-1000Hz
Package Size:
104.00cm * 72.00cm * 153.00cm
Specification:
1040*720*1530
Package Gross Weight:
290.000kg
Production Capacity:
30 Sets/Month
Grating Lines:
3000term/mm
CCD Pixel Resolution:
6pm
HS Code:
9027300000
Specifications
Excitation Frequency:
100-1000Hz
Package Size:
104.00cm * 72.00cm * 153.00cm
Specification:
1040*720*1530
Package Gross Weight:
290.000kg
Production Capacity:
30 Sets/Month
Grating Lines:
3000term/mm
CCD Pixel Resolution:
6pm
HS Code:
9027300000
Detector:
Advanced CCD Detector
Light Source Type:
All New Adjustable Digital Light Source and Heps
Vacuum System:
Automatic Control and Monitoring Vacuum Software
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF, CFR, EXW
Analytical Method:
Full Digital and Spectrum Direct Reading
Technological Level:
International Standard
Origin:
Jiangsu Wuxi
Payment Term:
LC, T/T
Port Of Loading:
Shanghai Port
Payment Methods:
Support payments in USD
Model NO.:
W6
Transport Package:
Wooden Package
Trademark:
wuxi jinyibo
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2007-10-16
Annual Revenue Amount:
Not specified
Numbers Of Employees:
62
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
CE, ISO 9001, SGS
Product descriptions from the supplier
Specification:
Metal analyzer
CCD-based, spark discharge, optical emission spectrometer
Software-extendable configuration fro utmost elemental flexibility
Ultra-low limits of detection
Ultra-high speed of measurement
Long-term stability and repeatability
Excellent vertical optical emission spectroscopy
Summary:
W6-The most advanced Arc/Spark-OES with Ultimate Performance for Metal Analysis. It use full-digital technology to replace bulky photomultiplier tube (PMT) simulation technology and in the lead of international spectrometer technology. The adoption of vacuum optical chamber design, full-digital excitation light source, advanced CCD detectors, and high-speed data readout system equips the device with high properties, ultra-low limit of detection (LOD), long-term stability and repeatability. Its analytical precision reaches the world leading level. It is one of the major devices that applies to quality control, material brand recognition, material research and development in the metallic manufacturing, processing and smelting industry. This analyzer sets a new standard for R&D and process/quality control.
Applications:
W6 optical emission spectrometers(spark OES) as one of the major devices that applies to quality control, material brand recognition, material research and development in the metallic manufacturing, processing and smelting industry.W6 are used for applications in metal elemental analysis, trace element analysis for science and industry like Metallurgy, Foundry, Mechanical Engineering, Scientific Research, Product Inspection, Automobile, Petrochemical Engineering, Shipbuilding, Electrics, Aerospace, Nuclear Power, Metallic and Nonferrous Metallic Smelting, Processing and Recycling.
High-end Laboratories Defence, Railways, pure research, etc.
Pure metal applications 99.9%+ purity Al, Pb, Zn, Mg etc.
Regulatory compliance Very low LODs to control Pb, Cd, As etc. (e.g. ship-making)
Integrated Steel Plants C, S, P, B, N, Ti;
Manufacturing Facilities
Warehouse material identification
Base: Fe, Cu, Al, Ni, Co, Mg, Ti, Zn, Pb, Sn, Ag etc
Iron(Fe) and its alloys (Steel alloy, Cast iron, Fe-Low alloy, Fe-Cr steel, Fe-Cast iron, Fe-Cr-cast, Fe-Mn steel, Fe-Tool steel etc.)
Aluminium(Al) and its alloys (Al-Si alloy, Al-Zn alloy, Al-Cu alloy, Al-Mg alloy, Pure-Al alloy etc)
Copper(Cu) and its alloys (Brass, Copper-Nickel-Zn, Aluminum Bronze, Tin-lead Bronze, Red Copper, Be-Bronze, Si-Bronze etc)
Nickel(Ni) and its alloys (Pure Ni, Monel metal, Hadtelloy Alloy, Incoloy, Inconel, Nimonic etc)
Cobalt(Co) and its alloys (Co-orientation, Low Co alloy, Stellite 6,25,31, Stellite 8,WI 52, Stellite 188, F)
Magnesium(Mg) and its alloys (Pure Mg, Mg/Al/Mn/Zn-alloys)
Titanium(Ti) and its alloys
Zinc(Zn) and its alloys
Lead(Pb) and its alloys
Tin(Sn) and its alloys
Argentum(Ag) and its alloys
Small sample, special size sample and wire detection
Parameter:
Metal analyzer
CCD-based, spark discharge, optical emission spectrometer
Software-extendable configuration fro utmost elemental flexibility
Ultra-low limits of detection
Ultra-high speed of measurement
Long-term stability and repeatability
Excellent vertical optical emission spectroscopy
Summary:
W6-The most advanced Arc/Spark-OES with Ultimate Performance for Metal Analysis. It use full-digital technology to replace bulky photomultiplier tube (PMT) simulation technology and in the lead of international spectrometer technology. The adoption of vacuum optical chamber design, full-digital excitation light source, advanced CCD detectors, and high-speed data readout system equips the device with high properties, ultra-low limit of detection (LOD), long-term stability and repeatability. Its analytical precision reaches the world leading level. It is one of the major devices that applies to quality control, material brand recognition, material research and development in the metallic manufacturing, processing and smelting industry. This analyzer sets a new standard for R&D and process/quality control.
Applications:
W6 optical emission spectrometers(spark OES) as one of the major devices that applies to quality control, material brand recognition, material research and development in the metallic manufacturing, processing and smelting industry.W6 are used for applications in metal elemental analysis, trace element analysis for science and industry like Metallurgy, Foundry, Mechanical Engineering, Scientific Research, Product Inspection, Automobile, Petrochemical Engineering, Shipbuilding, Electrics, Aerospace, Nuclear Power, Metallic and Nonferrous Metallic Smelting, Processing and Recycling.
High-end Laboratories Defence, Railways, pure research, etc.
Pure metal applications 99.9%+ purity Al, Pb, Zn, Mg etc.
Regulatory compliance Very low LODs to control Pb, Cd, As etc. (e.g. ship-making)
Integrated Steel Plants C, S, P, B, N, Ti;
Manufacturing Facilities
Warehouse material identification
Base: Fe, Cu, Al, Ni, Co, Mg, Ti, Zn, Pb, Sn, Ag etc
Iron(Fe) and its alloys (Steel alloy, Cast iron, Fe-Low alloy, Fe-Cr steel, Fe-Cast iron, Fe-Cr-cast, Fe-Mn steel, Fe-Tool steel etc.)
Aluminium(Al) and its alloys (Al-Si alloy, Al-Zn alloy, Al-Cu alloy, Al-Mg alloy, Pure-Al alloy etc)
Copper(Cu) and its alloys (Brass, Copper-Nickel-Zn, Aluminum Bronze, Tin-lead Bronze, Red Copper, Be-Bronze, Si-Bronze etc)
Nickel(Ni) and its alloys (Pure Ni, Monel metal, Hadtelloy Alloy, Incoloy, Inconel, Nimonic etc)
Cobalt(Co) and its alloys (Co-orientation, Low Co alloy, Stellite 6,25,31, Stellite 8,WI 52, Stellite 188, F)
Magnesium(Mg) and its alloys (Pure Mg, Mg/Al/Mn/Zn-alloys)
Titanium(Ti) and its alloys
Zinc(Zn) and its alloys
Lead(Pb) and its alloys
Tin(Sn) and its alloys
Argentum(Ag) and its alloys
Small sample, special size sample and wire detection
Parameter:
| Item | Index | |
| Optical System | Focal Length | 400nm |
| Wavelength range | 130nm-800nm | |
| Detector | High resolution CCD Multi detectors | |
| Degree of vacuum | Auto control within 6-20 pa | |
| Pixel resolution | 30pm | |
| Grating line | 2400m1/mm | |
| First order spectral line dispersion rare | 1.2nm/mm | |
| Average resolution ratio | 10pm/pixel | |
| Full spectrum | ||
| Light room temperature is controlled automatically | ||
| Spark Source | Type | Digital arc and spark source |
| Spark frequency | 100-1000HZ | |
| Plasma current | 1-80A | |
| Ignition voltage | >15000V | |
| Excitation light | Optimization of discharge parameters design | |
| High energy precombustion technology HEPS | ||
| Processor | High-speed data synchronization acquisition and processing | |

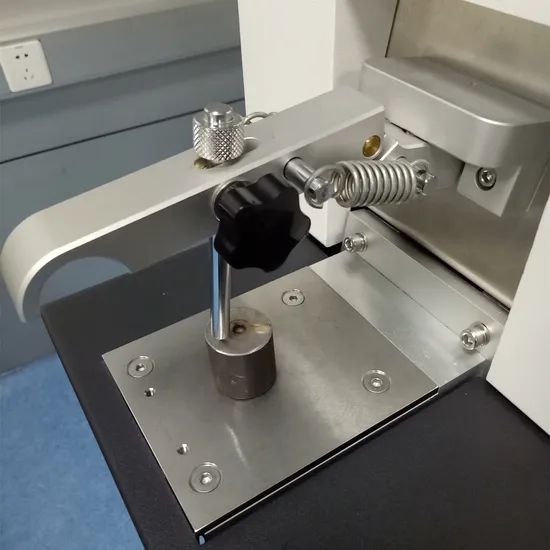

| Spark Stand | Electrode | Tungsten electrode technology |
| Make up | Thermal deformation self-compensation design | |
| Argon flushed with minimal consumption of Argon | ||
| Spray discharge electrode technology | ||
| Adjustable electrode technology | ||
| Others | Measurable elements | Fe,Al,Cu,Ni,Ti,Co,Zn,Sn,Mg,Pb etc |
| Dimension | 650mm(L)*860mm*1200mm(H) | |
| weight | About 235kg | |
| Storage temperature | 0ºC-45ºC | |
| Operating temperature | 10ºC-35ºC, 23±2ºC is recommended | |
| Power | AC220V/50Hz(Customized) | |
| Power consumption | Excitation:700W/Stand by:100W | |
| Argon quality | 99.999%, Argon pressure>4Mpa | |
| Argon consumption | 5L/min during spark mode | |
| Interface | Ethernet data transmission based on DM9000A | |
