Large Capacity Flash Network Wiegand TCP/IP Door Access Control System Software with Remote Control
1 Piece
$1141 Piece
$93Product information
High-quality Large Capacity Flash Network Wiegand TCP/IP Door Access Control System Software with Remote Control supplied by Shenzhen Nordson Electronic Co., Ltd.. Bulk wholesale pricing ranges from $93 to $114 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Operation Humidity:
10-90%Rh, No Condensation
Production Capacity:
10000PCS/Per Month
Max Distance From Reader To Controller:
100m (Suggestion Distance 80m)
HS Code:
123456
Number Of Inputs:
16ea(4 Exit Button, 4 Door Sensor, 4 Wiegand
Q ' Ty Of Users:
20, 000 Users
Quantity Of Readers:
4 PCS
Number Of Outputs:
5 Form-C Relay Output(4 Lock, 1 Alarm)
Specifications
Operation Humidity:
10-90%Rh, No Condensation
Production Capacity:
10000PCS/Per Month
Max Distance From Reader To Controller:
100m (Suggestion Distance 80m)
HS Code:
123456
Number Of Inputs:
16ea(4 Exit Button, 4 Door Sensor, 4 Wiegand
Q ' Ty Of Users:
20, 000 Users
Quantity Of Readers:
4 PCS
Number Of Outputs:
5 Form-C Relay Output(4 Lock, 1 Alarm)
Q ' Ty Of Event Buffers(Offline):
70, 000 Event Buffers
Specification:
CE
Trade Term:
CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW
Origin:
Guangdong
Size Of PCB Board:
L273xw175xh72mm
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Model NO.:
NS-T2/4. net access control system software
Transport Package:
Neutral Packing
Max Q ' Ty Of Controller:
No Limit
Trademark:
Nordson
Collocations:
PCB Board, Case, Power, Power Line, Serial Port Co
Input Format Of Reader:
Wiegand2634(All Card Reader with Compatible Protoc
Port Of Loading:
shenzhen,hongkong
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2010-05-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW
Port Of Loading:
shenzhen,hongkong
Certificates:
Access Control CE, Certificates, Magnetic Lock-CE, Nordson Card Reader CE, Nordson Electric Cabinet Lock CE
Product descriptions from the supplier
Large capacity flash network wiegand TCP/IP door access control system software with remote control
Overview:

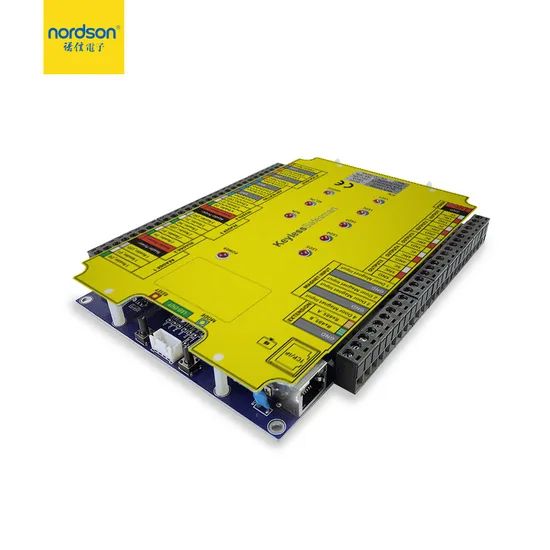

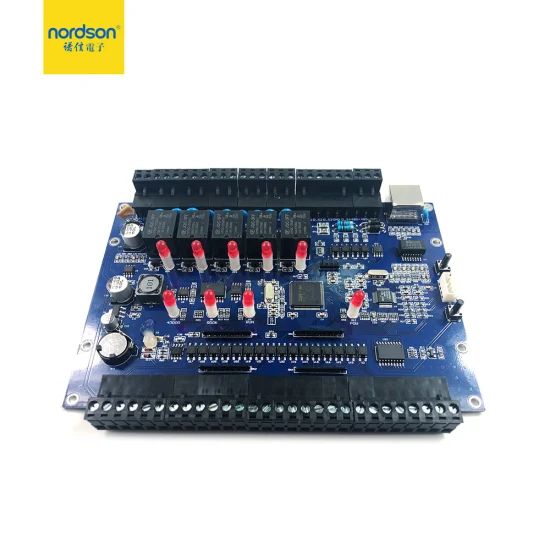

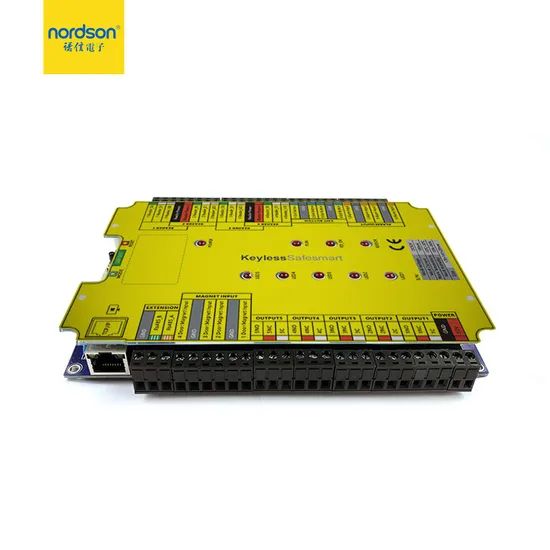

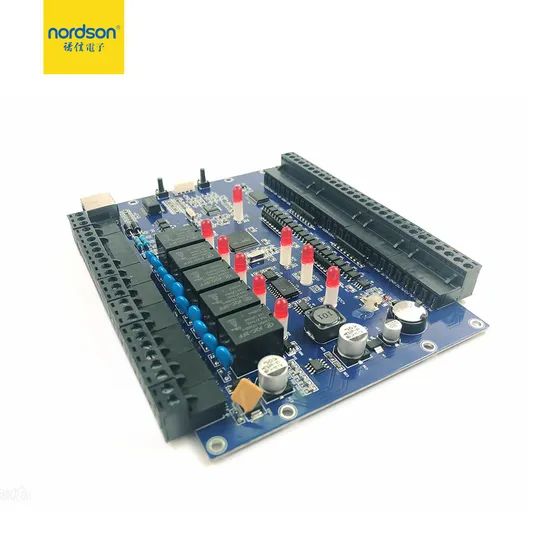

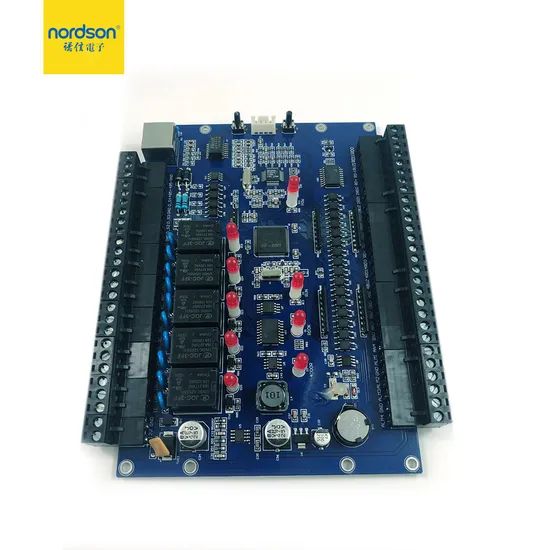

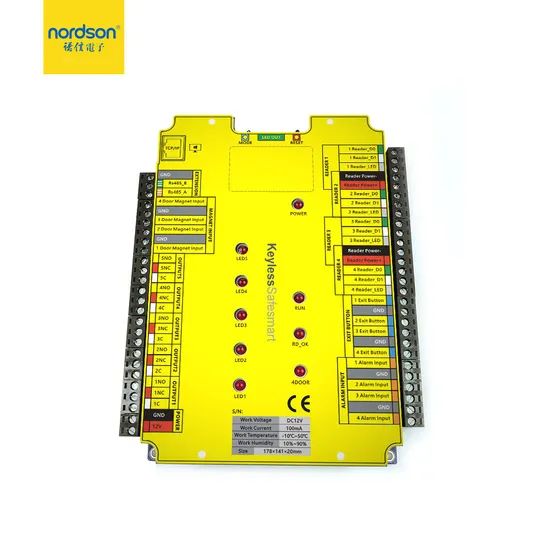

NS-T2/4 is a network access control board with new Industrial standard design , All chips use famous brand manufacturers. It Supports TCP/IP and Extension RS485communication.
Multi-function interfaces are reserved for customers, and a variety of event linkage mechanisms are added in the design, such as swiping card, illegal card, alarm input and other events linkage, such as illegal card alarm, alarm linkage door opening and so on.
Multi-wiegand interface input, RFID card or bidirectional access can be realized, the controller has a strong access control function, can provide a perfect single door access control management.
Realize multi-card opening, password opening, card and password opening and different opening modes in different time.
Nordson multi-door networking access controller, strict production management, bring excellent quality, excellent performance has been widely recognized by many large access control system engineering and card system.
(single or double door TCP/IP communication network type multi-door controller also called multi-door network controller, TCP/IP network type multi-door controller and so on.)
Function:
1. Standard TCP/IP communication, multi-level lightning protection and surge protection
2. Large-capacity FLASH, multi-type circuit design optimization, 10 years of continuous power storage data
3. Input/output protection, components from well-known IC manufacturers
4. Various ways to identify and open the door: card, password, card + password, double card, free access, timing door switch and timing alarm
5. Linkage function of the system: the product has reserved abundant interfaces for customers, and a variety of event linkage mechanisms have been added in the design, which can link other events, such as illegal card alarm and alarm linkage door opening, through swiping, illegal card, alarm input and other events.
6. Perfect access control management
The controller has powerful access control function and can provide perfect management of single door access control.
Realize multi-card opening, password opening, card and password opening and different opening modes in different time periods.
First Card
Multi-card Open
Anti-passback
Remote Control
Multi-door interlock
Threaten Code
Normal Open Automatically
7. Powerful Software
When access controller series work with Anson software, it can achieve more complex security function. Such as, access data search, employee shift, attendance statistics.
Access Control and video device linkage
Attendance
On-line access control
Real-time Remote monitoring
Specification
| Parameter | Single or Two-door Access Control Board | Two or Four-Door Access Control Board | |
| Model # | NS-T1/T2.net | NS-T2/T4.net | |
| Communication | TCP/IP 10M/100M adaptive(Extension RS485) | ||
| Size of PCB board | L330xW288xH72mm | L273xW175xH72mm | |
| Power Supply | DC12V/400mA | ||
| Power Consumption of Circuit Board | Less than 100mA | ||
| Input Format of Reader | Wiegand2634(All card reader with compatible protocol, such as Motorola , HID , EM ,Mifare one etc) | ||
| Quantity of Readers | 2 pcs | 4 pcs | |
| Door Controled | 1/2 pcs | 2/4 pcs | |
| Door opening time extending setting | 1-600 seconds(adjustable) | ||
| Max q ' ty of controller | No limit | ||
| Operation Temperature | -10°C-50°C | ||
| Operation Humidity | 10-90 % RH , No Condensation | ||
| Q ' ty of users | 20,000 Users | ||
| Q ' ty of Event Buffers(offline) | 70,000 event buffers | ||
| Number of Inputs | 8ea(2 exit button, 2 door sensor,2 Wiegand,2 ALARM ) | 16ea(4 exit button, 4 door sensor,4 Wiegand,4 ALARM ) | |
| Number of Outputs | 3 FORM-C Relay Output(2 LOCK,1 ALARM) | 5 FORM-C Relay Output(4 LOCK,1 ALARM) | |
| Max Distance from Reader to Controller | 100m (suggestion distance 80m) | ||
| Max Distance between Controllers | RS232: Communication Distance less than 13m, suggestion distance is 3m or less | ||
| RS485: bus line max length 1200m, suggestion length 1000m or less, if expansion device added, the distance could be 3000m | |||
| TCP/IP: Depends on net coverage area | |||
| Collocations | PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton | ||
| Alarm for long time door open, ilegal break in, intimidate | Yes | ||
| Fire and alarm linkage | If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm | ||
