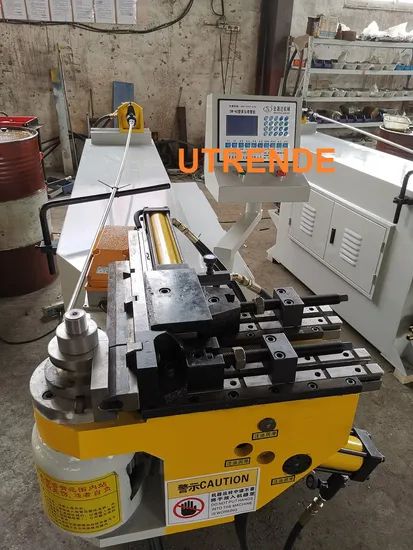

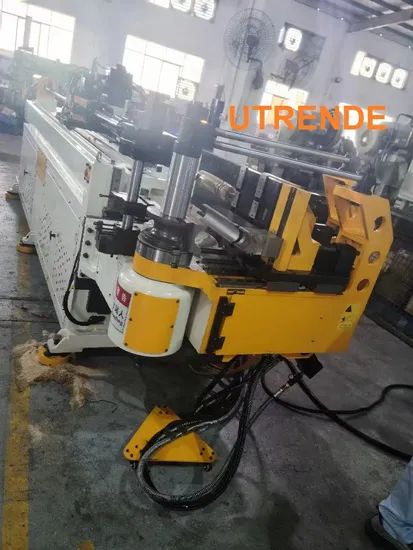

Large Pipe Tube Bending Machine
1 set
$25,0001 set
$35,000Product information
High-quality Large Pipe Tube Bending Machine supplied by Jiangsu Utrende New Energy Technology Co., Ltd.. Bulk wholesale pricing ranges from $25,000 to $35,000 per set with a minimum order of 1 set. Inquiry for latest prices.
Warranty:
1 Year
Production Capacity:
1000 Sets/Year
Specification:
5650 * 1350 * 1360 mm
HS Code:
8462219000
Automation:
Automatic
Applicable Material:
Carbon Steel, Stainless Steel, Copper, Aluminum,
Model NO.:
DW89CNC * 2A/3A - 1S
Trade Term:
FOB, EXW, CFR, CIF
Specifications
Warranty:
1 Year
Production Capacity:
1000 Sets/Year
Specification:
5650 * 1350 * 1360 mm
HS Code:
8462219000
Automation:
Automatic
Applicable Material:
Carbon Steel, Stainless Steel, Copper, Aluminum,
Model NO.:
DW89CNC * 2A/3A - 1S
Trade Term:
FOB, EXW, CFR, CIF
Payment Term:
LC, T/T, PayPal, Western Union
Applicable Shape:
Round, Square, Rectangle, Oval
Port Of Loading:
Shanghai
Trademark:
UTRENDE
Transport Package:
Wooden Case
Origin:
Zhangjiagang City, Jiangsu Province, P. R. China
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2023-07-25
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
Shanghai
Certificates:
SGS CERTIFICATE
Product descriptions from the supplier
| MODEL: DW89CNC * 2A/3A - 1S | |
| 1 | For electrical control system, adopting the global well-known controller, such as mitsubishi and yaskawa servo drives, servo motor, positioning module, CPU, and etc.. The performance is strong. |
| 2 | Super large CPU can accommodate 400 sets of file editor. When such as inadequate, purchase additional transfer software installing on the computer, save files to hard drive, wireless expansion of marshalling. (Optional purchase) |
| 3 | Industrial computer installed with Windows operating system to work together with servo system. Besides the advantages of servo drive, it also has the convenience of file management under windows operating system. Files can also be stored on hard drives or floppy disk, wireless expansion of marshalling. |
| 4 | With the function of automatically detects errors and faults, and display on screen, make it easy for operators to match the obstacles. |
| 5 | All processing data are input via touch screen, Each bend can set the compensation value, speed, and demoulding gap due to different material changes. |
| 6 | Each bend of the same pipe can be individually programmed with 5 action sequences and 10 speed levels, let the operator use it together. Improve work efficiency andreduce pipe fitting interference points. |
| 7 | The touch screen can be switched between Chinese and English. Display in other languages also can be ordered upon request. |
| 8 | The feeding method can be selected as direct feeding or pinch feeding according to different needs, and XYZ coordinates can be automatically converted into YBC processing values. |
| 9 | Once the data is edited, a key is available to protect the data from being modified arbitrarily. (Optional) |
| 10 | The electric control system is equipped with a heat exchanger for automatic cooling. If necessary, a CNC air conditioner can be purchased to ensure the life of the electric control system. (Optional) |
| 11 | Can be connected to a printer to print out all the data on the screen. (Optional) |
| 12 | The machine can be equipped with a communication interface and a data machine. the network is connected by the company, and the engineers do remote control, real-time monitoring, software update, troubleshooting, and so on. (Optional) |
| 13 | The feeding position of the feeding trolley, safety device, digital mold interference position, and guide mold interference position can be manually fine-tuned and automatically memorized to eliminate human measurement errors and machine collision losses. |
| 14 | The feeding shaft will be automatically detected before working to avoid collision with the machine. |
| 15 | During actual bending, you can use decomposition actions to observe interference points, modify the work, and improve efficiency. |
| MODEL: DW89CNC * 2A/3A - 1S | |||
| 1 | Maximum bending diameter * thickness (carbon steel) | φ 89mm × 6mm | |
| 2 | Maximum bending radius | R250mm | |
| 3 | Minimum bending radius | According to pipe diameter | |
| 4 | Maximum bending angle | 190˚ | |
| 5 | Maximum feeding length | 3000mm | |
| 6 | Feeding method | Direct feeding / Clamping feeding | |
| 7 | Working Speed | Bending speed | Max 30˚/s |
| Rotary speed | Max 160˚/s | ||
| Feeding speed | Max 800 mm/s | ||
| 8 | Accuracy | Bending accuracy | ±0.1˚ |
| Rotary accuracy | ±0.1˚ | ||
| Feeding accuracy | ±0.1mm | ||
| 9 | Information inputting method | 1. Axis (X Y Z). 2. Working Value (Y B C) | |
| 10 | Bending method | 1. Servo bending 15KW (more than 3 axis) 2. Hydraulic bending |
|
| 11 | Power of rotary servo motor | 1.5 kw | |
| 12 | Power of feeding servo motor | 2 kw | |
| 13 | Number of elbows allowed for pipe fittings | 1. 18 pcs (PLC type) 2. 33 pcs (Industrial computer type) | |
| 14 | Max storable sections | 1. 200 units (PLC type) 2. 1 million units (Industrial computer type) | |
| 15 | Hydraulic motor power | 11 KW | |
| 16 | System Max pressure | 14 MPa | |
| 17 | Weight of machine | 5500 Kg | |
| 18 | Machine dimension | 5650 * 1350 * 1360 mm | |
Craftsmanship in every detail
Made of high-strength, high-hardness, thickened materials with precise connection technology.
1.For angle control wheel,using internal password controlled encoder of Japanese brand, the performance is more stable.
2.For core pulling cylinder,control pipe fittings not to deform during bending process.
3.For throttle valve,control the flow rate and adjust the cylinder clamping speed.
Made of high-strength, high-hardness, thickened materials with precise connection technology.
1.For angle control wheel,using internal password controlled encoder of Japanese brand, the performance is more stable.
2.For core pulling cylinder,control pipe fittings not to deform during bending process.
3.For throttle valve,control the flow rate and adjust the cylinder clamping speed.

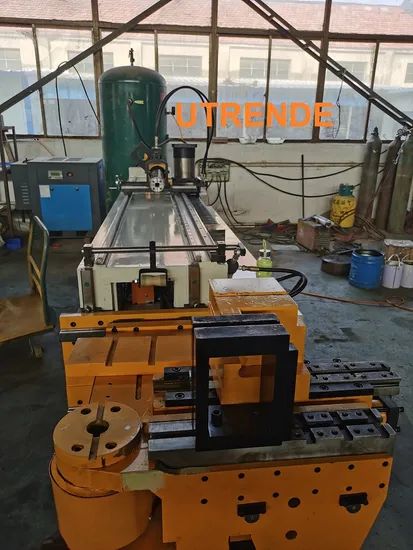

Core pulling cylinder & Hydraulic system

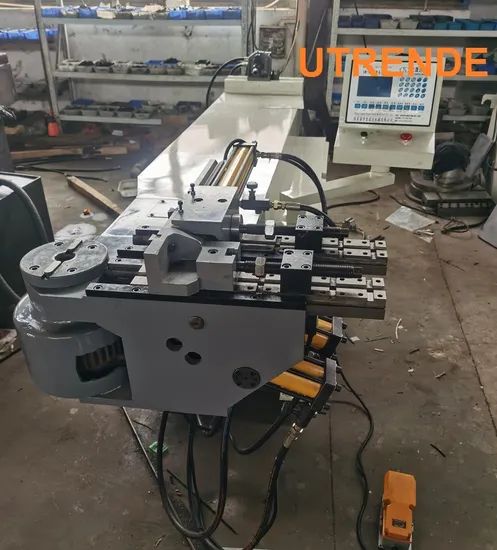

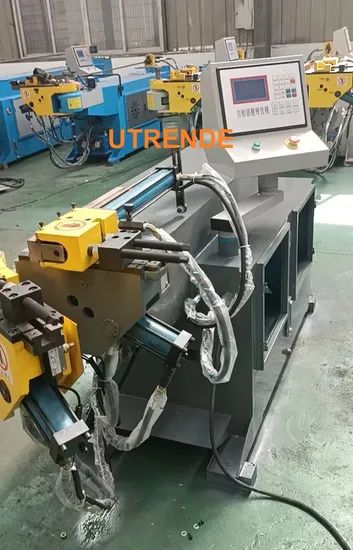

Touch screen displays all input information.

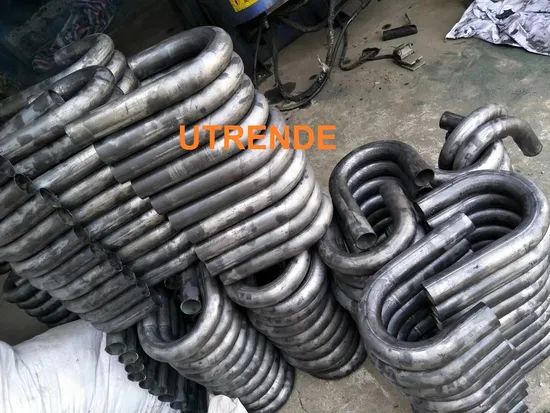

Pipes after bending.
