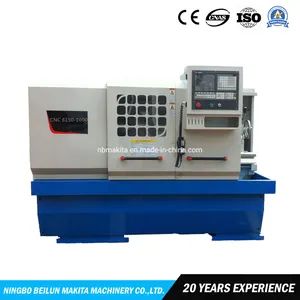

Large Spindle Bore CNC Lathe Machine Tool Condition New Origin Ningbo Model NO. 6150 HS Code 8458110090 Controlling Mode CNC
Set
Negotiable
Product information
High-quality Large Spindle Bore CNC Lathe Machine Tool Condition New Origin Ningbo Model NO. 6150 HS Code 8458110090 Controlling Mode CNC supplied by Ningbo Beilun Makita Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Max.Workpiece Length:
1000mm
Voltage:
110/220/380/415V 1phase/3phase 50/60Hz
Weight/Aprroximate Weight:
1750kg
Maximum Spindle Speed:
2500rpm/Min
Max.Swing Over Slide:
250mm
Specification:
2830*1550*1620mm
Tool Holder:
4/6/8 Station Turret
Spindle Motor Power:
5.5kw
Specifications
Max.Workpiece Length:
1000mm
Voltage:
110/220/380/415V 1phase/3phase 50/60Hz
Weight/Aprroximate Weight:
1750kg
Maximum Spindle Speed:
2500rpm/Min
Max.Swing Over Slide:
250mm
Specification:
2830*1550*1620mm
Tool Holder:
4/6/8 Station Turret
Spindle Motor Power:
5.5kw
Max. Swing Max Swing Over Bed:
500mm
Production Capacity:
500set/Year
Model NO.:
6150
HS Code:
8458110090
Dia Of Spindle Bore:
86mm
Automatic Grade:
Automatic
Controlling Mode:
CNC
Power Source:
Electric
Trade Term:
FOB, CFR, CIF, EXW
Controller:
Fanuc/Siemens/GSK
Setting Mode:
Floor-type
Certification:
GS, CE, ISO 9001
Precision:
High Precision
Spindle Taper:
ISO-A2-6
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Port Of Loading:
NINGBO/SHANGHAI PORT CHINA
Condition:
New
Origin:
Ningbo
Transport Package:
Ply-Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-03-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
NINGBO/SHANGHAI PORT CHINA
Certificates:
a high precision programmable mobile tailstock structure for CNC machine tools, a kind of automatic and High Precision NC Machine tool for oblique bed, a Precision orientation Spindle structure of NC Machine tool, a self pressurizing balance structure and its application in machining center
Product descriptions from the supplier
1.The surface of the bedways is supersonic frequency hardened and precision grinding.
2.Independment headstock, also all gears and high-low headstock can be optional to fit different workpiece cutting.
3.Spindle bore 80mm,hydrualic chuck,4/6/8 station electrical and hydraulic chuck can be chosen.
4.Kinds of appearance, contral sysem and intergrated stand can be chosen.
Product show
Specification
| Item | Speicification | CNC6150 |
| Capacity | Max swing overbed | 500mm |
| Max.swing over slide | 250mm | |
| Bed width | 360mm | |
| Max.workpiece length | 1000mm | |
| Spindle | Spindle transmission form | Spindle infinitely variable speed |
| Maximum spindle speed | 300-2000r/min | |
| Dia of spindle bore | 80mm | |
| Spindle taper | MT6 | |
| Sping nose type | ISO-A2-6 | |
| X-axis rapid traverse | 8m/min | |
| Z-axis rapid traverse | 10m/min | |
| X-axis rapid traverse | 250mm | |
| Z-axis rapid traverse | 1000mm | |
| Acurracy | Positioning accuracy | 0.005mm |
| Repeat positon accuracy | 0.01mm | |
| Chuck | Chuck type | Manual chuck (standard) |
| 3 jaw hollow Hydarulic chuck (optional) | ||
| Chuck size | 10inch 250MM | |
| Tailstock | Type | Manual tailstock(standard) |
| Sleeve diameter | 65mm | |
| Sleeve travel | 130mm | |
| Sleeve taper | MT4 | |

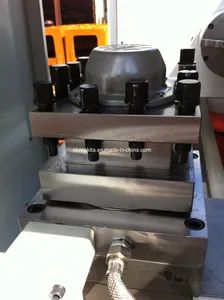

| Tool | Tool post/turret | Four station electric turret(standard) |
| 8 station electrical turret(optional) | ||
| Shank size | 25*25mm | |
| Other | Min setting unit | X axis:0.001mm, Z axis:0.001mm |
| Spindle motor power | 5.5KW frequency main motor |
|
| Dimension(L*W*H) | 2450*1500*1800mm | |
| Weight | 1450/1750kg |
Standard Accessories:
1.Three jaw manual chuck 10inch
2.Coolant water pump
3.Leadscrew cover
4.One set of tool box
5.Oil gun
6.Work light
7.Standard safty cover
8.Paddings
9.Dead center and cener sleeve
10.Operation manual /packing list/test certificate
Optional Accessories:
1.Four jaw manaul chuck 10 inch
2.Steady rest&follw rest
3.Face plate
4.Live center(MT-4)
5.Drill chuck set
Our Company
Makita Machinery Co., Ltd. was founded in the south wing of the Yangtze River Delta, Ningbo Beilun Development Zone, and the creation of "Makita" brand. Enterprise has a group of experts from Japan and China after the reform and develop a deeper knowledge of the machine honed technical team, in the tradition of Japanese machine tool manufacturer century technology, innovation, doing fine and stronger.
Follow the national Thirty-five year plan for higher goals China's equipment manufacturing industry proposed by the company in due course of potential, have developed products are gang tools series, turret series slant bed precision CNC lathe ,with C-axis,Y-axis function turning centers; stand-alone automated robotic combination of CNC lathes; and for customers tailored, flexible production line network intelligence.
Enterprise integration " One Belt and One Road " strategy into a strong force, through 2014 to 2015 two years of efforts the company successfully design and production or transformation of a number of intelligent, unmanned production lines for many Japanese-funded enterprises. Enterprises regard quality as the life ,carefully crafted ,strictly internal control have passed the ISO9001 quality management system certification, CE certification machinery products, we have obtained total of 100 patents including multiple invention patents.
Thanks to long-term and friendly cooperation enthusiasm throughout the new and old customers at domestic and overseas in recent years, the company's business booming, the products sold throughout the country and exported to Europe, America, Southeast Asia, the Middle East and other countries, to obtain the customer's praise.
Packing & Delivery
Packing Details : International Heat Treatment Standard Export Wooden Package.
workbench and the guide surface rust-proof oil daub, and oil film paper cover.
Delivery Details : 15-60 days after PI confirmed and deposite received.
Quanlity& Honor
Exhibition photos
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. Beilun makita machinery is a brother manufacture as shunfa,haishun and haihao company.In fact,we do export from 2008 under haishun company, our goods are very polupare to all over the world.We believe that a brighter further is waiting for us.
Q: How long is your delivery time?
A: Generally it is 15-60 days ,it is according to different machine model and different configuration and order quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. Also we would like to do LC at sight.
Q: Where is your factory located ? How can I visit there ?
A: We are located in Ningbo City. Which is only 2 hours' away from Shanghai by train.
Also you can fly to Ningbo Airport, it is only 1 hour and we will pick up you.
Also you can fly to Ningbo Airport, it is only 1 hour and we will pick up you.
