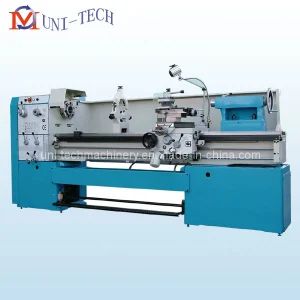

Large Spindle Gap Bed Lathe Machine
unit
Negotiable
Product information
High-quality Large Spindle Gap Bed Lathe Machine supplied by Tengzhou Uni-Tech Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
100sets/Month
Bed Width:
330
Tool Holder:
4-Position
Precision Gap Bed Lathe Machine:
660X2000mm, 660X3000mm
Spindle Bore:
80
HS Code:
84581900
Controlling Mode:
Artificial
Model NO.:
CD6250C, CD6260C, CD6280C
Specifications
Production Capacity:
100sets/Month
Bed Width:
330
Tool Holder:
4-Position
Precision Gap Bed Lathe Machine:
660X2000mm, 660X3000mm
Spindle Bore:
80
HS Code:
84581900
Controlling Mode:
Artificial
Model NO.:
CD6250C, CD6260C, CD6280C
Specification:
CE ISO9001
Certification:
CE, ISO 9001
Origin:
China
Processing Accessory:
Chuck CNC Lathe
Power Source:
Electric
Trade Term:
FOB, CIF, CFR, EXW
Setting Mode:
Floor-type
Precision:
High Precision
Type:
Horizontal Lathe
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Port Of Loading:
Qingdao Port
Automatic Grade:
Semiautomatic
Trademark:
UNI-TECH
Transport Package:
Wood Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2010-03-17
Annual Revenue Amount:
Not specified
Numbers Of Employees:
9
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao Port
Certificates:
EC of Milling machine, EC of OMRON-1, EC of OMRON-2, ISO9001 of C6241, ISO9001 of Lathe machine
Product descriptions from the supplier
large spindle gap bed centre lathe machine
Precision ground
Clutched head stock
CE-conformity
Safety torque limiting device for lead screw
Safety overload clutch for feedrod
Rapidtraverse(optional)
Main spindle supported at 2 points with predision taper roller bearings
2500-3000mm Lathe with follow chip cuard
Shedule 10(8" Schedule 40) Roll set
Precision ground
Clutched head stock
CE-conformity
Safety torque limiting device for lead screw
Safety overload clutch for feedrod
Rapidtraverse(optional)
Main spindle supported at 2 points with predision taper roller bearings
2500-3000mm Lathe with follow chip cuard
Shedule 10(8" Schedule 40) Roll set
| Features | |||
| Precision ground | |||
| CE*conformity, electromagnetic brake can be amounted. | |||
| Safety torque limiting device for lead screw | |||
| Safety overload clutch for feedrod. | |||
| Rapid traverse (optional) | |||
| Main spindle supported at 2 points with precision taper roller bearings. | |||
| CD6240C | CD6250C | CD6260C | |
| Specifications | |||
| Distance between centers | 1000/1500/2000 mm | ||
| Swing over bed | 400 mm | 500 mm | 600 mm |
| Swing over gap | 530 mm | 630 mm | 730 mm |
| Swing over cross slide | 225 mm | 325 mm | 360 mm |
| Bed width | 330 mm | ||
| Spindle nose | ISO*CS or ISO*D8 | ||
| Spindle bore | 80 mm | ||
| Step of spindle speeds | 15 | ||
| Range of spindle speeds | 24*1600 rpm | ||
| Range of cross feeds | 0.036*2.019 mm/r 66 kinds | ||
| Range of longitudinal feeds | 0.072*4.038mm/r 66 kinds | ||
| Range of inch threads | 1*56T.P.1/66 | ||
| Range of metric threads | 0.5*28 mm/66 | ||
| Range of moduler threads | 0.5*3.5M.P/33 | ||
| Range of diametrical threads | 8*56D.P/33 | ||
| Top slide travel | 130 mm | ||
| Cross slide travel | 300 mm | ||
| Tailstock quill travel | 120 mm | ||
| Tailstock quill diameter | 75 mm | ||
| Tailstock quill taper | MT5 | ||
| Main motor | 5.5 kw | 7.5 kw | 7.5 kw |
| Packing size | (2420x2920x3460)x1150x1650 mm | ||
| Net weight | 1560/1750/2010 kg | 1600/1830/2070 kg | 1640/1870/2130 kg |
| Standard Accessories | Optional Accessories | ||
| 3*jaw chuck (250mm) | Quick change tool post | ||
| 4*jaw chuck (320mm) | Turning tools | ||
| Face plate | Leadscrew cover | ||
| Steady rest | Chuck guard | ||
| Follow rest | Tool post cover | ||
| Splash guard | Digital readout system | ||
| Stand & oil tray | Taper turning attachment | ||
| Halogen work lamp | Rapid moving attachment | ||
| Toolbox & tools | |||
| Coolant system | |||
| Foot brake | |||
