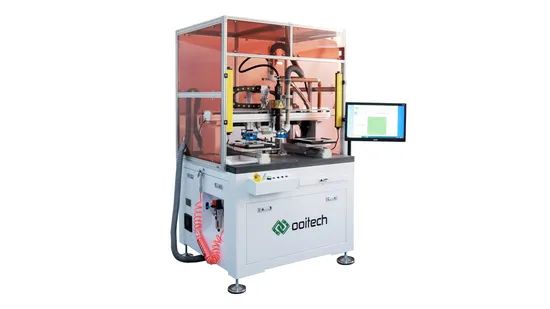

Laser Scribing Machine for Solar Cell Origin China Laser Power 20W Certification CE Model NO. OLS-20F Trademark Ooitech Scribing Width
1 Piece
$10,0001 Piece
$14,000Product information
High-quality Laser Scribing Machine for Solar Cell Origin China Laser Power 20W Certification CE Model NO. OLS-20F Trademark Ooitech Scribing Width supplied by Wuhan Ooitech Trading Co., Ltd.. Bulk wholesale pricing ranges from $10,000 to $14,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Laser Wavelength:
1064nm
Laser Power:
20W
Scribing Speed:
300mm/S
Scribing Width:
30μm
Production Capacity:
50/Per Year
Transport Package:
Air or Sea Transportation
Automatic Production Line:
Assembly
Certification:
CE
Specifications
Laser Wavelength:
1064nm
Laser Power:
20W
Scribing Speed:
300mm/S
Scribing Width:
30μm
Production Capacity:
50/Per Year
Transport Package:
Air or Sea Transportation
Automatic Production Line:
Assembly
Certification:
CE
Origin:
China
Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, Others, FCA
Transmission Type:
Flexible
Rhythm:
Flow Production Line
Flexible Production:
Intelligent Manufacturing
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Model NO.:
OLS-20F
Warranty:
One Year Warranty
Trademark:
Ooitech
Port Of Loading:
SHANGHAI PORT, NINGBO PORT, SHENZHEN PORT
After Sales Service:
on-Line Support
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-04-08
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, Others, FCA
Port Of Loading:
SHANGHAI PORT, NINGBO PORT, SHENZHEN PORT
Certificates:
CE
Product descriptions from the supplier
[ Machine Function ]
scribing or cutting the Solar Cells and Silicon Wafers in solar PV industry, including the mono-si (mono crystalline silicon) and poly-si (poly crystalline silicon)solar cells and silicon wafer.
Function:
solar cell non-destructive laser scribing machine is automatic non-constructive laser cutting machine that is used to scribe and break apart full solar cells to half-cutting cells, no mechanical splitting cell to get the best cutting effect. it is integrated with loading and unloading systems, laser scribing, automatic break-apart, and vision detection systems. This machine is widely used in PV industry to produce high-efficiency silicon solar modules in China and other countries.
Features of equipment
[ Machine Features ]
1. Using the China Top Brand Raycus Fiber laser
service time over 100,000hours. Stronger adaptability to environment
2. Work table: X-Y movable
Solar cell can be automatic absorption
3. Air cooling, compact structure, small size
4. Higher conversion efficency,
lower operating cost, save power consumption, cost and shorter maintenance time;
5. Laser Pulse width is more narrow,
Higher peak power, faster scribing cutting speed
6.Long time uninterrupted continuous maintenance-free operation,
no consumable wearing parts to replace
7. Stepper motor or servo motor different cost.
Pictures
scribing or cutting the Solar Cells and Silicon Wafers in solar PV industry, including the mono-si (mono crystalline silicon) and poly-si (poly crystalline silicon)solar cells and silicon wafer.
Top 10 Advantages of Solar Cell Non-Destructive Laser Scribing Machine:
Top 1: WaterlessNo Secondary Pollution
Top 2: Low TemperatureHigh Performance
Top 3: 156-230mmP & N type Compatible
Top 4: PERC HIT TOPCONHJT IBC Compatible
Top 5: CCD auto-correction
Top 6: Ultra-low broken rate, No hidden cracks
Top 7: Ultra-high bending strength
Top 8: High usage rate, Maintenance-free
Top 9: Can update to 1/31/4 1/5 upto 1/7
Top 10: CompatibleUnloading box
Top 1: WaterlessNo Secondary Pollution
Top 2: Low TemperatureHigh Performance
Top 3: 156-230mmP & N type Compatible
Top 4: PERC HIT TOPCONHJT IBC Compatible
Top 5: CCD auto-correction
Top 6: Ultra-low broken rate, No hidden cracks
Top 7: Ultra-high bending strength
Top 8: High usage rate, Maintenance-free
Top 9: Can update to 1/31/4 1/5 upto 1/7
Top 10: CompatibleUnloading box
Function:
solar cell non-destructive laser scribing machine is automatic non-constructive laser cutting machine that is used to scribe and break apart full solar cells to half-cutting cells, no mechanical splitting cell to get the best cutting effect. it is integrated with loading and unloading systems, laser scribing, automatic break-apart, and vision detection systems. This machine is widely used in PV industry to produce high-efficiency silicon solar modules in China and other countries.
Features of equipment
- The latest technology of Non-Destructive Cutting (thermal laser separation technology)
- Dry Cutting, Waterless, no need water spray during Splitting (No Water Stains Pollution)
- High throughput upto 7000pcs/h(SL5-UD7000)
- Low breakage rate, less than 0.05%
- Low Splitting Temperature (<130°C), meets the lower temperature requirement of PERC Hit Topcon IBC Cells cutting.
- N-type and P-type cells Compatible
- Smooth cutting surface with no cracks
- Easy to upgrade reserved space to upgrade to 1/3 1/4 cut
- Simple process, with only 4 steps: loading, Slotting, Splitting and unloding. Without water spraying and drying process
- Low breakage rate ≤0.05%
- Automatic split, no mechanical split action, split directly by laser
- Easy Maintenance
- Optional to butt-joint ATW or Lead tabber stringer, finished cut cells could transfer to stringer by update kits
- Visual detection systems, 20Mpixel CCD Industrial camera could pickup NG cells out and auto-correct the cutting position
- Less dust: micro-dust, only a few dust is generated clean and environmentally friendly
[ Machine Features ]
1. Using the China Top Brand Raycus Fiber laser
service time over 100,000hours. Stronger adaptability to environment
2. Work table: X-Y movable
Solar cell can be automatic absorption
3. Air cooling, compact structure, small size
4. Higher conversion efficency,
lower operating cost, save power consumption, cost and shorter maintenance time;
5. Laser Pulse width is more narrow,
Higher peak power, faster scribing cutting speed
6.Long time uninterrupted continuous maintenance-free operation,
no consumable wearing parts to replace
7. Stepper motor or servo motor different cost.
| [ Technical Parameters ] | |
| Model | OLS-20F |
| Laser wavelength | 1064nm |
| Laser power | 20W |
| Scribing width | 30μm |
| Scribing speed | 300mm/s |
| Scribing accuracy | ±10μm |
| Working area | 245x245mm |
| Temperature control precision | 0.5°C |
| Working power | 220V/50Hz/1kvA |
| Working table | negative pressure absorbing and dust elimination |
| Cooling method | Forced air cooling |
Pictures
