Latest Android System Total Station Rts362n Trademark FOIF Model NO. RTS362N Working Range ±3" Single Prism 6000m Setting Accuracy
1 Set
$3,2002-19 Set
$3,10020 Set
$3,000Product information
High-quality Latest Android System Total Station Rts362n Trademark FOIF Model NO. RTS362N Working Range ±3" Single Prism 6000m Setting Accuracy supplied by Tianjin Unique Technology Co., Ltd.. Bulk wholesale pricing ranges from $3,000 to $3,200 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Setting Accuracy:
1"
Shortest Focus Distance:
1.0m
Reflectorless Distance:
1000m
Display Resolution:
1”/5”/10”(or 0.2/1/2mgon)
Package Gross Weight:
21.000kg
Magnification/ Resolution:
30X/ 3"
Angle Unit:
360°/400gon/6400mil, Selectable
Package Size:
48.00cm * 50.00cm * 55.00cm
Specifications
Setting Accuracy:
1"
Shortest Focus Distance:
1.0m
Reflectorless Distance:
1000m
Display Resolution:
1”/5”/10”(or 0.2/1/2mgon)
Package Gross Weight:
21.000kg
Magnification/ Resolution:
30X/ 3"
Angle Unit:
360°/400gon/6400mil, Selectable
Package Size:
48.00cm * 50.00cm * 55.00cm
Single Prism:
6000m
Reading System:
Absolute Encoder
Laser Brightness:
Adjustable
Data Transfer:
Bluetooth, Mini-USB, RS-232c or SD Card
Transport Package:
Carton Package
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Compensator:
Dual-Axis Compensator
Trade Term:
FOB
Trademark:
FOIF
Measuring Time:
Initial: 2s
Model NO.:
RTS362N
Payment Methods:
Support payments in USD
Origin:
Tianjin, China
Payment Term:
To be discussed
Working Range:
±3"
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
SGS Certificate
Product descriptions from the supplier

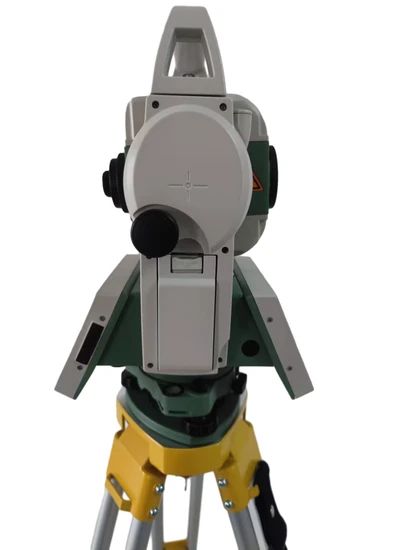

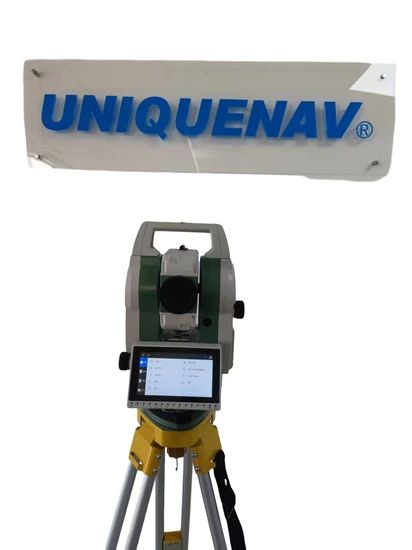

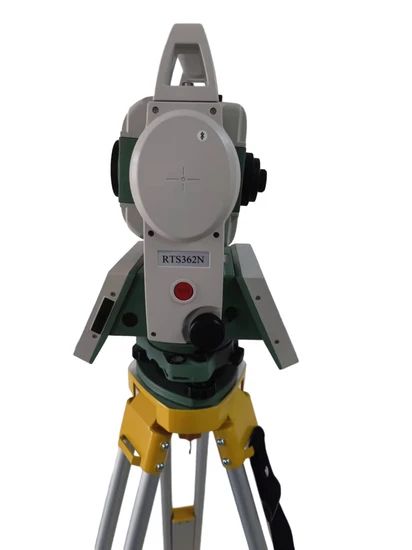

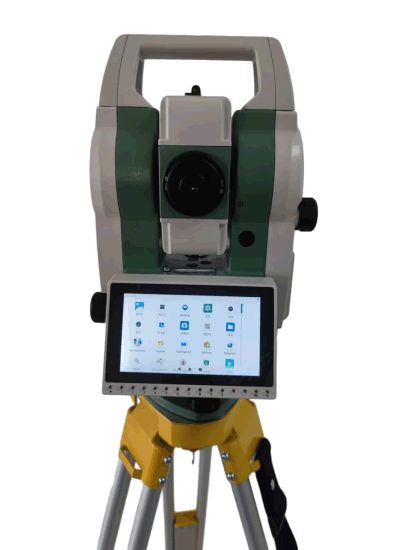

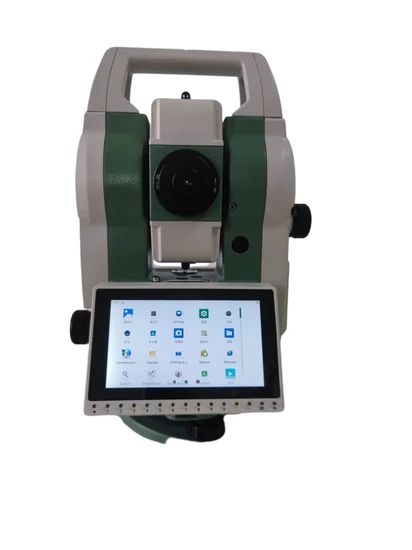

Latest Android system total station RTS362N
Features
Angle accuracy 2'', Distance accuracy 2mm+2x10-6 .D Quad-Core Processer, ARM Cortex-A55 frame work, Main frequency 2GHz Ultra-large capacity flash memory, 4G RAM+32G ROM (Expandable to 8G RAM+128G ROM) 5.5inch LCD display, 1280x720, support double face display. Android 10 operating system Support the third part APP, Support self-develop software. Support Bluetooth, miniUSB, U-disk, Type-C, WiFi, 4G network (optional)
|
Technical data
|
|
|
Telescope
|
|
|
|
Erect
|
|
Objective aperture
|
45mm
|
|
Magnification/ Resolution
|
30x/ 3"
|
|
Field of view
|
1°30'
|
|
Shortest focus distance
|
1.0m
|
|
Angle measurement
|
|
|
Reading system
|
Absolute encoder
|
|
Angle unit
|
360°/400gon/6400mil, selectable
|
|
Minimum Display
|
0.1''
|
|
Accuracy*
|
2"
|
|
Distance measurement
|
|
|
Reflectorless*
|
1000m
|
|
Accuracy
|
±(2+2×10 D ) mm
|
|
Reflective sheet
|
1200m
|
|
Prism
|
6000m
|
|
Time (accurate measure/tracking)
|
0.5s/0.3s
|
|
Unit
|
m/ft/US ft
|
|
Minimum display
|
0.0001m
|
|
Tilt compensation
|
|
|
Type/Range
|
Biaxial/±3.0'
|
|
Level vial sensitivity
|
|
|
Plate level vial
|
30"/2mm
|
|
Circular level vial
|
8"/2mm
|
|
Laser plummet(Standard)*
|
|
|
Accuracy
|
±1.0mm
|
|
Spot
|
0.8m-1.5m
|
|
Power
|
|
|
Battery
|
5200mAh Li-ion Rechargeable
|
|
Output voltage
|
7.4VDC
|
|
Continuous operation time
(single distance measurement every 30 seconds)
|
7-8hours
|
|
Others
|
|
|
CPU
|
Quad-Core 64Bit ARM A55 CPU 2GHZ
|
|
Display
|
5.5inch LCD display, 1280x720, support double face display
|
|
Memory
|
4G RAM+32G ROM (Expandable to 8G RAM+128G ROM)
|
|
Keyboard
|
15
|
|
Communication
|
Bluetooth, miniUSB, U-disk, Type-C, WiFi, 4G network (optional)
|
|
Operating temperature
|
-20ºCto+50ºC
|
|
Storage temperature
|
-40ºCto+55ºC
|
|
Measurement shortcut key /TF Card/RTC
|
Support
|
|
Water and dust protection
|
IP55(IEC60529)
|
|
Network
|
Global (4G Optional)
|
|
System/APP upgrade
|
Support
|
|
Third party software
|
virtual serial port/SurPad
|
|
Operating system
|
Android 11.0
|
The warranty period is 12 months.
