Lathe Combination Lathe Milling Machine Hq500 HQ800
Piece
Negotiable
Product information
High-quality Lathe Combination Lathe Milling Machine Hq500 HQ800 supplied by Anhui Chizhou Household Machine Tool Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Motor Power:
0.55/0.75kw
Production Capacity:
1000/Month
Specification:
1120*560*1150mm
Max. Cross Travel:
200mm
Max. Drilling Capacity:
22mm
Max. End Mill:
28
Distance Between Spindle Center And Colu:
285mm
Spindle Hole:
28mm
Specifications
Motor Power:
0.55/0.75kw
Production Capacity:
1000/Month
Specification:
1120*560*1150mm
Max. Cross Travel:
200mm
Max. Drilling Capacity:
22mm
Max. End Mill:
28
Distance Between Spindle Center And Colu:
285mm
Spindle Hole:
28mm
Distance Between Spindle And Worktable:
306mm
Swing Oved Bed:
420mm
Worktable Size (L*W):
475× 160mm
Distance Between Cetner:
500/800mm
Step Of Spindle Speed:
7
Barrel Travel:
70mm
Max. Face Mill:
80mm
HS Code:
845730000
Certification:
CE, ISO 9001
Origin:
China
Tool Holder:
Double-tool Holder CNC Lathe
Power Source:
Electric
Transport Package:
Export Wooden Cast
Trade Term:
FOB, CIF
Model NO.:
HQ500
Payment Term:
LC, T/T, D/P, Western Union
Automatic Grade:
Manual
Controlling Mode:
Manual
Taper Of Center:
Mt3
Taper Of Spindle:
Mt4
Condition:
New
Precision:
Precision
Port Of Loading:
Shanghai Port
Setting Mode:
Table
Trademark:
White Eagle
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
1994-06-30
Annual Revenue Amount:
Not specified
Numbers Of Employees:
122
Preferred Payment Term:
LC, T/T, D/P, Western Union
Preferred Trade Term:
FOB, CIF
Port Of Loading:
Shanghai Port
Certificates:
ISO9001:2015
Product descriptions from the supplier
1.Product Description
1)A kind of combination machines with turning, milling, drilling and threading.
2)Metric or imperial thread cutting
3)Suitable for processing metal, wood and other materials
4)Excellent advantage of various functions, small occupation and economization
5)Widely used in job-shops, car shops technical school, factories and family for machine parts repairing and making, education training, household utensils' making, etc.
Specification

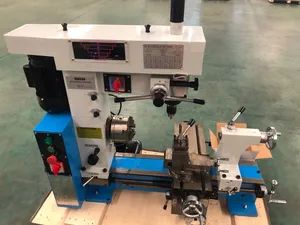

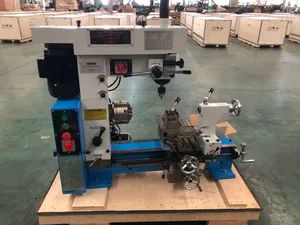

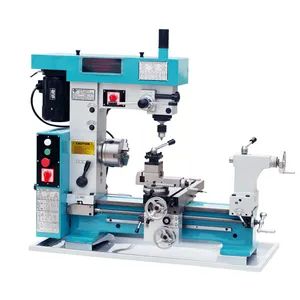

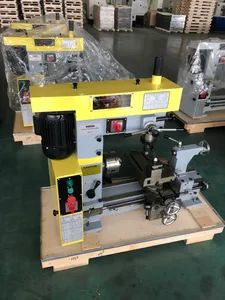

2.Machine Photo

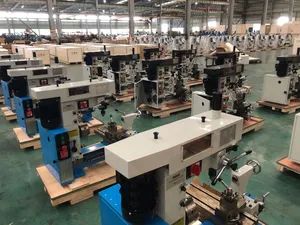

3.Manufacturing Ability
1)A kind of combination machines with turning, milling, drilling and threading.
2)Metric or imperial thread cutting
3)Suitable for processing metal, wood and other materials
4)Excellent advantage of various functions, small occupation and economization
5)Widely used in job-shops, car shops technical school, factories and family for machine parts repairing and making, education training, household utensils' making, etc.
Specification
| MULTI-PURPOSE MACHINE | HQ500 | HQ800 | |
| TURNING | Swing over bed | 420mm | 420mm |
| Distance between centers | 500mm | 800mm | |
| Max. longitudinal travel | 440mm | 740mm | |
| Max. cross travel | 200mm | 200mm | |
| Taper of spindle | M. T. 4 | M. T. 4 | |
| Spindle hole | φ 28mm | φ 28mm | |
| Step of spindle speed | 7 | 7 | |
| Range of spindle speed | 160-1360r. p. m | 160-1360r. p. m | |
| Barrel travel | 70mm | 70mm | |
| Taper of center | M. T. 3 | M. T. 3 | |
| Metric thread range | 0.2-6mm | 0.2-6mm | |
| Inch thread range | 4-120T. P. I | 4-120T. P. I | |
| Longitudinal range of automatic feeding | 0.05-0.35mm / 0.002-0.014 inch | 0.05-0.35mm / 0.002-0.014 inch | |
| Cross range of automatic feeding | 0.05-0.35m / 0.002-0.014 inch | 0.05-0.35m / 0.002-0.014 inch | |
| DRILLING & MILLING | Max. drilling capacity | φ 22mm | φ 22mm |
| Worktable size (L*W) | 475× 160mm | 475× 160mm | |
| Max. end mill | φ 28mm | φ 28mm | |
| Max. face mill | φ 80mm | φ 80mm | |
| Distance between spindle center and column | 285mm | 285mm | |
| Distance between spindle and worktable | 306mm | 306mm | |
| Headstock travel of up and down | 110mm | 110mm | |
| Spindle taper | M. T. 3 | M. T. 3 | |
| Step of spindle speed | 16 | 16 | |
| Range of spindle speed | 120-3000r. p. m | 120-3000r. p. m | |
| Swivel degree of headstock | ± 360° | ± 360° | |
| MOTOR | Motor power | 0.55Kw/ | 0.55Kw/ |
| SHIPMENT DATA | Packing size | 1130× 580× 1100mm | 1430× 580× 1100mm |
| N. weight/G. weight | 245kg/280kg | : 275kg/325kg | |
| Loading amount | 40pcs/20' container | 32pcs/20' container | |
3.Manufacturing Ability
