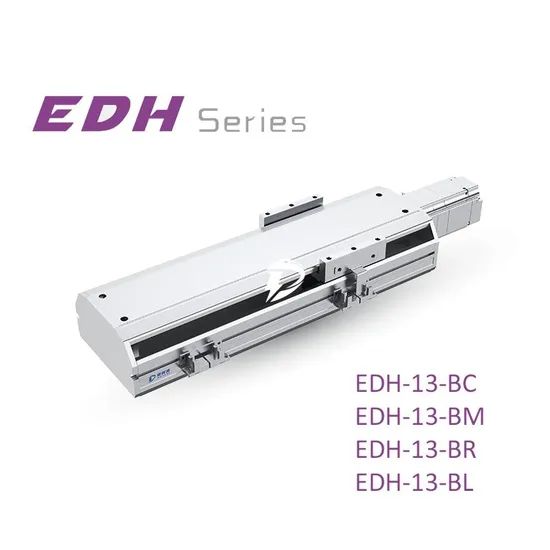

Lead Screw High Precision Ball Screw Linear Motion Guide Ball Module Linear Guide Rail Sliding Block
1 Set
$501 Set
$1,000Product information
High-quality Lead Screw High Precision Ball Screw Linear Motion Guide Ball Module Linear Guide Rail Sliding Block supplied by Kunshan Sunidea Automation Equipment Technology Co., Ltd.. Bulk wholesale pricing ranges from $50 to $1,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Production Capacity:
5000sets/Month
Max Payload:
70kg
Specification:
Aluminum
Transport Package:
Carton Box
Origin:
China
Model NO.:
EDH
Trade Term:
FOB, EXW, CFR, CIF, DDP, DAP, CIP
Payment Term:
LC, T/T
Specifications
Production Capacity:
5000sets/Month
Max Payload:
70kg
Specification:
Aluminum
Transport Package:
Carton Box
Origin:
China
Model NO.:
EDH
Trade Term:
FOB, EXW, CFR, CIF, DDP, DAP, CIP
Payment Term:
LC, T/T
Applications:
Precision Industry, Semiconductor, Optical, Laser
Trademark:
SUNIDEA or DWYANE or Customized
Port Of Loading:
Shanghai, Ningbo
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2021-01-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, EXW, CFR, CIF, DDP, DAP, CIP
Port Of Loading:
Shanghai, Ningbo
Certificates:
A dual-function cutting module, A feeding and discharging device for high-speed backplane connector backplane production, A fully automatic injection molding feeding machine, A high-speed backplane connector backplane assembly equipment, A jacking mechanism for bearing tooling, A kind of terminal feeding and cutting mechanism, A quick mold change structure, A round rod robot gripper, A slewing support bearing testing mechanism, A suction nozzle handling robot, A turn-over transport mechanism, A turntable testing mechanism, An automatic adhesive tape robot, COS assembly method and assembly equipment based on modular base, Handling robot product position and attitude application control software, High-efficiency assembly process of laser pump source based on modular unit, ISO 9001:2015, Medicated bath robot vision and robot multi-degree-of-freedom switching control software, Product automation performance testing optimization system, Structural Design and Control Software for Automatic Assembly Line
Product descriptions from the supplier
| Product Parameter | |||||
| Repeated Accuracy (mm) | ±0.01 | ||||
| Ball Screw Lead (mm) | 5 | 10 | 20 | 32 | |
| Maximum Speed (mm/s) | 250 | 500 | 1000 | 1600 | |
| Maximum Payload (kg) |
Horizontal | 70 | 47 | 24 | 13 |
| Vertical | 27 | 12 | 6 | - | |
| Rated Thrust (N) | 683 | 341 | 174 | 107 | |
| Stroke Range (mm) | 50~1050 | ||||
| Motor power (W) | 200W/400W | ||||
| Screw Diameter (mm) | Ø16 | ||||
| Sliding Rail Specification | W20×H12.5 | ||||
| Coupler Specification | 12×14/11 | ||||
| Optical Sensor | SY-307NA-W | ||||
| Stroke (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 | 750 | 800 | 850 | 900 | 950 | 1000 | 1050 |
| L | 275.5 | 325.5 | 375.5 | 425.5 | 475.5 | 525.5 | 575.5 | 625.5 | 675.5 | 725.5 | 775.5 | 825.5 | 875.5 | 925.5 | 975.5 | 1025.5 | 1075.5 | 1125.5 | 1175.5 | 1225.5 | 1275.5 |
| A | 200 | 50 | 100 | 150 | 200 | 50 | 100 | 150 | 200 | 50 | 100 | 150 | 200 | 50 | 100 | 150 | 200 | 50 | 100 | 150 | 200 |
| M | 0 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 5 | 5 | 5 | 5 |
| N | 4 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 10 | 10 | 10 | 10 | 12 | 12 | 12 | 12 | 14 | 14 | 14 | 14 |
| Weight (Kg) | 7.4 | 7.96 | 8.52 | 9.08 | 9.64 | 10.2 | 10.76 | 11.32 | 11.88 | 12.44 | 13 | 13.56 | 14.12 | 14.68 | 15.24 | 15.8 | 16.36 | 16.92 | 17.48 | 18.04 | 18.6 |
| Stroke (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 | 750 | 800 | 850 | 900 | 950 | 1000 | 1050 |
| L | 268.5 | 318.5 | 368.5 | 418.5 | 468.5 | 518.5 | 568.5 | 618.5 | 668.5 | 718.5 | 768.5 | 818.5 | 868.5 | 918.5 | 968.5 | 1018.5 | 1068.5 | 1118.5 | 1168.5 | 1218.5 | 1268.5 |
| A | 100 | 150 | 200 | 50 | 100 | 150 | 200 | 50 | 100 | 150 | 200 | 50 | 100 | 150 | 200 | 50 | 100 | 150 | 200 | 50 | 100 |
| M | 0 | 0 | 0 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 5 | 5 |
| N | 4 | 4 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 10 | 10 | 10 | 10 | 12 | 12 | 12 | 12 | 14 | 14 | 14 |
| Weight (Kg) | 7.94 | 8.5 | 9.06 | 9.62 | 10.18 | 10.74 | 11.3 | 11.86 | 12.42 | 12.98 | 13.54 | 14.1 | 14.66 | 15.22 | 15.78 | 16.34 | 16.9 | 17.46 | 18.02 | 18.58 | 19.14 |
| Stroke (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 | 750 | 800 | 850 | 900 | 950 | 1000 | 1050 |
| L | 268.5 | 318.5 | 368.5 | 418.5 | 468.5 | 518.5 | 568.5 | 618.5 | 668.5 | 718.5 | 768.5 | 818.5 | 868.5 | 918.5 | 968.5 | 1018.5 | 1068.5 | 1118.5 | 1168.5 | 1218.5 | 1268.5 |
| A | 100 | 150 | 200 | 50 | 100 | 150 | 200 | 50 | 100 | 150 | 200 | 50 | 100 | 150 | 200 | 50 | 100 | 150 | 200 | 50 | 100 |
| M | 0 | 0 | 0 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 5 | 5 |
| N | 4 | 4 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 10 | 10 | 10 | 10 | 12 | 12 | 12 | 12 | 14 | 14 | 14 |
| Weight (Kg) | 7.94 | 8.5 | 9.06 | 9.62 | 10.18 | 10.74 | 11.3 | 11.86 | 12.42 | 12.98 | 13.54 | 14.1 | 14.66 | 15.22 | 15.78 | 16.34 | 16.9 | 17.46 | 18.02 | 18.58 | 19.14 |
| Stroke (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 | 750 | 800 | 850 | 900 | 950 | 1000 | 1050 |
| L | 268.5 | 318.5 | 368.5 | 418.5 | 468.5 | 518.5 | 568.5 | 618.5 | 668.5 | 718.5 | 768.5 | 818.5 | 868.5 | 918.5 | 968.5 | 1018.5 | 1068.5 | 1118.5 | 1168.5 | 1218.5 | 1268.5 |
| A | 100 | 150 | 200 | 50 | 100 | 150 | 200 | 50 | 100 | 150 | 200 | 50 | 100 | 150 | 200 | 50 | 100 | 150 | 200 | 50 | 100 |
| M | 0 | 0 | 0 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 5 | 5 |
| N | 4 | 4 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 10 | 10 | 10 | 10 | 12 | 12 | 12 | 12 | 14 | 14 | 14 |
| Weight (Kg) | 7.94 | 8.5 | 9.06 | 9.62 | 10.18 | 10.74 | 11.3 | 11.86 | 12.42 | 12.98 | 13.54 | 14.1 | 14.66 | 15.22 | 15.78 | 16.34 | 16.9 | 17.46 | 18.02 | 18.58 | 19.14 |
