Light Steel Keel Frame Roll Forming Machine with Flexible Sizing and Cc Connection
1 Piece
$120,0001 Piece
$170,000Product information
High-quality Light Steel Keel Frame Roll Forming Machine with Flexible Sizing and Cc Connection supplied by Frametec (Xiamen) Building Technology Co., Ltd.. Bulk wholesale pricing ranges from $120,000 to $170,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Specification:
(length)16m x (width) 1.7m x (height) 2.0m
Thickness:
0.75-1.6mm
Profile Lip:
10mm -15mm
Package Gross Weight:
15000.000kg
Package Size:
1600.00cm * 170.00cm * 200.00cm
Yield Strength:
250-450MPa
Main Motor Power:
3.0kw, 60Hz, 380V
Profile Flange:
41mm
Specifications
Specification:
(length)16m x (width) 1.7m x (height) 2.0m
Thickness:
0.75-1.6mm
Profile Lip:
10mm -15mm
Package Gross Weight:
15000.000kg
Package Size:
1600.00cm * 170.00cm * 200.00cm
Yield Strength:
250-450MPa
Main Motor Power:
3.0kw, 60Hz, 380V
Profile Flange:
41mm
Production Capacity:
600 Sets/Year
Profile Width:
75mm-200mm
Total Weight:
8,000kgs
HS Code:
8455221000
Size Changing:
Auto Size Changing for Rollers
Automatic Grade:
Automatic
Certification:
CE, ISO9001
Control Type:
CNC
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Cutter Material:
Cr12 MOV, Cr12, Cr12(Total Three Blades)
Customized:
Customized
Trade Term:
FOB, EXW, CFR, CIF
Trademark:
FrameTec
Feeding Material:
Galvanized Sheet(Gi), Cold Roll Steel(CRC), Hot RO
Decoiler:
Hydraulic Decoiler
PLC Brand:
Japan Panasonic
Payment Term:
LC, T/T
Blade Replacement:
Manual Blade Replacing
Transport Package:
Naked
Condition:
New
Control System:
PC Control
Model NO.:
SFS-CC75-250
Punching:
Service Hole, Dimple Hole, Web Notching
Payment Methods:
Support payments in USD
Port Of Loading:
XIAMEN PORT
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2009-03-08
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
XIAMEN PORT
Certificates:
Qualification
Product descriptions from the supplier
Metal Steel Roll Framing Machine SFS-CC75-250 for 1-5 storey Residential House/Hotel
TECHNICAL PARAMETERS
I. Specifications
| Machine Quick Details | |
| Model number: SFS-CC75-250 | Condition: New |
| Type: LGS machine | Brand Name: Frametec |
| Thickness: 0.75-1.6mm | Control System: PC control |
| Warranty: 1 year | Place of Origin: China |
2) Profile flange: 1.25"-3.0''(32mm,41mm,51mm,63.5mm,76mm)
3) Profile thickness: 16-22 gauge (0.75mm-1.6mm)
4) Material : galvanized coil sheets: ASTM A1003 & ASTM A653
5) Max yield: 250Mpa-550Mpa 80ksi at 1.6 mm (16ga) material thickness.
The web thickness varies from 3" to 9.84" (75–250mm). For each size, dedicated chamfer and notch cutting tooling is provided. This enables seamless tool replacement when manufacturing steel profiles of different dimensions.
II. Machine Components
- Hydraulic de-coiler ------------------------------------------------------------------- 1 set
- Leveling Device ----------------------------------------------------------------------- 1 set
- Pre-punching Device --------------------------------------------------------------- 1 set
- Roll Forming System --------------------------------------------------------------- 1set
- Post-punching Device -------------------------------------------------------------- 1 set
- Cutting Device ----------------------------------------------------------------------- 1 set
- PLC Control System ----------------------------------------------------------------- 1 set
- Out-let Table -------------------------------------------------------------------------- 1 set
The flow chart is showing below.
De-coiler→ Leveling Device→ Pre-punching Device→ Roll Forming System→ Post-punching Device→ Cutting Device →Out-let table

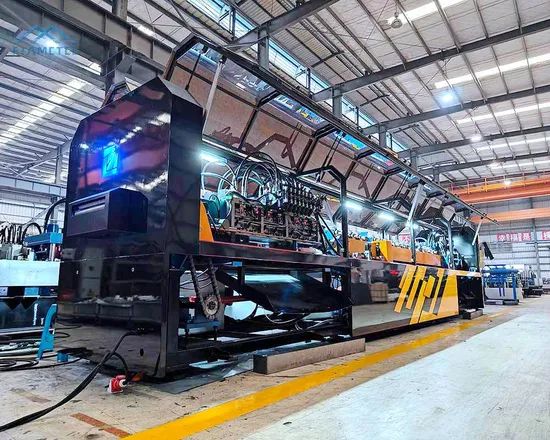

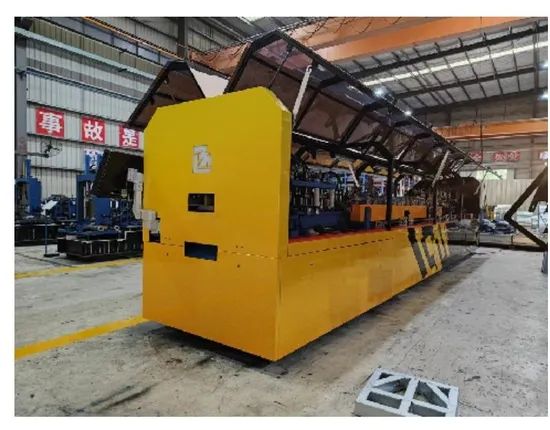

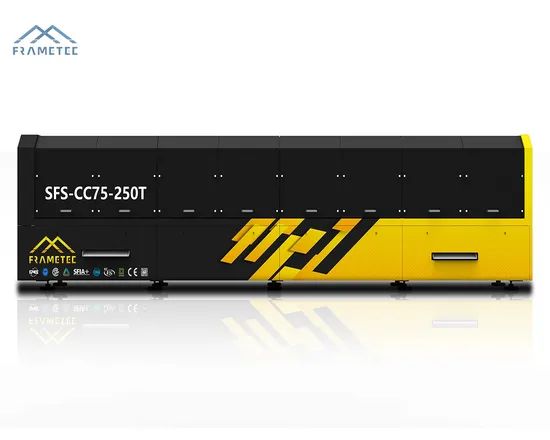

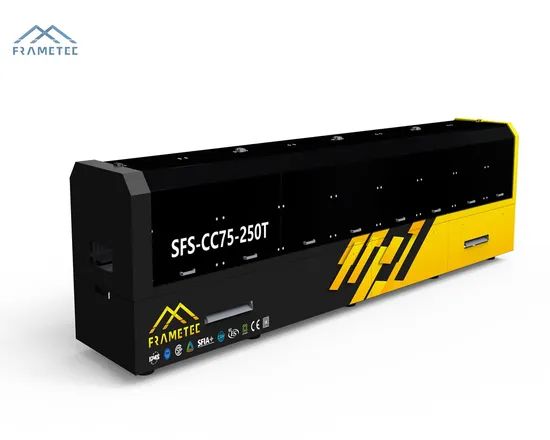

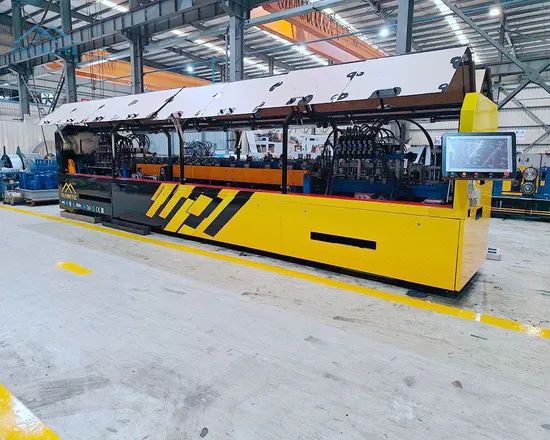

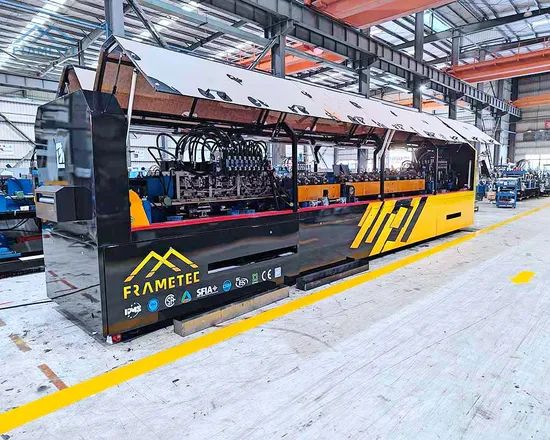

IV. Machine Pictures
V. Technology Parameters
The weight of the Machine: About 10 Ton
The total dimension with un-coiler, Out-let Table is:
(length) 17m x (width) 1.75m x (height) 2m.
The dimension of forming parts: (length) 8m x (width) 1.71m x (height) 2m.
1)Hydraulic de-coiler (The hydraulic de-coiler is excluded in this quote)
- De-coiler Type: Hydraulic auto de-coiler
- Weight capacity: Max 5.0T
- Diameter of inner: 480-510mm
- Diameter of outer: 800mm
- Motor power: 3.0Kw,60Hz, 380V(Customized)
- Control type: Electric button control
- Function: Auto rotation feed sheets into roll forming parts. Semi auto for loosening and tightening coil
- Weight of de-coiler: 1000KGS.
- Side Locks provided on de-coiler to fix coil.
2) Punching
All punching dies are made from Cr12. Driven by hydraulic station. Holes parameter are able to set by PLC, Including Punching length and numbers.
Four leveling mechanisms are employed to secure the raw material. During operation of the punching system, the material is firmly held in place by these mechanisms to maintain accurate results.
- Hydraulic station: 11 kw + fan cooling system
- Driven by servo motor.
- Hole Type:
b. Left flange punching
c. Web triple hole
d. Bolt hole
e. Online-swage
f. Truss cut
h. Web notch
i. Dimple
j. Service hole
k. Lip cut
l. Large punchout
Pre-punching holes: 1,2,3,4,6,7,9,10
Post-punching holes: 5,6,7,8
1. Punching precision within +/-0.03937'' (+/-0.5mm)
2. After hole punching, raw material will be driven into roll forming system.
3) Rolling Forming System
- Main motor type: 3 phases
- Main motor power: 14Kw, 60Hz, 380V (suits Australian power requirements)
- Servo motor brand: INNOVANCE
- Speed of forming: 98'/min (30m/min)
- Combine speed: 16.5'-39'/min (5-12m/min depending on No. of holes)
- Roller: Consists of 17 sets of rollers. Made from Cr12 die steel, undergoes quenching process under digital control. This guarantees optimal performance and extended durability.
- Shaft & Frame: Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product.
4) Changing Size
- Full-automatic (change sizes by PC control system)
- The machine can adjust profile dimensions in under one minute. Operating this setup is straightforward. Simply input the required profile settings on the control interface, and the roller frames extend or retract automatically.
- Size range: Web: 75-250mm
- Flange:1.25"-3.0''(32mm,41mm,51mm,63.5mm,76mm)
- Lip: 12.5 - 16mm
- Size changing motor power: 0.4kw, 380v, 60Hz, totally 5 sets.
5) Hydraulic Cutter
- Cutting material: Cr12 Cr12MoV Cr12(total three blades)
- Hydraulic motor power: 14KW
- Hydraulic Pressure: 16Mpa
6) Out-let Table
4 meter material receiving table, with a stacking platform.
To consider easy for shipment. The components of Out-let Table will be well packaged and will be installed at Buyer's warehouse.
7) Safety Guard: Safety Guard covers the whole machine to ensure worker's safe.
Each parts of safety guard is linked with lock. Safety switch is available to stop machine when safety guard is open.
8) PC control system LG-R1.
- The system supports CNC production programming by converting Dahe's TXT files into CSV format and establishing a direct link to the machine. It enables automated operation and real-time monitoring of machine performance, covering punching, cutting, and size adjustment.
- Manual length/punching program of production
- The computer can control production line including leveling, punching, cutting, conveyer table and roll forming station. Speed of the machine can be adjusted.
- The choice production data can be showed on screen.
9) Profile image and application
10) Our Factory
Why Choose us:
13+ years manufacturing experience in hight-quality roll-forming equipment
Competitive price and good quality
One year free warranty
Fast response of after sale service
Can be customized by clients' requirements
Easy operate and easy to maintain
Self-developed of post cutter, one blade to cutter all size of final product
