Lightweight 8-Channel Anti-Interference GPS Antennas Dual Frequency Terminal for Drones Strong Performance Terminal Accessories
Piece
Negotiable
Product information
High-quality Lightweight 8-Channel Anti-Interference GPS Antennas Dual Frequency Terminal for Drones Strong Performance Terminal Accessories supplied by Shenzhen Xingkai Technology Co., Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
50000piece/Year
Origin:
China
Trade Term:
FOB, EXW, CIF
Model NO.:
Satellite anti-interference module
Port Of Loading:
Shenzhen, HK
Payment Term:
T/T, Western Union
Trademark:
Xingkaitech
Specifications
Production Capacity:
50000piece/Year
Origin:
China
Trade Term:
FOB, EXW, CIF
Model NO.:
Satellite anti-interference module
Port Of Loading:
Shenzhen, HK
Payment Term:
T/T, Western Union
Trademark:
Xingkaitech
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-05-20
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T, Western Union
Preferred Trade Term:
FOB, EXW, CIF
Port Of Loading:
Shenzhen, HK
Certificates:
Business licence, CE, Computer software copyright registration certificate, FCC, Invention patent certificate, National High-tech Enterprise, Software Product Certificate
Product descriptions from the supplier
*product presentation

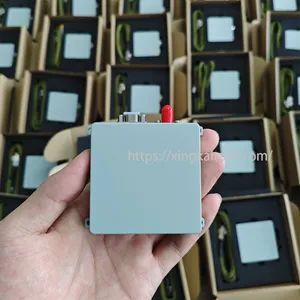

Ultra-miniaturization anti-interference all-in-one machine is a satellite navigation anti-interference all-in-one machine for the needs of small and medium-sized UAV and other industries, which supports the anti-broadband interference ability and positioning function of Beidou B1 and GPS frequency point signals. Internal integrated antenna array, anti-jamming components and satellite navigation receiver, with miniaturization, lightweight, and low cost characteristics.
*product function
1. RNSS signal reception
1) With the function of receiving RNSS signals from navigation satellites such as Beidou-3 and GPS
2) Civil code: B1C, B1I, and GPS L1
2. Anti-interference function
With the anti-interference function of B1 and L1 frequency points, it can suppress narrowband interference, broadband interference, pulse interference, sweep interference, Gaussian interference and other suppression interference
3. Software upgrade
With the software upgrade function, you can upgrade the anti-interference module and the receiver module through the serial port
4. System self-inspection
It has self-check and status inspection functions
5. Anti-burning function
The continuous W power is not less than 10W
*behaviour of electricity
1. Frequency of workB1I:1561.098MHz;L1/B1C:1575.42MHz
2. Anti-interference performance
Unidirectional interference ≥ 95dBc
Two-direction interference ≥ 85dbc
Three-direction interference ≥ 80dBc
3. Positioning accuracy
Horizontal oneself 10 meters
The height is 15 meters
4. Speed measurement accuracy
0.2 m / second (95%)
5. Time-giving accuracy
≤100ns(95%)
6. Operating voltage
The input voltage is 5 to 17 V
7. Power consumption
≤6W
*Interface definition
The interface definitions are shown in the following table:
The J30J-9 ZK core connector is selected, and the pin is defined as follows:

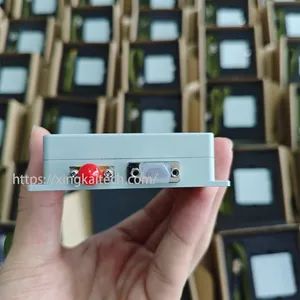

1) Anti-interference signal output interface (reserved), using SMA connector, and for the first-line form
2) The signal level of the output B1 \ L1 is-70~ -60 dBm
*structural requirement
1,Overall dimensions: 65x65x21mm3,Color: gray
*Product identification
1. Operating temperature: -40ºC ~ + 55ºC
2. Storage temperature: -55ºC ~ + 70ºC
3. Relative humidity: temperature: 40ºC; humidity: 96%
4. Rain: meet the requirements of GJB150A rain test
*Typical application occasions
1.Power, communications, finance and other fields of time security
2.Uaerial vehicles, unmanned vehicles, unmanned ships and other navigation safety
3.Convoy defense and navigation security
4.High-end logistics and navigation security
*Connection relationship description
1. The electrical signal connection of the product and the platform carrier is connected by low-frequency data mode.
2. This product has a built-in locator, which can replace the conventional positioning terminal and antenna. The following schematic diagram:
3.In the RF signal access mode, this product replaces the conventional active antenna.The following schematic diagram.
4.When using usb to TTL tool to connect to the computer, do not plug usb to damage the serial port.
*Installation and use
1.fixed
Install fixation with M 2 screws.
2.supply electricity
Use XT 30 power supply, power supply voltage 5-17V, maximum not exceeding 17V, recommended to use 12V.
3.Locate the data connection
1)Connect the DuPont line TTL serial port of this product to the flight control GNSS serial port.
Connect the flight control to the GNSS serial port using the matching data line provided by this product. Connect one end of the data line label TX to the flight control RX interface, one end of the label RX to the flight control TX interface, and one end of the label GND to the flight control GND interface.
2)Use the SMA cable to connect the RF port of the product to the antenna port of the UAV locator.
