Lightweight Orbital Welder with Customizable Track for Pipeline Construction
Set
Negotiable
Product information
High-quality Lightweight Orbital Welder with Customizable Track for Pipeline Construction supplied by Hymaron Engineering Machinery Co., Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Walking Speed:
0-700mm/Min
Warranty:
1 Year
Weight (Kg):
16 Kg
Voltage:
220V
Dimensions:
24*33*31 Cm
Production Capacity:
3000 Sets/Month
Welding Method:
Automation TIG Welding
Specification:
Customized
Specifications
Walking Speed:
0-700mm/Min
Warranty:
1 Year
Weight (Kg):
16 Kg
Voltage:
220V
Dimensions:
24*33*31 Cm
Production Capacity:
3000 Sets/Month
Welding Method:
Automation TIG Welding
Specification:
Customized
Electric Current:
DC
Swing Motor:
DC24V 18rpm
Transport Package:
Export Package
Trade Term:
FOB, CIF, EXW, CFR
Moving Mode:
Four-Wheel Drive
Frequency Range:
Intermediate Frequency
Origin:
Jiangsu, China
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Key Selling Points:
Long Service Life
Condition:
New
Product Name:
Orbital Pipe Welding Machine
Use:
Pipe Welding Machine
Style:
Portable
Machinery Test Report:
Provided
Shape Of Tube:
Round
Port Of Loading:
Shanghai port
After Sales Service:
Video Technical Support
Trademark:
WINCOO
Model NO.:
WQ-III
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2024-07-24
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, EXW, CFR
Port Of Loading:
Shanghai port
Certificates:
CE
Product descriptions from the supplier
Hymarom Engineering Machinery Co.,ltd is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.
Orbital Pipe Welding Machine (Long Distance Pipeline Construction Equipment)

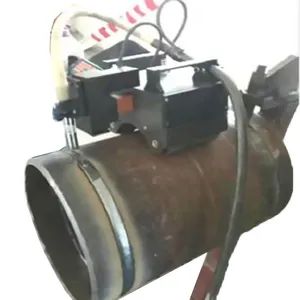

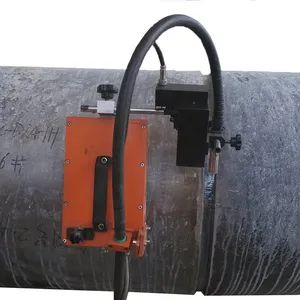

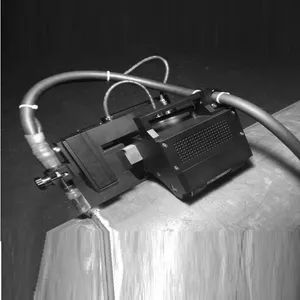

WQ-III is suitable for welding internal and external walls of pipelines. No rails are required and welding can be carried out along the arc surface of the workpiece.
CO2 automatic welding tractor is widely used in ships, bridges, locomotives, steel structure, petrochemical industry and other industries, suitable for a variety of welding structures, such as: reinforcement plate, rib plate, cross parts of the welding, box beam welding, etc.. Its main advantages are:
1, Reduce labor intensity and improve working environment;
2, To improve the working efficiency, it is 1.5 times of manual welding;
3, Avoid the poor quality of welding seam caused by human factors, the defect rate of manual welding is about 20%, and the automatic welding tractor will not produce welding defect rate because of artificial welding. Therefore, its comprehensive benefit is nearly 200% higher than that of manual welding;
4, High degree of automation to ensure the stability of welding quality;
5, Simple and convenient operation, do not need very skilled technical workers.
1, WQ-III is swing automatic welding device, one welding can get a wider weld.
2, Swing speed, swing range, center position and left and right residence time can be adjusted, suitable for various specifications of the weld.
3, Small size, light weight, easy to install and move, unskilled workers can also carry out welding.
4, Permanent magnet is installed to avoid welding line disconnection during welding.
Application Environment
Suitable for pipe welding of various steel structures.
|
Items
|
Parameter
|
Note
|
|
|
Tractor
|
Power supply
|
AC 220V
|
|
|
Size
|
240×330×310
|
W×L×H
|
|
|
Weight
|
16 Kg
|
Including swinger
|
|
|
Moving mode
|
Four-wheel drive
|
Magnet-wheel
|
|
|
Walking speed
|
0∼700mm/min
|
||
|
Control
|
Swing motor
|
DC24V 18RPM
|
|
|
Adjustable range of welding gun
|
Up and down
|
||
|
Before and after
|
85mm
|
||
|
Operating Angle adjustment range
|
360°
|
||
|
Carry out Angle adjustment range
|
0°
|
||
|
Operating function
|
Swing mode
|
|
|
|
Swing speed
|
0-10RPM(Show with scale)
|
||
|
Swing scope
|
0-±10°(Show with scale)
|
||
|
Left and right residence time adjustment
|
0-2S(Show with scale)
|
||
|
Central range of movement
|
0-±8°
|
||
|
Inching wire feeding
|
|||
|
Walking starts/stops
|
|||
|
Welding current/voltage control
|
|||
|
Choice of walking direction
|
|||
|
Walking speed regulation
|
0∼1000mm/min(Show with scale)
|
||
|
Welding/non-welding options
|
|||
A. Preparation for welding
1, The necessary tools for welding are welding machines and wire feeding devices;
2, Special control cables (AC 220V) are required. Different welding power supplies require different cables;
3, CO2 tanks for welding are required;
4, CO2 automatic welding torch;
5, Other necessary tools;
B. Tractor connection method
1, Install the tractor and place the tractor on the working surface;
2, Install the wire on the wire feed tray and pull the wire to the end of the torch;
3, The end of the torch is connected to the wire feeder;
4, The control power supply is connected to the 8P port of the control panel of the tractor;
5, Control power cable is connected to AC 220;
6, The special control cable has four joints, one is connected to 220V power supply, the other is connected to welding car, and the other two are respectively welding machine and wire transfer machine.
|
C. Packing List
|
|
|
|
|
Parts name
|
Qty
|
Unit
|
Note
|
|
Walking welding tractor
|
1
|
Set
|
|
|
Swinging nose
|
1
|
Set
|
|
|
Power line
|
1
|
Pcs
|
About 10-15 m
|
|
Welding torch signal cable
|
1
|
Pcs
|
About 0.5 m
|
|
Swing signal line
|
1
|
Pcs
|
About 0.5 m
|
|
Specification
|
1
|
Pcs
|
|
|
Inner hexagon tool
|
1
|
Set
|
|
Hymaron Engineering Machinery Co.,ltd is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.
Our Services & StrengthWe have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.
Based client's facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.
To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
