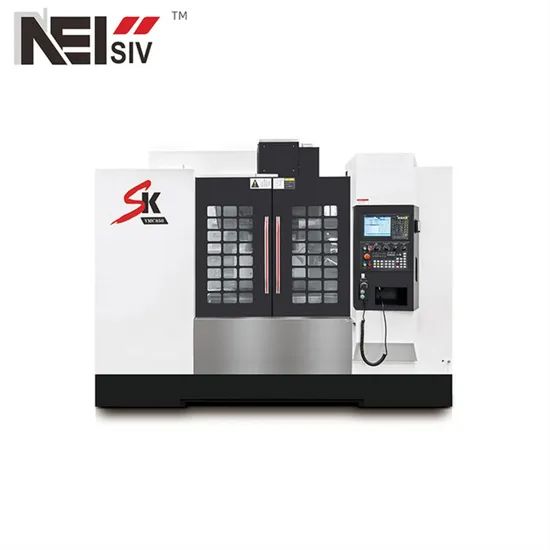

Linear Control Vmc855 CNC Machine 4 Axis CNC Milling Machining Center Machinery Tools
1 Piece
$20,0001 Piece
$38,000Product information
High-quality Linear Control Vmc855 CNC Machine 4 Axis CNC Milling Machining Center Machinery Tools supplied by NANJING NEWSIV EQUIPMENT CO., LTD.. Bulk wholesale pricing ranges from $20,000 to $38,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Processing Precision:
0.03~0.04(mm)
Production Capacity:
200 Sets/Year
Maximum Spindle Speed:
2200rpm/Min
Atc:
24
Specification:
2600*2400*2550
HS Code:
8457101000
Color:
According to Customer Request
Package:
According to Customer Request
Specifications
Processing Precision:
0.03~0.04(mm)
Production Capacity:
200 Sets/Year
Maximum Spindle Speed:
2200rpm/Min
Atc:
24
Specification:
2600*2400*2550
HS Code:
8457101000
Color:
According to Customer Request
Package:
According to Customer Request
Spindle Taper:
Bt40/Bt50
Product Name:
CNC Machine Center CNC Vertical Machining Center V
Numerical Control:
CNC/MNC
Control Method:
Closed-Loop Control
Movement Method:
Contour Control
Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA
CNC Control System:
Fanuc, Simens, GSK, Hnc, Mitsubishi
Certification:
GS, CE, RoHS, ISO 9001
Performance Classification:
High-End CNC Machine Tools
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Application:
Metal
Process Usage:
Metal-Cutting CNC Machine Tools
Screw:
NSK/Hiwin
Origin:
Nanjing China
Condition:
New
Video Outgoing Inspection:
Provided
Exported Country:
Russia, Germany, SA, Indian, Pk, and So on
Trademark:
SK
Port Of Loading:
Shanghai
No. Of Spindles:
Single
Transport Package:
Suitable for Sea Shipping
Guideway:
Three-Line Vertical Machining Centre
Model:
Vmc-866
Model NO.:
Vmc855
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2012-02-29
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA
Port Of Loading:
Shanghai
Certificates:
CE, certificate
Product descriptions from the supplier

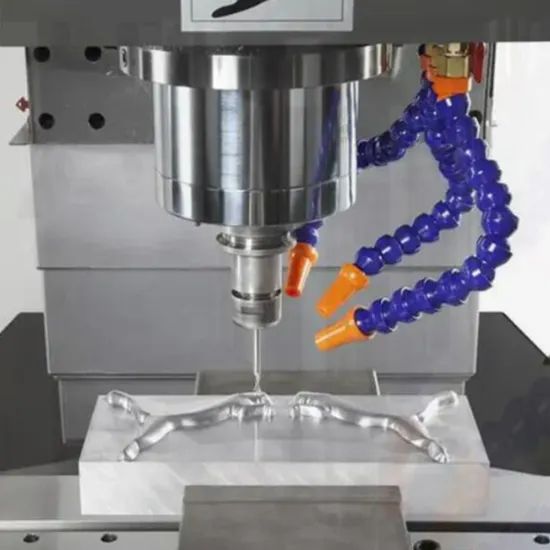

The main shafts all adopt wide-area high-torque spindle motors with outstanding advantages such as wide constant power range, large output torque, low noise, maintenance-free, high speed, and low failure rate. Cooperating with the high-rigidity integrated spindle unit.
The heavy-duty cutting capability of the machine tool has been greatly improved, and the output torque of the spindle is twice that of ordinary models.
The main structure of the machine adopts modularization, a strong and closed box structure design, with good overall rigidity and strong heavy-duty cutting capability X/Y axis heavy-duty roller linear guideway.
FEATURE
1.The XYZ three-axis adopts heavy-duty roller linear guide rail, which has the advantages of good dynamic characteristics, large load-carrying capacity, high running precision, no creeping at low speed, and small frictional resistance.
2.X/Y/Z axis feed mechanism: AC servo motor + coupling + high-precision ball screw (pre-tightening treatment is adopted between the ball screw and the nut, the whole stroke
is inspected, and the clearance is eliminated structure.
3.The Z-axis is driven by a high-power servo motor with brake (without mechanical balance device) to ensure that the machine tool has a high dynamic response speed, and is equipped with a Sudden drop function (that is, Z-direction anti-fall and rapid lifting when power is off, preventing damage to tools or workpieces).

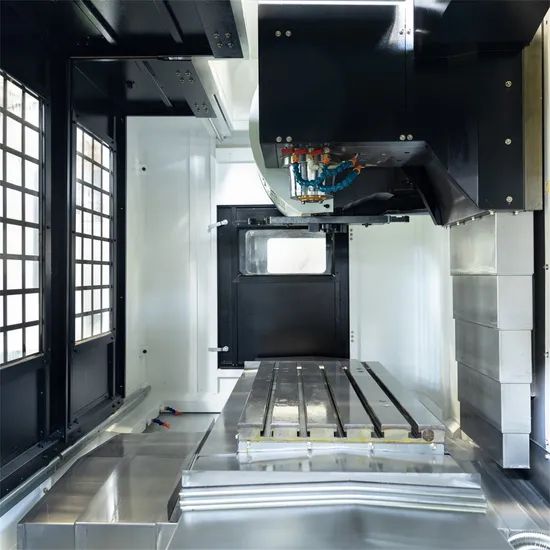

01Workbench
Ultrasonic quenching, precision grinding,improves strength, hardness, and wearresistance, leading to an extended service life.
Ultrasonic quenching, precision grinding,improves strength, hardness, and wearresistance, leading to an extended service life.
02 Linear rail
Taiwan HIWIN/PIM linear rail is used, which has high precision, large load-bearing capacity, strong stability, long service life, and is suitable for high-precision processing requirements.

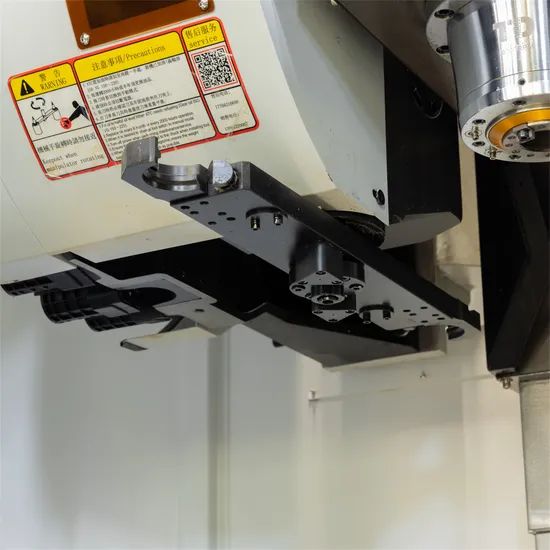

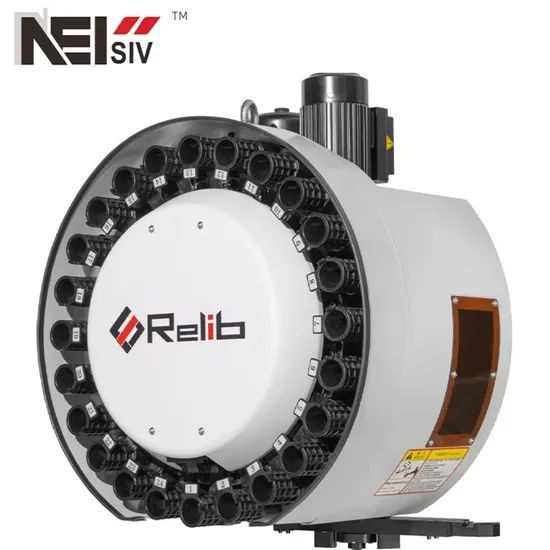

03 Taiwan Tool magazine
Disc-type tool magazine, which can rotate without noise and change tools quickly and accurately.
The tool magazine can install 24/30/40/60 tools and complete multiple processes atone time to increase production efficiency.
The tool magazine can install 24/30/40/60 tools and complete multiple processes atone time to increase production efficiency.
KENTURN/T&D/OkadaTaiwan Brand Tool magazinecan be selected.
04Advanced control system
Mitsubishi, Fanuc, Siemens, etc. can be selected according to customer requirements.
| Specification | Unit | VMC850 | VMC855 | VMC1160 | VMC1370 | VMC1580 |
| X/Y/Z axis | mm | 800/500/500 | 800/550/550 | 1100x600x600 | 1300x700x700 | 1500/800/700 |
| Distance from spindle nose to workbench | mm | 100-600 | 120-670 | 150-750 | 100-800 | 170-870 |
| Track form | XY:Linear guide Z:Box guide |
XYZ: Linear guide |
XYZ: Linear guide |
XYZ: Linear guide |
XYZ:Y4 Linear guide |
|
| Workbench size(L*W) | mm | 1000x500 | 1000x550 | 1200x600 | 1400x700 | 1700x800 |
| The max.load capacity | kg | 500 | 500 | 800 | 1100 | 1500 |
| Slot | No/mm | 5-18 | 5-18 | 5-18 | 5-18 | 5-22 |
| Spindle taper hole | BT40 | BT40 | BT40 | BT40 | BT50 | |
| Spindle speed | rpm | 8000 | 8000 | 8000 | 8000 | 6000 |
| Spindle drive mode | Belt | Belt | Belt | Belt | Belt | |
| X/Y/Z axis rapid feeds | m/min | 36/36/24 | 36/36/24 | 32/32/24 | 24/24/24 | 20x20x18 |
| Max.cutting feed | mm/min | 10000 | 10000 | 10000 | 10000 | 10000 |
| Tool change method | arm | arm | arm | arm | arm | |
| Tool Capacity | tools | 24 | 24 | 24 | 24 | 24 |
| Maximum tool weight | kg | 8 | 8 | 8 | 8/15 | 8/15 |
| Fastest tool change time(T-T) | sec | 2.5 | 2.5 | 2.5 | 2.5 | 4 |
| Spindle motor | kw | 7.5/11 | 7.5/11 | 11/15 | 11/15 | 15/18.5 |
| Positioning accuracy | mm | ±0.006 | ±0.006 | ±0.006 | ±0.006 | ±0.006 |
| Repositioning accuracy | mm | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 |
| L*W*H | mm | 2500x2400x2600 | 2600x2400x2550 | 3100x2550x2600 | 3800x3100x2900 | 3950x3150x3000 |
| Weight | kg | 5000 | 5000 | 7000 | 9500 | 12000 |
STANDARD ACCESSORIES
| 1 | 24 disc tool magazines | 10 | Spindle output water |
| 2 | X,Y,Z axis ball screw: HIWIN/PMI | 11 | X,Y,Z axis bearing: NSK |
| 3 | X,Y,Z liner guideway:HIWIN/PMI | 12 | Portable chip blowing air gun |
| 4 | Workpiece Cooling System | 13 | Network transmission and CF card function |
| 5 | Fully enclosed protective cover | 14 | Automatic lubrication system |
| 6 | Spindle blowing device | 15 | Working light |
| 7 | Workpiece Cooling System | 16 | Tri-color warning light |
| 8 | cleaning air gun | 17 | Foundation screws and pads |
| 9 | Iron chipping disc and chip storage box | 18 | Tools and Toolboxes |
Application:Suitable for precision parts processing such as aerospace, automobile manufacturing, mold manufacturing, hardware processing, etc.
Founded in 1993, Anhui Gaochuan Sikai CNC Equipment Manufacturing Co., Ltd. (formerly known as Nanjing Sikai), our company, now proudly named NanJing Newsiv Equipment Co., Ltd., made a monumental strategic relocation to Ma'anshan, Anhui in 2021.
As a trailblazing high-tech enterprise, we specialize in the innovative design and precision manufacturing of CNC machine tools.
Our flagship products boast completely independent intellectual property rights, and several of our series have been distinguished with the prestigious Jiangsu Province High-tech Product Certificates.
1.Can we visit your factory before order?
A:Sure.All new and old friends are welcomed to visit us at our factory.Besides,we can pick up you at the station or airport if needed.We will be very honored to help with tickets and accommodation booking.
2.What's the MOQ?
A:One set only.
3.Do you have professional engineers ?
A:Yes.we have professional engineers and designers.We can provide OEM services.
4.Do you have CE certificate?
A:Yes,we have CE certification,machine quality is guaranteed.
5.What is your payment terms?
A:30%T/T in advance,70%T/T before shipment,Meanwhile it can be discussed according to your situation.
6.What is your delivery time?
A:Our fastest delivery time for 1~5 sets will be within one month for standard model.
Special model will depends on different machines with different configurations.Please contact us to confirm it is in stock or not.
7.How is the warranty?
A:We will supply standard ports and accessories with our machine.
Within one year after receiving our machines,in the right operation,if there are any damaged parts or accessories,we will replace them by air or express immediately free of charge.
