Liquid Filling Machine Automatic Plastic Syringe Fill Gel Filling Machine
1 Piece
$29,500Product information
High-quality Liquid Filling Machine Automatic Plastic Syringe Fill Gel Filling Machine supplied by Jastec (Shanghai) Technology Co., Ltd.. Bulk wholesale pricing is $29,500 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Filling Range:
0.3-10ml
Compressed Air:
0.55-0.75MPa, 15L/S
Specification:
1 box
Dimensions(L×W×H):
1080×860×2400mm
Voltage:
3 Phase, 380V/220V, 50-60Hz, 3.5kw
Production Capacity:
3500bph/H
Power Supply:
380V/220V, 3p, 50-60Hz, 0.8kw
Weight:
500kg
Specifications
Filling Range:
0.3-10ml
Compressed Air:
0.55-0.75MPa, 15L/S
Specification:
1 box
Dimensions(L×W×H):
1080×860×2400mm
Voltage:
3 Phase, 380V/220V, 50-60Hz, 3.5kw
Production Capacity:
3500bph/H
Power Supply:
380V/220V, 3p, 50-60Hz, 0.8kw
Weight:
500kg
HS Code:
8436100000
Automatic Grade:
Automatic
Product Name:
Automatic Glass Plastic Syringe Filling and Making
Packaging:
Bottle
Dosing Device:
Capacity Cup
Place Of Origin:
China
Origin:
China
Trade Term:
FOB, CIF, CFR, EXW
Packaging Material:
Film
Key Selling Points:
High Safety Level
Keywords:
IV Solution Production Line
Trademark:
JASTEC
Dimensions:
L1690×w860×h2200mm
Payment Term:
LC, T/T, PayPal, Western Union
Material Type:
Liquid
Filling Valve Head:
Multi-Head
Feed Cylinder Structure:
Multi-Room Feeding
Type:
Piston Filling Machine
Packaging Container Lifting Structure:
Pneumatic Lifting
Filling Principle:
Pressure
Machinery Test Report:
Provided
Video Outgoing Inspection:
Provided
Core Components:
Pump, Other, Engine, PLC
Structure:
Rotary
Port Of Loading:
Shanghai Port
Transport Package:
Wooden
Model NO.:
ZW-GZB200
Filling Accuracy:
≤1%
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2024-05-15
Annual Revenue Amount:
Not specified
Numbers Of Employees:
1
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Product descriptions from the supplier
Product descriptions from the supplier

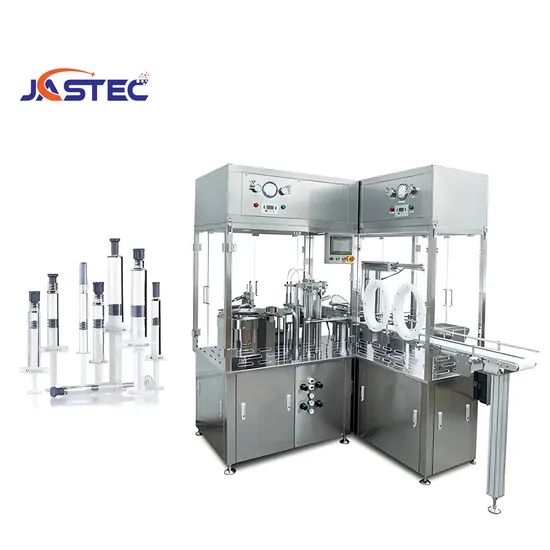

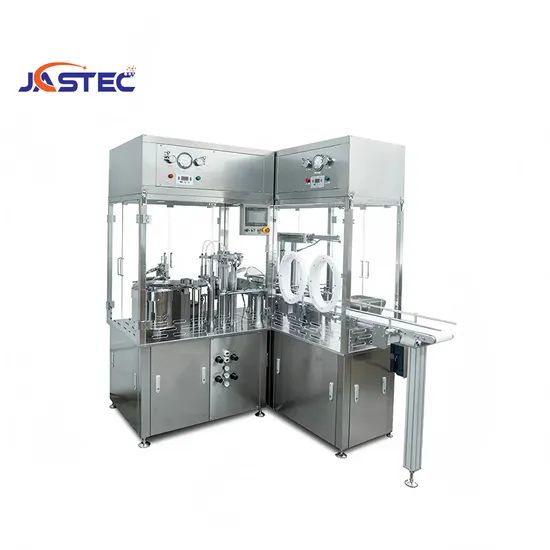

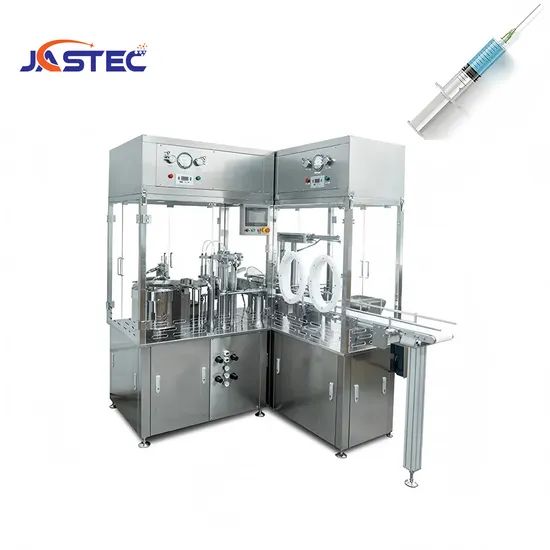

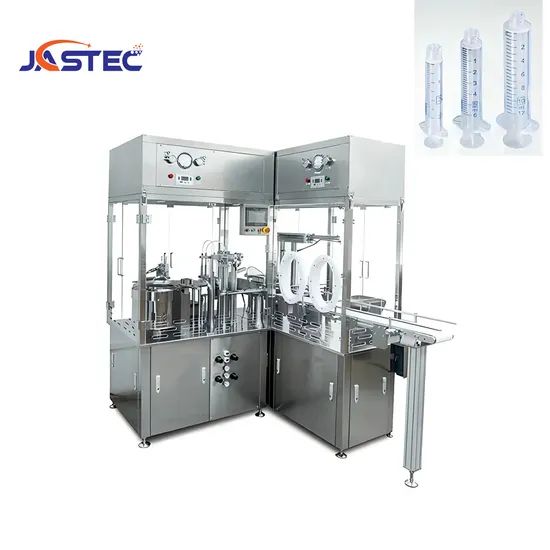

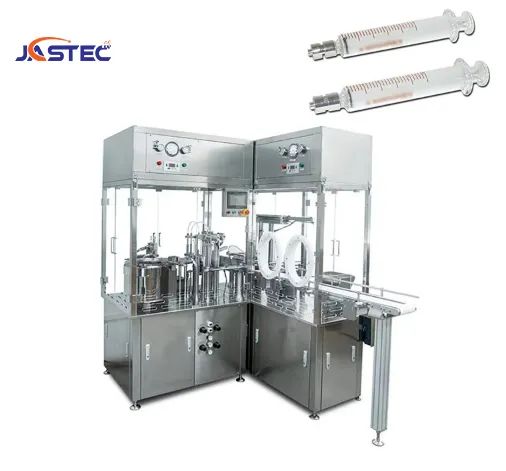

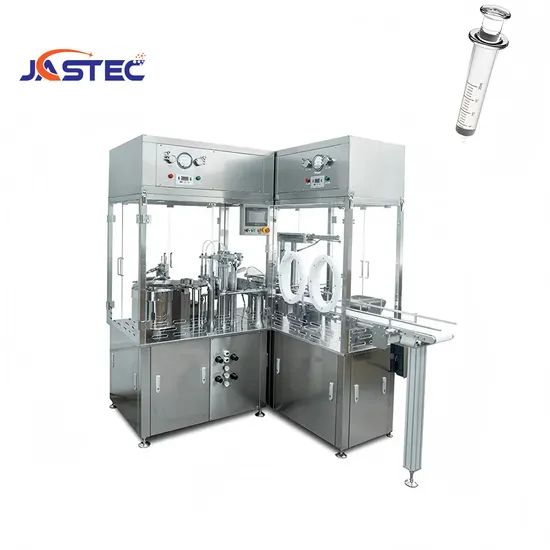

Automatic Glass Syringes Denesting Prefilling and Plugging Machine
Products Description
The GZB-200 model fully automatic glass syringes prefilling and plugging machine is specially designed by our company for the filling of prefilled syringes. It is an automatic packaging equipment for aseptic and efficient filling of syringes. The equipment runs smoothly, is easy to operate, and is equipped with intelligent detection devices. It has high automation, high work efficiency and easy maintenance. It is an ideal equipment for filling and plugging prefilled syringes.
The glass syringes denesting machine is an automatic machine that takes out the prefilled syringes stored in the nest box and distributes the prefilled syringes to the filling station in an orderly manner through intelligent control. It can be used with the filling and plugging machine or the plunger rod assembling and labeling machine, which solves the problems of slow manual material distribution and easy breaking, and improves the production efficiency.
Product Features
* This product is widely applicable toSCF (Prefilled syringe) syringes from BD, BG, SCHOTT and major domestic manufacturers. Other types of syringes can also be customized.
* The surface is made of SUS304 stainless steel, and the contact parts are made of SUS316L stainless steel and medical silicon rubber, which fully meets the requirements of GMP specifications.
* The ceramic plunger pump realizes quantitative filling, is resistant to acid and alkali corrosion, wear-resisting and high
temperature, and has high filling accuracy.
* The conveying and sorting of the rubber plugs are realized by the vibratory feeder, which is made of SUS316L stainless steel clean plate with bright surface treatment and no clean dead corners.
* It adopts internationally renowned electrical components and implements interference-free modular control. Synchronous actions are all controlled by servo motors. Automatic filling and stoppering are implemented, which is accurate, reliable and easy to operate.
* The operation of the motor is controlled by the PLC programming controller. The human-computer interaction interface monitors and displays the working status of each station in real time, and automatically alarms and displays the fault location in real time, and the fault prompts.
* A variety of filling doses and filling methods are available.
* The injection needle is used for filling with the liquid level rising to prevent splashing of liquid gel.
* The vacuum filling system is suitable for viscous materials to ensure that the liquid gel fills the filling space without bubbles or faults, and improves the qualified rate of finished products.
* The vacuum stopper system avoids particles generated by the vibration and friction of the rubber stopper, and ensures that the rubber stopper is in close contact with the liquid surface.
* Modular design, easy to locate, easy to expand, can be used as a stand-alone machine, can also be connected to the nesting machine, rotating rod machine, labeling machine, light inspection machine and other equipment to form a production line.
* Optionalhundred-level laminar flow hood to achieve high-demand clean production.
Product Parameters
|
Items
|
Parameters
|
|
Name
|
GZB-200 Automatic Syringes Prefilling and Plugging Machine
|
|
Function
|
Fully Automatic Syringe Denesting Filling and plugging.
|
|
Filling Range
|
0.3-10ml
(Filling pump needs to be replaced when volume differs greatly)
|
|
Filling and Plugging Head
|
2
|
|
Filling Accuracy
|
≤1%
|
|
Production Capacity
|
1200-1500 pcs/hour
|
|
Voltage
|
3 phase, 380V/220V, 50-60Hz, 3.5Kw
|
|
Compressed Air
|
0.55-0.75Mpa. 15L/S
|
|
Dimensions
|
L1690×W860×H2200mm (With laminar flow hood)
|
|
Weight
|
500kg
|
|
Power Supply
|
380V/220V, 3P, 50-60Hz, 0.8Kw
|
|
Compressed Air
|
0.55-0.75Mpa, 15L/S
|
|
Dimensions(L×W×H)
|
1080×860×2400mm (With laminar flow hood)
|
Product Application
Details Images
Equipment display
Our Advantages
Pre-sale service
1. Support product customization, any requirements you need can be customized according to your requirements.
2. Sample test on our machine.
3. Provide business consulting and technical support, as well as a free professional packaging solution
4. Make a machine layout for customers based on customers' factories.
After-sales service
1. Manual book.
2. Videos of installation, adjusting, setting, and maintenance, are available for you.
3. Online support, or face-to-face online communications, are available.
4. The engineer overseas services, are available. The tickets, visa, traffic, living, and eating, are for customers.
5. During the warranty year, without human-being broken, we will replace a new one for you.
Company Profile
Why choose JASTEC?
More professional and better understand you.
1. Engineers who can work for machinery overseas (all prefectures).
2. JASTEC overseas service centers are available (Showroom in europe,north america,southeast asia).3. Overseas third-party support is available (europe,north america,asia).
4. JASTEC engineers have more than 15 years of professional experience in the drying industry, engaged in
design,mechanical drawing, electrical automation editing, etc.
5. JASTEC have rich experience in project management and advanced on-site construction technology; We have gained good performanceand a well-known reputation.
5. JASTEC have rich experience in project management and advanced on-site construction technology; We have gained good performanceand a well-known reputation.
Jastec(Shanghai) Technology Co., Ltd is a professional supplier of food deep processing (include food additive) machinery. It integrates develop, sales, after-sale services as a whole, being a professional supplier for extraction equipment, drying equipment, mixing equipment, grinding equipment and turnkey project for food(include food additive)and agriculture industry etc. Jastec has passed the Occupational health and Safety Management System Conforms to the standard CE,SGS etc. As the members of China National Standardization technique Committee for Industrial Equipment,testified by experience of long-term users, our machine and production line have very high stability and reliability, which have been sold to more than 160 foreign countries like Asian, African,European, American. Jastec have established branch offices and showrooms in Europe and North America. For many years, we`re stick to the principle of "Customers First" taken the initiative to manage customers` demands, to develop and research high-quality, low energy cost but efficiency equipment, set up a perfect after-sale service system, and brought up the concept of" Star service" The Jastec equipment is worth of your trust, Let`s join hands to co-develop a brilliant future in the 21st century full of opportunities! Brand from concentration--Our pursuit is to supply the best cost-effective machines in the world. In this 21-century full of opportunities and challenges, Jastec will provide new equipment and more pragmatic spirit of innovation, cooperate with you and create brilliance!
EXIBITION
Certifications
Packaging & Shipping
FAQ
Q: Can l do a letter of credit?
A:Can. Our company's payment methods: T/T, letter of credit, credit cardcash and other forms.
Q:Have you ever sold machines in our country? ls there an agent?
A:We have agents, dealers, and after-sales service providers in many countries You can click to contact us for consultation.
Q:What services can be provided after sales?
A:For VIP customers, we provide extended warranty services and supportone-on-one 24-hour online technical support, we have local after-sales service providers in many countries. Please click to contact us for details!
Q: How can l know your machine is suitable for you product?
A: lf possible, you can send us samples and we will test on machines.So canwe will take videos and pictures for you. We can also show you on-line by video chatting.
Q:Have you ever sold machines in our country? ls there an agent?
A:We have agents, dealers, and after-sales service providers in many countries You can click to contact us for consultation.
Q:What services can be provided after sales?
A:For VIP customers, we provide extended warranty services and supportone-on-one 24-hour online technical support, we have local after-sales service providers in many countries. Please click to contact us for details!
Q: How can l know your machine is suitable for you product?
A: lf possible, you can send us samples and we will test on machines.So canwe will take videos and pictures for you. We can also show you on-line by video chatting.
