Loop Detector for Parking Management Systems-Vehicle Detector
1-19 Piece
$1220-99 Piece
$11.2100 Piece
$11Product information
High-quality Loop Detector for Parking Management Systems-Vehicle Detector supplied by S4A Industrial Co., Limited. Bulk wholesale pricing ranges from $11 to $12 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Voltage Tolerance DC:
+-15%
Voltage Tolerance AC:
+10%/-15%
Reaction Time:
10ms
Production Capacity:
20000pieces Per Month
Frequency Range:
20kHz ~ 170kHz
Supply Voltage:
230V AC, 115V AC, 24V DC/AC, 12V DC/AC (See The La
Output Relays:
240V/5A
Power Consumption:
4.5va
Specifications
Voltage Tolerance DC:
+-15%
Voltage Tolerance AC:
+10%/-15%
Reaction Time:
10ms
Production Capacity:
20000pieces Per Month
Frequency Range:
20kHz ~ 170kHz
Supply Voltage:
230V AC, 115V AC, 24V DC/AC, 12V DC/AC (See The La
Output Relays:
240V/5A
Power Consumption:
4.5va
HS Code:
8471609000
Sensitivity:
Adjustable in 4 Increments
Origin:
China
Trade Term:
EXW
Application:
Home, Industry, Communication Electronic Products, Special Equipment, Car/Motorcycle, Traffic
Specification:
L78 x W40 x H108mm
Model NO.:
PD-132
Trademark:
S4A
Transport Package:
Standard Carton Box
Payment Term:
T/T, PayPal, Western Union
Signal Holding Time:
Unlimited / Limited When Loop Is Permanently Cover
Port Of Loading:
Yantian, Shekou, Chiwan
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2010-10-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T, PayPal, Western Union
Preferred Trade Term:
EXW
Port Of Loading:
Yantian, Shekou, Chiwan
Certificates:
Access control board, EMC-Automatic Swing Door Opener, EMC-Electromagnetic Lock, Fingerprin Time Attendance &Access Control, Power supply, Rohs-Electromagnetic lock, Standalone Integrated Access Control
Product descriptions from the supplier

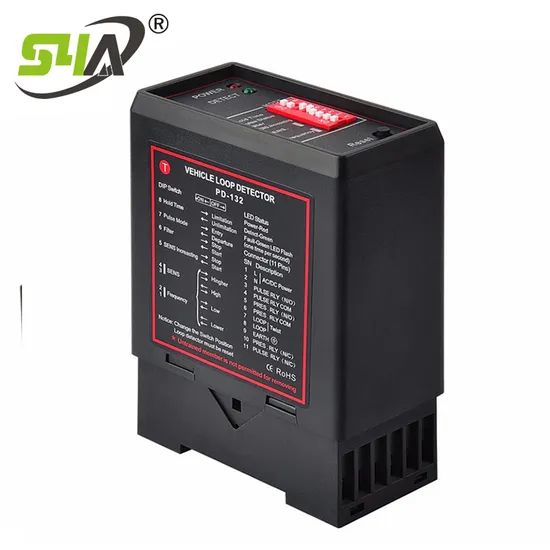

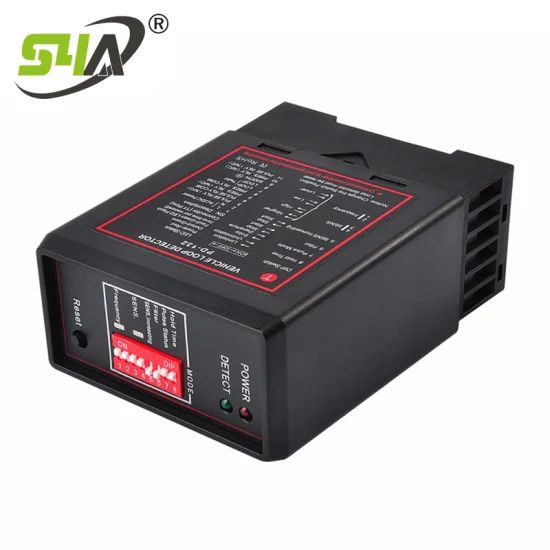

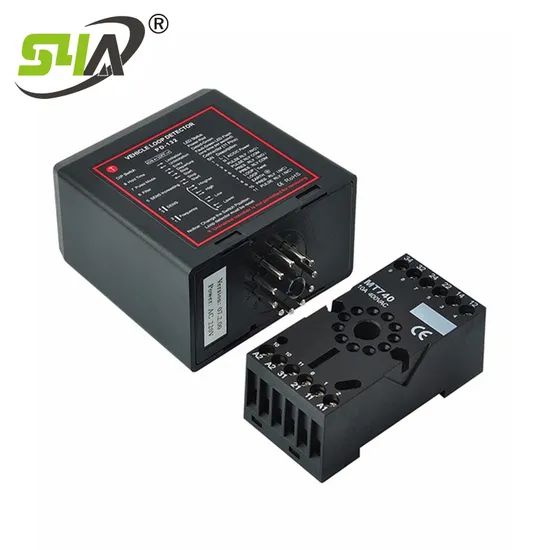

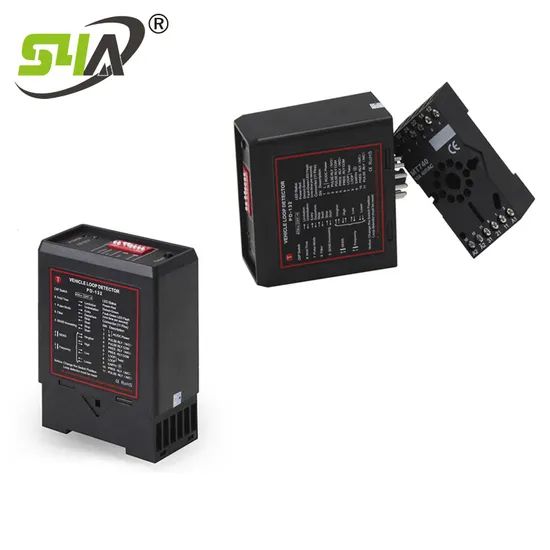

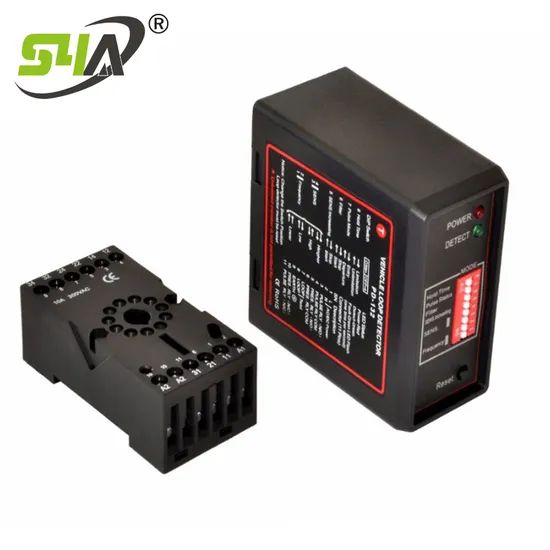

PD-132 Inductive Vehicle Single Loop Detector for Automatic Gate opener barrier gate Traffic Inductive Vehicle access
Leave a message to us, if you need DC12V/DC24V/AC110V,no message send AC220V
Install Detector
The detector must be installed in a convenient weatherproof location as close to the loop as possible. Installation location must choose to stay away from the heat source, it around other devices must maintain a distance of at least 10mm (mustn't fix cling to the cabinet). A correct loop configuration and detector installation will ensure a successful inductive loop detection system. Loop of several important parameters include: loop figure, size, and turns, install methods (details as "Loop installation guide").
Operation and Indication
While the detector is tuning, the green Channel LED and red Power LED will be turn on. It remain about 2 seconds, then the green LED turn off. If a loop fault exists the Channel LED will come on and flash indicating a fault. If the fault is self-healing the detector will continue to operate.The green channel LED will also glow whenever a vehicle is detected passing over the inductive loop. The red Power LED at the top of the unit will remain on to indicate that the unit is powered.
Frequency
To eliminate interference of two neighbouring wire loops or loop detectors, the frequency can be altered.
Sensitivity
The sensitivity of the detector allows the detector to be selective as to the change of inductance necessary to produce an output. There are four sensitivity selections and are set as follows by DIP3 and DIP4 Switch.
Automatic Sensitivity Boost
Automatic sensitivity boost is selected by DIP5 switch on the front of the enclosure and is set
as follows: OFF - Disabled, ON - Enabled.
Automatic sensitivity boost causes the sensitivity to be boosted to a maximum on detection
on the vehicle, and maintained at this level during the presence of the vehicle over the loop. When
the vehicle departs the loop and detection is lost the sensitivity reverts to the pre-selected level.
Filter
To eliminate interference of the bad environment, the filter mode is activated by setting the DIP6 Switch to "ON" site. In this mode, the reaction time of the detector is delayed, and the sensitivity is reduced. Usually, the filter mode is disabled by setting the DIP6 Switch to "OFF" site.
[Attention]If the detector isn't working normally, you must check the loop and wiring at first, and then alter the frequency or the sensitivity. At last, try to set it to filter mode.
Output Relay
If DIP7 is "OFF" site, when a vehicle is detected passing over the inductive loop, the relay1 and relay2 are energized; When the vehicle is detected departing the loop, the relay1 and relay2 are de-energized.If DIP7 is "ON" site, when a vehicle is detected passing over the loop, the relay2 is energized;When the vehicle is detected departing the loop, relay2 is de-energized , and delay 500 ms, the relay1 is energized for 500 ms.
Presence Time
The presence time may be set to permanent presence or to limited presence. In permanent presence mode the detector will continuously compensate for all environmental changes whilst there is a vehicle present over the loop, the presence mode is set with DIP8 Switch and is
configured as follows: OFF:Limited Presence ( 10 minutes), ON:Permanent Presence
Reset Switch
The detector automatically tunes to the inductive loop connected to it when the power is applied, whether on initial installation or after any break in power supply. Should it be necessary to retune the detector, as may be required after changing any of the switches or after moving the detector from one installation to another, momentary operation of the RESET switch will initiate the automatic tuning cycle.
Leave a message to us, if you need DC12V/DC24V/AC110V,no message send AC220V
Install Detector
The detector must be installed in a convenient weatherproof location as close to the loop as possible. Installation location must choose to stay away from the heat source, it around other devices must maintain a distance of at least 10mm (mustn't fix cling to the cabinet). A correct loop configuration and detector installation will ensure a successful inductive loop detection system. Loop of several important parameters include: loop figure, size, and turns, install methods (details as "Loop installation guide").
| Supply voltage | 230V AC, 115V AC, 24V DC/AC, 12V DC/AC (See the label on the detector) |
| Voltage tolerance AC | +10% / -15% |
| Voltage tolerance DC | ±15% |
| Power Consumption | 4.5VA |
| Output relays | 240V/5A |
| Operating temperature | -20ºC ~ 65ºC |
| Storage temperature | -40ºC ~ 85ºC |
| Frequency range | 20 KHz ~ 170 KHz |
| Reaction time | 10ms |
| Signal holding time | Unlimited / limited when loop is permanently covered 10 minutes |
| Sensitivity | Adjustable in 4 increments |
| Loop inductance | Total loop plus connection wiring: 50μH to 1000μH. Ideal is 100μH to 300μH |
| Loop connection wiring | Maximum length 20 meters, twisted at least 20 times per meter |
| Size of Housing | L78 x W40 x H108mm |
Operation and Indication
While the detector is tuning, the green Channel LED and red Power LED will be turn on. It remain about 2 seconds, then the green LED turn off. If a loop fault exists the Channel LED will come on and flash indicating a fault. If the fault is self-healing the detector will continue to operate.The green channel LED will also glow whenever a vehicle is detected passing over the inductive loop. The red Power LED at the top of the unit will remain on to indicate that the unit is powered.
Frequency
To eliminate interference of two neighbouring wire loops or loop detectors, the frequency can be altered.
Sensitivity
The sensitivity of the detector allows the detector to be selective as to the change of inductance necessary to produce an output. There are four sensitivity selections and are set as follows by DIP3 and DIP4 Switch.
Automatic Sensitivity Boost
Automatic sensitivity boost is selected by DIP5 switch on the front of the enclosure and is set
as follows: OFF - Disabled, ON - Enabled.
Automatic sensitivity boost causes the sensitivity to be boosted to a maximum on detection
on the vehicle, and maintained at this level during the presence of the vehicle over the loop. When
the vehicle departs the loop and detection is lost the sensitivity reverts to the pre-selected level.
Filter
To eliminate interference of the bad environment, the filter mode is activated by setting the DIP6 Switch to "ON" site. In this mode, the reaction time of the detector is delayed, and the sensitivity is reduced. Usually, the filter mode is disabled by setting the DIP6 Switch to "OFF" site.
[Attention]If the detector isn't working normally, you must check the loop and wiring at first, and then alter the frequency or the sensitivity. At last, try to set it to filter mode.
Output Relay
If DIP7 is "OFF" site, when a vehicle is detected passing over the inductive loop, the relay1 and relay2 are energized; When the vehicle is detected departing the loop, the relay1 and relay2 are de-energized.If DIP7 is "ON" site, when a vehicle is detected passing over the loop, the relay2 is energized;When the vehicle is detected departing the loop, relay2 is de-energized , and delay 500 ms, the relay1 is energized for 500 ms.
Presence Time
The presence time may be set to permanent presence or to limited presence. In permanent presence mode the detector will continuously compensate for all environmental changes whilst there is a vehicle present over the loop, the presence mode is set with DIP8 Switch and is
configured as follows: OFF:Limited Presence ( 10 minutes), ON:Permanent Presence
Reset Switch
The detector automatically tunes to the inductive loop connected to it when the power is applied, whether on initial installation or after any break in power supply. Should it be necessary to retune the detector, as may be required after changing any of the switches or after moving the detector from one installation to another, momentary operation of the RESET switch will initiate the automatic tuning cycle.
