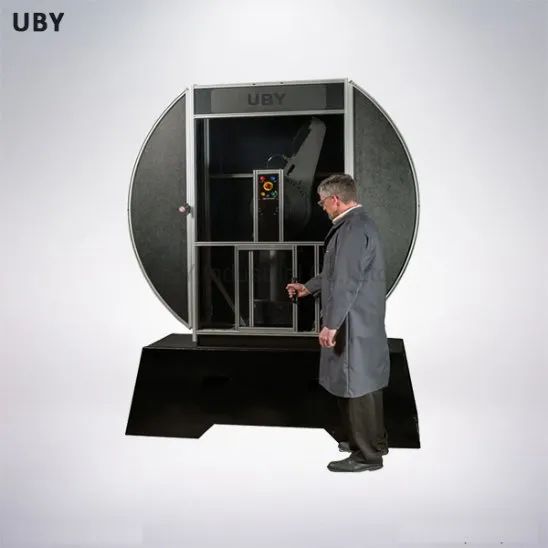

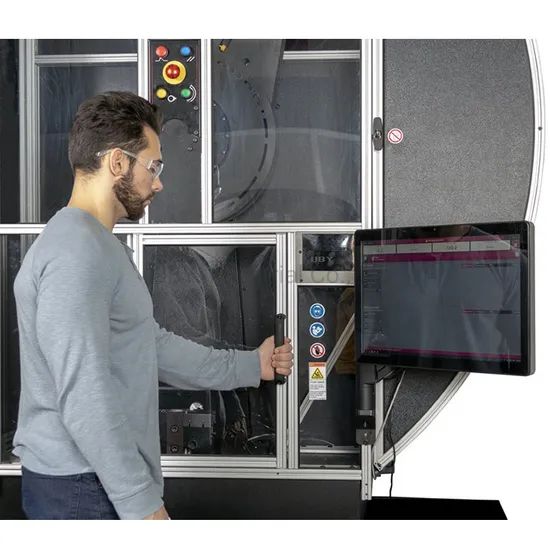

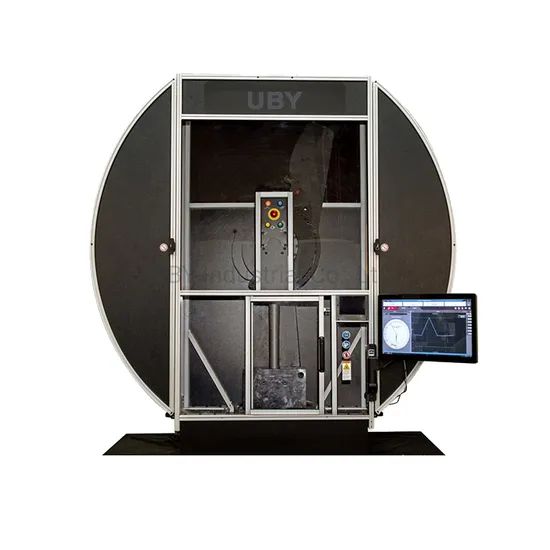

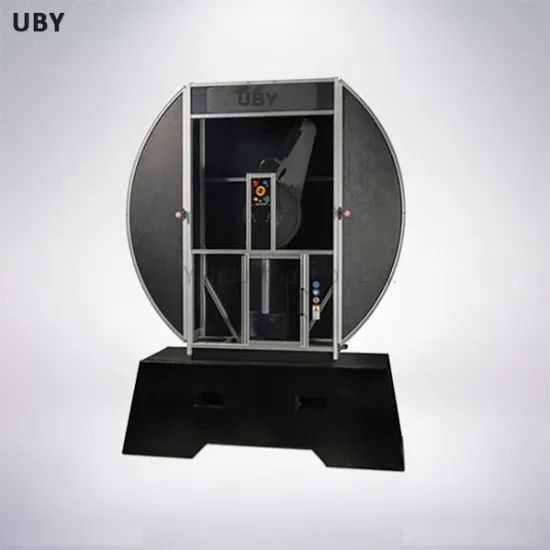

Low Temperature Impact Test Machine for Cable Testing as Per IEC 60811-1-4
1 Piece
$5,0001 Piece
$1,000Product information
High-quality Low Temperature Impact Test Machine for Cable Testing as Per IEC 60811-1-4 supplied by UBY Industrial Co., Ltd.. Bulk wholesale pricing ranges from $1,000 to $5,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Weight:
0-100Kg
Accuracy Grade:
0.5
Production Capacity:
1000/Year
Impact Energy:
2j, 5j, 10j, 20j, 50j
Maxcapacity:
<1000KN
Max Diameter Of Workpiece:
<500mm
Power Source:
AC220V
Origin:
China
Specifications
Weight:
0-100Kg
Accuracy Grade:
0.5
Production Capacity:
1000/Year
Impact Energy:
2j, 5j, 10j, 20j, 50j
Maxcapacity:
<1000KN
Max Diameter Of Workpiece:
<500mm
Power Source:
AC220V
Origin:
China
Display:
Digital
Loading Method:
Dynamic Load
Load Way:
Electronic Load
Trade Term:
FOB, EXW, CFR, CIF, DDP, FCA
Type:
Impact Testing Machine
Control:
Manual Control
Trademark:
None
Sevices:
OEM,ODM,Non-Standard,Customized
Transport Package:
Professional Export Packaging
Port Of Loading:
Shenzhen, Shanghai, Guangzhou
Standard:
Stainless Steel
Payment Term:
T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Model NO.:
UP-3011
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2017-08-21
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, EXW, CFR, CIF, DDP, FCA
Port Of Loading:
Shenzhen, Shanghai, Guangzhou
Certificates:
Appearance patent certificate, CE, ISO24001, ISO45001, ISO9001, SGS
Product descriptions from the supplier
Low Temperature Impact Test Machine for Cable Testing as per IEC 60811-1-4
Application Character:
This machine is used to test the metal material at low temperature impact resistance specification,it is the necessary testing machine for gold and machinery manufacturing and also for research on new material.

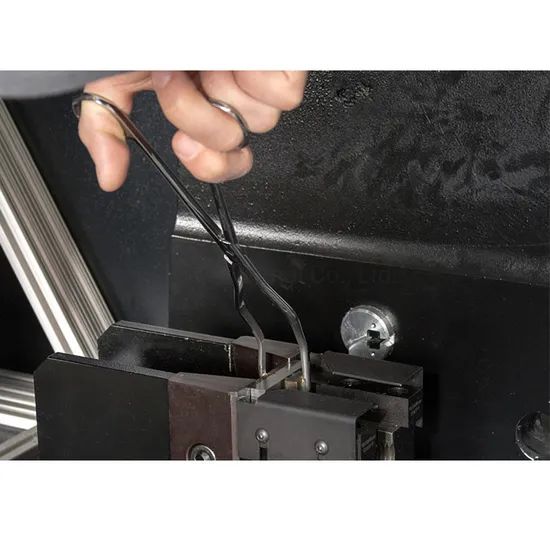

This machine is used PLC control,according to the pendulum,hanging pendulum,feeding,positioning,impact and temperature regulation setting are electronic and mechanical system equipmented with dedicated automatic feeding device,sample automatic end face positioning.time from sample trapping to impact is no more than 2 seconds meets the requirement of metal low temperature chrapy impact test method. After impact sample can use rest energy to auto pendulum ready for the next text.
1.Main Chamber use double support column,spindle simply supported beam type support,hanging pendulum,bearing radial distribution is reasonable to reduce the the spindle deformation greatly reduce the energy loss caused by bearing friction.
2.Use gear motor direct hammer,operate steadily
3.3D software accurate design of pendulum to ensure the accuracy of the centre of percussion and pendulum bob torque
4.The impact knife use screw fastening fixed,easy to reply

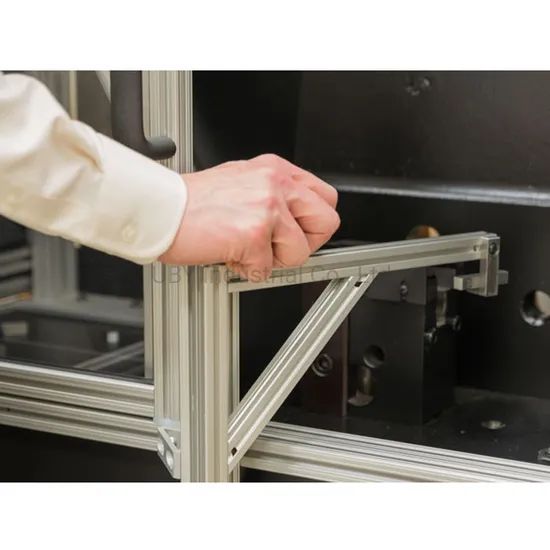

5.The machine is equipped with safety pin and protective screening to ensure the testing safety
6.Testing machine according to the national standard GB/T3803-2002"Pendulum Impact Testing Machine Inspection",follow the standard GB/T2292007"Metal Material-Charpy Pendulum Impact Testing Method"to do the impact testing of the metal material.
Technical Specification:
Application Character:
This machine is used to test the metal material at low temperature impact resistance specification,it is the necessary testing machine for gold and machinery manufacturing and also for research on new material.
This machine is used PLC control,according to the pendulum,hanging pendulum,feeding,positioning,impact and temperature regulation setting are electronic and mechanical system equipmented with dedicated automatic feeding device,sample automatic end face positioning.time from sample trapping to impact is no more than 2 seconds meets the requirement of metal low temperature chrapy impact test method. After impact sample can use rest energy to auto pendulum ready for the next text.
1.Main Chamber use double support column,spindle simply supported beam type support,hanging pendulum,bearing radial distribution is reasonable to reduce the the spindle deformation greatly reduce the energy loss caused by bearing friction.
2.Use gear motor direct hammer,operate steadily
3.3D software accurate design of pendulum to ensure the accuracy of the centre of percussion and pendulum bob torque
4.The impact knife use screw fastening fixed,easy to reply
5.The machine is equipped with safety pin and protective screening to ensure the testing safety
6.Testing machine according to the national standard GB/T3803-2002"Pendulum Impact Testing Machine Inspection",follow the standard GB/T2292007"Metal Material-Charpy Pendulum Impact Testing Method"to do the impact testing of the metal material.
Technical Specification:
| Cooling Method | Liquid |
| Temperature Range(Ambient Temperature≤25ºC) | ±30ºC~-196ºC |
| Temperature Control Accuracy | ±1ºC |
| Cooling Speed | ±30ºC~-196ºC no more than 60 min |
| Sample Size | 10*10*55mm,10*7.5*5.5mm,10*5*55mm,10*2.5*55mm |
| Cooling Room Sample Volume | 20 pieces |
| Sample Positioning Mode | Pneumatic |
| Protective Device | Completely Closed Protective Net |
| Power | 0.37kw |
Our service:During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products is confirmed shipping time and inform the customer.
4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.
FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional Manufacturers like Environmental Chambers, Leather shoe testing equipment, Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 months warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on site.
