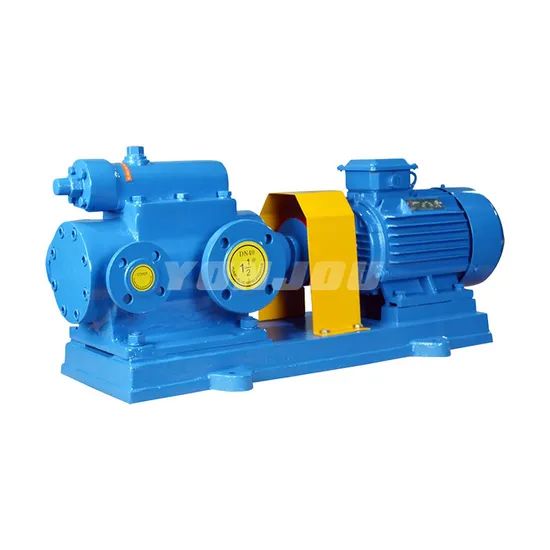

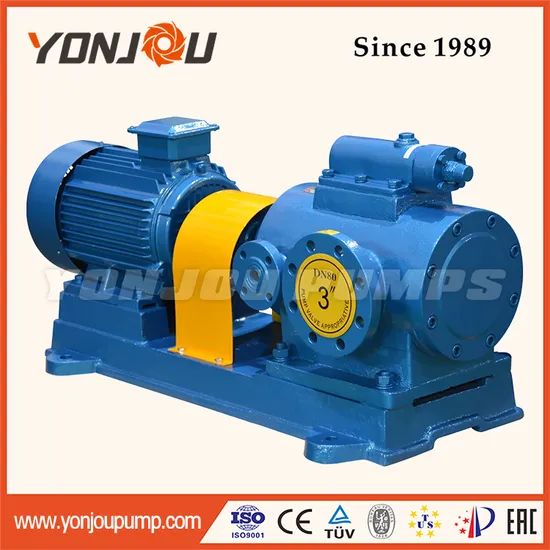

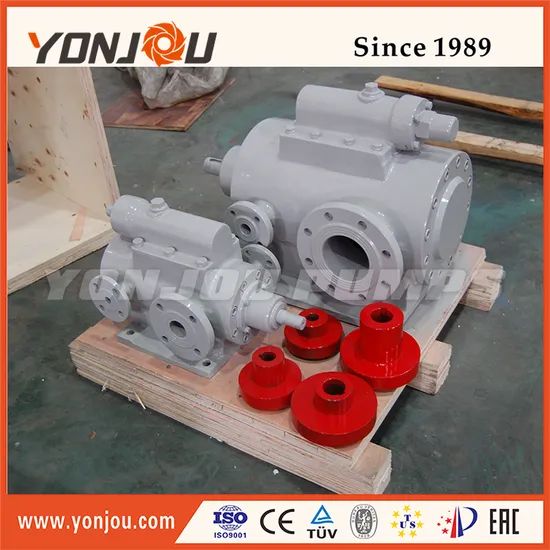

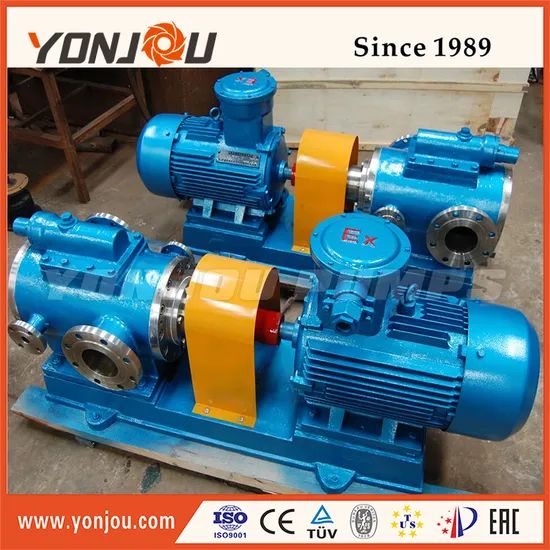

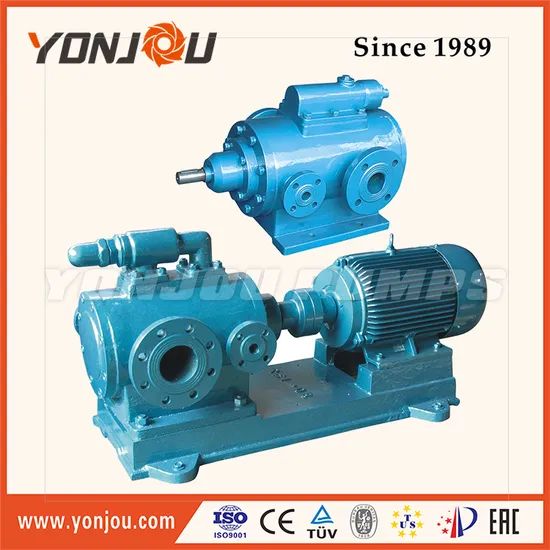

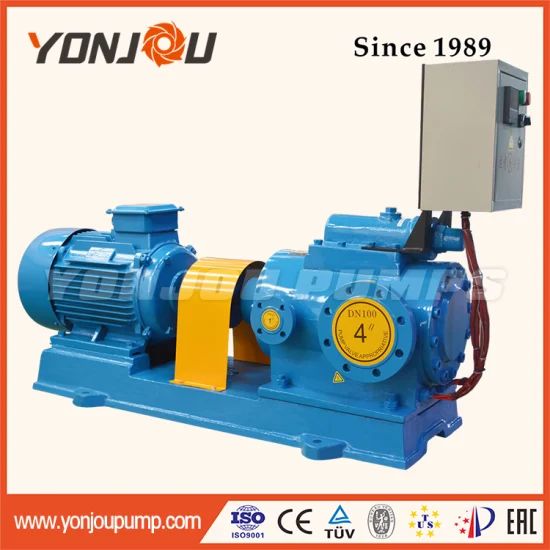

Lq3g High Viscosity Heating Jacket Electric Emulsion Bitumen Asphalt Three Screw Pump
1 Set
$8,5001 Set
$1,000Product information
High-quality Lq3g High Viscosity Heating Jacket Electric Emulsion Bitumen Asphalt Three Screw Pump supplied by Zhejiang Yonjou Technology Co., Ltd.. Bulk wholesale pricing ranges from $1,000 to $8,500 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Warranty:
1 Year Without Spare Parts
Package Size:
110.00cm * 80.00cm * 70.00cm
Package Gross Weight:
465.000kg
Production Capacity:
50, 000set/Year
Lead Time:
7~30 Days
HS Code:
8413110000
Application:
Bitumen
Specification:
Bitumen Pump
Specifications
Warranty:
1 Year Without Spare Parts
Package Size:
110.00cm * 80.00cm * 70.00cm
Package Gross Weight:
465.000kg
Production Capacity:
50, 000set/Year
Lead Time:
7~30 Days
HS Code:
8413110000
Application:
Bitumen
Specification:
Bitumen Pump
Certification:
CE, ISO
Material:
Cast Iron, 40cr Screw, SS304
Certificate:
Ce, ISO
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, EXW, CIF, DDP, CIP
Performance:
Heat-Preserving
Pump Shaft Position:
Horizontal
Package:
International Standard Plywood Case
Transport Package:
International Standard Plywood Case
Payment Term:
LC, T/T, D/P, PayPal
Model NO.:
LQ3G
Port Of Loading:
NINGBO, SHANGHAI
Payment Methods:
Support payments in USD
Payment:
T/T, LC, Visa
Trademark:
YONJOU
Testing:
Yes
OEM:
Yes
QC:
Yes
Origin:
Zhengjiang Wenzhou
Shipment:
by Sea, by Air, by Express, by Truck, by Train
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2001-02-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal
Preferred Trade Term:
FOB, EXW, CIF, DDP, CIP
Port Of Loading:
NINGBO, SHANGHAI
Certificates:
AAA Enterprise Credit, After-Sales Services of Commodity, CCCF, CE, EAC, FDA, High-Tec Enterprise, ISO14001, ISO45001, ISO9001, National Standard GB/T 13930-2024
Product descriptions from the supplier
Summarize:
LQ3G Bitumen Emulsion Triple Screw Pump with Heating Sleeve designed for LPG movement, suitable for oil, bitumen, and asphalt transfer, efficiently handles viscous fluids without contaminants, ideal for non-corrosive hydrocarbons
2. The viscosity can be 3.0~760 mm2/s (1.2-100 °E). High viscosity medium can be pumped after overheating.
3. It can be used as rubricating pump, hydraulic pump, boost pump, petrol pump and dispensing pump.
Transfer and circulate various liquid lubricants including fuel, greasing, hydraulic, raw, heavy, asphalt, bitumen, rubber, and resin across sectors such as oil and gas, steel production, chemical textiles, food processing, metal fabrication, road building, power generation, mining, shipyards, glass manufacturing, and rubber processing.
Strengths of The Technology:
- High pressure boost capabilities even when handling low viscosity fluids
- Pump with one of the highest overall efficiencies when handling heavy crude
- Simple pump design with only three rotating parts and one shaft seal
- Pulse-free flow with extremely low vibration and noise levels
Applications:
| For land | |
| Lubrication | Bearing lubrication oil supply |
| Burning | Fuel oil burning |
| Oil Pressure | Water turbine control hydraulic pressure and other hydraulic oil pressure system |
| Transfer | Oil and other liquid transfer |
| Other | Gas Seal oil, Asphalt spraying, High viscosity liquid such as viscose transfer |
| For ship | |
| Lubrication | Main turbine and engine |
| Burning | Fuel oil burning |
| Oil Pressure | Variable pitch propeller and winch steerage hydraulic oil pressure system |
| Transfer | Lubricating oil and fuel oil transfer |
Product details:
| Working Principle: | Three Screw (One main, two driven screws) |
| Main applications: | Heavy Oil, bitumen, viscous fluids |
| Driver: | Electric motor, diesel motor |
| Power Specs: | 220V,240V,380V,400V,415V,440V,460V,50hz/60hz |
| Max. permissible fluid temperature: | 350°C |
| Type of connection: | Flange, Thread, Quick Coupled |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
| Shaft seal type: | Mechanical seal |
| Maximum viscosity: | 1000CST |
| Maximum drive rating: | 90 kW |
| Maximum caliber: | 6inch (150mm) |
| Maximum discharge-side pressure: | 2.5mpa (25bar) |
| Flow rate range: | 4.5~250 m3/h |
Performance Data:
| Pump Size | Flow Rate | Pressure | Rotate speed | Power KW | NPSHR | ||
| M3/h | LPM | Mpa | RPM | Shaft power | Motor | M | |
| LQ3G45×2-46 | 4.28 | 71.28 | 0.6 | 960 | 1.03 | 1.5 | 5 |
| 4.14 | 68.96 | 1 | 1.73 | 2.2 | |||
| 4 | 66.63 | 1.6 | 2.8 | 4 | |||
| 6.53 | 108.8 | 0.6 | 1450 | 1.75 | 2.2 | ||
| 6.32 | 105.3 | 1 | 2.61 | 3 | |||
| 6.1 | 101.7 | 1.6 | 3.75 | 5.5 | |||
| LQ3G60×2-46 | 9.89 | 164.8 | 0.6 | 960 | 2.33 | 3 | 5 |
| 9.73 | 162.2 | 0.8 | 2.91 | 4 | |||
| 9.56 | 159.4 | 1 | 3.61 | 5.5 | |||
| 15.1 | 251.6 | 0.6 | 1450 | 3.56 | 5.5 | ||
| 14.6 | 243.3 | 1 | 5.51 | 7.5 | |||
| LQ3G80×2-46 | 16.8 | 280.3 | 0.6 | 960 | 3.5 | 5.5 | 5.5 |
| 16.3 | 271.2 | 1 | 5.41 | 7.5 | |||
| 25.7 | 427.8 | 0.6 | 1450 | 5.43 | 7.5 | ||
| 24.8 | 413.9 | 1 | 8.51 | 11 | |||
| LQ3G90×2-46 | 34.2 | 570.3 | 0.6 | 960 | 7.86 | 11 | 5.5 |
| 34 | 566.7 | 0.8 | 9.7 | 11 | |||
| 33.1 | 551.7 | 1 | 11.4 | 15 | |||
| 52.6 | 876.4 | 0.6 | 1450 | 12 | 15 | ||
| 52 | 866 | 0.8 | 14.9 | 18.5 | |||
| 51.4 | 856.1 | 1 | 18.6 | 22 | |||
| LQ3G100×2-46 | 48.7 | 812.2 | 0.6 | 960 | 10.8 | 15 | 5.5 |
| 48 | 800.1 | 0.8 | 13.3 | 15 | |||
| 46.9 | 782.3 | 1 | 16.7 | 22 | |||
| 72.7 | 1212 | 0.6 | 1450 | 16.5 | 18.5 | ||
| 72 | 1200 | 0.8 | 20.4 | 22 | |||
| 71.2 | 1187 | 1 | 25.5 | 30 | |||
| LQ3G110×2-46 | 60.9 | 1015 | 0.6 | 960 | 13.7 | 18.5 | 5.5 |
| 58.9 | 981.7 | 1 | 21.8 | 30 | |||
| 96.7 | 1611 | 0.6 | 1450 | 21.9 | 30 | ||
| 94.6 | 1577 | 1 | 33.9 | 45 | |||
Zhejiang Yonjou Technology Co., Ltd stands as a top producer and exporter of industrial pumps, operating advanced production sites across mainland China. Our core expertise includes oil pumps, diaphragm pumps, diesel engine pumps, centrifugal pumps, screw pumps, and chemical pumps, among others.
