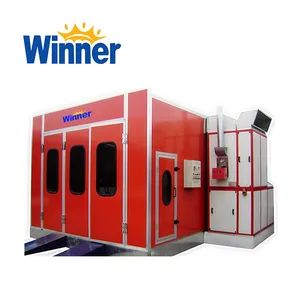

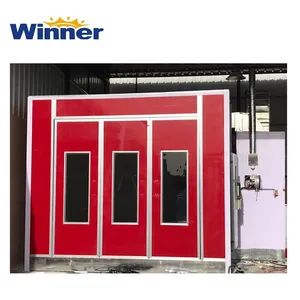

M3200c Auto Spray Paint Booth Baking Oven Body Repair Equipment

1. Spray booth is used for painting cars and light trucks.

2. The dimension can be customized according to the client's request.

3. All parts related with electricity are from famous brand in China.

4. Heating system: diesel burner, electric infrared heating and gas burner heating system are optional.

5. Power supply: 380V, 3 phase, 50Hz; 220V, 3 phase, 60Hz; or 415V, 3 phase, 50Hz

Galvanized steel sheet and square steel pipe
assembling, 2 rows of grid plates made by falt
bar and round steel. 3 rows of diamond
plates.

Two sets of 3kw fans for intaking air, air
capacity 20000m3/h

Pre-filter,  filtering rate > 83%                                      600G high efficiency ceiling filter, filtering rate > 97%

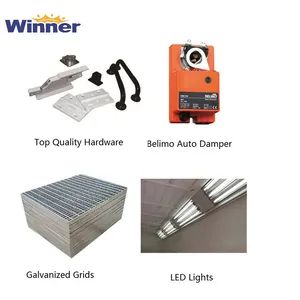

• Air damper size up to approx. 2 m²

Delixi Brand electric parts, power switch,spray/baking switch,light switch, timer, temperature setup, emergency stop,etc.

Italy Riello Diesel/FS20 Gas Burner, 200000Kcal/h.
Stainless Steel Heat exchanger, argon arc welding. Auto- damper for changing spraying and baking.

Yantai Winner Electronic&Mechanical Technology, Co., Ltd, focus on providing complete equipment solution for car maintenance and repairing workshop. Now our main products are car spray booth, car body collision bench, truck/cab repair bench, car lift, spray/paint booth, wheel alignment, welding machine, hose reels, etc. Our products are used in many 4S workshop all over the world.With over 10 years' rich experience, we manufacture, we select, we collect. We always are ready to listen, to make solution according to our client's special requirements and supply equipment with good quality but reasonable prices.

Q. What should I expect from a new spray booth?
A. Filtration: Quality finishes require clean contaminate-free air which is accomplished by proper air filters. Prior to air
entering the booth, YANTAI WINNER uses pre-filters to capture large particles and debris, and high-efficiency intake filters to filter out any remaining dirt and dust particles. The air is filtered again before it is recirculated or exhausted from the booth.
Airflow: Proper airflow in the booth is accomplished by creating a flow of air that envelops the vehicle during booth operation.
This airflow is responsible for carrying away paint overspray during the refinish process, and air movement during paint curing.
Lighting: Another key element is bright, shadow-free lighting throughout the booth. YANTAI WINNER utilizes color-corrected light.
fixtures, in the proper quantity and correct location. This creates an environment that allows for proper color match and paint flow identification.

Q. How do you control your quality?
A. Our factory is ISO certified. We have our own QA and QC team. They will check on site and finished products to ensure alldetails to meet our highest standard and the customer's requirements.

Q. What is your payment terms?
A. We accept T/T, L/C, Western Union, etc.

Q. How long is your lead time?
A. For stock or regular products, our lead time is 7 to 15 days. For custom-made products, our lead time is 20 to 30 days.

Q. What is your warranty?
A. Our warranty is 13 months. Parts have free replacement excluding artificial damage in Warranty. We will also stock spare parts as long as one equipment of this type is running in the world.

Q. How about visiting your company?
A. We welcome your visit at any time. Our factory locates in Shandong province in the east China.
