Machine Tool for CNC Press Brake
Set
Negotiable
Product information
High-quality Machine Tool for CNC Press Brake supplied by Shanghai Lejia CNC Machine Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Processing Precision:
0.01~0.02(mm)
Production Capacity:
50000000PCS /Year
Specification:
500mm, 515mm
Package Gross Weight:
60.000kg
HS Code:
8207300090
Package Size:
88.00cm * 24.00cm * 24.00cm
Certification:
CE, ISO 9001
Numerical Control:
CNC/MNC
Specifications
Processing Precision:
0.01~0.02(mm)
Production Capacity:
50000000PCS /Year
Specification:
500mm, 515mm
Package Gross Weight:
60.000kg
HS Code:
8207300090
Package Size:
88.00cm * 24.00cm * 24.00cm
Certification:
CE, ISO 9001
Numerical Control:
CNC/MNC
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB
Technics:
Forming Die
Performance Classification:
High-End CNC Machine Tools
Control Method:
Hydraulic
Movement Method:
Hydraulic
Trademark:
LEJIA
Model NO.:
LEJIA-T5277
Application:
Metal
Process Usage:
Metal-Forming CNC Machine Tools, Press Brake /Bending Die
Condition:
New
Payment Methods:
Support payments in USD
Transport Package:
Thick Plywood
Payment Term:
To be discussed
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
CE Certificate, Export License, Quality Certificate
Product descriptions from the supplier
| 1. Available Press Brake Machines Brand | ||
| Amada, Atlantic, Adira, Baykal, Beyler, Darley, EHT, Ermaksann, Durmazlar, Bystronic, Gasparini, Guifil, Haco,Imal, LVD Ivan, LVD, Mecos, Megobal, Promecam,trumpfwila,Salvagnini, Safan, Weinbrenner,Yawei, Yangli,JFY,ACL,YSD,ZYMT,ADH,etc... | ||
| 2. LEJIA Tooling Advantages | ||
| Taking into consideration our clients wishes, every day we work to satisfy our Clients' needs, to increase our product list and tools quality. | ||
| 1).LEJIA manufactures bending tools using high-grade steel (42CrMo=SCM440=42CrMo4=4140), with working surfaces finely ground, meeting full-body total hardening standards, achieving a hardness of HRC47 | ||
| 2).We can do surface hardening on bending tools by Laser, the the hardness can reach HRC60. | ||
| 3). LEJIA have we have more than 20 years experience in bending tooling manufacturing. | ||
| 4).LEJIA bending tooling factory employs over 300 staff and operates approximately 310 sets of bending tool processing equipment, primarily sourced from Japan and Europe | ||
| 5).LEJIA bending tool accuracy: Center Accuracy:±0.02mm, Parallel Accuracy:±0.02mm, Vertical Accuracy:±0.02mm | ||
| 6).Every special bending tooling will be tested by our press brake machines and have the testing samples before sending to our Clients. | ||

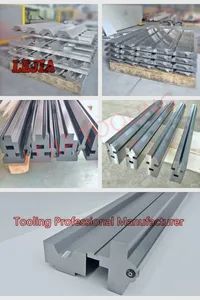

| 3. TYPES OF PRESS BRAKE TOOLS | ||
| Tools for press brake are considered "safety first", and dies with fall prevention grooves are now standard. | ||
| Typical punch clamp types | SAFETY BUTTON |
|

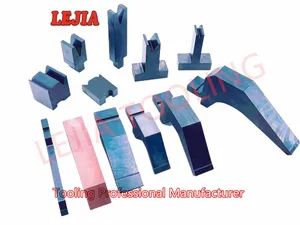

| Bending edge shapes | STANDARD PUNCH,GOOSENECK PUNCH,STRAIGHT PUNCH,SASH PUNCH,HEMMING PUNCH,THICK PLATE PUNCH |
|
| Typical die types and mounting methods | 1V Die, 2V Die, 4V Die |
|
| 4. TOOL LENGTH Types: | ||
| 1).L = 835mm, S = 415mm, A section = 835mm and B section = 800mm | ||
 |
||
| 2).550mm, 1050mm,1250mm,2050mm,2550mm,3050mm,4050mm | ||
 |
||
| 5. HOW TO READ THE TONNAGE CHART | ||||
| Check the tonnage chart before Bending. The tonnage chart is always specified in the tool catalog, and is also displayed on the machine as a nameplate where it is easy to see. Basically, you can read the conditions other than pressure in the chart below. Knowing this tonnage chart deeply or shallowly will make a big difference in worker safety and product finish. It greatly affects machine specifications, tool selection, product accuracy and quality, so let's grasp the contents and use them for safe work. First of all, read the following contents from the chart below. 1: Minimum flange length (b) 2: V-width (V-opening) of tool used for bending (V) 3: Required tonnage to bend 1m long material (F) [ Right figure, symbol of tonnage chart ] V=V-width (V-opening) b=Minimum flange length ir=Inner bend radius t=Material thickness (Tensile strength 40~50kg/mm) *Tensile strength for Stainless steel (Inox) 60~75kg/mm, Aluminum 25~45kg/mm F=Pressure par meter (kN/m) |
 The values in the tonnage chart are based on "bottoming" and "SS material", so the tensile strength etc. must be taken into account depending on the processing conditions.The values in the tonnage chart are based on "bottoming" and "SS material", so the tensile strength etc. must be taken into account depending on the processing conditions. |
|||
| 6. MINIMUM FLANGE LENGTH | ||||
| To complete the bending,the material must be on both shoulders of the die to the end. The minimum flange length is expressed by the following formula based on 90° bending. b=( V/2 ) x √2≒0.7V |
 |
|||
| 7. V width selection and basic setting of ir (inner R) | ||||
| V-WIDTH | ||||
|
Bending Method
|
V-Width
|
Features | ||
|
Bottoming
|
Material thickness
|
ecause of the bending process that is used most often, the patterns for V-grooves are also finely divided.
|
||
|
0.5 - 2.6
|
3.0 - 8.0
|
9.0 - 10
|
||
|
6×t
|
8×t
|
10×t
|
||
|
Partial Bending
|
12 - 15×t
|
Since an arbitrary angle bending is taken into consideration, the V-width is set so that bending accuracy is easily stabilized.
Approximately twice as much as bottoming.
|
||
|
Coining
|
5 - 6×t
|
The purpose is to reduce inner radius and reduce the amount of bite at the tip of the punch.
|
||
|
iR (inner radius)
|
||||
|
Bending Method
|
iR (inner radius)
|
Features
|
||
|
Bottoming
|
≒V/6
|
Base values for maintaining safe and stable accuracy,such as punch tip radius and spring-back amount.
|
||
|
Partial Bending
|
When high accuracy is required, use a bottoming type tool.
|
|||
|
Coining
|
Care must be taken when using a bottoming die because iR increases and extra pressurization is required.
|
|||
 |
 |
 |
 |
