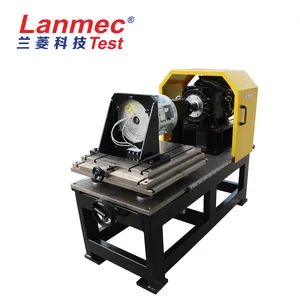

Manufacturers Supply Motor Test Benches for Wheel Hub Testing
Set
Negotiable
Product information
High-quality Manufacturers Supply Motor Test Benches for Wheel Hub Testing supplied by Jiangsu Lanmec Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Cooling Water Pressure:
0.1-0.3 MPa
Turning Inertia:
0.18 Kgm2
Accuracy Grade:
1
Production Capacity:
10000 Sets / Years
Rated Speed:
2000- 2600 Rpm
Specification:
200N. m
Rated Torque:
200n.M
Max Current:
4 a
Specifications
Cooling Water Pressure:
0.1-0.3 MPa
Turning Inertia:
0.18 Kgm2
Accuracy Grade:
1
Production Capacity:
10000 Sets / Years
Rated Speed:
2000- 2600 Rpm
Specification:
200N. m
Rated Torque:
200n.M
Max Current:
4 a
Flow Of Cooling Water:
45 L/Min
Rated Power:
63kw
Max Speed:
9000
HS Code:
9031809090
Max Voltage:
90VDC
Maxcapacity:
>1000KN
Weight:
>2000Kg
Power Source:
AC220V
Origin:
China
Control:
Computer Control
Display:
Digital
Loading Method:
Dynamic Load
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Trademark:
Lanmec
Load Way:
Mechanical Load
Port Of Loading:
Shanghai Port
Oil Cylinder Position:
Under
Transport Package:
Wooden Box
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2002-01-22
Annual Revenue Amount:
Not specified
Numbers Of Employees:
161
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
CE
Product descriptions from the supplier
Product Description
Related Products
| Eddy current brake/dynamometer | Rated Power | Rated torque | Rated speed | Maximum rotational speed | Turning inertia | Maximum excitation voltage | Maximum excitation Current | Cooling water pressure | Flow of the cooling water |
| DWZ/DW-0.75 | 0.75 | 5 | 2000-2600 | 16000 | 0.002 | 80 | 3 | 0.1~0.3 | 1 |
| DWZ/DW-3 | 3 | 10 | 2000-2600 | 14000 | 0.003 | 80 | 3 | 0.1~0.3 | 2 |
| DWZ/DW-6 | 6 | 25 | 2000-2600 | 14000 | 0.003 | 80 | 3 | 0.1~0.3 | 3 |
| DWZ/DW-10 | 10 | 50 | 2000-2600 | 13000 | 0.01 | 80 | 3 | 0.1~0.3 | 4.5 |
| DWZ/DW-16 | 16 | 70 | 2000-2600 | 13000 | 0.02 | 80 | 3.5 | 0.1~0.3 | 6.5 |
| DWZ/DW-25 | 25 | 120 | 2000-2600 | 11000 | 0.05 | 80 | 3.5 | 0.1~0.3 | 15 |
| DWZ/DW-40 | 40 | 160 | 2000-2600 | 10000 | 0.1 | 90 | 4 | 0.1~0.3 | 25 |
| DWZ/DW-63 | 63 | 250 | 2000-2600 | 9000 | 0.18 | 90 | 4 | 0.1~0.3 | 45 |
| DWZ/DW-100 | 100 | 400 | 2000-2600 | 8500 | 0.32 | 120 | 4 | 0.1~0.3 | 60 |
| DWZ/DW-160 | 160 | 600 | 2000-2600 | 8000 | 0.52 | 120 | 5 | 0.1~0.3 | 100 |
| DWZ/DW-250 | 250 | 1100 | 2000-2600 | 7000 | 1.8 | 150 | 5 | 0.2~0.4 | 180 |
| DWZ/DW-300 | 300 | 1600 | 2000-2600 | 6000 | 2.7 | 150 | 5 | 0.2~0.4 | 210 |
| DWZ/DW-400 | 400 | 2200 | 2000-2600 | 5000 | 3.6 | 180 | 10 | 0.2~0.4 | 300 |
| DWZ/DW-630 | 630 | 3600 | 2000-2600 | 5000 | 5.3 | 180 | 10 | 0.2~0.4 | 450 |
Related Products
Main application:
DWZ disc eddy current brake is mainly used as load in loading dynamometer equipment. it is experimental apparatus which can measure the dynamic mechanical properties, especially in dynamic loading test whose power value is small or tiny, also can be treated as suction power devices of other dynamic devices.
DW series disc eddy current dynamometer is, is that add device for measuring torque and rotational speed on DWZ series disc eddy current brake, it is experimental apparatus which can measure the dynamic mechnical properties, especial in dynamic loading test whose power value is small or tiny.
CW eddy current brake as a load is mainly used to measure the mechanical characteristics of inspection equipment, it and other control instrument (including loading apparatus, torque speed sensor and torque power acquisition instrument etc.) can be composed of eddy current dynamometer can be used for performance testing of the internal combustion engine, motor, gas turbine, automobile and its dynamic mechanical components, compared with other power measuring device, the CW series power measuring device has the advantages of reliability, high stability and practicability.
