Mass Air Flow System Oil Flow Meters Air Flow Sensor
Piece
Negotiable
Product information
High-quality Mass Air Flow System Oil Flow Meters Air Flow Sensor supplied by Hebei Xukang Meter Manufacturing Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
3000PCS/Month
Signal:
4-20mA, Pulse, RS485, Hart
Rangablility:
500:1
HS Code:
90261000
Measurement Object:
Closed Pipeline
Size:
Dn1.5~Dn200
Trade Term:
FOB, CIF, CFR
Measuring Media:
Gas and Liquid
Specifications
Production Capacity:
3000PCS/Month
Signal:
4-20mA, Pulse, RS485, Hart
Rangablility:
500:1
HS Code:
90261000
Measurement Object:
Closed Pipeline
Size:
Dn1.5~Dn200
Trade Term:
FOB, CIF, CFR
Measuring Media:
Gas and Liquid
Application:
Industrial Production
Certification:
JIS, DIN, ANS, GB, CE, RoHS, ISO
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Medium:
Liquid, Air, Gas
Measuring Principle:
Mechanics
Pressure:
Suitable for Very High Pressure
Port Of Loading:
Tianjin Port
Trademark:
Tianjin U-ideal Instrument
Origin:
Tianjin, China
Sensor:
Tube/Flange
Model NO.:
UI-MF
Type:
Volume Type Flow Meter
Transport Package:
Wooden Case or Carton
LCD:
Yes/No
Specification:
sgs
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2017-03-17
Annual Revenue Amount:
Not specified
Numbers Of Employees:
42
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Tianjin Port
Certificates:
certificate, company certificate, export certificate
Product descriptions from the supplier
Introduction

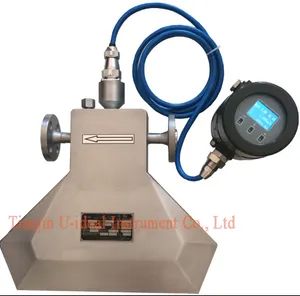

UCMF-1-Series Coriolis Mass Flow Meters' measuring principleisbased on the controlled generation of Coriolis forces. The measurementwouldnotbeaffected by thepressure, temperature, viscosity, density,etc.Andthe compensation calculationisnot required. The structure contains two parts: Sensor & Transmitter. The Coriolis Mass Flow Meters are designed and manufactured based on the national standard of safe explosion proof. The Explosion- proof standardisEX dibII C T5 Gb.The mass flow meter does not measure the volume per unit time (e.g., cubic meters per second) passing through the device;itmeasures the mass perunittime (e.g., kilograms per second) flowing through the device. The accuracyofthe Coriolis Mass Flow Metersis±0.1%~ ±0.2%. The application rangeislarge. (Itcould beused to measure all sorts of all sorts non-newtonian fluid,slurry, suspensions, high viscosity fluid, etc.) The requirements for the installation arelow.(The straight pipe requirementsinfront of and behind the Coriolis Mass Flow Meters arelow.)They are more reliable, stable, and the maintenance levelis low.
Technical Parameters
| Applications |
Suitable for Liquid, Gas, Liquid- Solid, Gas- Solid, Liquid- Gas Mass Measurement or volume measurement |
| Material of the Measurement Pipeline | SS 316L/ HC Hastelloy |
| Pressure | Please refer to the chart shown above. Special orders wouldbeplaced for high pressure. |
| Medium Temperature |
-50ºC~+150ºC; (Highest Temperature: +350ºC; Lowest Temperature: -300ºCcould bespecial ordered.) |
| Environment Temperature | Sensor:-40ºC~+150ºC; Transmitter:-20ºC~ +70ºC |
| Flow Rate Measurement Accuracy | ± 0.2%,± 0.1% optional |
| Density Measurement Accuracy | ±0.002g/cm³,±0.001g/cm³ optional |
| Repeatability | ±0.10% Flow Rate ±[½(Zero Point Stability/Flow Rate)×100]% Flow Rate |
| Output Signal |
4~20mA Load Resistance<500Ω(Instantaneous or Density optional);0~10kHz Instantaneous Flow Rate Pulse Signal; Standard RS 485 Communication |
| Explosion- Proof Symbol | EX dibII C T5 Gb |
Model selection
Micro Flow Meter- DMF-1-1; DMF-1-2
Model |
DN | Measurement scope ( kg/h ) | Work Pressure ( MPa ) | Connection type (mm) |
| DMF-1-1-AB | 1.5 | 0~4 | 0~32 | Weld Joints Φ6×1.5 |
| DMF-1-1-A | 3 | 0~40 | 0~32 | Weld Joints Φ6×1.5 |
| DMF-1-1-B | 6 | 0~100 | 0~25 | Weld Joints Φ10×2 |
| DMF-1-2-A | 8 | 0~200 | 0~20 | Weld Joints Φ10×1 |
Medium-Small Flow Meter: DMF-1-3; DMF-1-4; DMF-1-5-A
| Model |
DN |
Measurement scope (kg/h) | WorkPressure(MPa) | Connection Type(mm) |
| DMF-1-3-A | 10 | 0~500 | 0~25 | WeldJoints Φ20×4 |
| DMF-1-3-B | 15 | 0~1000 | 0~25 | WeldJoints Φ20×3 |
| DMF-1-4 | 20 | 0~3000 | 0~25 | WeldJoints Φ20×2 |
| DMF-1-5-A | 25 | 0~10000 | 0~25 | WeldJoints Φ31×3 |
Large-scale Flow Meter: DMF-1-3; DMF-1-4; DMF-1-5; DMF-1-6
High pressure could be special ordered. (4~70MPa)
| Model |
DN |
Measurement scope (t/h) | WorkPressure(MPa) | Connection Type(mm) |
| DMF-1-3-A | 10 | 0-0.5 | 0~4 | Flange 10 |
| DMF-1-3-B | 15 | 0-1.0 | 0~4 | Flange 15 |
| DMF-1-4 | 20 | 0-3.0 | 0~4 | Flange 20 |
| DMF-1-5-A | 25 | 0-10 | 0~1.6 | Flange 25 |
| DMF-1-5-B | 40 | 0-20 | 0~1.6 | Flange 40 |
| DMF-1-6-A | 50 | 0-30 | 0~1.6 | Flange 50 |
| DMF-1-6-AB | 65 | 0-50 | 0~1.6 | Flange 65 |
| DMF-1-6-B | 80 | 0-100 | 0~1.6 | Flange 80 |
| DMF-1-6-C | 100 | 0-150 | 0~1.6 | Flange 100 |
| DMF-1-6-CD | 125 | 0-200 | 0~1.6 | Flange 125 |
| DMF-1-6-D | 150 | 0-300 | 0~1.6 | Flange 150 |
| DMF-1-6-E | 200 | 0-500 | 0~1.6 | Flange 150 |
