Mature Technology Shot Blasting and Oil Coating Production Line for Auto Parts
1 Piece
$200,0001 Piece
$1,000Product information
High-quality Mature Technology Shot Blasting and Oil Coating Production Line for Auto Parts supplied by Xiamen Daxing Industry Co., Ltd.. Bulk wholesale pricing ranges from $1,000 to $200,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Air Pressure:
0.6-0.8 MPa
Welding Width:
1000mm
Welding Speed:
16-30cross Bars/Min
Power Phase Number:
3 Phases 4 Wires
Thickness Of Flat Steel:
3-6mm
Supply Ability:
30 Set/Sets Per Year
Voltage:
380/220
Input Voltage:
380V 50Hz
Specifications
Air Pressure:
0.6-0.8 MPa
Welding Width:
1000mm
Welding Speed:
16-30cross Bars/Min
Power Phase Number:
3 Phases 4 Wires
Thickness Of Flat Steel:
3-6mm
Supply Ability:
30 Set/Sets Per Year
Voltage:
380/220
Input Voltage:
380V 50Hz
Weight:
40000 Kg
Duty Cycle:
50%
Automatic Grade:
Automatic
Automation:
Automatic
Certification:
CE, CB, ETL, RoHS, UR
Type:
Catenary-Through Abrator
Origin:
China
Customized:
Customized
Trademark:
DX Blast
Trade Term:
FOB, CFR, CIF, EXW
Cleanliness:
High Cleanliness
Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment
Key Machines:
Metal Electroplating Machinery, Metal Coating Mach
Condition:
New
Feature:
Rust / Corrosion Proof
After Sales Service Provided:
Video Technical Support
Transport Package:
Wooden Packages
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2006-11-23
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
Not specified
Certificates:
CE, ICAS
Product descriptions from the supplier
PRODUCT DESCRIPTION

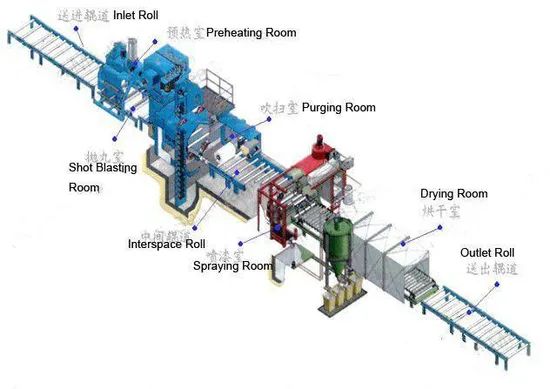

Steel Plate Shot Blasting and Painting MachinesThe steel plate is sent to the closed shot blasting room by the feeding conveyor system, impacts and scrapes the workpiece to remove the Rust, scale and dirt on the surface of the parts. Steel after rust removal materials directly into the spray booth, and spray the workshop maintenance primer through the spray guns installed on the upper and lower spray painting carts. and then enter the drying room to dry. Make the paint film on the steel surface reach finger dry state. After the steel is processed, the surface reaches a certain degree of roughness, which improves the adhesion of the paint film and the surface of the steel, correspondingly improves the corrosion resistance and surface quality of the product, and improves the product grade.
1) DX steel plate shot blasting machine is widely used in the field of construction, bridge, shipbuilding, locomotive and aerospace industry.
2) This descaling systems are available for a wide variety of steel products, such as steel plates, sheets, strips, wires, bars, billets, slabs, rolled and fabricated structural shapes, and miscellaneous weldments, pipe, tubing and gas cylinders.
DX blast offers a range of roller conveyors from small simple machines to heavy duty machines and complete preservation lines, which can with 4,6,8,10,12 wheel units.
These Type of Machines consist of under mentioned Parts:
1. Main Blast Cabinet with inspection Door.
2. Blast Wheel Units with Drive Mechanism.
FAQ:
Q:How to choose balst machine type?
A:Please tell the information of your work-piece and productivity, experienced engineer will suggest.
Q:How to choose abrasive?
A:Various kinds abrasive with different size: steel shot, cut wire shot, stainless steel shot, etc. Choose according to workpiece.
Q:Quality warranty?
A:1 yearand if there are our agent in your local ,they can also can supply you better service .
Q:Is foundation pit essential?
A:Up to machine size and workshop
Q:How many workers to operate the machine?
A:1-2, up to the machine.
Q:Install assistance?
A:1-1 install assistance & operation training on site by experienced engineer.
Q:After sale service?
A:Full stock for spare parts, regular after sale service.
Steel Plate Shot Blasting and Painting MachinesThe steel plate is sent to the closed shot blasting room by the feeding conveyor system, impacts and scrapes the workpiece to remove the Rust, scale and dirt on the surface of the parts. Steel after rust removal materials directly into the spray booth, and spray the workshop maintenance primer through the spray guns installed on the upper and lower spray painting carts. and then enter the drying room to dry. Make the paint film on the steel surface reach finger dry state. After the steel is processed, the surface reaches a certain degree of roughness, which improves the adhesion of the paint film and the surface of the steel, correspondingly improves the corrosion resistance and surface quality of the product, and improves the product grade.
2) This descaling systems are available for a wide variety of steel products, such as steel plates, sheets, strips, wires, bars, billets, slabs, rolled and fabricated structural shapes, and miscellaneous weldments, pipe, tubing and gas cylinders.
DX blast offers a range of roller conveyors from small simple machines to heavy duty machines and complete preservation lines, which can with 4,6,8,10,12 wheel units.
DX HIGH PERFORMANCE TURBINE
1. Main Blast Cabinet with inspection Door.
2. Blast Wheel Units with Drive Mechanism.
3. Abrasive circulation unit.
4. Bucket Elevator unit.
5. Abrasive Separation/Cleaning system with Storage Hopper.
6. Dust Collector with Cleaning Mechanism.
7. Roller Conveyor system at Inlet & Outlet Side.
8. Control Panel with PLC Control System.
4. Bucket Elevator unit.
5. Abrasive Separation/Cleaning system with Storage Hopper.
6. Dust Collector with Cleaning Mechanism.
7. Roller Conveyor system at Inlet & Outlet Side.
8. Control Panel with PLC Control System.
|
Steel Plate Shot Blasting Machine
|
|||||||
|
Item Type
|
DX698
|
DX6912
|
DX6915
|
DX6920
|
DX6925
|
DX6930
|
DX6940
|
|
Width of work piece(mm)
|
≤800
|
≤1200
|
≤1500
|
≤2000
|
≤2500
|
≤3000
|
≤5000
|
|
Height of work piece(mm)
|
≤300
|
≤400
|
≤500
|
≤600
|
≤600
|
≤650
|
≤650
|
|
Cleaning rate (m/min)
|
0.5-4
|
0.5-4
|
0.5-4
|
0.5-4
|
0.5-4
|
0.5-4
|
0.5-4
|
|
Shot blasting rate(kg/min)
|
4*125
|
4*125
|
4*200
|
6*250
|
6*250
|
6*250
|
8*250
|
FAQ:
Q:How to choose balst machine type?
A:Please tell the information of your work-piece and productivity, experienced engineer will suggest.
Q:How to choose abrasive?
A:Various kinds abrasive with different size: steel shot, cut wire shot, stainless steel shot, etc. Choose according to workpiece.
Q:Quality warranty?
A:1 yearand if there are our agent in your local ,they can also can supply you better service .
Q:Is foundation pit essential?
A:Up to machine size and workshop
Q:How many workers to operate the machine?
A:1-2, up to the machine.
Q:Install assistance?
A:1-1 install assistance & operation training on site by experienced engineer.
Q:After sale service?
A:Full stock for spare parts, regular after sale service.
