Medium Voltage Fuse Cut out Origin China Fusing Speed FF Shape Split Type Usage High Voltage Model NO. HRW-35kV HS Code
Pieces
Negotiable
Product information
High-quality Medium Voltage Fuse Cut out Origin China Fusing Speed FF Shape Split Type Usage High Voltage Model NO. HRW-35kV HS Code supplied by Wish Composite Insulator Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
250000 Pieces Per Year
HS Code:
8535100000
Fusing Device:
Arc-Extinguishing Tube
Transport Package:
Cartin+Pallet
Origin:
China
Lead Time:
Contract Provisions
Fusing Speed:
FF
Specification:
FIBERGLASS ROD, FITTINGS AND SILICONE RUBBER
Specifications
Production Capacity:
250000 Pieces Per Year
HS Code:
8535100000
Fusing Device:
Arc-Extinguishing Tube
Transport Package:
Cartin+Pallet
Origin:
China
Lead Time:
Contract Provisions
Fusing Speed:
FF
Specification:
FIBERGLASS ROD, FITTINGS AND SILICONE RUBBER
Trade Term:
FOB, CIF, CFR, EXW
Model NO.:
HRW-35kV
Usage:
High Voltage
Standard:
IEC 60282-1: 2009, IEC 60282-2: 2008, ANSI
Environment:
Outdoor,Indoor
Port Of Loading:
Shanghai Port, Qingdao Port, Ningbo Port
Shape:
Split Type
Payment Term:
T/T, LC
Trademark:
WISHPOWER
Customization Available:
Yes
Service Life:
≥20-30 Years
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-12-15
Annual Revenue Amount:
Not specified
Numbers Of Employees:
42
Preferred Payment Term:
T/T, LC
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port, Qingdao Port, Ningbo Port
Certificates:
ISO14001, ISO45001:2018, ISO9001:2015
Product descriptions from the supplier
Manufacturer Overview:
WishPower is a specialized manufacturer and exporter of medium voltage protection equipment, including fuse cutouts, lightning arresters, load break switches, composite insulators, and transformer components. With advanced manufacturing facilities and IEC-certified quality control, we deliver high-performance products to clients across Asia, Africa, South America, and the Middle East.
We offer medium voltage fuse cutouts ranging from 10kV to 35kV, with full support for product customization and rapid delivery.
Product Description:

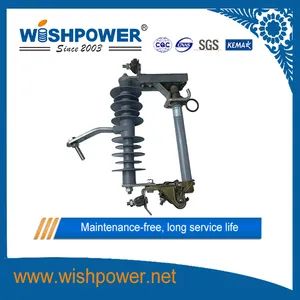

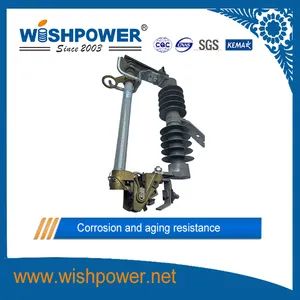

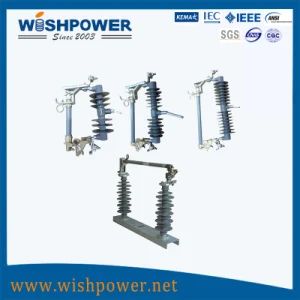

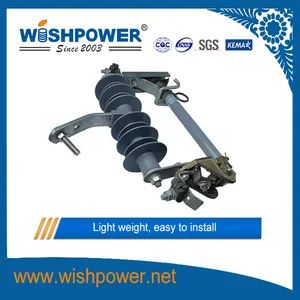

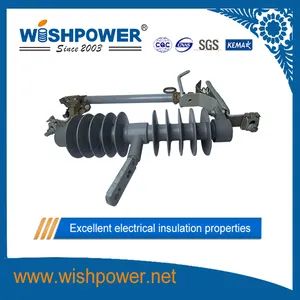

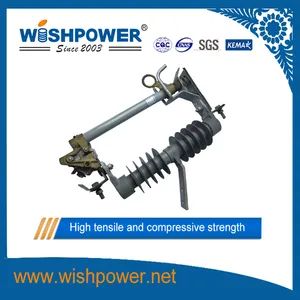

Medium voltage fuse cutouts are essential protective devices in distribution networks. They are designed to isolate faults by breaking the circuit during short circuits or overloads. When the fuse link melts under fault current, the fuse tube drops out automatically, providing a visible indication and isolating the faulted section.
WishPower's fuse cutouts use composite polymer insulation, offering superior mechanical strength, lightweight structure, and excellent weather resistance for harsh environments.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Medium Voltage Dropout Fuse Cutout |
| Rated Voltage | 10kV / 15kV / 24kV / 27kV / 33kV / 35kV |
| Rated Current | 100A / 200A (optional) |
| Frequency | 50Hz / 60Hz |
| Breaking Capacity | 10kA / 12kA (model dependent) |
| Fuse Type | Cartridge / Porcelain / Composite |
| Insulation Material | Silicone rubber with fiberglass core |
| Conductive Parts | Copper alloy or galvanized steel |
| Mounting | Pole-top installation |
| Standards | IEC 60282-2 / GB/T 15166.3 |
Key Features
-
Automatic Dropout Mechanism: Fuse tube falls upon fault, easy to detect and replace.
-
Durable Composite Insulation: High pollution resistance and weather durability.
-
Fast Breaking Performance: Effective response to overloads and short circuits.
-
Lightweight Design: Easier transportation and installation vs. porcelain type.
-
OEM Customization: Interface, voltage, packaging, and branding available.
Standards & Compliance
-
IEC 60282-2: High-voltage Fuse Links
-
GB/T 15166.3: Dropout Type HV Fuses
-
ISO 9001 Certified Factory
-
RoHS / REACH Compliant Materials
Application Scenarios
-
Overhead line protection in MV distribution networks
-
Transformer input/output terminal protection
-
Fault isolation in industrial grids
-
Wind and solar farm protection circuits
-
Pole-mounted distribution switchgear
Customization Service
WishPower provides comprehensive customization for voltage class, current rating, mounting configuration, housing design, fuse link type, and private labeling. We also support OEM/ODM partnerships for global projects and fast sample delivery.
