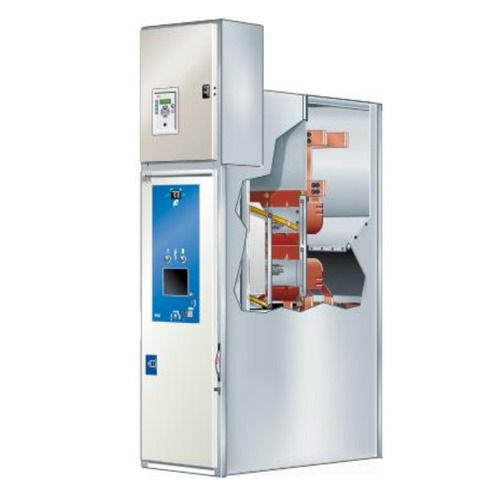

Medium Voltage Switchgear Rated Voltage 12 Kv Rated Frequency 50/60 Hz Degree Of Protection Ip4x Busbar Capacity Upto 2500
Negotiable
Product information
High-quality Medium Voltage Switchgear Rated Voltage 12 Kv Rated Frequency 50/60 Hz Degree Of Protection Ip4x Busbar Capacity Upto 2500 supplied by Hartek Power Private Limited. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Rated Voltage:
12 Kv
Rated Short Time Withstand Current:
25 / 31.5 / 40 Ka-3 Sec
Rated Power Frequency Withstand Voltage:
28 Kv
Rated Frequency:
50/60 Hz
Rated Peak Withstand Current:
65 / 82 / 100 Ka Peak
Rated Lightning Impulse Withstand Voltage:
75 Kv Peak
Earthing Switch Making Capacity:
82 Ka Peak
Compliance Standards:
Iec 62271-100-200, Iec 62271-200 Aflr
Specifications
Rated Voltage:
12 Kv
Rated Short Time Withstand Current:
25 / 31.5 / 40 Ka-3 Sec
Rated Power Frequency Withstand Voltage:
28 Kv
Rated Frequency:
50/60 Hz
Rated Peak Withstand Current:
65 / 82 / 100 Ka Peak
Rated Lightning Impulse Withstand Voltage:
75 Kv Peak
Earthing Switch Making Capacity:
82 Ka Peak
Compliance Standards:
Iec 62271-100-200, Iec 62271-200 Aflr
Degree Of Protection:
Ip4x
Construction Material:
Pre-galvanized Sheets Without Welding Points
Width:
Smallest Width In The Market
Arc Fault Protection:
Successfully Tested Against Internal Arc Faults
Trade Term:
To be discussed
Payment Term:
To be discussed
Cubicle Capacity:
Upto 2500 A
Busbar Capacity:
Upto 2500 A
Internal Arc Classification:
Upto 40 Ka
Maintenance Requirement:
Virtually Maintenance Free
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2015
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier
Salient Features
TECHNICAL PARAMETERS
- Fully tested as per IEC 62271-100-200 standards
- Successfully tested against internal arc faults
- Robust Construction & Virtually Maintenance free
- Tailor made for individual requirement
- Constructed with pre-galvanized sheets without any welding points
- Smallest width in the market, yet with sufficient air clearance in bus bar
TECHNICAL PARAMETERS
| Rated Voltage | kV | 12 |
| Rated power frequency withstand voltage | kV | 28 |
| Rated lightning impulse withstand voltage | kV peak | 75 |
| Rated frequency | Hz | 50/60 |
| Rated short time withstand current* | kA-3 sec | 25 / 31.5 / 40 |
| Rated peak withstand current | kA peak | 65 / 82 / 100 |
| Rated continuous current | ||
| Busbar | Upto A | 2500 |
| Cubicle | ||
| Earthing switch making capacity | kA peak | 82 |
| Internal arc classification according to IEC 62271-200 AFLR | kA | Upto 40 |
| Degree of Protection | IP4X** |
- The short-circuit capability of the current transformers must be considered separately
- Other values available on request.
