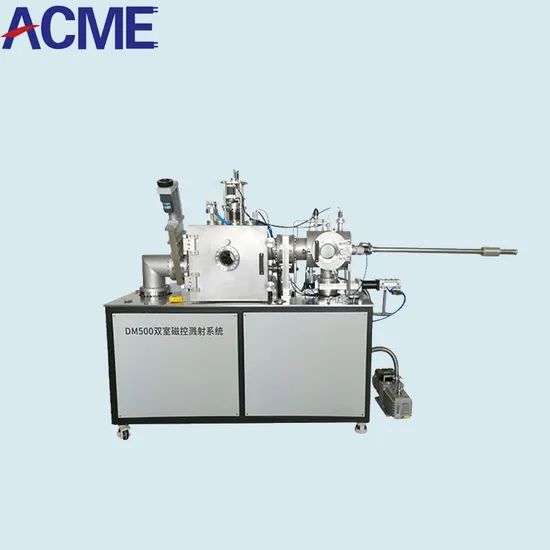

Metal Coating Machine for High-Performance Surface Deposition
1 Piece
$50,000Product information
High-quality Metal Coating Machine for High-Performance Surface Deposition supplied by Jinan ACME Power Supply Co., Ltd.. Bulk wholesale pricing is $50,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity::
5000
Trademark:
ACME
Certification:
CE, ISO
Origin:
China
Specification:
Customized
Model NO.:
DM500
Trade Term:
FOB, CFR, CIF, DDP, DAP, EXW
Payment Terms::
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Specifications
Production Capacity::
5000
Trademark:
ACME
Certification:
CE, ISO
Origin:
China
Specification:
Customized
Model NO.:
DM500
Trade Term:
FOB, CFR, CIF, DDP, DAP, EXW
Payment Terms::
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Payment Term:
LC, T/T, Western Union, Money Gram
Condition:
New
Warranty:
One Year
Port Of Loading:
Qingdao
Port::
Qingdao, China
Substrate:
Steel
Coating:
Vacuum Coating
Transport Package:
Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-12-12
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union, Money Gram
Preferred Trade Term:
FOB, CFR, CIF, DDP, DAP, EXW
Port Of Loading:
Qingdao
Certificates:
ISO 14001, ISO 9000, ISO 9001
Product descriptions from the supplier
Product Description
Product Description

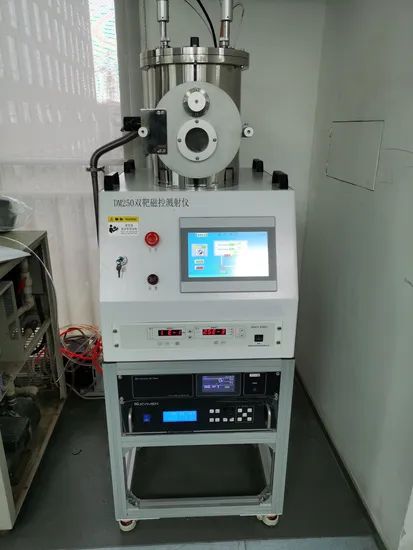

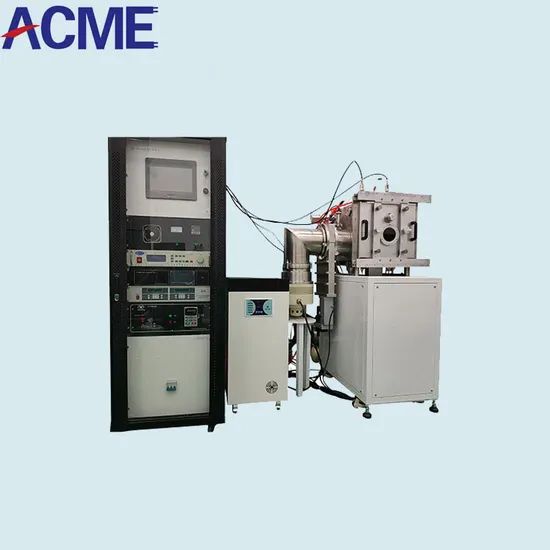

This coating system is a circular vacuum chamber structure, with exhaust at the rear and a front door structure, and is made of high-quality austenitic stainless steel. One (two) 2-inch (or 3-inch) magnetron sputtering targets are installed on the top plate of the sputtering deposition chamber. The direction of the outgoing beam is toward the substrate rack and a thin film is obtained on the substrate. The equipment has a simple structure and can be used to research and develop nano-scale single-layer and multi-layer functional films, such as hard films, metal films, semiconductor films, dielectric films, composite films, ferromagnetic films, magnetic films and other new thin film materials. .
Main parameters of the system
l Ultimate vacuum degree: ≤6×10-5Pa (obtained within 12 hours under cleaning + baking and degassing conditions);
l Vacuuming time: within 30 minutes, ≤6×10-4Pa;
l Substrate heating temperature: ≤600ºC;
l Substrate size: ≤Φ3inch wafer;
l Number of substrate racks: 1 set;
l Target size: 50mm diameter (optional 3inch);
l Number of targets: 1 or 2;
l Vacuum chamber size: DN250*340 (may be adjusted appropriately according to actual conditions);
l Substrate rack moving distance: ≤50mm (axial direction);
l Angle between target axis and substrate rotation axis: co-sputtering;
l Gas system: 2-way air intake, 1 of which is used for exhaust;
| Item | Specifications and Description | |
| Vacuum Chamber | Sputtering vacuum chamber | DN220*320, the size can be adjusted according to the design requirements, the upper cover can be opened, and the door can be opened |
| Ultra-high vacuum throttle valve | DN100, electric control, optional automatic constant pressure function | |
| Molecular pump | Molecular pump 110L/S or 150L/S | |
| Mechanical pump | DVR16 rotary vane pump, also serves as pre-pump and fore-stage pump | |
| Baffle valve | DN25 electromagnetic baffle valve, pre-pump pipeline on-off | |
| Stop valve | 6mm double ferrule interface electric stop valve | |
| Lighting and baking device | Optional | |
| Various types of flanges and observation windows | DN16, 35, 63, 100, 150 | |
| Stainless steel pipelines, pipe joints | Various specifications of precision stainless steel pipes, bellows, pipe joints | |
| Vacuum measurement and air intake | Digital composite vacuum gauge | 5227 composite vacuum gauge or imported full-range gauge optional |
| Metal bare gauge | ZJ52T, ZJ27 metal interface | |
| Mass flow controller | D07-7B mass flow controller, range 100sccm | |
| Pipes and connectors | Mixed gas chamber | |
| Stop valve | 6mm double ferrule interface electric stop valve | |
| Intake and other control interfaces | Pressure regulating valve electric control, feedback available | |
| Sample rack | Rotating substrate rack | Substrate rotation, substrate rack lifting |
| Lifting device | Lifting manual adjustment | |
| Sputtering substrate heating device | ≤600ºC Heating device optional | |
| Temperature control power supply | Japan Shimaden temperature control, PID temperature control | |
| Sputtering system | Magnetic control sputtering target | Integrated sputtering target, optional 2-inch or 3-inch, with baffle |
| Sputtering power supply | 500W optional DC or RF | |
| Equipment rack | Integrated layout | |
| Water and gas system | Including cooling water machine | |
| Control system | Standard manual, optional touch screen automatic control | |
Main parameters of the system:
l Ultimate vacuum degree: ≤5×10-5Pa (obtained within 12 hours under cleaning + baking and degassing conditions);
l Vacuuming time: within 40 minutes, ≤5×10-4Pa;
l Substrate heating temperature: ≤600ºC (iodine tungsten lamp heating);
l Substrate size: ≤Φ3inch round wafer;
l Target size: 2 inches or 3 inches;
l Number of targets: 3;
l Vacuum chamber size: 400×400×H380~450 (may be adjusted appropriately according to actual conditions);
l Substrate rack moving distance: ≤50mm (axial direction);
l Angle between target axis and substrate rotation axis: co-sputtering;
l Gas system: 4-way air intake, 1 of which is for exhaust;
l Ultimate vacuum degree: ≤5×10-5Pa (obtained within 12 hours under cleaning + baking and degassing conditions);
l Vacuuming time: within 40 minutes, ≤5×10-4Pa;
l Substrate heating temperature: ≤600ºC (iodine tungsten lamp heating);
l Substrate size: ≤Φ3inch round wafer;
l Target size: 2 inches or 3 inches;
l Number of targets: 3;
l Vacuum chamber size: 400×400×H380~450 (may be adjusted appropriately according to actual conditions);
l Substrate rack moving distance: ≤50mm (axial direction);
l Angle between target axis and substrate rotation axis: co-sputtering;
l Gas system: 4-way air intake, 1 of which is for exhaust;

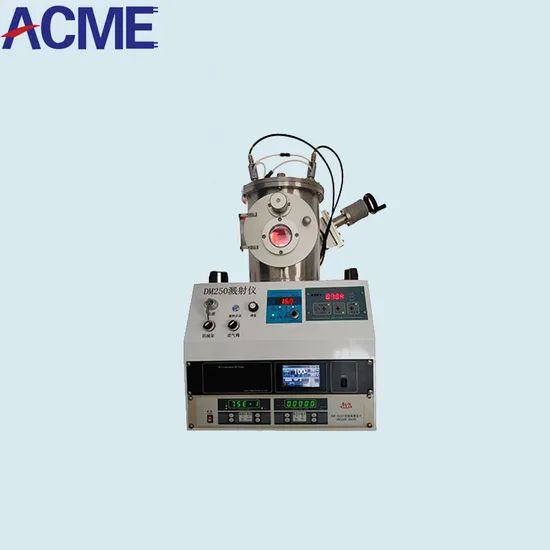

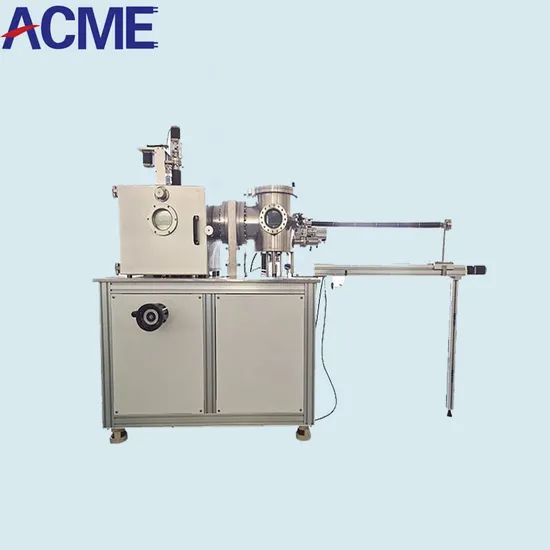

This small coating machine has a compact structure and a simple and elegant appearance. It is easy to operate and maintain and has low operating costs. The main unit and the electronic control system of this device adopt an integrated design. The main unit consists of an equipment rack, a pumping system, and a vacuum chamber. The coating process is carried out in the sputtering vacuum chamber; the electronic control part adopts a standard control cabinet, which contains various modular plug-in boxes. The system is powerful and has stable performance.
The basic parameters of the ultra-high vacuum magnetron sputtering coating machine are as follows:
l Ultimate vacuum of coating chamber: ≤6×10-5Pa;
l Pumping time: better than 6×10-4Pa within 30 minutes;
l Vacuum chamber size: 300×300×H350mm, the vacuum chamber is made of stainless steel;
l Target size and quantity: 2 φ50mm permanent magnet targets;
l Target-substrate distance is adjustable (40~100mm, adjusted by target position);
l Substrate rotation: 0~60 rpm adjustable; equipped with heating, can be heated up to 500 degrees;
l Main machine size: about 1100mm long×750mm wide×1650mm high;
l Gas type: 2-way MFC, working gas Ar+reaction gas;
l Film thickness measurement: equipped with a set of quartz crystal film thickness meter and original probe (optional);
l Control system: Touch screen + PLC control is adopted to control the start and stop of pumps, valves, and various output alarms;
Main parameters of the system:
l Ultimate vacuum degree: ≤5×10-5Pa (obtained within 12 hours under cleaning + baking and degassing conditions);
l Vacuuming time: within 40 minutes, ≤5×10-4Pa;
l Substrate heating temperature: ≤600ºC (iodine tungsten lamp heating);
l Substrate size: ≤Φ3inch round wafer;
l Target size: 2 inches or 3 inches;
l Number of targets: 4;
l Vacuum chamber size: 500×500×H450 (may be adjusted appropriately according to actual conditions);
l Substrate rack moving distance: ≤50mm (axial direction);
l Angle between target axis and substrate rotation axis: co-sputtering;
l Gas system: 4 air intakes, 1 of which is for exhaust;
l Ultimate vacuum degree: ≤5×10-5Pa (obtained within 12 hours under cleaning + baking and degassing conditions);
l Vacuuming time: within 40 minutes, ≤5×10-4Pa;
l Substrate heating temperature: ≤600ºC (iodine tungsten lamp heating);
l Substrate size: ≤Φ3inch round wafer;
l Target size: 2 inches or 3 inches;
l Number of targets: 4;
l Vacuum chamber size: 500×500×H450 (may be adjusted appropriately according to actual conditions);
l Substrate rack moving distance: ≤50mm (axial direction);
l Angle between target axis and substrate rotation axis: co-sputtering;
l Gas system: 4 air intakes, 1 of which is for exhaust;

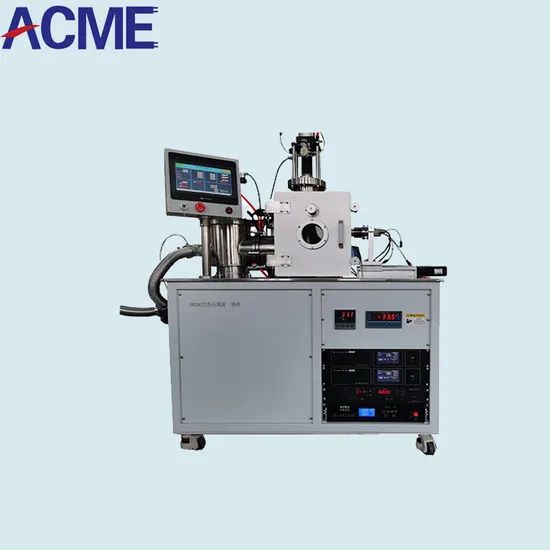

The basic parameters of the ultra-high vacuum magnetron sputtering coating machine are as follows:
l Ultimate vacuum of coating chamber: ≤6×10-5Pa;
l Pumping time: better than 8×10-4Pa within 30 minutes;
l Vacuum chamber size: 300mm×300mm×H400mm, the vacuum chamber is made of stainless steel and equipped with a glass observation window;
l Target size and quantity: 2 φ50mm permanent magnet targets (integrated);
l Sputtering power supply: 2 500W digital DC sputtering power supplies;
l Pressure control, equipped with film gauge and electric butterfly valve to achieve constant pressure control;
l Horizontal moving distance 0~80mm, equipped with isolation plate to avoid slag falling during movement;
l Hot pressing system: lower substrate heating temperature: 0~600ºC continuously adjustable. The upper plate is pneumatically controlled to press down;
l Main unit size: length 1060mm×width 600mm×height 1600mm; (the size will be adjusted appropriately according to needs)
l Gas type: 2-way mass flow controller, 2-way air intake;
l Ultimate vacuum of coating chamber: ≤6×10-5Pa;
l Pumping time: better than 8×10-4Pa within 30 minutes;
l Vacuum chamber size: 300mm×300mm×H400mm, the vacuum chamber is made of stainless steel and equipped with a glass observation window;
l Target size and quantity: 2 φ50mm permanent magnet targets (integrated);
l Sputtering power supply: 2 500W digital DC sputtering power supplies;
l Pressure control, equipped with film gauge and electric butterfly valve to achieve constant pressure control;
l Horizontal moving distance 0~80mm, equipped with isolation plate to avoid slag falling during movement;
l Hot pressing system: lower substrate heating temperature: 0~600ºC continuously adjustable. The upper plate is pneumatically controlled to press down;
l Main unit size: length 1060mm×width 600mm×height 1600mm; (the size will be adjusted appropriately according to needs)
l Gas type: 2-way mass flow controller, 2-way air intake;
