Metal Forging Machinery Floor Decking Cold Roll Forming Machine with Ce/ISO
Piece
Negotiable
Product information
High-quality Metal Forging Machinery Floor Decking Cold Roll Forming Machine with Ce/ISO supplied by Xiamen BMS Group. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Thickness:
0.7-1.2/0.8-1.5mm
Shafts Diameter:
100mm
Motor:
15kw*2
Side Wall Thickness:
18mm
Station:
23 Stations
Warranty:
24 Months
Rollers Material:
45# Steel
Hydraulic Motor:
5.5kw
Specifications
Thickness:
0.7-1.2/0.8-1.5mm
Shafts Diameter:
100mm
Motor:
15kw*2
Side Wall Thickness:
18mm
Station:
23 Stations
Warranty:
24 Months
Rollers Material:
45# Steel
Hydraulic Motor:
5.5kw
HS Code:
8455221000
Feature:
Automation
Trademark:
BMS
Origin:
China (Mainland)
Cutting Material:
Cr12MOV
Customized:
Customized
Trade Term:
FOB, CFR, CIF, EXW
Applicable Material:
Galvanized Sheet(Gi)
Body Frame:
H450
Power Source:
Hydraulic Pressure
Certification:
ISO9001, CE
Payment Term:
LC, T/T, PayPal, Western Union, Money Gram
Transport Package:
Naked and Covered by Plastic Film Into Container
Condition:
New
Advantage:
Work Flexible
Port Of Loading:
Xiamen port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2006-05-30
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union, Money Gram
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
Xiamen port
Certificates:
BMS patent, CE Certificate by SGS, ISO9001
Product descriptions from the supplier
Metal Forging Machinery Floor Decking Cold Roll Forming Machine with Ce/ISO

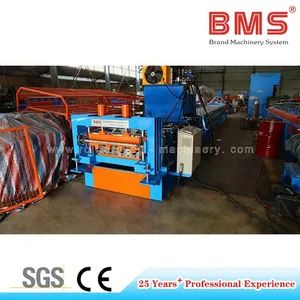

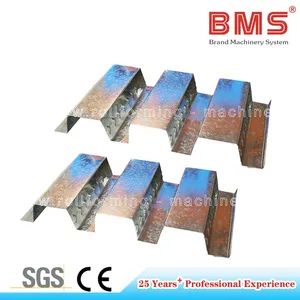

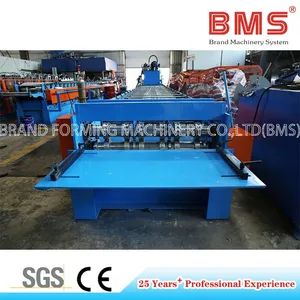

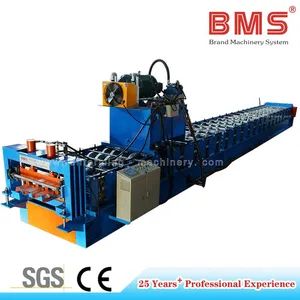

Floor Decking Roll Forming Machine
Material
Effective width: 1220mm
Feeding width: about 1220mm
Material Thickness:0.7-1.2/0.8-1.6mm
Applicable material: Galvanized Sheet(GI)
Machine Components
Post Hydraulic Cutting Device
Post to cut, stop to cutting,Three pieces type of cutting blade design, no blanking

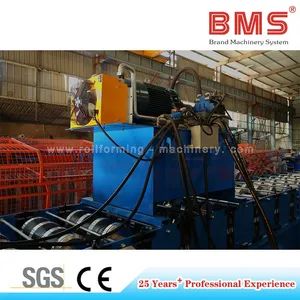

Hydraulic motor:7.5 KW;
Cutting tool material:Cr12MoV
The cutting power is provided by the main engine hydraulic station
Floor Decking Roll Forming Machine
Material
Effective width: 1220mm
Feeding width: about 1220mm
Material Thickness:0.7-1.2/0.8-1.6mm
Applicable material: Galvanized Sheet(GI)
Machine Components

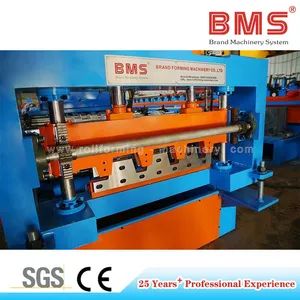

Main Machine
With feeding material guide, body frame made fromH450type steel by welding
Side wall thickness:Q235 t18mm
Rollers manufactured from45#steel, high-frequency heat treatment
The material for Embossing roller: bearing steelGCr15for long working life, heat treatment
Shafts Diameter=ф100mm, precision machined
Motor Driving, Gear /Sprocket driving transmission, about23-stepsto form
Main Motor=15KWx2, Frequency speed control
Speed reducer motor: R series;
All the screw bolts with grade8.8(cheap factories use low grade4.8) to ensure fix the machine structure tightly and long life during the machine long time running.
Real forming speed12-15m/min
With feeding material guide, body frame made fromH450type steel by welding
Side wall thickness:Q235 t18mm
Rollers manufactured from45#steel, high-frequency heat treatment
The material for Embossing roller: bearing steelGCr15for long working life, heat treatment
Shafts Diameter=ф100mm, precision machined
Motor Driving, Gear /Sprocket driving transmission, about23-stepsto form
Main Motor=15KWx2, Frequency speed control
Speed reducer motor: R series;
All the screw bolts with grade8.8(cheap factories use low grade4.8) to ensure fix the machine structure tightly and long life during the machine long time running.
Real forming speed12-15m/min
Post Hydraulic Cutting DevicePost to cut, stop to cutting,Three pieces type of cutting blade design, no blanking
Hydraulic motor:7.5 KW;
Cutting tool material:Cr12MoV
The cutting power is provided by the main engine hydraulic station
PLC Control System
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.
| Combined With | PLC, Inverter, Touch Screen, Encoder, etc |
| PLC | Siemens (German brand)/Schneider(French brand) |
| Inverter | Siemens (German brand)/Schneider(French brand) |
| 7-Inch Color Touch Screen | Siemens (German brand)/Schneider(French brand) |
| Encoder | Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor |
| Thermal Relay | Siemens(German brand)/Schneider(French brand) |
| Air Switch | LG-LS(Korea brand) Cut-to-Length Tolerance≤±1 mm Control Voltage 24V |
After-Sale Service
1. The warranty is24months after the client receives the machine.
Within The 24months, we will courier the replacement parts to the client free of charge
2.We offer technical support for the entire life of our machines
3. We can send our technicians to install and train the workers in the clients' factories with extra cost
Terms Of Trade
| Minimum order quantity (MOQ) | 1 Set |
| Delivery time | about 45 workdays |
| Port of loading | port of Xiamen |
| Type of payment | by T/T or by L/C |
| Export | to more than80 countriesand regions, including South Korea, Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia, Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc |
Packing Style
| Packing method | Main body of machine is naked and covered by plastic film(to protect of dust and corrosion), loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation. |
