Metal Gear Shaping Machine B635A Motor 1.5KW Origin China Condition New Speed 1400rpm Weight 1200kgs Trademark HOTON Model NO.
1 Piece
$5,0001 Piece
$3,800Product information
High-quality Metal Gear Shaping Machine B635A Motor 1.5KW Origin China Condition New Speed 1400rpm Weight 1200kgs Trademark HOTON Model NO. supplied by Tengzhou Hoton Machinery Co., Ltd.. Bulk wholesale pricing ranges from $3,800 to $5,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Motor:
1.5KW
Production Capacity:
10 PCS/Month
Weight:
1200kgs
Speed:
1400rpm
RAM Travel:
170mm
Max.Shaping Length:
350mm
HS Code:
8461201000
Model NO.:
B635A
Specifications
Motor:
1.5KW
Production Capacity:
10 PCS/Month
Weight:
1200kgs
Speed:
1400rpm
RAM Travel:
170mm
Max.Shaping Length:
350mm
HS Code:
8461201000
Model NO.:
B635A
Specification:
CE SGS ISO9001
Certification:
CE, ISO 9001
Trade Term:
CIF, CFR, FOB, EXW
Origin:
China
Power Source:
Electric
Trademark:
HOTON
Payment Term:
LC, T/T, PayPal, Western Union, D/P
Automatic Grade:
Manual
Condition:
New
Precision:
Normal Precision
Transport Package:
Plywood Case
Port Of Loading:
Qingdao Port
Shaping Machine Type:
Small Type
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-07-06
Annual Revenue Amount:
Not specified
Numbers Of Employees:
8
Preferred Payment Term:
LC, T/T, PayPal, Western Union, D/P
Preferred Trade Term:
CIF, CFR, FOB, EXW
Port Of Loading:
Qingdao Port
Certificates:
CE CERTICATION, ISO CERTIFICATION, QUALITY CERTIFICATION
Product descriptions from the supplier

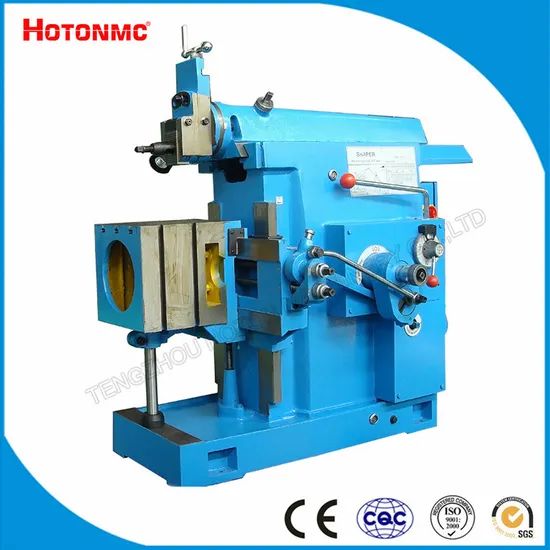

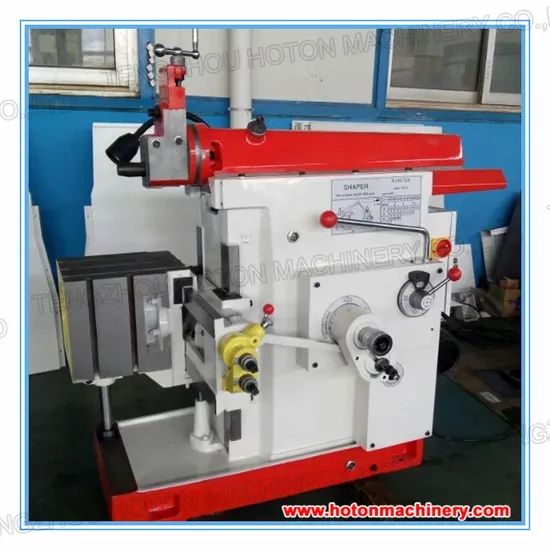

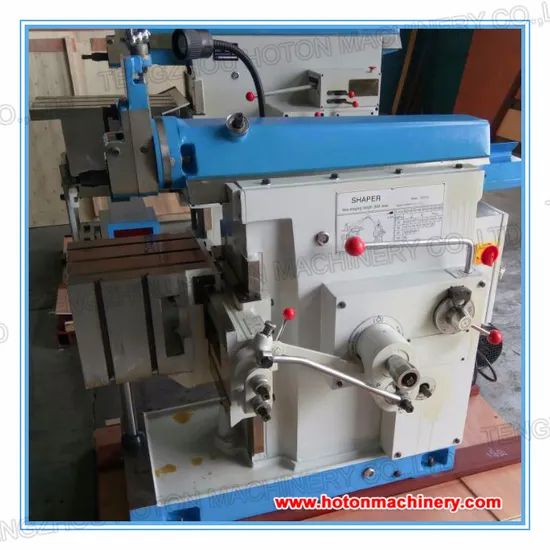

SHAPING MACHINE FOR METAL
1.Shaping machine price can turning angle of the table with horizontal and lift moving
mechanism; for the planning the inclined plane, thereby expanding the scope of use.
2.Planer feed system uses a cam mechanism to adjust the feed rate. It is very convenient to
change the feeding rate.
3.Shaping machine price equipped with cutting system overload safety agencies.
Once occur careless operation, external influences or cutting overload,it will shift to self-skid, and non-destructive the machine.
4.Gap between the ram and the bed rail, the speed gear and the main sliding guide surface,
will be lubricated by the pump shot oil.
SPECIFICATIONS:
| MODEL | B635A | |
| Max.shaping length | 350mm | |
| Max.distance from,lower edge of ram to table | 330mm | |
| Maxtravelof table Horizontal | 400mm | |
| Vertical | 270mm | |
| Max.length between cutter and front bed end | 500mm | |
| Max.ram travel | 170mm | |
| Max.swivel angle of table Without vice | ±90º | |
| With vice | ±55º | |
| Max.vertical travel of tool head | 110mm | |
| Frequency of ram strokes | 32,50,80,125times/min | |
| Table feed amount per reciprocating motion of ram |
Wheeled round a tooth(V) | 0.18mm |
| Wheeled round a tooth(H) | 0.21mm | |
| Wheel rotation 4 tooth(V) | 0.73mm | |
| Wheel rotation 4 tooth(H) | 0.84mm | |
| Motor | 1.5kw 1400r/min | |
| Vice measurement (Width * Depth * Max.opening) | 180*55*150mm | |
| Overall dimensions(L * W * H) | 1390*860*1455mm | |
| Packing size(L * W * H) | 1530*930*1370mm | |
| Net weight | 1000kgs | |
| Gross weight | 1200kgs | |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
