Metal Gear Shaping Machine Tool Machine (B635A) Origin China Condition New HS Code 84612010 Motor Power 1.5kw Trademark
1 Piece
$7,0001 Piece
$5,000Product information
High-quality Metal Gear Shaping Machine Tool Machine (B635A) Origin China Condition New HS Code 84612010 Motor Power 1.5kw Trademark supplied by Tengzhou Uni-Tech Co., Ltd.. Bulk wholesale pricing ranges from $5,000 to $7,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Motor Power:
1.5kw
Max. Vertical Travel Of Tool Carrier:
110mm
Overall Dimensions:
1390X860X1455mm
Production Capacity:
200PCS/Month
Max. Table Vertical Travel:
270mm
Number Of RAM Strokes Per Minute:
32,50,80,125
Max. Distance From RAM Bottom To Table:
330mm
Max. Cutting Length:
350mm
Specifications
Motor Power:
1.5kw
Max. Vertical Travel Of Tool Carrier:
110mm
Overall Dimensions:
1390X860X1455mm
Production Capacity:
200PCS/Month
Max. Table Vertical Travel:
270mm
Number Of RAM Strokes Per Minute:
32,50,80,125
Max. Distance From RAM Bottom To Table:
330mm
Max. Cutting Length:
350mm
Max. Horizontal Travel Of Table:
400mm
HS Code:
84612010
Controlling Mode:
Artificial
Model NO.:
B635A, B6050, B6063
Certification:
CE, ISO 9001
Specification:
CE, ISO9001
Origin:
China
Power Source:
Electric
Trade Term:
FOB, CIF, CFR, EXW
Precision:
High Precision
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Automatic Grade:
Manual
Shaping Machine Type:
Medium Type
Condition:
New
Transport Package:
Plyw/Case
Port Of Loading:
Qingdao Port
Trademark:
UNI-TECH
Type:
Vertical Planer
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2010-03-17
Annual Revenue Amount:
Not specified
Numbers Of Employees:
9
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao Port
Certificates:
EC of Milling machine, EC of OMRON-1, EC of OMRON-2, ISO9001 of C6241, ISO9001 of Lathe machine
Product descriptions from the supplier

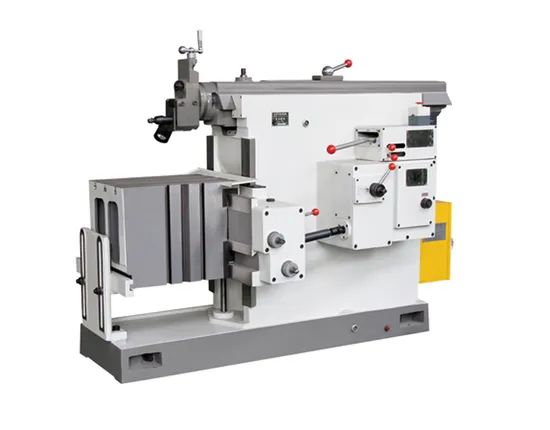

Gear Shaping Machine Tool (B635A, B6050, B6063)
Advantages:
1. Planner bench can rotate
2. Feed system use cam mechanism to adjust feed rate
3. With cutting system overload safety device
Features
Shaper is mainly used for planning the plane on the small and medium-size workpieces in small batch production of a single piece, forming the surface and grooves. Its five characteristics:
1. Planner bench can turing angle of the table with horizontal and lift moving mechanism; For planning the inclined plane, thereby expanding the scope of use.
2. Planner feed system uses a cam mechanism to adjust the feed rate. It is very convenient to change the feeding rate.
3. Planer equipped with cutting system overload safety angencies. Once occur careless operation, external influences or cutting overload, it will shift to self-skid, and non-sestructive the machine.
4. Gap between the ran and the bed rail, the speed gear and the main sliding guide surface, will be lubricated by the pump shot oil.
5. Planner is equipped with a clutch and parking brake device. So do not need to cut off the power when changing the speed, stard the machine or braking the machine.
Advantages:
1. Planner bench can rotate
2. Feed system use cam mechanism to adjust feed rate
3. With cutting system overload safety device
Features
Shaper is mainly used for planning the plane on the small and medium-size workpieces in small batch production of a single piece, forming the surface and grooves. Its five characteristics:
1. Planner bench can turing angle of the table with horizontal and lift moving mechanism; For planning the inclined plane, thereby expanding the scope of use.
2. Planner feed system uses a cam mechanism to adjust the feed rate. It is very convenient to change the feeding rate.
3. Planer equipped with cutting system overload safety angencies. Once occur careless operation, external influences or cutting overload, it will shift to self-skid, and non-sestructive the machine.
4. Gap between the ran and the bed rail, the speed gear and the main sliding guide surface, will be lubricated by the pump shot oil.
5. Planner is equipped with a clutch and parking brake device. So do not need to cut off the power when changing the speed, stard the machine or braking the machine.
| Specification | B635A | B6050 | BC6063 | B6070 | B60100 |
| Max. cutting length | 350mm | 500mm | 630mm | 700mm | 1000mm |
| Max. horizontal travel of table | 400mm | 500mm | 630mm | 630mm | 800mm |
| Max. distance from ram bottom to table | 330mm | 370mm | 385mm | 420mm | 380mm |
| Max. table vertical travel | 270mm | 300mm | 360mm | 320mm | 320mm |
| Max. vertical travel of tool carrier | 110mm | 110mm | 120mm | 125mm | 160mm |
| Number of ram strokes per minute | 32,50,80,125 | 15,24,37,51,64, 80,102,126,158 |
14,20,28, 40,56,80 |
11,20,38, 52,72 |
8,11,16,23, 32,45,64,90 |
| MOTOR POWER | 1.5kw | 4kw | 3kw | 4kw | 7.5kw |
| Overall dimensions (LxWxH) mm | 1390x860x1455 | 1943x1173x1533 | 2265x1225x1480 | 2550x1400x1760 | 3507x1455x1761 |
