Metal Process Automation Punch Press Industrial Robot Condition New Origin Qingdao Trademark YITUO Warranty One Year HS Code
1 Set
$6,8001 Set
$1,500Product information
High-quality Metal Process Automation Punch Press Industrial Robot Condition New Origin Qingdao Trademark YITUO Warranty One Year HS Code supplied by Qingdao Yituo Machinery Equipment Co., Ltd.. Bulk wholesale pricing ranges from $1,500 to $6,800 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Feeding Length:
0-9999mm
Feeding Precision:
0.02mm
Thickness Range:
1.5-8.0mm
Coil Outer Diameter:
1400mm
Package Gross Weight:
200.000kg
Production Capacity:
30 Sets Per Month
Coil Inner Diameter:
450-530mm
Package Size:
50.00cm * 50.00cm * 170.00cm
Specifications
Feeding Length:
0-9999mm
Feeding Precision:
0.02mm
Thickness Range:
1.5-8.0mm
Coil Outer Diameter:
1400mm
Package Gross Weight:
200.000kg
Production Capacity:
30 Sets Per Month
Coil Inner Diameter:
450-530mm
Package Size:
50.00cm * 50.00cm * 170.00cm
HS Code:
8462211000
After Sales Service:
Assist in Testing & Spart Parts After Sale Service
Specification:
Automatic Equipment
Industry:
Automotive Parts, Electronics, Home Appliance
Certification:
CE, SGS
Transport Package:
Container
Drive Mode:
Electric
Trade Term:
FOB, CIF, CFR, EXW
Condition:
New
Warranty:
One Year
Easy To Operate:
Parameters Can Be Set up in PLC Touch Screen
Origin:
Qingdao
Port Of Loading:
Qingdao Port
Application Material:
Ss, SPHC, SPCC, Gi and So on
Equipped Machine:
Stamp Press, Roll Forming Machine, Shear Machine
Payment Term:
T/T, LC
Trademark:
YITUO
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2025-08-26
Annual Revenue Amount:
Not specified
Numbers Of Employees:
6
Preferred Payment Term:
T/T, LC
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao Port
Certificates:
CE, CE CERTIFICATE, certificate, IOS 9001, Made in China certification, Patent Certificate of utility model
Product descriptions from the supplier

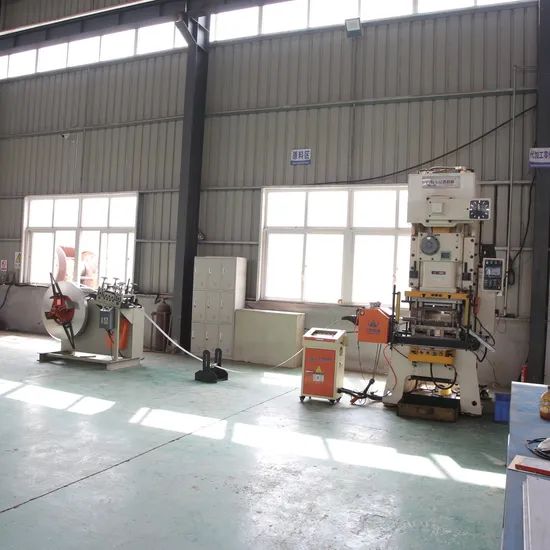

Features of Uncoiled, Straighter and Feeder 3 in 1
1. Suitable all kinds of metal sheet straightening and feeding
2.Suitable for metal parts,electron,electrical appliance, toy and auto parts continuous pressing production,straightening and feeding.
3. Servo motor of this machine,electrical box and ome other parts are from Japan, with less malfunction and long using time.
4. Chrome plate,high precision,more durable.
5. Input feeding length, easy operation, safe and high stability.
Straightening capacity diagram
1.This diagram is suitable for condition,which material stretch intensity is 40kgf/ mm.
2. Straightening capacity may be change because of different actual condition.
3. About coil outer diameter,material widthand deciliter standard load weight,pleaserefer to deciliter attachment diagram ofthis catalogue.
4. About particular specification manufacturing, please contact us.
| Model | NCMF-300 | NCMF-400 | NCMF-500 | NCMF-600 | |
| Ltem | |||||
| Material thickness | 0.4-2.5(Straighteningrollerl49x5up/5down) | ||||
| Material width | mm | 300 | 400 | 500 | 600 |
| Coil Inner diameter | mm | ф450~Ф530 | ф450~Ф530 | ф450~Ф530 | ф450~Ф530 |
| Coilouter diameter | mm | Ф1400 | Ф1400 | Ф1400 | Ф1400 |
| Coil weight | kg | 3000 | 3000 | 5000 | 5000 |
| Decoiler power | HP | 2.2 | 2.2 | 3.7 | 3.7 |
| Straightening power | kw | 2 | 2 | 3.5 | 3.5 |
| Expansion style | Hydraulic expansion | Hydraulic expansion | Hydraulic expansion | Hydraulic expansion | |
| Size | m | 4.5x1.5x2.3 | 4.5x1.7x2.3 | 4.5x1.9x2.3 | 4.5x2.0x2.3 |
| Weight | kg | ~2200 | ~2400 | ~2800 | ~3000 |
| Model | NCGK-500 | NCGK-800 | NCGK-1000 | NCGK-1300 | |
| Ltem | |||||
| Material thickness | 1.5-8.0(Straighteningrollerl84x5up/5down) | ||||
| Material width | mm | 500 | 800 | 1000 | 1300 |
| Coil Inner diameter | mm | ф450~Ф530 | ф450~Ф530 | ф450~Ф530 | ф450~Ф530 |
| Coilouter diameter | mm | Ф1400 | Ф1400 | Ф1400 | Ф1400 |
| Coil weight | kg | 5000 | 5000 | 7000 | 7000 |
| Decoiler power | HP | 2.2 | 2.2 | 3.7 | 3.7 |
| Straightening power | kw | 5.5 | 5.5 | 7.5 | 11 |
| Expansion style | Hydraulic expansion | Hydraulic expansion | Hydraulic expansion | Hydraulic expansion | |
| Item | Model | NCBF-400 | NCBF-500 | NCBF-600 | NCBF-700 | NCBF-800 | NCBF-1000 |
| Material thickness | 0.5-6.0(Straighteningrollerl68x4up/3down) | ||||||
| Material width | mm | 400 | 500 | 600 | 700 | 800 | 1000 |
| CoilInner diameter | mm | ф450~Ф530 | ф450~Ф530 | ф450~Ф530 | ф450~Ф530 | ф450~Ф530 | ф450~Ф530 |
| Coilouter diameter | mm | Ф1500 | Ф1500 | Ф1500 | Ф1500 | Ф1500 | Ф1500 |
| Coil weight | kg | 2000 | 3000 | 5000 | 5000 | 5000 | 5000 |
| Decoiler power | HP | 2.2 | 2.2 | 3.7 | 3.7 | 5.5 | 5.5 |
| Straightening power | kw | 4.4 | 4.4 | 5.5 | 5.5 | 5.5 | 7.5 |
| Expansion style | Hydraulic expansion | Hydraulic expansion | Hydraulic expansion | Hydraulic expansion | Hydraulic expansion | Hydraulic expansion | |
| Size | m | 4.5x1.9x1.8 | 4.5x2.0x1.8 | 4.5x2.1x1.8 | 4.5x2.3x1.8 | 4.5x2.5x1.8 | 4.5x2.8x1.8 |
| Weight | kg | ~3200 | ~3900 | ~4800 | ~5100 | ~5600 | ~6200 |
Q: Are you a factory or trading company?
A: We are a factory which has been producing stampingautomationmachines for more than20years.
Q: What's the delivery time?
A: The standard machine is 25 to 30workingdays after payment.For compact coil feed lines or whole metal stamping lines, it needs 30-70 workdays depends on different specifications and production plan in our factory,we will confirm the delivery time based on the specific project itself.
Q: Do you receive OEMor ODM?
A: Yes, we warmly welcome customers to do OEMand ODMin our factory.
Q:What's warranty time of your machine?
A:Usually the warranty time is 12 months. Also the warranty time can be extend acorrding the specific requirements.
Q:What after-sales service does YITUO provide?
A:For the standard decoiler straightener feeder machine, it's easy to install and debug it, most of our customers can do it by themselves; And what's more, our technical engineer can teach your operators how to install and operate it.
For the compact coil feed machine and complete metal stamping line,YITUO can arrange engineers to go overseas for the coil handling equipment installation. They guide the customer's operators on-site.
Q: What information you need to prepare the quotation:
1. Coil thickness (min-max)
2. Coil inner and outer diameter (min-max)
3. What kind of your material
4. Weight of your coils (max)
5. How many tons you need per day or per month
