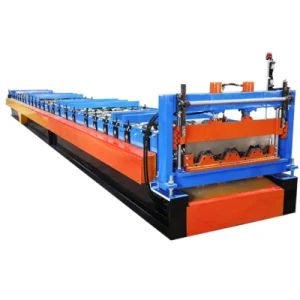

Metal Roof Ridge Cap Roll Forming Machine/Corrugated Roll Forming Machine
Piece
Negotiable
Product information
High-quality Metal Roof Ridge Cap Roll Forming Machine/Corrugated Roll Forming Machine supplied by Xiamen Taohong Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Thickness:
0.8-1.5mm
Transmission Chain:
1"
Warranty:
12 Months
Feeding Width:
1250mm
Roller Steps:
16rows
Forming Station:
26 Steps
Transport Package:
2sets/20gp
Production Capacity:
30sets Month
Specifications
Thickness:
0.8-1.5mm
Transmission Chain:
1"
Warranty:
12 Months
Feeding Width:
1250mm
Roller Steps:
16rows
Forming Station:
26 Steps
Transport Package:
2sets/20gp
Production Capacity:
30sets Month
Prouctivity:
8-10m/Min
Shaft:
90mm
Feature:
Automation
Applicable Industries:
Building Material Shops, Manufacturing Plant
Origin:
China
Building Material Shops, Manufacturing P:
Color Steel, Galvanized Steel
Tile Type:
Colored Steel
Cutter Material:
Cr12
Customized:
Customized
Trade Term:
FOB, EXW, CIF, DDP, CIP
Housing:
H400 Beam
Marketing Type:
Hot Product 2019
Power Source:
Hydraulic Pressure
Certification:
ISO9001, CE
Payment Term:
LC, T/T, PayPal, Western Union, Money Gram
Decoiler:
Manual/Hydraulic for Options
Forging Forming Method:
Mold Forging
Core Components:
Motor, Bearing, Gear, Gearbox, Engine, PLC
Condition:
New
Model NO.:
TH313-940
Trademark:
Taohong
Advantage:
Work Flexible
Port Of Loading:
Xiamen, Qingdao
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2020-05-02
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union, Money Gram
Preferred Trade Term:
FOB, EXW, CIF, DDP, CIP
Port Of Loading:
Xiamen, Qingdao
Certificates:
SGS certificate
Product descriptions from the supplier
COMPANY PROFILE:
Xiamen taohong tech. Co.,ltdoperates a quality management system approved to ISO 9001:2008 and dimensional tolerances to EN 755. This system allows quality management from an initial contract review through to product shipment. Laboratory facilities are also available to assist with quality assurance and any necessary metallurgical testing.
PRODUCT DECRIPTION:
Floor DeckingRoll Forming Machine
Profile Drawing
1)Main features
The advantages ofRoof Panel Roll Forming Machine
1.Low cost,light weight but high strength,short building period,and re-cycle use
2.save material,no waste
3.Easy operation,low maintenance cost
with black treatment or hard-Chrome Coating for options Body frame made from 400#H type steel by welding
3)Floor Decking Roll Forming Machine post cutter
3)Floor Decking Roll Forming Machine post cutter
Made by high quality mold steel Cr12 with Heat treatment
Hydraulic motor: 18.5KW, Hydraulic pressure range: 0-16Mpa
Cutter frame made from high quality 20mm steel plate by welding
5)Floor Decking Roll Forming Machine decoiler
Cutter frame made from high quality 20mm steel plate by welding
5)Floor Decking Roll Forming Machine decoiler
Manual decoiler: one set Un-power,Manual control steel coil inner bore shrinkage and stop
Max feeding width: 1200mm, coil ID range 508mm+30mm
Capacity:5-9Ton
With 6 tons hydraulic decoiler for option
Capacity:5-9Ton
With 6 tons hydraulic decoiler for option

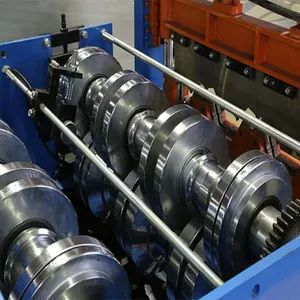

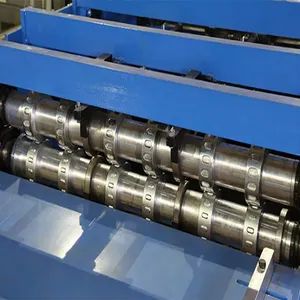

Other details of Floor Decking Roll Forming Machine Main shafts diameter=90mm, precision machined Motor driving, Gear chain transmission,26 steps to form
Main motor 22KW,Frequency speed control Forming speed approx. 16-18m/min
PLC Control System
Control the quantity and cutting length automatically
Input the production date(production batch,Pcs,length,etc.)on the touch screen
It can finish the production automaticlly Combined with: Plc. Inverter. Touch Screen. Encoder. etc
Cut-to-length tolerance≤+/-2mm
Control Voltage 24V
User's manual in English
Control Voltage 24V
User's manual in English
After-sale service ofFloor Decking Roll Forming Machine1. The warranty ofFloor Decking Roll Forming Machineis one year after the client receives the machine Within one year, we will courier the replacement parts to the client free of charge 2. We offer technical support for the entire life of our machine 3. We can send our technicians to install and train the workers in the clients factories with extra cost
