Metal Shearing Line Carbide Knives
50 Piece
$20Product information
High-quality Metal Shearing Line Carbide Knives supplied by Shijiazhuang Huatao Import and Export Trade Co., Ltd.. Bulk wholesale pricing is $20 per Piece with a minimum order of 50 Piece. Inquiry for latest prices.
Flatness:
0.002mm
Parallelism:
0.002mm
Production Capacity:
5000piece/Month
Hardness:
52-65HRC
HS Code:
8208109000
Standard:
ASTM, GB
Material:
Alloy
OEM Service:
Available
Specifications
Flatness:
0.002mm
Parallelism:
0.002mm
Production Capacity:
5000piece/Month
Hardness:
52-65HRC
HS Code:
8208109000
Standard:
ASTM, GB
Material:
Alloy
OEM Service:
Available
Origin:
China
Customized:
Customized
Trade Term:
FOB, CFR, CIF, DDP, DAP, CIP, CPT, EXW
Model NO.:
HT-Metal Shearing Line Carbide Knives
Trademark:
Huatao
Certification:
ISO9001
Dimension Tolerance:
Idh7-H8 Usually
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Money Gram
Application:
Metal Cutting Machine, Metal Straightening Machinery, Metal Processing Machinery Parts, Metal Coating Machinery
Condition:
New
Surface Roughness:
Ra 0.2- Ra0.4 Usually
Port Of Loading:
TIANJIN/SHANGHAI/QINGDAO
Raw Material:
Tc,HSS,Alloy,9crsi,SKD11,Ld,H13,H13K,Hmb
Transport Package:
Wooden Box
Thickness:
±0.0010mm
O.D:
±0.01 mm or as Request
Specification:
φ 210*φ 100*5
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-07-08
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Money Gram
Preferred Trade Term:
FOB, CFR, CIF, DDP, DAP, CIP, CPT, EXW
Port Of Loading:
TIANJIN/SHANGHAI/QINGDAO
Certificates:
certificate of Export, Chamber of Commerce, SGS, uality Management System
Product descriptions from the supplier

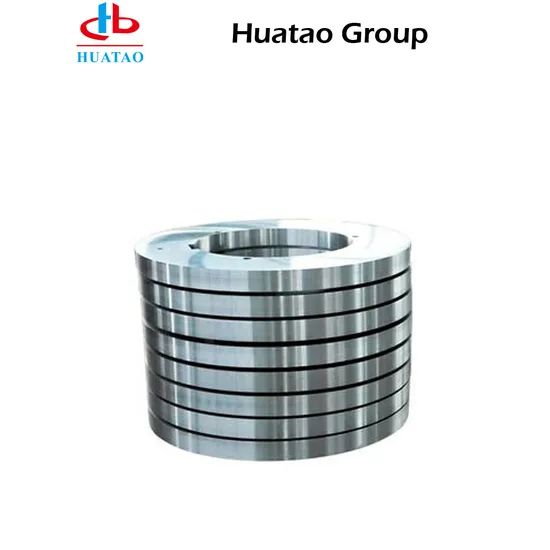

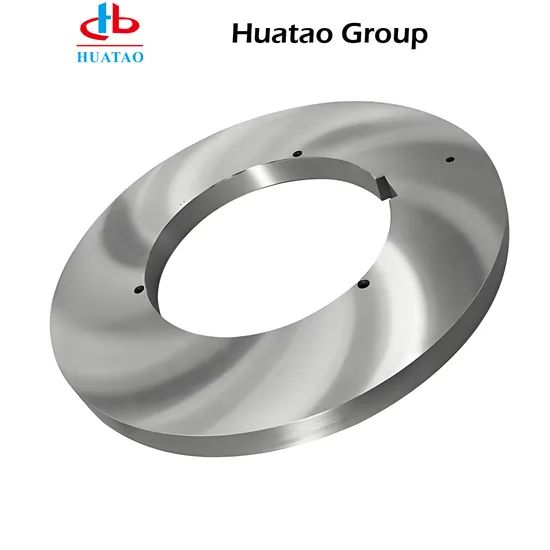

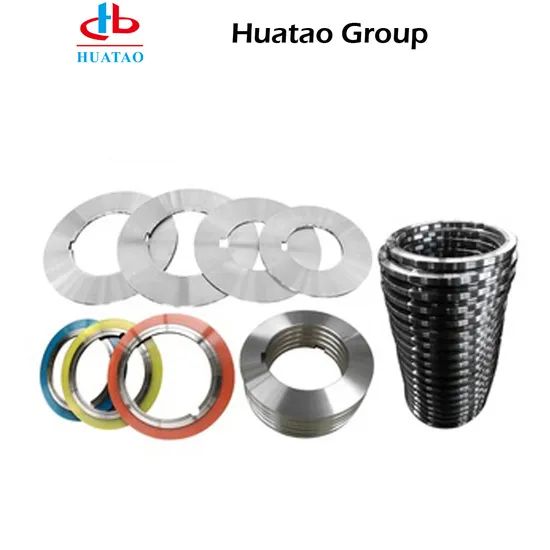

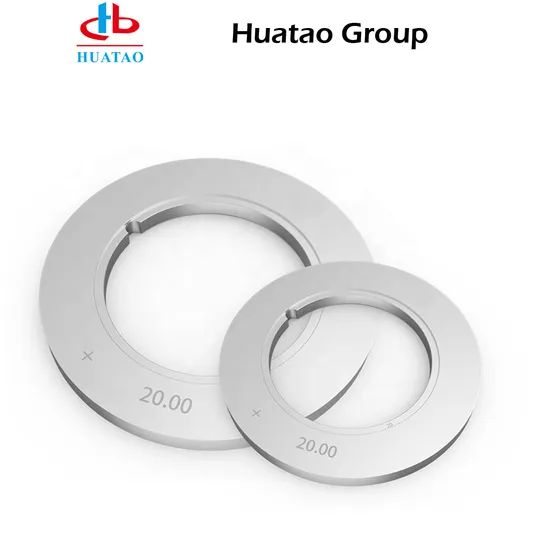

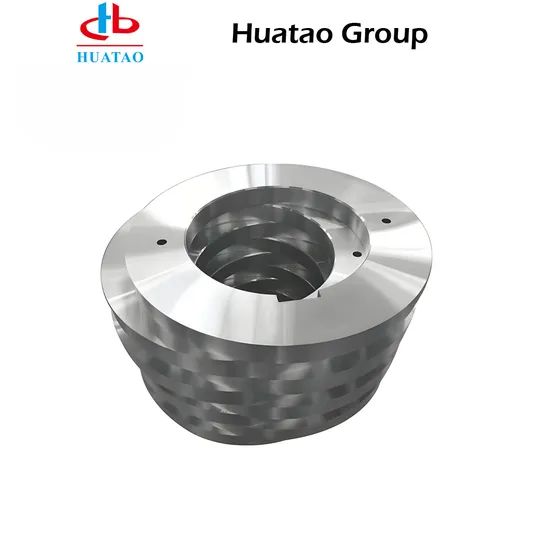

Metal Shearing Line Carbide Knives
Huatao was founded in 2008. Since its establishment, it has been committed to providing customers with high-quality Industry knives. As a leading company in the industry, Huatao is constantly pursuing technological innovation and product quality improvement. The company's main industry knives are widely used in the below industry:
1. Metal Slitting and Shearing
2. Lithium Battery Slitting and cutting
3. Wood processing chip
3. Recycling Material's shredding
Focus providing reliable tool support for various processing companies. Through years of development, Huatao has not only accumulated rich production experience, but also cultivated a professional team with superb technology and thoughtful service. In the future, Huatao will continue to uphold the business philosophy of "quality first, customer first", continuously expand the market, and strive to create greater value for customers.
We offer the best-suited and successful grades Metal Shearing Line Carbide Knives for slitting and shearing HSLA, AHSLA, Duplex, stainless steels, nickel alloys, copper, brass, titanium, indium aluminum, hot rolled steels, phosph, bronze, clad, and laminated metals
Grinding: Processing the shearing blade to specification in the final grinding step.
The Metal Shearing Line Carbide Knives main materials of the blade are 5CrW2Si, 6CrW2Si, Cr12Mov, LD, H13, W18Cr4V, H13K, LD and other tool steels and alloy steels, with sharp edges, wear resistance, smooth cuts, smooth products, and good heat dissipation performance.
Grinding: Processing the shearing blade to specification in the final grinding step.
The Metal Shearing Line Carbide Knives main materials of the blade are 5CrW2Si, 6CrW2Si, Cr12Mov, LD, H13, W18Cr4V, H13K, LD and other tool steels and alloy steels, with sharp edges, wear resistance, smooth cuts, smooth products, and good heat dissipation performance.
| Item | OD*ID*T mm | Item | OD*ID*T mm |
| 1 | φ95*φ55*2 | 10 | φ240*φ120*10 |
| 2 | φ105*φ32*3 | 11 | φ260*φ120*10 |
| 3 | φ105*φ52*5 | 12 | φ280*φ160*10 |
| 4 | φ120*φ60*5 | 13 | φ300*φ180*10 |
| 5 | φ160*φ80*5 | 14 | φ320*φ200*10 |
| 6 | φ200*φ100*5 | 15 | φ330*φ200*10 |
| 7 | φ210*φ100*5 | 16 | φ360*φ220*10 |
| 8 | φ220*φ100*5 | 17 | φ380*φ240*10 |
| 9 | φ220*φ120*5 | 18 | φ400*φ260*10 |
| These are only some typical sizes. More are available. Please get in touch with us for further information. OEM service is also available. Just send us the drawing or essential information of the Metal Slitting line Carbide Knives. Our proficient engineers will take care of the rest. |
|||
1.The surface roughness of Metal Shearing Line Carbide Knives should be less than 0.002mm,
2.The flatness and parallelism should be less than 0.001mm.
3.The inner hole of the blade should be +0.03mm to +0.05mm.
4.The concentricity of the outer circle of the cutting edge is 0.005mm.
5.The heat treatment hardness of the blade should be determined according to the material of the blade and the material and thickness of the cutting material.
6.Heat treatment method: vacuum deoxidation treatment and salt bath furnace treatment.

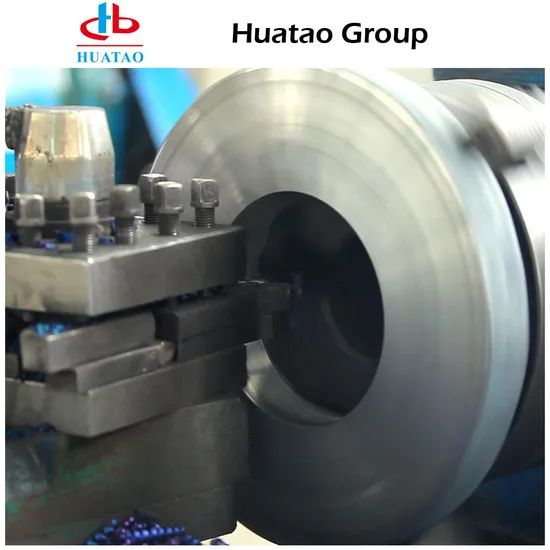

Slitting is the most important part in the production process, so the precision of the Metal Shearing Line Carbide Knives is very high. Huatao use a precision grinder to process the plane of the blade, which is forged, machined, heat treated, and then specially ground. , and is strictly controlled to ensure that the parallelism of all finished products is within 0.002mm.
2.The flatness and parallelism should be less than 0.001mm.
3.The inner hole of the blade should be +0.03mm to +0.05mm.
4.The concentricity of the outer circle of the cutting edge is 0.005mm.
5.The heat treatment hardness of the blade should be determined according to the material of the blade and the material and thickness of the cutting material.
6.Heat treatment method: vacuum deoxidation treatment and salt bath furnace treatment.
Slitting is the most important part in the production process, so the precision of the Metal Shearing Line Carbide Knives is very high. Huatao use a precision grinder to process the plane of the blade, which is forged, machined, heat treated, and then specially ground. , and is strictly controlled to ensure that the parallelism of all finished products is within 0.002mm.
Micron-μm level flatness, parallelism, thickness control.
- Micron-μm level edge defect control.
- Dimensional accuracy consistency control
- Micron-μm level edge defect control.
- Dimensional accuracy consistency control
Contact us now to explore the possibilities and revolutionize your cutting operations with the Shinite OEM/ODM Metal Shearing Line Carbide Knives for Steel Plate Line.
