Metal Sheet Hydraulic Tube Pipe Bender Pipe Tube Bending Machine
Piece
Negotiable
Product information
High-quality Metal Sheet Hydraulic Tube Pipe Bender Pipe Tube Bending Machine supplied by Zhangjiagang Beyong Machinery Manufacturing Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Warranty:
2 Years
Specification:
5200x1200x1300mm
Production Capacity:
600sets
Model NO.:
63CNC3a 1s
HS Code:
8462219000
Software Optional Function:
Anticipated Mandrel Extraction
Lubrication:
Automatic Linear Guide/Mechnical Lubircate
Trademark:
BEYOUNG
Specifications
Warranty:
2 Years
Specification:
5200x1200x1300mm
Production Capacity:
600sets
Model NO.:
63CNC3a 1s
HS Code:
8462219000
Software Optional Function:
Anticipated Mandrel Extraction
Lubrication:
Automatic Linear Guide/Mechnical Lubircate
Trademark:
BEYOUNG
Origin:
China
Bending Theory:
Cold Bending
Technical:
Draw Bending/Drawing Bending+Booster/Rolling
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment, D/P
Optional Function:
Manual Feeding or Manual Rotating
Applicable Shape:
Oval,Square,Rectangle,Round
Applicable Pipe Shape:
Round, Rectangle, Square, Oval, Solid Bar, Profile
Applicable Material:
S. S., M. S., Copper, Aluminium, Alloy, Galvanized
Machine Optional Function:
Safety Mat
Port Of Loading:
Shanghai Port
Color:
Standard/Customized
Cooling System:
Water Cooling/Fan Cooling
Transport Package:
Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2015-02-10
Annual Revenue Amount:
Not specified
Numbers Of Employees:
16
Preferred Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment, D/P
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
CE
Product descriptions from the supplier
Brief Introduction on Pipe Bending Machine
Full-automatic pipe bending machine equipped with PLC or IPC which manage Bending (Y), Feeding (X) & Rotation (Z) in a complete automatic cycle.
Bending (Y-Axis): Controlled by Servomotor or by Hydraulic.
Feeding (X-Axis): Controlled by Servomotor.
Rotating (Z-Axis): Controlled by Servomotor.
We only use popular quality components in the production of our benders from such companies as JAPAN MITSUBISHI,TAIWAN WEINVIEW,JAPAN YUKEN,JAPAN NEIMICOM
This value priced CNC Tube Bending Machine is an excellent choice for general purpose and any type of conventional tube bending applications.
Features on Pipe Bending Machine
Technical Specification
Machine Photos Reference
FAQ:
1. Q: Are you amanufacturer or tradingcompany?
A: Yes, we are amanufacturer.We are focusing onmetal pipe/tube processingmachines production.
2. Q:Where is the nearest airport to your company?
A:Wuxi AirportorShanghai Airport.
3. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Pipe Outdiameter Range
- Wall thickness range
- Bending Radius Value
- The pipe material
- Bends Number on one pipe
- The drawings if possible
4. Q: Whatcertificatedo you have?
A: We have bothISO and CEcertificate.
5. Q:How about yourservice?
A:Before Sales Serive:
1. We will help our customer confirm the right model according to the offered pipe inforamtion.
2. Welcome to visit our factory to see our machine and our workshop before you place an order.
After Sales Service:
1. We provide manual book,detailed machine installation,commissioning video for help you correctly
operate machine.
2. We provide free installation,commissioning and training at our factory.If you need engineer go to
your factory for machine installation, air tickets,food,hotel,local transportation shoule be at your
account.
3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours.
Packing&Delivery
Company Introduction:
Zhangjiagang BEYONG Machinery Manufacturing Co.,Ltd has been serving on tube processing machinery industries for over 15 years. We are committed to providing our customers with quality products, solutions and services provided on schedule, at competitive prices. Standard of mechanical parts including structure,characters etc... are similar with European's.For out-sourcing parts including Electric,Hydraulic,Mechanical etc...are from well-known companies.
Our Machines with full line of metal pipe processing machines including tube bending machine, circular saw machine, end forming machine, chamfering machine, saw blade sharpener,riveting machine...etc. Further more,we can customized machines with advanced technology,such as multi-function machine with draw bending+push bending+punching,straightening+bending+cutting and so on.
Our machines export to Italy,Germany,Australia,Russia,New Zealand,Canada, Poland,Mexico, Brazil,Chile,Argentina,Saudi Arabia,South Africa, Egypt,England etc.
Full-automatic pipe bending machine equipped with PLC or IPC which manage Bending (Y), Feeding (X) & Rotation (Z) in a complete automatic cycle.
Bending (Y-Axis): Controlled by Servomotor or by Hydraulic.
Feeding (X-Axis): Controlled by Servomotor.
Rotating (Z-Axis): Controlled by Servomotor.
We only use popular quality components in the production of our benders from such companies as JAPAN MITSUBISHI,TAIWAN WEINVIEW,JAPAN YUKEN,JAPAN NEIMICOM
This value priced CNC Tube Bending Machine is an excellent choice for general purpose and any type of conventional tube bending applications.
Features on Pipe Bending Machine
- Interactive PLC touch screen offers easy access to auto and manual operating modes.
- System diagnostics and multiple language capability.
- Standard clockwise bending direction.
- Fully hydraulic clamping on clamp die and pressure die.
- Drop-way hydraulic clamping.
- Direct acting hydraulic pressure die with adjustable speed valve.
- Maximum 100 sets of program storage,Maximum 32 bends for each program.
- With Independent programmable speeds Y, B, and C axes.
- Programmable material spring back settings for each bend angle.
- Automatic release of tube prior to final bend.
- Bending Axis-Driven by servo motor,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor.
- Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.
- Foot Pedal Cycle start.
- With Air Cooling System or water cooling system.
- One set of Tooling for Draw Bending.
- Wiper die Bracket.
- 1 Mandrel Rod.
- Operation and Maintenance Manual.
- Tool Box with Adjusted Tools.
- Electric: As required (3 phase 220V or 380V or 415V...)
- Industrial Computer Controlling
- Anticipate Mandrel Extraction
- Automatic mandrel/machine lubrication
- Anti-clockwise bending direction
- Machine effective length over mandrel
- Safety Mat
Technical Specification
| Item | Name | Unit | Technical | |
| 01 | Max. Bending Capacity:Mild Steel | mm | ¢63x4 | |
| 02 | Stainless Steel | mm | ¢50x2 | |
| 03 | Min Bending Radius(Draw Bending) | mm | >=1.5D | |
| 04 | Max. Bending Radius(For Machine) | mm | 300 | |
| 05 | Mandrel Length | mm | 4000 | |
| 06 | Max. One Time Feeding Length | mm | 2800 (Can be Customized) |
|
| 07 | Max Bending Angle | ° | 190 | |
| 08 | Bending Axis | Speed | Deg/sec | 90 |
| Accuracy | mm | ±0.1 | ||
| Power | KW | 7.5 Controlled by servo motor | ||
| 09 | Feeding Axis | Speed | mm/sec | 800 |
| Accuracy | mm | ±0.1 | ||
| Power | KW | 1.5 Controlled by Servomotor | ||
| 10 | Rotating Axis | Speed | Deg/sec | 180 |
| Accuracy | mm | ±0.1 | ||
| Power | KW | 1 Controlled by Servomotor | ||
| 11 | Machine Size | mm | 5200*1200*1300 | |

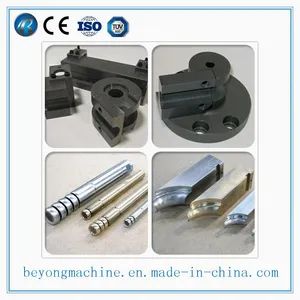

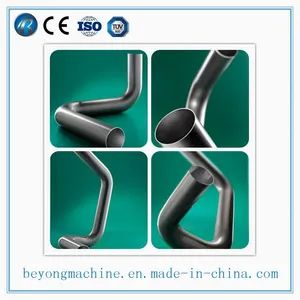

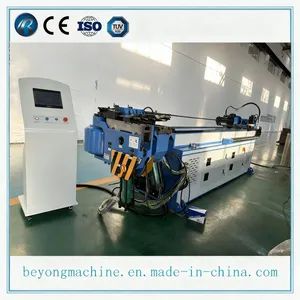

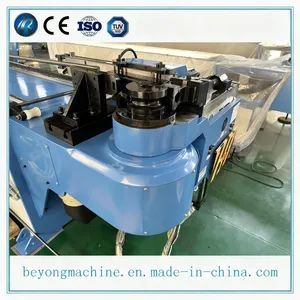

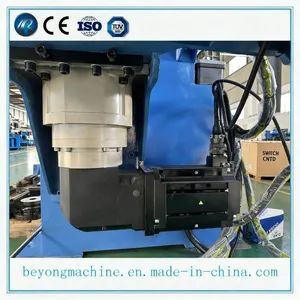

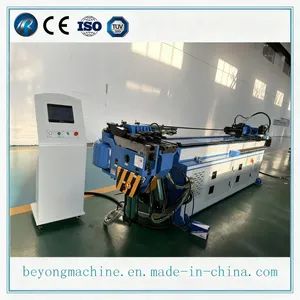

Machine Photos Reference
