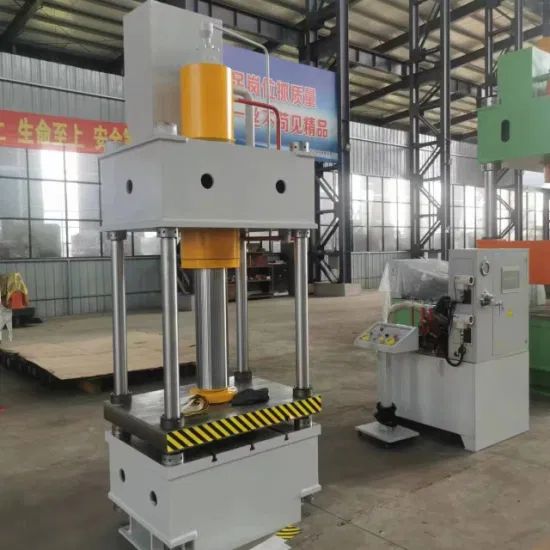

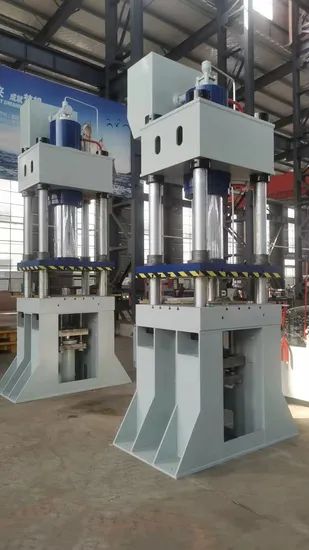

Metal Stretching Deep Drawing 4 Column Hydraulic Pressing Machine 400 Ton Hydraulic Press
Piece
Negotiable
Product information
High-quality Metal Stretching Deep Drawing 4 Column Hydraulic Pressing Machine 400 Ton Hydraulic Press supplied by Ningbo MacTech Machinery Co.,Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Max Pressure Of Liquid:
25MPa
Drawing Force:
3000kN
Nominal Force:
4000kN
Customized:
Customized
Trade Term:
FOB, EXW, CFR, CIF, DAT, DDP, DAP, CIP, CPT, Others, FCA
Origin:
Jiangsu
Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Trademark:
MacTech
Specifications
Max Pressure Of Liquid:
25MPa
Drawing Force:
3000kN
Nominal Force:
4000kN
Customized:
Customized
Trade Term:
FOB, EXW, CFR, CIF, DAT, DDP, DAP, CIP, CPT, Others, FCA
Origin:
Jiangsu
Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Trademark:
MacTech
Condition:
New
Transport Package:
Wood Case
Model NO.:
YO28 315/400
After Sales Service:
on-Site Repair
Port Of Loading:
shanghai port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-03-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAT, DDP, DAP, CIP, CPT, Others, FCA
Port Of Loading:
shanghai port
Certificates:
CQC, IQNet, Patent certificate, Patent certificate1
Product descriptions from the supplier
2.Computer-optimized structural design,the fuselage can adopt frame-type tie-rod pre-tightening structure or four-column structure.lmported material cyinder seal components,high reliabiity and long service life.
3.The frame type has high precision and good nigidity,with four-comer and eight-sided guide rails,high guiding precision and strong anti-eccentric load capabiity.
Integrated mechanical, electrical, and hydraulic safety mechanisms, including the lower chamber oil cylinder's stabilizing circuit and the upper and lower chamber oil cylinder's locking circuit,
5.Mobile workbench for easy mold replacement.
6.Imported PLC control,sensitive and reliable work.

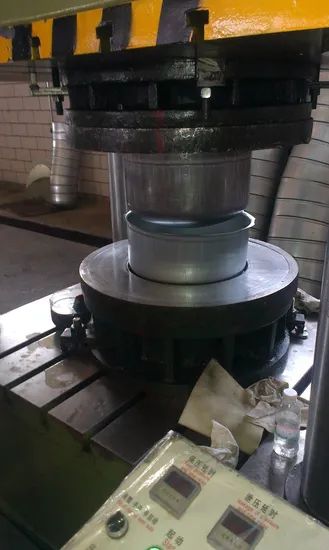

7.Deep drawing and blank holder sliders can be connected as a whole through positioning pins to realize single-action process action.
Advanced Equipments for machine body process
CNC Floor type boring -milling machine to process the table
CNC Floor type boring -milling machine to process the table
Hydraulic valve system
Adopt the top quality brand (Taifeng ) , making sure the machine running smooth
Adopt the top quality brand (Taifeng ) , making sure the machine running smooth

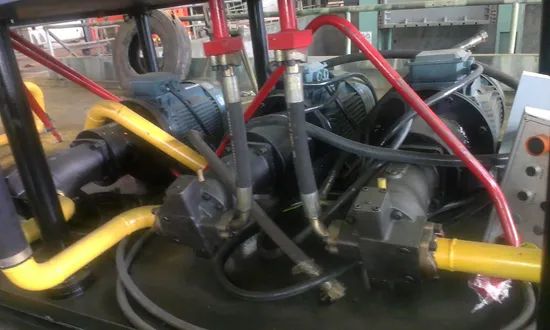

High quality brand pump
High pressure pump , long use life
High pressure pump , long use life
Oil cylinder , four column
The oil seals all adopt , The cylinder and four column all adopt 45 # steel , forging making
The oil seals all adopt , The cylinder and four column all adopt 45 # steel , forging making
Electrical control cabinet
Nice powder coating , CE brand electrical parts , PLC control , manual , semi auto and fully auto working
Nice powder coating , CE brand electrical parts , PLC control , manual , semi auto and fully auto working
Customer reference
Water heat tank project in Saudi Arabia
Water heat tank project in Saudi Arabia

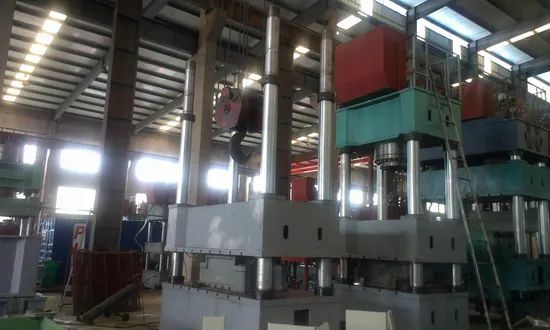

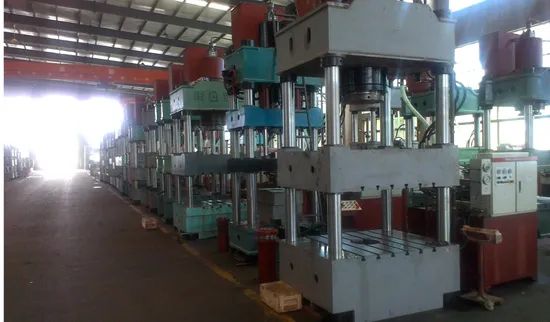

Workshop factory
Welcome to visit us and inspection our machine quality
Welcome to visit us and inspection our machine quality
| specification ltem | YO28 315/400 |
||
| Nominal force | KN | 4000 | |
| Max pressure of liquid | Mpa | 25 | |
| Drawing force | KN | 3150 | |
| Blank-holder force | KN | 4x250 | |
| Knock-out force | KN | 630 | |
| Blank-holder slide center hole size | mm | φ500 | |
| Daylight of drawing slide | mm | 1650 | |
| Daylight of blank holder slide | mm | 1000 | |
| Stroke of drawing slide | mm | 800 | |
| Stroke of blank holder slide | mm | 400 | |
| Stroke of knock-out cylinder | mm | 300 | |
| Drawing slide speed | Rapid down | mm/s | 100 |
| Slow down | mm/s | 6-10 | |
| Return | mm/s | 60 | |
| Drawing slide size | L-R | mm | 1260 |
| F-B | mm | 1200 | |
| Blank holder slide size |
L-R | mm | 1260 |
| F-B | mm | 1200 | |
| Table size | L-R | mm | 12600 |
| F-B | mm | 12000 | |
| Motor Power | KW | 22 | |
