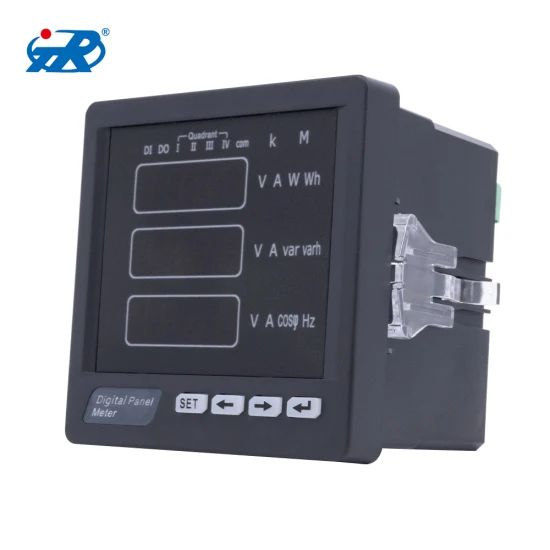

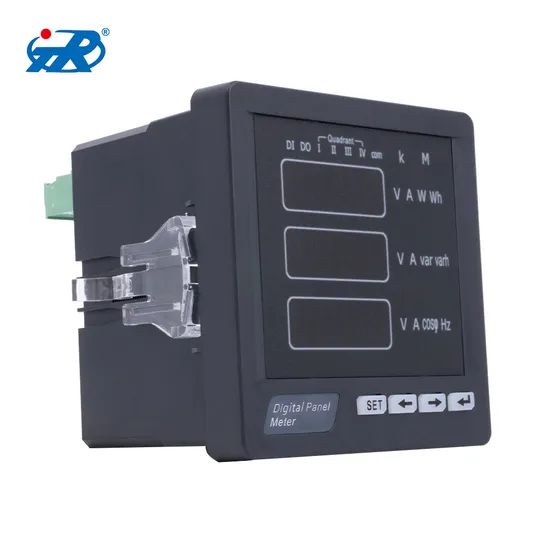

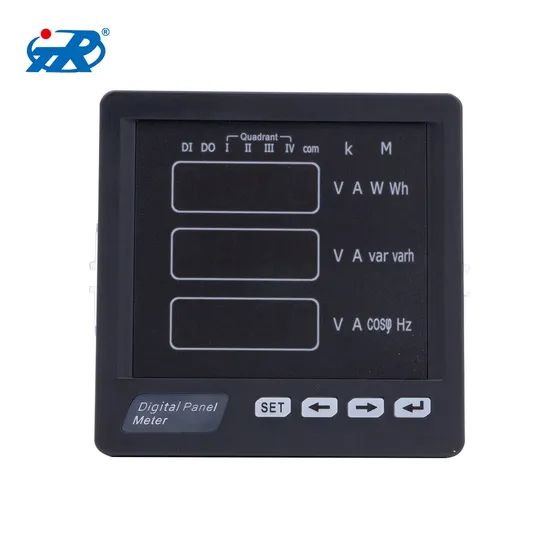

Metering Electrical Instruments Voltmeter Panel Meters Digital Ammeter Three Phase Digital Multimeter
5-99 Piece
$21.77100-999 Piece
$19.781000-9999 Piece
$17.7810000 Piece
$14.78Product information
High-quality Metering Electrical Instruments Voltmeter Panel Meters Digital Ammeter Three Phase Digital Multimeter supplied by Hubei Tianrui Electronic Co., Ltd.. Bulk wholesale pricing ranges from $14.78 to $21.77 per Piece with a minimum order of 5 Piece. Inquiry for latest prices.
Package Gross Weight:
1.500kg
Production Capacity:
1000000
Package Size:
15.00cm * 15.00cm * 15.00cm
Frequency:
45~65Hz
Dimensions:
96*96mm
Supply Voltage:
AC/DC 85~265V; AC 220V 110V
Transport Package:
Carton
Origin:
China
Specifications
Package Gross Weight:
1.500kg
Production Capacity:
1000000
Package Size:
15.00cm * 15.00cm * 15.00cm
Frequency:
45~65Hz
Dimensions:
96*96mm
Supply Voltage:
AC/DC 85~265V; AC 220V 110V
Transport Package:
Carton
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Measured Signal:
Continuous Wave
Customized:
Customized
Display:
Digital
Installation:
Direct Connected
Theory:
Electronic Meter
Trade Term:
FOB
Usage:
Multi-Functional Energy Meter, Watt-Hour Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter
Type:
Power Meter
Payment Methods:
Support payments in USD
Trademark:
TR
Model NO.:
TS-3D3-002
Power Meter Connection:
Terminal
Electric Equipment:
Three-phase Four-wire
Payment Term:
To be discussed
Color:
White and Black
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2015-12-12
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
CE, CERTIFICATE of ENVIRONMENTAL MANAGEMENT SYSTEM, CERTIFICATE OF OCCUPATION HEALTH & SAFETY MANAGEMENT SYSTEI, CERTIFICATE OF QUALITY MANAGEMENT SYSTEM, REACH, ROHS, SGS, Type report
Product descriptions from the supplier
Performance Characteristics
1. High precision measurement of three phase voltage, three phase current, active power, reactive power, apparent power, power factor, frequency of electric parameters
2. Forward and reverse active or reactive energy measurement Division of electric energy metering, time-sharing power
3. Measurement of three-phase voltage, three-phase current total harmonic distortion (THO), 2-31 odd harmonic component

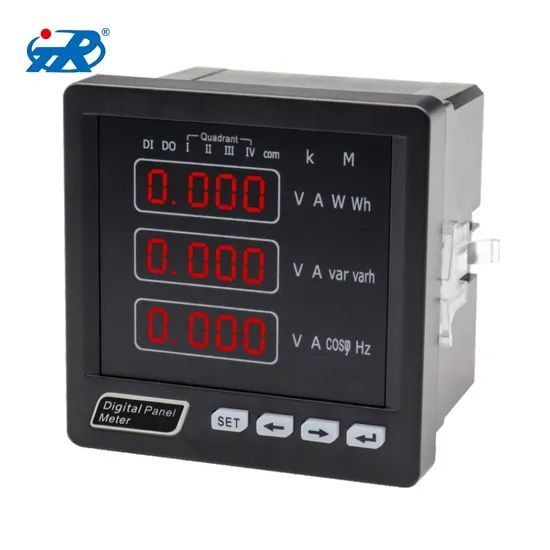

4. Provide the digital tube display, local data query
5. Menu button intuitive, simple operation
6. Programmable CT/PT ratio 7. Provide multiple circuit leakage current monitoring
2. Forward and reverse active or reactive energy measurement Division of electric energy metering, time-sharing power
3. Measurement of three-phase voltage, three-phase current total harmonic distortion (THO), 2-31 odd harmonic component
4. Provide the digital tube display, local data query
5. Menu button intuitive, simple operation
6. Programmable CT/PT ratio 7. Provide multiple circuit leakage current monitoring
Performance Characteristics
1. Provide multiple loop control nodes, can be used for the alarm, trip control
2. Support for fire control, remote cut off the fault circuit
3. Convenient installation, wiring is simple
4. To be completed by SCADA, PLC in a variety of communications software networking
2. Support for fire control, remote cut off the fault circuit
3. Convenient installation, wiring is simple
4. To be completed by SCADA, PLC in a variety of communications software networking
Technical Index
Accuracy of measurement
1. Voltage: level 0.5
2. Current: level 0.5
3. Active Power: level 0.5
4. Reactive Power: level 0.5
5. Power Factor: level 0.5
6. Frequency: ±0.02Hz
7. Active Electric Energy: class 0.5s or class 0.2s
8. Reactive Energy: Class 1 or Class 2
2. Current: level 0.5
3. Active Power: level 0.5
4. Reactive Power: level 0.5
5. Power Factor: level 0.5
6. Frequency: ±0.02Hz
7. Active Electric Energy: class 0.5s or class 0.2s
8. Reactive Energy: Class 1 or Class 2

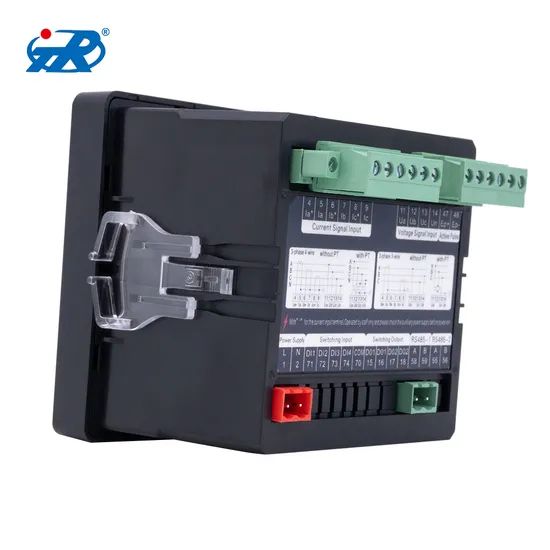

Signal Input

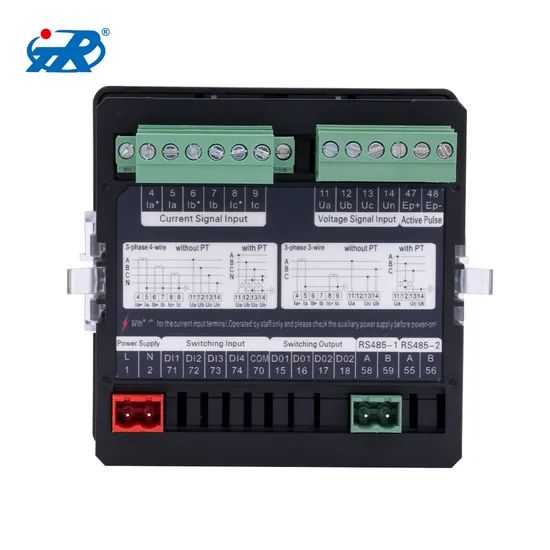

1. Connection Mode: three phase four wires
2. Rated Voltage: AC 0-600V
3. Rated Current: AC1A,AC5A
4. Overload Voltage: 1.2 times (Continued),
5. 2 times I second (instantaneous)
6. voltage: <1VA/ phase; current:<0.4VA/phase Impedance: >300KΩ;current: <20mΩ;The Frequency: 45-65Hz
2. Rated Voltage: AC 0-600V
3. Rated Current: AC1A,AC5A
4. Overload Voltage: 1.2 times (Continued),
5. 2 times I second (instantaneous)
6. voltage: <1VA/ phase; current:<0.4VA/phase Impedance: >300KΩ;current: <20mΩ;The Frequency: 45-65Hz
Auxiliary Power Supply
1.Working range AC 220V
2. Power Consumption: <4VA
Function module
1. Communication Interface: 1 way RS-485 communication, Modbus-RTU protocol
2. Baud Rate:1200-9600bps,the default is 2400bps • Switch Input: 4 ways
3. Switch Output: 4 ways( capacity: AC 250V/5A, DC 30V/5A)
4. Transmission Output: 3 ways(analog output: 0/4-20mA or 0-5/10V)
2. Baud Rate:1200-9600bps,the default is 2400bps • Switch Input: 4 ways
3. Switch Output: 4 ways( capacity: AC 250V/5A, DC 30V/5A)
4. Transmission Output: 3 ways(analog output: 0/4-20mA or 0-5/10V)
5. Electric Energy Pulse Output:2 ways
6. Constant:8000imp/KWh (Kvarh)
|
Selcction of Specification
|
||||
|
Three Phase Digital Multimeter
|
||||
|
| ||||
