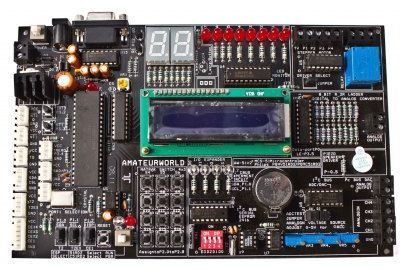

Microprocessor Development Board Operating Voltage 5 V X2 Mode Capability Yes Brown-out Detection Yes Data Ram Size 1024
1 Piece
$38.5Product information
High-quality Microprocessor Development Board Operating Voltage 5 V X2 Mode Capability Yes Brown-out Detection Yes Data Ram Size 1024 supplied by Amateur World. Bulk wholesale pricing is $38.5 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Clock Frequency Range:
0 To 40 Mhz
Data Ram Size:
1024 Bytes
Clock Mode Options:
12-clock (default) Or 6-clock Mode
Operating Voltage:
5 V
Flash Program Memory Size:
64 Kb
Interrupt Sources:
Eight Interrupt Sources With Four Priority Levels
I/O Port Configuration:
Four 8-bit I/o Ports With Three High-current Port 1 Pins (16 Ma Each)
Emi Reduction Mode:
Low Emi Mode (ale Inhibit)
Specifications
Clock Frequency Range:
0 To 40 Mhz
Data Ram Size:
1024 Bytes
Clock Mode Options:
12-clock (default) Or 6-clock Mode
Operating Voltage:
5 V
Flash Program Memory Size:
64 Kb
Interrupt Sources:
Eight Interrupt Sources With Four Priority Levels
I/O Port Configuration:
Four 8-bit I/o Ports With Three High-current Port 1 Pins (16 Ma Each)
Emi Reduction Mode:
Low Emi Mode (ale Inhibit)
Programming Methods:
Parallel Programming And In-system Programming (isp)
Counter Array Features:
Pca With Pwm And Capture/compare Functions
Package Types:
Pdip40, Plcc44, Tqfp44
Power Modes:
Power-down Mode With External Interrupt Wake-up, Idle Mode
Watchdog Timer:
Programmable Watchdog Timer (wdt)
Dptr Register:
Second Dptr Register
Serial Interfaces:
Spi And Enhanced Uart
Timer/Counter Count:
Three 16-bit Timers/counters
Trade Term:
To be discussed
Payment Term:
To be discussed
Logic Level Compatibility:
Ttl- And Cmos-compatible Logic Levels
In Application Programming:
Yes
Brown Out Detection:
Yes
X2 Mode Capability:
Yes
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2005
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier
The P89V51RD2 is an 80C51 microcontroller with 64 kB Flash and 1024 bytes of data RAM. A key feature of the P89V51RD2 is its X2 mode option. The design engineer can choose to run the application with the conventional 80C51 clock rate (12 clocks per machine cycle) or select the X2 mode (6 clocks per machine cycle) to achieve twice the throughput at the same clock frequency. Another way to benefit from this feature is to keep the same pormance by reducing the clock frequency by half, thus dramatically reducing the EMI.
The Flash program memory supports both parallel programming and in serial In-System Programming (ISP). Parallel programming mode offers gang-programming at high speed, reducing programming costs and time to market. ISP allows a device to be reprogrammed in the end product under software control. The capability to field/update the application firmware makes a wide range of applications possible. The P89V51RD2 is also In-Application Programmable (IAP), allowing the Flash program memory to be reconfigured even while the application is running.
Features of P89V51RD2 can detail as:
- 80C51 Central Processing Unit
- 5 V Operating voltage from 0 to 40 MHz
- 64 kB of on-chip Flash program memory with ISP (In-System Programming) and IAP (In-Application Programming)
- Supports 12-clock (default) or 6-clock mode selection via software or ISP
- SPI (Serial Peripheral Interface) and enhanced UART
- PCA (Programmable Counter Array) with PWM and Capture/Compare Functions
- Four 8-bit I/O ports with three high-current Port 1 pins (16 mA each)
- Three 16-bit timers/counters
- Programmable Watchdog timer (WDT)
- Eight interrupt sources with four priority levels
- Second DPTR register
- Low EMI mode (ALE inhibit)
- TTL- and CMOS-compatible logic levels
- Brown-out detection
- Low power modes
- Power-down mode with external interrupt wake-up
- Idle mode
- PDIP40, PLCC44 and TQFP44 packages
