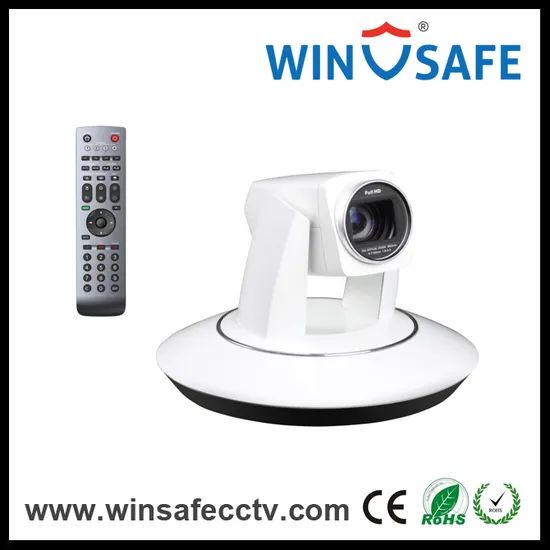

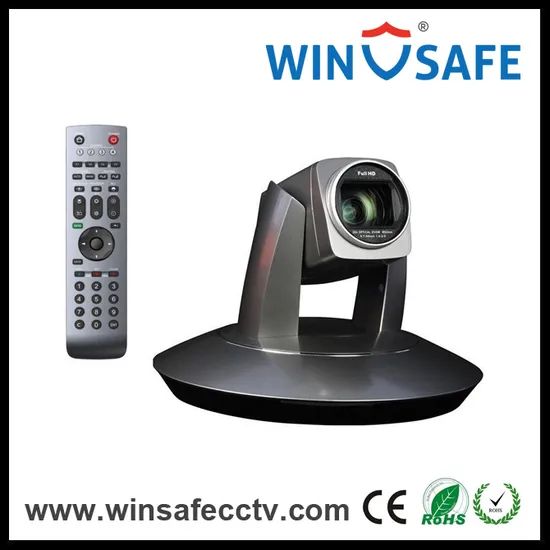

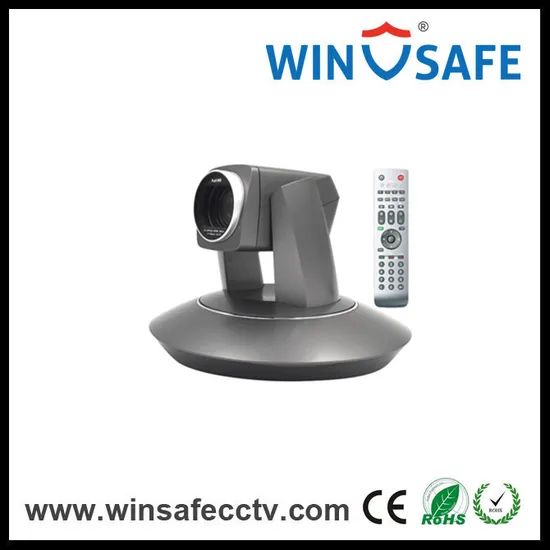

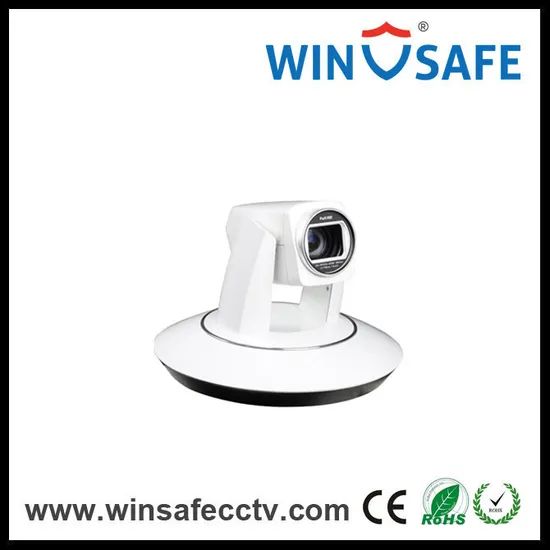

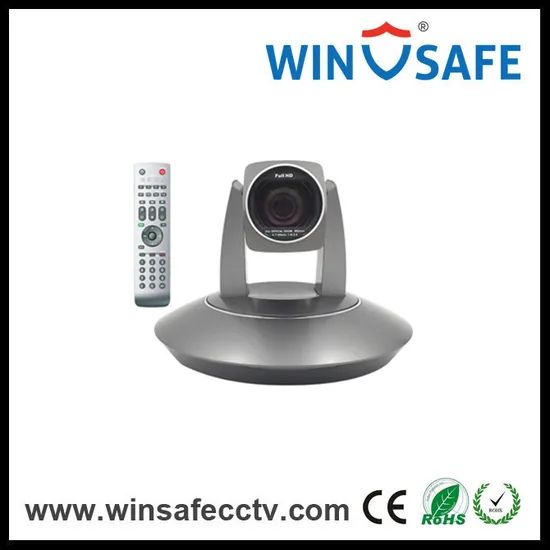

Mini Network Digital HD Video Output Interface Camera PTZ Video Conference Camera
10 Piece
$80010 Piece
$1,500Product information
High-quality Mini Network Digital HD Video Output Interface Camera PTZ Video Conference Camera supplied by Shenzhen Winsafe Technology Co., Ltd.. Bulk wholesale pricing ranges from $800 to $1,500 per Piece with a minimum order of 10 Piece. Inquiry for latest prices.
Weight:
1.7kg
Image Sensor:
1/2.8" Exmor CMOS, 2.2MP
Digital Zoom:
12X
Warranty:
2 Years
Optical Zoom:
20X
Production Capacity:
3000PCS/Month
Lead Time:
5-7days
HS Code:
8517691000
Specifications
Weight:
1.7kg
Image Sensor:
1/2.8" Exmor CMOS, 2.2MP
Digital Zoom:
12X
Warranty:
2 Years
Optical Zoom:
20X
Production Capacity:
3000PCS/Month
Lead Time:
5-7days
HS Code:
8517691000
Model NO.:
AMC-A2001N
Body Color:
Black/Gray
Specification:
CE, FCC, Rohs etc.
Origin:
China, Hangzhou
Focal:
F=4.7-94mm
Trade Term:
FOB, EXW
Transport Package:
Netural Packing
Trademark:
OEM/WINSAFE
Wide Angle Lens:
Optional
Composition:
Power Amplifier
Port Of Loading:
Shenzhen Port, Hangzhou Port.
Payment Term:
T/T, PayPal, Western Union
Video:
Video
Communication:
Wired
OSD Menu:
Yes
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2014-06-24
Annual Revenue Amount:
Not specified
Numbers Of Employees:
11
Preferred Payment Term:
T/T, PayPal, Western Union
Preferred Trade Term:
FOB, EXW
Port Of Loading:
Shenzhen Port, Hangzhou Port.
Certificates:
CE, Others, RoHS, FCC
Product descriptions from the supplier
Mini Network Digital HD Video Output Interface Camera PTZ Video Conference Camera
Features
1/2.8" EXMOR CMOS image sensor, up to 2.14MP
20X optical,12X digital zoom, up to 72.5° FOV
Video format,1080p/60,1080p/50,1080p/30,1080p/25,1080i/60,1080i/50,720p/60,720p/50,720p/30,720p/25
Simultaneously output of HD and SD videos
Video interface:DVI-I(for DVI-D, HDMI,YPbPr, VGA,5-BNC ect),HD-SDI
Control: RS-223IN, RS-232OUT, RS-422/RS-485 etc.
On-screen display menu with simple program

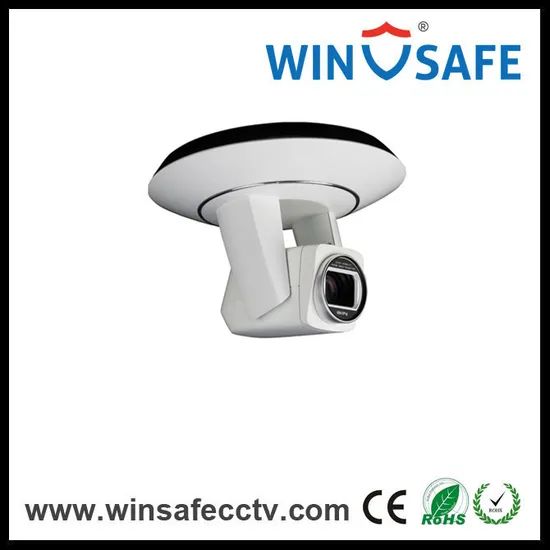

Has image flip function for stand and suspended installations
Support VISCA protocol, daisy chain
Come with IR remote controller
New design of PTZ mechanism with higher precision and reliability
Istallation ways & Wide Angle Lens
Features
1/2.8" EXMOR CMOS image sensor, up to 2.14MP
20X optical,12X digital zoom, up to 72.5° FOV
Video format,1080p/60,1080p/50,1080p/30,1080p/25,1080i/60,1080i/50,720p/60,720p/50,720p/30,720p/25
Simultaneously output of HD and SD videos
Video interface:DVI-I(for DVI-D, HDMI,YPbPr, VGA,5-BNC ect),HD-SDI
Control: RS-223IN, RS-232OUT, RS-422/RS-485 etc.
On-screen display menu with simple program
Has image flip function for stand and suspended installations
Support VISCA protocol, daisy chain
Come with IR remote controller
New design of PTZ mechanism with higher precision and reliability
Istallation ways & Wide Angle Lens
| Model No. | AMC-A2001N | AMC-A1202N |
| Image Sensor | 1/2.8" Exmor CMOS, 2.14MP | |
| HD Signal Format | 1080p/60,1080p/30,1080i/60,720p/60,720p/30 | |
| Focal | f =4.7mm - 94mm | f = 3.9mm - 46.8mm |
| IRIS | F1.6 - F3.5 | F1.6 - F2.8 |
| Zoom | Optical: 20X, Digital: 12X | Optical: 12X, Digital: 12X |
| Field of View | 59.5° - 2.9° | |
| Shortest Focus Distance | 10mm -1,000mm | |
| Focus | Auto, Manual, PTZ Trigger AF, One push | |
| Min.Illumination | 0.5Lux(Color), 0.1Lux(B/W) | |
| Shutter Speed | 1/1 - 1/10,000s | |
| AGC | Auto/Manual | |
| White Balance | Auto, Indoor, Outdoor, One push, Manual, Auto Track | |
| AE Control | Auto, Manual, Shutter Priority, Iris priority | |
| S/N Ratio | Above 50dB | |
| PTZ | ||
| Pan Range | -170° - +170° | |
| Tilt Range | -30° - +90° | |
| Pan Speed | 0.1° - +120°/s | |
| Tilt Speed | 0.1° - +90°/s | |
| Preset Number | 256 | |
| OSD | Yes | |
| Image Flip | Yes | |
| Network | ||
| Max.Image Size | 1920x1080 | |
| Frame Rate | HD: 50Hz:50fps(1920x1080) ; 60Hz: 60fps(1920x1080) | |
| Video Compression | H.265 , H.264 | |
| Audio Compression | AAC | |
| Protocol | HTTP, RTP, TCP,UDP, RTSP, RTMP, ONVIF | |
| Dual stream | Support | |
| Simultaneous Users | Up to 10 users | |
| Interface | ||
| Ethernet | RJ45, 100M | |
| Video Output(HD) | HD-SDI | |
| Control Interface | RS232IN, RS232OUT/RS-485 | |
| General | ||
| Protocol | VISCA and Support Daisy Chain, PELCO-D, PELCO-P | |
| Spectra Address | 0 - 63 | |
| Power Consumption | Below 15W | |
| Working Temp | 0°C - +40°C | |
| Storage Temp | -20°C - +60°C | |
| Dimension | 226mm x 159mm x 206mm | |
| Weight | 1.7KG | |
| Color | Grey | |
