Mining Machine Valve Safety System with Load Sensitive Technology
1 Piece
$10Product information
High-quality Mining Machine Valve Safety System with Load Sensitive Technology supplied by Jiangsu KM Hydraulic Control System Co., Ltd.. Bulk wholesale pricing is $10 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
500000 Piece
HS Code:
8481201090
Origin:
China
Power Supply:
DC Solenoid Valve
Standard:
DIN
Actuator:
Electric
Trade Term:
FOB, CIF, EXW, CFR
Usage:
Flow Control
Specifications
Production Capacity:
500000 Piece
HS Code:
8481201090
Origin:
China
Power Supply:
DC Solenoid Valve
Standard:
DIN
Actuator:
Electric
Trade Term:
FOB, CIF, EXW, CFR
Usage:
Flow Control
Hawe Psl Type:
Hawe Psv Type
Pressure:
High Temperature
Application:
Industrial Usage
Trademark:
KM Hydraulic
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Proportional Valve:
Load Sensitive Valve
Model NO.:
Loadsensitive Proportional Directional Valve
Atex Valve:
Msha Valve
Flow Control Valve:
Multi Way Directional Valve
Type:
Pilot Operated
Valve Structure:
Pilot Piston Structure
Transport Package:
Plywood Box
Port Of Loading:
Shanghai Port
Material:
Steel
Connection Form:
Thread
Specification:
steel
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-04-07
Annual Revenue Amount:
Not specified
Numbers Of Employees:
89
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, EXW, CFR
Port Of Loading:
Shanghai Port
Certificates:
CCC
Product descriptions from the supplier

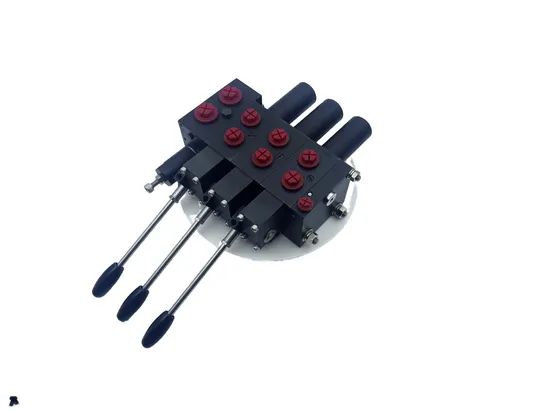

Presenting our groundbreaking HLPSL and HLPSV load-sensitive proportional multi-way directional spool valves. These revolutionary innovations effortlessly merge pressure, flow, and directional control into a single, cohesive unit, ensuring unrivaled performance and dependability. Typically composed of three critical functional modules-connecting blocks, directional valves, and end plates-these valves are meticulously designed for integration into high-end hydraulic systems, essential in elite engineering machinery. They expertly regulate the movement direction and speed of hydraulic cylinders, motors, and other actuators, offering unmatched precision and control. Key features include a compact structure, superior energy efficiency, and the capability for seamless speed control. Moreover, they enable multiple actuators to operate concurrently under varying loads, providing unparalleled performance and versatility for any application.
The HLPSL valves are precisely tailored for constant displacement pump systems, ensuring steadfast and reliable operation. On the other hand, the HLPSV valves are meticulously engineered for variable pump systems. While HLPSV valves may exhibit a marginally slower response time, they excel in delivering exceptional energy-saving performance, making them the ultimate choice for applications where efficiency is crucial. With their state-of-the-art engineering and energy-efficient design, HLPSV valves stand out as the premier solution for advanced hydraulic control needs.
| References | size 2 | size 3 | size 5 | |
| Number of Directional Valve bank | 1~12 | 1~12 | 1~10 | |
| Port access type | thread connection | thread connection | thread connection | |
| Flow code | 3,6,10,16,25,40 | 3,6,10,16,25,40,63,80 | 16,25,40,63,80,120,160 | |
| Max.flow(L/min) | 54 | 100 | 210 | |
| Max.pressure(bar) | 420 | 420 | 420 | |
| Control Method | Pilot circuit pressure(bar) | 20~40 | 20~40 | 20~40 |
| Manual force(N) | ≥2.3Nm | ≥1.3Nm | ≥3Nm | |
| Working Pressure(ºC) | -40~80 | -40~80 | -40~80 | |
| Weight | Connection Block (kg) | 1.7 | 4 | 8 |
| Directional Valve bank (kg) | 1.9 | 4 | 8 | |
| End Plate (kg) | 0.5 | 1.5 | 2.5 | |
| Fix mode | thread connection M8 | thread connection M8 | thread connection M10 | |
(1) Detailed Connection Block Codes
HLPSL: Constant Displacement Pump;
HLPSV: Variable Displacement Pump;
(2) Connection Block Ports P & R Specifications:
2-G3/8;
3-G1/2;
4-G3/4;
5, 55-G1;
6-G1 1/4;
(3) Additional Components and Specifications:
C,Standard Type;
G,Throttle Valve (For HLPSL only);
H,Fixed Differential Overflow Valve for Enhanced Circulating Pressure (~14 bar, HLPSL);
(4) Pilot Oil Circuit Pressure Options0 - No pressure reducing valve; 1 - Pressure reducing valve (20 bar); 2 - Pressure reducing valve (40 bar);
(5) 2/2-way Magnetic Ball Valve for System UnloadingC - No magnetic ball valve; F - Normally open magnetic ball valve, pressurizes pump when powered, unloads pump when unpowered; D - Normally closed magnetic ball valve, unloads pump when powered, pressurizes when unpowered; D./F. . , Equipped with a pressure limiting valve for secondary pressure (F50) with a specified pressure value;
(6) Tool Adjustable, Pressure Limiting Valve in Connection Block: Adjustable settings at 63, 120, 210, 280, 315, 350, 400 bar; /NF: No pressure limiting valve (HLPSV only);
(7) Product Series Classification;-2 2 Series; -3 3 Series; -5 5 Series;
(8)Thread size of directional spool valve ports A & B:2-G3/8; 3-G1/2; 4-G3/4; 5-G1; A, ancillary block or intermediate transition block ZPL 5S(V)/H hydraulic control shut-off valve;
(9)Directional valve block inflow controller: 1, without inflow controller; 2, standard inflow controller; 4, 3-way flow controllers for inlet and outlet (ideal for N 3/3-way valve); 5, strengthened inflow controller; 8, pre-selectable;
(10) Function symbol of valve core: L, M, F, H, J, B, R, O, N;
(11) Output flow code of ports A & B: Choose from maximum output flows of ports A & B: 3, 6, 10, 16, 25, 40, 63, 80, 120, 160, 210 (L/min);
(12) Secondary pressure limitation: N, no pressure limiting protection; C, limit the pressure of actuator ports A & B simultaneously; A---B---, limit the pressure of actuator ports A & B separately, unit (bar);
(13) Function ON/OFF and pressure outlet: N, without function ON/OFF and pressure outlet; X C type pressure limitation; S/S1 AB type pressure limitation; A, electrical ON/OFF on side A; B, electrical ON/OFF on side B;
(14) Operation manner: A(1,2), manual operation with long handle (1=without handle, 2=with short handle); E, electric proportional control; EA(1,2), electric proportional control and manual operation (1=without handle, 2=with short handle); D, electric switching value control; DA(1,2), electric switching value control and manual operation (1=without handle, 2=with short handle); M, manual friction positioning with long handle; H, pure hydraulic control (two pilot oil ports align with oil ports A and B); F, pure hydraulic control (two pilot oil ports are perpendicular to oil ports A and B and outward respectively);
(15) Ancillary block: /2 Ancillary block port size G3/8; /3 Ancillary block port size G1/2; /4 Ancillary block port size G3/4; /5 Ancillary block port size G1;
(16) End plate: E1, standard end plate, external discharge of pilot oil, connecting oil return control port T externally; E2, similar to E1, external discharge of pilot oil, port Y is additionally attached; E3, external discharge of pilot oil, a 2-position 3-way magnetic ball valve is mounted; in power supply scenarios, the system pressure rises to the safety valve pressure;
E4, similar to E1, internal discharge of pilot oil, port T can be sealed; E5, similar to E2, internal discharge of pilot oil, port T can be sealed; E6, similar to E3, internal discharge of pilot oil, port T can be sealed;
(17) Control voltage and the length of anti-explosion type cable: G12-12VDC;G24-24VDC; G24Ex-3m-24VDC; G12Ex-3m-12VDC; G24MA-3m-24VDC; G12bb621436
HLPSL: Constant Displacement Pump;
HLPSV: Variable Displacement Pump;
(2) Connection Block Ports P & R Specifications:
2-G3/8;
3-G1/2;
4-G3/4;
5, 55-G1;
6-G1 1/4;
(3) Additional Components and Specifications:
C,Standard Type;
G,Throttle Valve (For HLPSL only);
H,Fixed Differential Overflow Valve for Enhanced Circulating Pressure (~14 bar, HLPSL);
(4) Pilot Oil Circuit Pressure Options0 - No pressure reducing valve; 1 - Pressure reducing valve (20 bar); 2 - Pressure reducing valve (40 bar);
(5) 2/2-way Magnetic Ball Valve for System UnloadingC - No magnetic ball valve; F - Normally open magnetic ball valve, pressurizes pump when powered, unloads pump when unpowered; D - Normally closed magnetic ball valve, unloads pump when powered, pressurizes when unpowered; D./F. . , Equipped with a pressure limiting valve for secondary pressure (F50) with a specified pressure value;
(6) Tool Adjustable, Pressure Limiting Valve in Connection Block: Adjustable settings at 63, 120, 210, 280, 315, 350, 400 bar; /NF: No pressure limiting valve (HLPSV only);
(7) Product Series Classification;-2 2 Series; -3 3 Series; -5 5 Series;
(8)Thread size of directional spool valve ports A & B:2-G3/8; 3-G1/2; 4-G3/4; 5-G1; A, ancillary block or intermediate transition block ZPL 5S(V)/H hydraulic control shut-off valve;
(9)Directional valve block inflow controller: 1, without inflow controller; 2, standard inflow controller; 4, 3-way flow controllers for inlet and outlet (ideal for N 3/3-way valve); 5, strengthened inflow controller; 8, pre-selectable;
(10) Function symbol of valve core: L, M, F, H, J, B, R, O, N;
(11) Output flow code of ports A & B: Choose from maximum output flows of ports A & B: 3, 6, 10, 16, 25, 40, 63, 80, 120, 160, 210 (L/min);
(12) Secondary pressure limitation: N, no pressure limiting protection; C, limit the pressure of actuator ports A & B simultaneously; A---B---, limit the pressure of actuator ports A & B separately, unit (bar);
(13) Function ON/OFF and pressure outlet: N, without function ON/OFF and pressure outlet; X C type pressure limitation; S/S1 AB type pressure limitation; A, electrical ON/OFF on side A; B, electrical ON/OFF on side B;
(14) Operation manner: A(1,2), manual operation with long handle (1=without handle, 2=with short handle); E, electric proportional control; EA(1,2), electric proportional control and manual operation (1=without handle, 2=with short handle); D, electric switching value control; DA(1,2), electric switching value control and manual operation (1=without handle, 2=with short handle); M, manual friction positioning with long handle; H, pure hydraulic control (two pilot oil ports align with oil ports A and B); F, pure hydraulic control (two pilot oil ports are perpendicular to oil ports A and B and outward respectively);
(15) Ancillary block: /2 Ancillary block port size G3/8; /3 Ancillary block port size G1/2; /4 Ancillary block port size G3/4; /5 Ancillary block port size G1;
(16) End plate: E1, standard end plate, external discharge of pilot oil, connecting oil return control port T externally; E2, similar to E1, external discharge of pilot oil, port Y is additionally attached; E3, external discharge of pilot oil, a 2-position 3-way magnetic ball valve is mounted; in power supply scenarios, the system pressure rises to the safety valve pressure;
E4, similar to E1, internal discharge of pilot oil, port T can be sealed; E5, similar to E2, internal discharge of pilot oil, port T can be sealed; E6, similar to E3, internal discharge of pilot oil, port T can be sealed;
(17) Control voltage and the length of anti-explosion type cable: G12-12VDC;G24-24VDC; G24Ex-3m-24VDC; G12Ex-3m-12VDC; G24MA-3m-24VDC; G12bb621436
Since our inception in 2009, Jiangsu KM Hydraulic Control System Co., Ltd. has epitomized groundbreaking innovation and unparalleled excellence in the hydraulic industry. As a prestigious subsidiary of the renowned China Baoan Group (stock code: 000009), we proudly stand as a distinguished national high-tech enterprise. Specializing in the research, development, manufacturing, and sales of top-tier hydraulic components, our esteemed status as a national 'specialized, refined, and innovative' small giant enterprise underscores our unwavering commitment to technological advancement and superior quality. This relentless dedication positions us as vanguards in our field.
Our flagship product, the load-sensitive proportional valve, exemplifies the pinnacle of advanced hydraulic system control. Expertly crafted for construction machinery and heavy-duty equipment, this versatile and adaptable component is indispensable in high-stakes applications such as emergency rescue operations, tunnel engineering, mining, and municipal service vehicles. We take immense pride in our strategic collaborations with numerous leading domestic manufacturers, playing a pivotal role in localizing core hydraulic components for high-end mechanical equipment. Guided by our core philosophy-'serving customers with technology, impressing customers with our attitude, and retaining customers with quality'-we are resolute in our commitment to delivering exceptional products, services, and solutions. Our mission is to ascend as a globally trusted supplier of premier hydraulic components, setting new benchmarks of excellence worldwide.
Our flagship product, the load-sensitive proportional valve, exemplifies the pinnacle of advanced hydraulic system control. Expertly crafted for construction machinery and heavy-duty equipment, this versatile and adaptable component is indispensable in high-stakes applications such as emergency rescue operations, tunnel engineering, mining, and municipal service vehicles. We take immense pride in our strategic collaborations with numerous leading domestic manufacturers, playing a pivotal role in localizing core hydraulic components for high-end mechanical equipment. Guided by our core philosophy-'serving customers with technology, impressing customers with our attitude, and retaining customers with quality'-we are resolute in our commitment to delivering exceptional products, services, and solutions. Our mission is to ascend as a globally trusted supplier of premier hydraulic components, setting new benchmarks of excellence worldwide.
Question:1. What about the lead time?
Answer:The lead time for production is typically one month following receipt of payment. This timeframe allows us to ensure meticulous preparation and stringent quality control for optimal results, ensuring your products are delivered flawlessly.
Question:2. Do you have any MOQ limit for LED light orders?
Answer: We offer an exceptionally low minimum order quantity. Even a single piece can be ordered for sample checking to meet your specific needs, providing ultimate flexibility for your projects.
Question:3. How to proceed with an order for LED lights?
Answer: First, inform us of your detailed requirements or intended application. Second, we will provide a customized quote based on your needs or our expert recommendations. Third, you confirm the drawings,drawings,and place a deposit to formalize the order. Finally, we will arrange production, ensuring that every specification is met to perfection, delivering a seamless and tailored solution.
Question:4. Is it OK to print my logo on the product?
Answer: Absolutely, it is possible. Please inform us formally before production begins, and confirm the design based on the sample we provide. This ensures your branding is perfectly represented with precision and quality.
