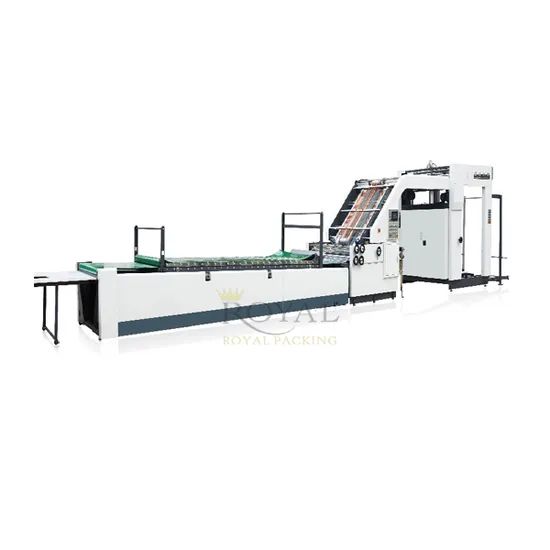

Mjbzj-4 Corrugated Carton Box Making Machines Laminating Machine

Mjbzj-4 Corrugated Carton Box Making Machines Laminating Machine - Image 1
Mjbzj-4 Corrugated Carton Box Making Machines Laminating Machine - Image 2
Mjbzj-4 Corrugated Carton Box Making Machines Laminating Machine - Image 3
Mjbzj-4 Corrugated Carton Box Making Machines Laminating Machine - Image 4
Mjbzj-4 Corrugated Carton Box Making Machines Laminating Machine - Image 5
Mjbzj-4 Corrugated Carton Box Making Machines Laminating Machine - Image 6
Mjbzj-4 Corrugated Carton Box Making Machines Laminating Machine - Image 1
Mjbzj-4 Corrugated Carton Box Making Machines Laminating Machine - Image 2
Mjbzj-4 Corrugated Carton Box Making Machines Laminating Machine - Image 3
Mjbzj-4 Corrugated Carton Box Making Machines Laminating Machine - Image 4
Mjbzj-4 Corrugated Carton Box Making Machines Laminating Machine - Image 5
Mjbzj-4 Corrugated Carton Box Making Machines Laminating Machine - Image 6

set

Negotiable


Product information

High-quality Mjbzj-4 Corrugated Carton Box Making Machines Laminating Machine supplied by Hangzhou Royall Import & Export Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.

Production Capacity:

30

Specification:

8500*900*1300mm

Packaging:

Case

Origin:

China

Driven Type:

Electric

Trade Term:

FOB, CFR, CIF, EXW

Transport Package:

Iron Case

Payment Term:

LC, T/T, D/P, PayPal, Western Union, Small-amount payment

Specifications

Production Capacity:

30

Specification:

8500*900*1300mm

Packaging:

Case

Origin:

China

Driven Type:

Electric

Trade Term:

FOB, CFR, CIF, EXW

Transport Package:

Iron Case

Payment Term:

LC, T/T, D/P, PayPal, Western Union, Small-amount payment

Model NO.:

MJBZJ-4

Trademark:

Royal

Port Of Loading:

Shanghai Port; Ningbo Port

Business Details

Country:

China

Business Types:

Not specified

Main Markets:

Not specified

Main Products:

Not specified

Year Established:

2012-07-16

Annual Revenue Amount:

Not specified

Numbers Of Employees:

15

Preferred Payment Term:

LC, T/T, D/P, PayPal, Western Union, Small-amount payment

Preferred Trade Term:

FOB, CFR, CIF, EXW

Port Of Loading:

Shanghai Port; Ningbo Port

Certificates:

CE

Product descriptions from the supplier

  1. Specifications
No. MODEL MJBZJ-4-1450 MJBZJ-4-1650
1 Max. Sheet Size 1450*1450mm 1650*1600mm
2 Min. Sheet Size 450*450mm 450*450mm
3 Max. Weight for Top Sheet 550g/m² 550g/m²
4 Min. Weight for Top Sheet 157g/m² 157g/m²
5 Max. Thickness of Bottom Sheet 10mm 10mm
6 Min. Thickness of Bottom Sheet 0.5mm 0.5mm
7 Max. Laminating Speed 150m/min 150m/min
8 Lamination precise +/-1.5mm +/-1.5mm
9 Total power 22KW 22KW
10 Overall dimensions (L*W*H) 15000*2250*2350mm 15600*2450*2350mm
11 Total weight 7100kg 7500kg


II. Features of the Machine:
1. E shape lifting board used for the feeding unit enables sheets to be pushed into position by hydraulic jack. Rail with pre-piling device are available for option.
2.    Self-made four sucking and four forwarding suckers for the feeder ensures smooth running with no missing of sheet even at high speed.
3.    Sensing and compensation and alignment device uses several group of sensors to sense the relative position of the running corrugated board so that two servo motors at left and right side for the top paper can drive independently to align top paper with corrugated paper with high accuracy and high speed.
4.    Global-functional electric control system with touch screen and PLC program monitors automatically the working condition and facilitate trouble shooting. The electric design conforms to the CE standard.
5.    Gluing unit uses high precise coating wheels, together with specially designed metering steel roller enhances the evenness of gluing.The unique gluing wheel with glue stopping device and automatic glue level control system guarantees backflow with no overflow of glue.
6.    Machine frames are processed by CNC lathe in one process, which ensures the precise of every positions. Toothed belts for transferring guarantees smooth running with low noise. Motors and the spares uses Chinese famous brand with high efficiency, less trouble and long service life.
7.    Corrugated board feeding unit adopts powerful servo motor control system with the features of high sensitivity and fast speed. The suction unit uses high-pressure blower,SMC high- flow control valve as well as unique dust collection filter box,which enhances suction force for different corrugated paper, ensuring smooth running with no double or more sheets, no missing sheet.

III. Main electric configuration
No. Name Manufacturer Model Specification
1 PLC DELTA DVP-80EH00T 40in 40out
2 PLC extension DELTA DVP-16HM11N 16in
3 Touch screen DELTA DOP-07S411 7 INCH
4 Frequency converter DELTA VFD-E 3.7KW
5 Frequency converter DELTA VFD-E 1.5KW
6 Frequency converter DELTA VFD-E 0.75KW
7 Control card TRIO   MC-401
8 Tracking Servo controller YASKAWA SGDV-2R8A01B 400W
9 Servo controller for bottom paper YASKAWA SGD7S-470A00A 6KW
10 Servo controller for bottom paper YASKAWA SGDV-330A01A 4.4KW
11 Isolation transformer     6KW
12 Encoder KOYO 5V 1000 TRD-2T1000V
13 Photoelectric switch OMRON E3T-SL23 PNP
14 Photoelectric switch FOTEK CDR-10X
15 Photoelectric switch OMRON EE-SX670P PNP
16 Proximity switch FOTEK PL-08P
17 Solid relay   SDP-1110D DC-DC
18 Solid relay   SSR-40DA DC-AC
19 Control transformer TENGEN BK-300 380V/220V
20 Stabilized voltage supply MEANWELL S-250-24 220V/24V
21 Glue level controller
23 Breaker   NSC 60 E3 040 380V 3P 60A
24 Contactor   LC1-E0910 AC220V 9A
25 Contactor   LC1-E3210 AC220V 32A
26 Contactor   LC1-E1201 AC220V 12A
27 Thermal relay     7-10A
28 Thermal relay     1.6-2.5A
29 Thermal relay     1-1.6A
30 Intermediate relay   RXM2LB2BD DC24V 5A
