Modern Vertical Rotary Parking System with Nine Floors and Remote Management for Sedan Facilities
1 Number of parking spaces
$4,5001 Number of parking spaces
$5,000Product information
High-quality Modern Vertical Rotary Parking System with Nine Floors and Remote Management for Sedan Facilities supplied by Dayang Parking Co., Ltd.. Bulk wholesale pricing ranges from $4,500 to $5,000 per Number of parking spaces with a minimum order of 1 Number of parking spaces. Inquiry for latest prices.
Motor Power:
11kw
Max Retrieval Time:
161s
Production Capacity:
200000 PCS/Year
Load Capacity:
2000kg
Lifting Speed:
4.8 M/Min
Package Size:
650.00cm * 150.00cm * 80.00cm
Package Gross Weight:
800.000kg
Installation:
Aboveground
Specifications
Motor Power:
11kw
Max Retrieval Time:
161s
Production Capacity:
200000 PCS/Year
Load Capacity:
2000kg
Lifting Speed:
4.8 M/Min
Package Size:
650.00cm * 150.00cm * 80.00cm
Package Gross Weight:
800.000kg
Installation:
Aboveground
Safety Features:
Anti-Collision Sensors, Emergency Stop Button, Fire Suppression System, Overload Protection
Structure Materials:
Carbon Steel/Special Steel
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Specification:
Customizable
Trademark:
Dayang Parking
Trade Term:
FOB, EXW, CFR, CIF, DDP, DAP, FCA, Others, DAT, FAS
Vehicle Access Method:
Forward Inbound, Reverse Outbound
Operation Mode:
Fully Automatic
Certification:
ISO, CE, SGS
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Money Gram
Lifting Mechanism:
Mechanical
Port Of Loading:
QINGDAO, SHANGHAI, TIANJIN
Vehicle Dimensions:
Sedan 5300*1900*1550
Compatibility:
Sedans
Type:
Semi-Automated Parking System
Payment Methods:
Support payments in USD
Control System:
Touch Screen Control
Transport Package:
Wooden Crate, Steel Straps
Model NO.:
pxc-9-2
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2001-11-02
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Money Gram
Preferred Trade Term:
FOB, EXW, CFR, CIF, DDP, DAP, FCA, Others, DAT, FAS
Port Of Loading:
QINGDAO, SHANGHAI, TIANJIN
Certificates:
CE, ISO14001, ISO45001:2018, ISO50001, ISO9001:2015
Product descriptions from the supplier
Product Description

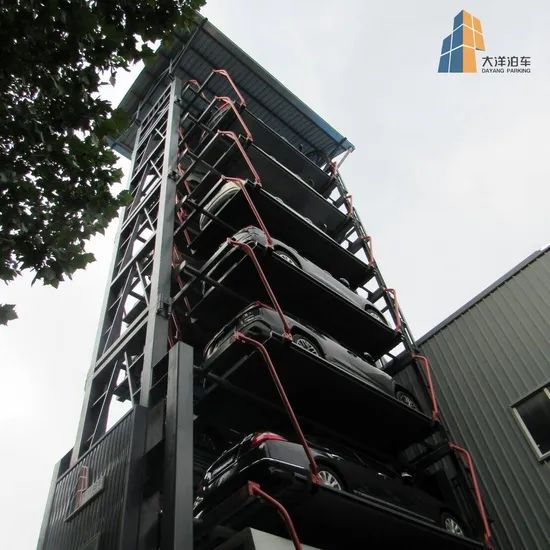

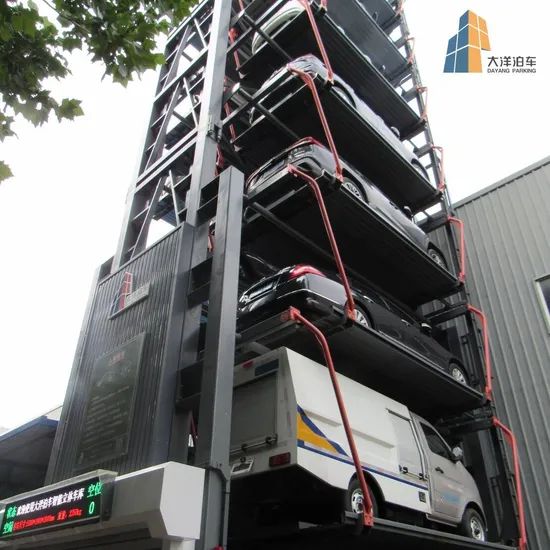

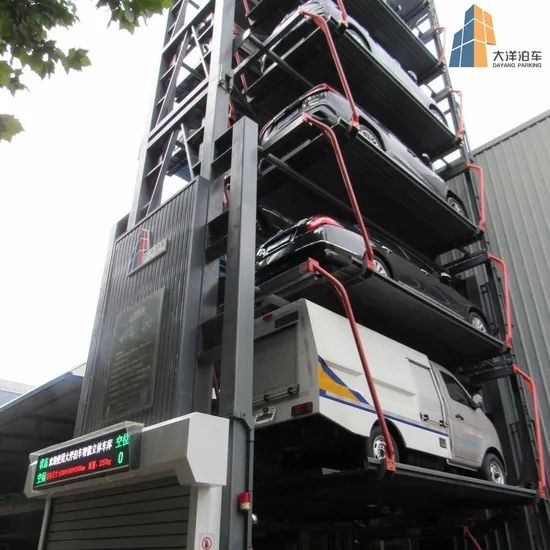

Product Name | 9 story Vertical Rorary Parking System for sedan | |
Drive Mode | Motor and Chain | |
Car Size | 9 storeys, Sedan 5300*1900*1550 | |
Car Weight | ≤2000kg | |
Power & Speed | Lifting | 11kw 4.8m/min |
Vehicle access method | Forward inbound, reverse outbound | |
Power Resource | 3P 380V 50Hz and customization | |
NO1. Ultimate Space Utilization
1.Minimal Land Footprint: The entire system requires only the space of one standard parking spot, yet through vertical circular operation, it can accommodate 8, 10, or even more vehicles. This is revolutionary for city centers and commercial areas with scarce land resources.
2.Multiplied Capacity: Compared to traditional ground parking, it can increase parking capacity several times over, effectively alleviating the "parking difficulty" issue.
NO2. High Automation and Convenience
1.Smart and Simple Operation: Drivers simply park their vehicle in the entrance/exit bay on the ground level, and the system automatically transports it to an available space. To retrieve the vehicle, pressing a button, using a card, or a mobile app automatically brings the target vehicle to the exit.
1.Smart and Simple Operation: Drivers simply park their vehicle in the entrance/exit bay on the ground level, and the system automatically transports it to an available space. To retrieve the vehicle, pressing a button, using a card, or a mobile app automatically brings the target vehicle to the exit.
2.No Need to Search for a Space: Completely eliminates the hassle of searching for a parking spot in large lots, significantly saving time and effort.3.Rapid Vehicle Access: The system can typically complete the retrieval process within 1-2 minutes, far more efficient than traditional parking facilities.
NO3. Exceptional Safety and Vehicle Protection
1.Complete Separation of People and Vehicles: Except for the entrance/exit, personnel do not enter the parking area, fundamentally preventing collisions between vehicles and with people within the facility.
2.Comprehensive Vehicle Security: The enclosed/semi-enclosed design effectively reduces the risk of scratches, theft, or vandalism to vehicles.
3.Multiple Safety Protections: Equipped with comprehensive sensor systems , mechanical locking devices, and emergency systems, ensuring safety throughout the lifting and rotating process.
NO4. Environmental Sustainability and Architectural Aesthetics
1.Reduced Land Development: The vertical development model minimizes land occupation and ground hardening, offering greater environmental value.
2.Lower Emissions: The significantly reduced vehicle entry/exit time drastically cuts exhaust emissions within the parking facility, improving local air quality.
3.Enhanced Urban Image: The modern design makes the parking system a visual highlight in the urban landscape, breaking the monotonous impression of traditional parking lots.
5. Excellent Adaptability and Flexibility
1.Wide Range of Applications: Particularly suitable for space-constrained locations like hotels, office buildings, residential areas, shopping malls, hospitals, and renovation projects in old residential areas.
2.Customized Solutions Available: Personalized solutions with different capacities, heights, and appearances can be provided based on site space conditions and architectural style.
United States Parking Project
Saudi Arabia Parking Project
Zhengzhou Construction Committee Parking Project
Type: Vertical Horizontal Parking System
Floor: 5 (1-floor underground and 4
onground)
Quantity of Parking Spaces: 38
Type: Mechanical Puzzle Parking System
Storey: 2
Quantity of Parking Spaces: 926
Type: Smart Vertical Horizontal Parking System
Floor: 5
Quantity of Parking Spaces: 1,338
Advantage:
Customized Design with Comprehensive Facilities
High Safety Standards Fire & Earthquake Resistant
Company Profile
Dayang Parking
Industry Leader – Top Chinese manufacturer of mechanical and smart parking systems since 2001.
Comprehensive Product Range – Specializes in vertical parking system, puzzle parking system, vertical rotary parking system, simple parking lift, all supporting new energy charging.
Global & Domestic Reach – Operates in 30+ Chinese provinces and 200+ cities, with exports to North America, the Middle East, Europe, Southeast Asia, Latin America, and more.
High-Capacity Production – Annual output exceeds 200,000 parking spaces, ranking among the industry's top producers.
Innovative & Sustainable – Products emphasize safety, energy efficiency, and environmental sustainability for diverse applications.
Packing & Delivery
After Sales Service
FAQ
1. Q: How to prevent equipment corrosion in high-humidity areas?
A: Hot-dip galvanized steel and fluorocarbon spraying technology are used, with a salt spray test reaching 1000 hours. A dehumidification system can be optionally equipped to control humidity below 60%.
2. Q: How to deal with icing in cold regions?
A: Heated car carriers (adjustable from -30ºC to 50ºC) are equipped, and the guide rails use anti-slip coatings. Dayang's low-temperature start-up technology can operate reliably in environments as low as -40 °C.
3. Q: Can unmanned management be realized?
A: It supports AGV robots to transport vehicles; car owners only need to park at the entrance and leave. Dayang's IoT system can monitor equipment status in real-time and automatically alert to abnormalities.
4. Q: What is the construction cost of a multi-story parking garage?
A: Lifting and traversing types cost about 15,000-30,000 yuan per parking space, and vertical lifting types cost about 60,000-100,000 yuan per parking space. Dayang provides full-cycle cost optimization solutions from design to operation, which can reduce energy consumption by 20%.
5. Q: Are there government subsidy policies?
A: Places like Shenyang provide a maximum subsidy of 20,000 yuan per parking space for public multi-story parking garages. Dayang can assist customers in applying for special funds and provide policy interpretation and declaration services.
