Motor Control (Motor Driver) Unit Motor Count 2 Motor Type Bldc Chassis Type Rugged Connector Type Circular Control System Pid On
Negotiable
Product information
High-quality Motor Control (Motor Driver) Unit Motor Count 2 Motor Type Bldc Chassis Type Rugged Connector Type Circular Control System Pid On supplied by Meltronics Systemtech. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Operating Temperature:
-40°c To +85°c
Storage Temperature:
-40°c To +85°c
Motor Count:
2
Can Bus Interface Per Controller:
2
Supply Voltage Range:
24–48 V Dc
Relative Humidity:
90% (non-condensing)
Control Core:
Arm 7 Core Lpc2917
Motor Type:
Bldc
Specifications
Operating Temperature:
-40°c To +85°c
Storage Temperature:
-40°c To +85°c
Motor Count:
2
Can Bus Interface Per Controller:
2
Supply Voltage Range:
24–48 V Dc
Relative Humidity:
90% (non-condensing)
Control Core:
Arm 7 Core Lpc2917
Motor Type:
Bldc
Unit Scaling:
By Factor Group
Communication Interface:
Can Bus
Connector Type:
Circular
Position Profile Generation:
Online With 250 Μs Fine Interpolation
Control System:
Pid On Rtos
Positioning Modes:
Position, Velocity, Homing
Multi Turn Encoder Evaluation:
Positioning Without Referencing
Encoder Evaluation Capability:
Precision Positioning With Backlash Mechanism
Feedback Interfaces:
Resolver, Encoder, Lvdt/rvdt
Chassis Type:
Rugged
Driving Logic:
Sequenced Driving With Sequential Job Logic
Trade Term:
To be discussed
Payment Term:
To be discussed
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2015
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier
MS1527

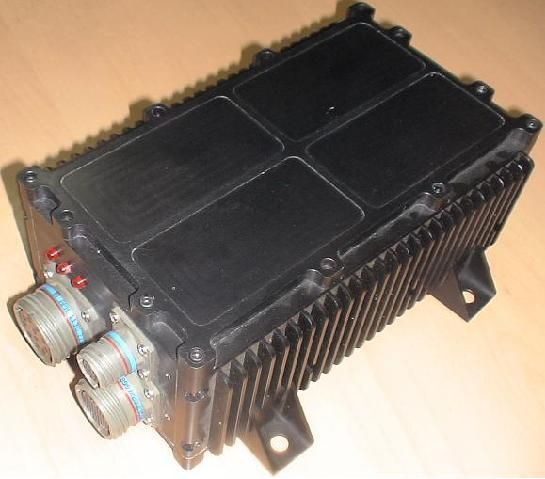

Motor Control (Motor Driver) Unit:
The MCU system is designed based on ARM 7 core LPC2917 Microcontrollers to drive two DC servo motors (BLDC) independently. The unit consists of two LPC2917 micro controllers and each controlling one motor. The each controller having two CAN Bus interface with for remote communication. The unit is enclosed with rugged chassis with circular connector for CAN Bus communication and other interfaces. The Motor Control Unit is controlled through CAN Bus. It receives command and generates PWM Outputs to drive the motor. PWM is used to switch the motor voltage depends on the pulse width.
This MCU controls a variety of low power, low voltage brushless (BLDC) motors. It can be used in applications, such as:
Transportation power plants
Mobile equipment (off-highway)
Material handling equipment, electric vehicles
Industrial automation
Robotics
Environmental Conditions
Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +85°C
90% Relative Humidity (Non-condensing)
Motor Control (Motor Driver) Unit:
The MCU system is designed based on ARM 7 core LPC2917 Microcontrollers to drive two DC servo motors (BLDC) independently. The unit consists of two LPC2917 micro controllers and each controlling one motor. The each controller having two CAN Bus interface with for remote communication. The unit is enclosed with rugged chassis with circular connector for CAN Bus communication and other interfaces. The Motor Control Unit is controlled through CAN Bus. It receives command and generates PWM Outputs to drive the motor. PWM is used to switch the motor voltage depends on the pulse width.
- Supply voltage 24–48 V DC for operation at safety extra-low voltage level
- CAN open inside with Position, Velocity and Homing modes and scaling of units by Factor Group
- Resolver, Encoder and LVDT/RVDT feedback interface
- Evaluation of encoders for precision positioning operations with backlash mechanism
- Evaluation of multi-turn encoders for positioning operations without referencing
- Sequenced driving set positioning with sequential job logic
- Online position profile generator for real-time position profile generation with 250 μs fine interpolation
- PID runs on RTOS
This MCU controls a variety of low power, low voltage brushless (BLDC) motors. It can be used in applications, such as:
Transportation power plants
Mobile equipment (off-highway)
Material handling equipment, electric vehicles
Industrial automation
Robotics
Environmental Conditions
Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +85°C
90% Relative Humidity (Non-condensing)
